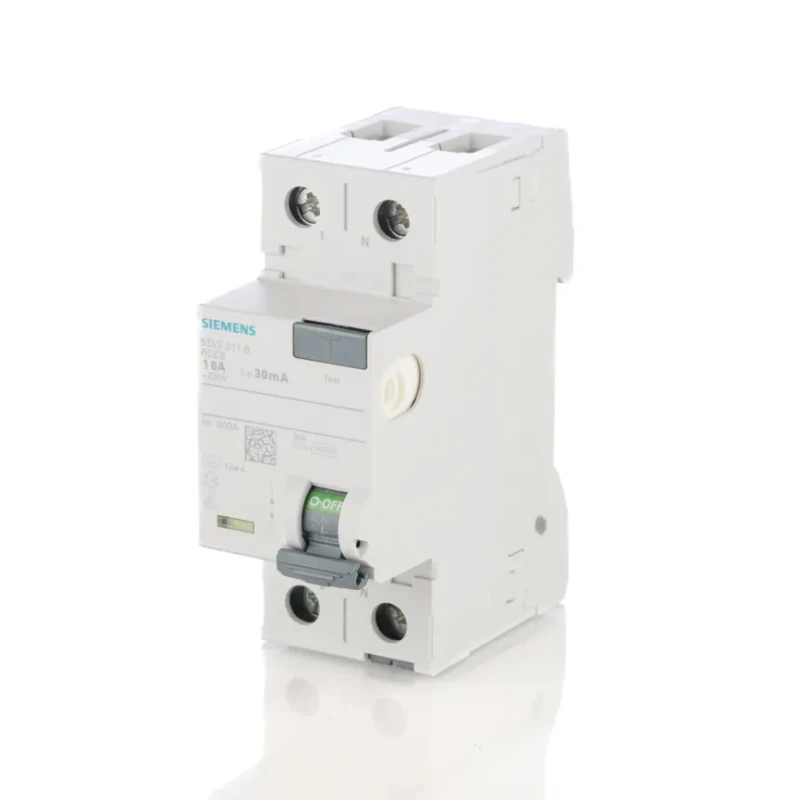

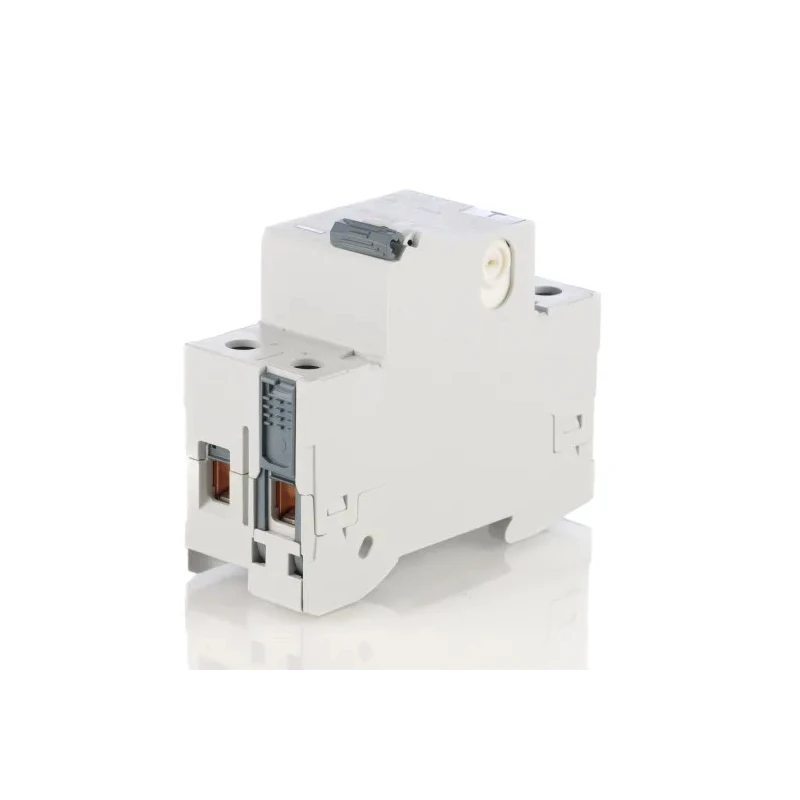

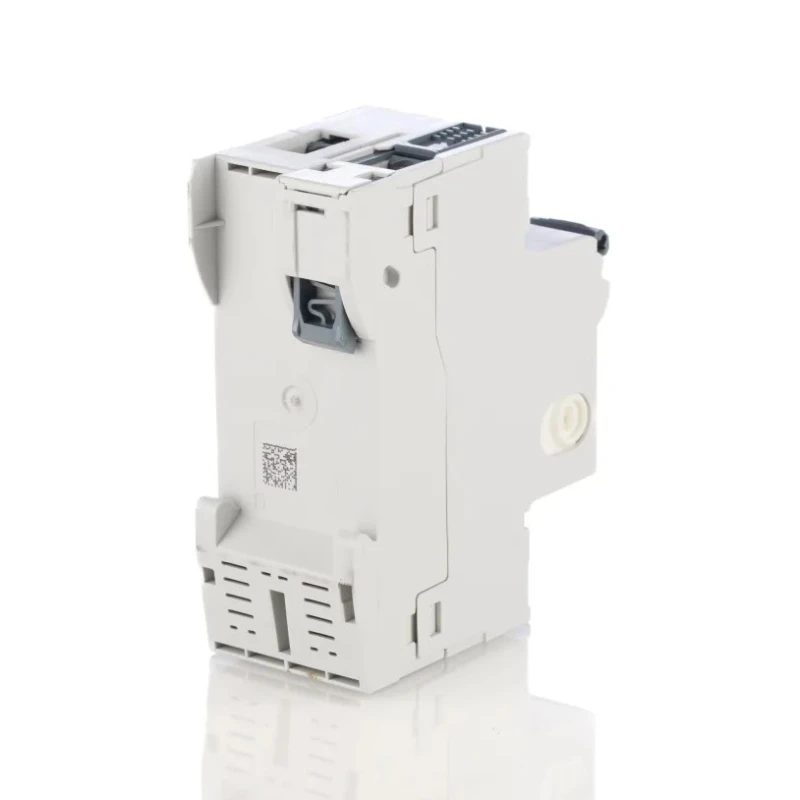

Siemens 5SV3 Series Residual Current Circuit Breaker 16A 2-Pole 30mA Type A 0.8kA 230V AC 5SV3311-6

Siemens 5SV3311-6 is a high-quality Residual Current Circuit Breaker (RCCB) from the 5SV3 SENTRON series, designed for protection in electrical installations with a current rating of 16A. This 2-pole device features a type A trip characteristic with 30mA sensitivity, which allows it to detect and immediately isolate earth leakage currents for safety. It operates on 230V AC and can break faults up to 0.8kA, ensuring robust protection.

The RCCB is engineered for DIN rail mounting, which simplifies installation in industrial panels and distribution boards. Its compact size of 90mm height, 72mm width, and 70mm depth makes it suitable for tight electrical setups. The screw terminal type connection guarantees secure conductivity and long-term reliability.

This breaker complies with internationally recognized standards including VDE, UKCA, CCC, EAC, and CE, making it suitable for use in diverse markets. The instantaneous break time guarantees fast response to electrical faults, preventing damage and enhancing safety.

The toggle switch actuator allows for quick manual reset after the breaker has tripped. Its type A earth leakage protection is ideal in environments where pulsating DC components may be present, such as in residential, commercial, and industrial installations.

Manufactured in Germany, the Siemens 5SV3311-6 is designed for durability and performance, meeting the requirements of modern electrical safety systems. It is part of the environmentally conscious Siemens Better World product range, featuring extended product life and sustainability benefits.

High trip sensitivity of 30mA ensures rapid disconnection on earth leakage. Designed for 230V AC systems with 0.8 kA breaking capacity. DIN rail mounting enables easy and secure installation. Complies with VDE, UKCA, CCC, EAC, and CE standards for safety and quality.

Equipped with screw terminal type for reliable electrical connections. Compact dimensions of 90mm (height), 72mm (width), and 70mm (depth). Instantaneous break time minimizes risk during faults. Toggle switch reset actuator allows simple manual reset after trips.

Suitable for industrial, residential, and commercial electrical protection. Manufactured in Germany ensuring high product reliability.

For those seeking premium residual current protection, Siemens 5SV3311-6 provides advanced functionality combined with reliability. It is perfect for industrial, residential, and commercial electrical safety applications. Explore more high-quality circuit breakers and protective gear in the Electronics & Electricals category on EnvMart.
