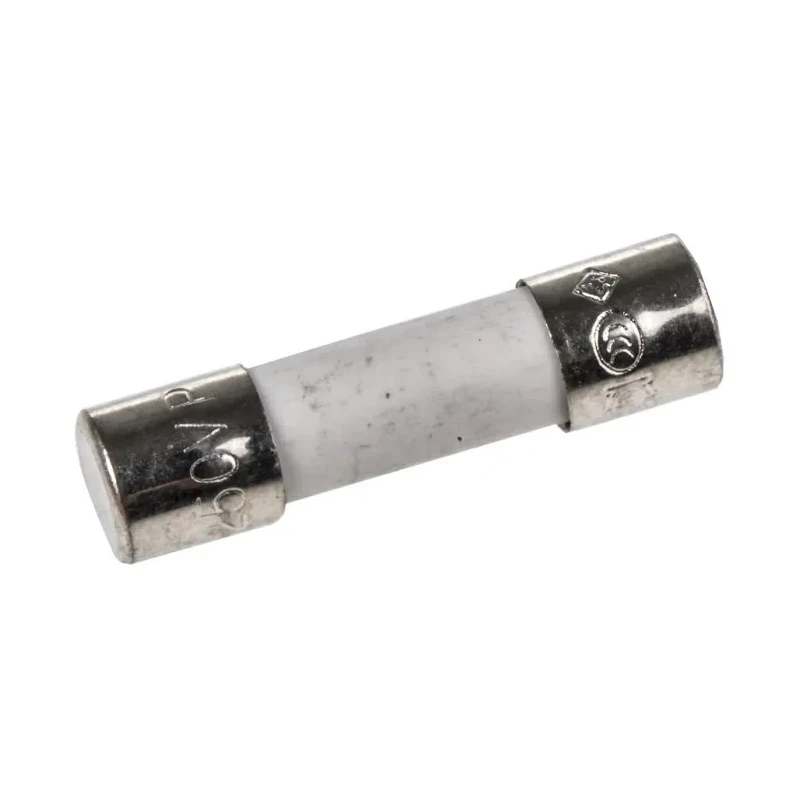

Littelfuse 1A Fast Acting Ceramic Cartridge Fuse 5 x 20 mm 250V AC 0216001.MXP

Littelfuse 0216001.MXP is a fast acting (F) ceramic cartridge fuse rated at 1 ampere and designed for use in electrical protection circuits operating at 250V AC. Its compact 5 x 20 mm ceramic body provides durability and thermal stability, making it ideal for protecting sensitive semiconductor devices such as thyristors, diodes, and triacs from overcurrent and short circuits.

This fuse operates effectively in a broad temperature range from -55°C minimum to 125°C maximum, ensuring reliable performance under various environmental conditions. The fast acting characteristic offers quick interruption of faults, reducing the risk of damage to electronic components and equipment.

Measuring 20 mm in overall length and 5 mm in diameter, this Cartridge Fuse is suitable for compact fuse holders and industrial applications where space is limited. The ceramic material enhances breaking capacity and provides superior mechanical and vibration resistance compared to glass fuses.

The 0216001.MXP fuse conforms to international safety and quality standards including VDE, UL Recognized (UR), SEMKO, CSA, CE, and CCC certifications, ensuring compliance and reliability for diverse electrical and electronic installations.

Typical applications include short-circuit protection of semiconductors, industrial control circuits, instrumentation, and other electronic devices where fast response to overcurrent conditions is critical. It is recommended to use open type fuse holders for ratings above 6.3A to prevent nuisance tripping near full rated current.

The Littelfuse fast acting ceramic fuse ensures high breaking capacity and exceptional operational stability, making it a trusted component in electrical circuit protection for manufacturing, laboratory, HVAC, and commercial electrical systems.

The fuse has a 5 x 20 mm ceramic body for enhanced durability and heat resistance. Rated for a current of 1 ampere to protect sensitive components from overcurrent. Fast acting characteristics ensure quick response to faults, ideal for semiconductor protection.

Operates reliably across a temperature range of -55°C to 125°C. Compact size with a 20 mm overall length and 5 mm diameter for versatile mounting. Complies with multiple standards including VDE, UR, SEMKO, CSA, CE, and CCC.

Suitable for industrial and electronic applications requiring dependable circuit protection. Robust ceramic construction provides high breaking capacity and mechanical strength. Explore more circuit protection devices and Littelfuse products on EnvMart for industrial, electrical, and electronics applications.
