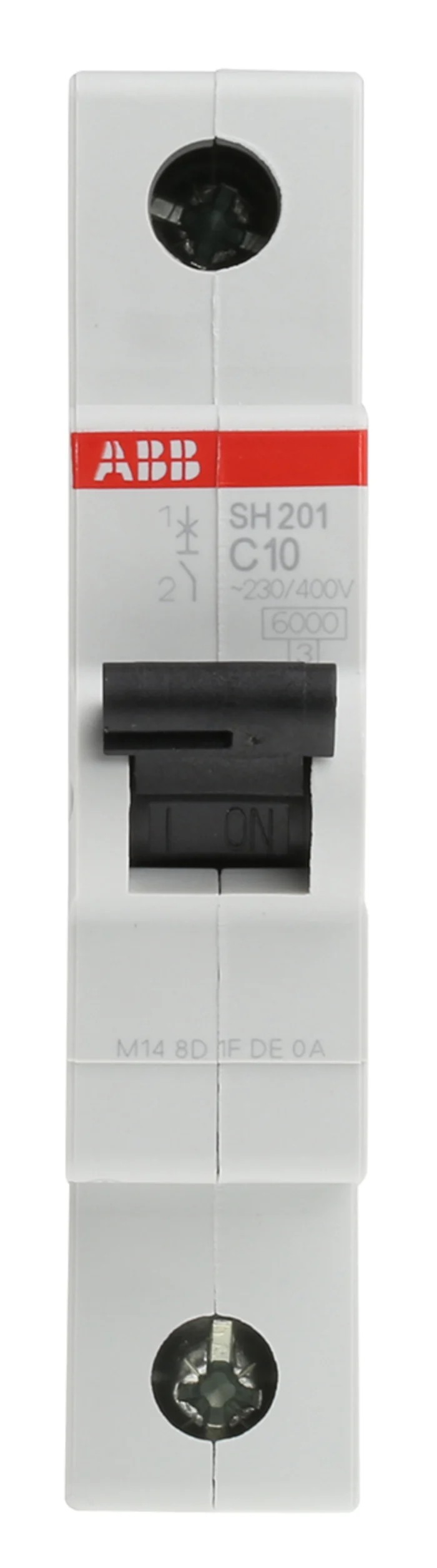

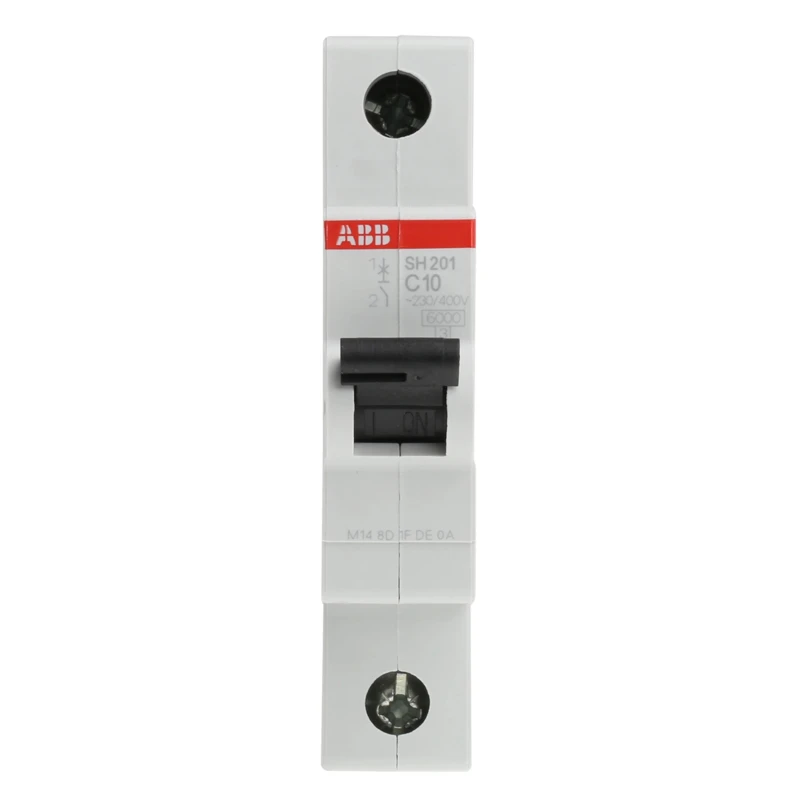

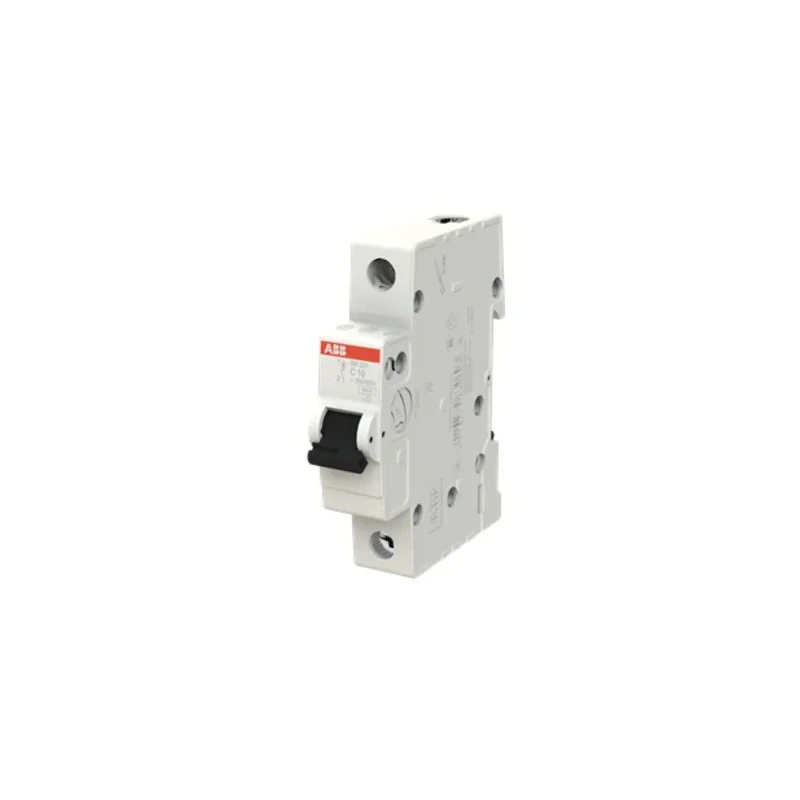

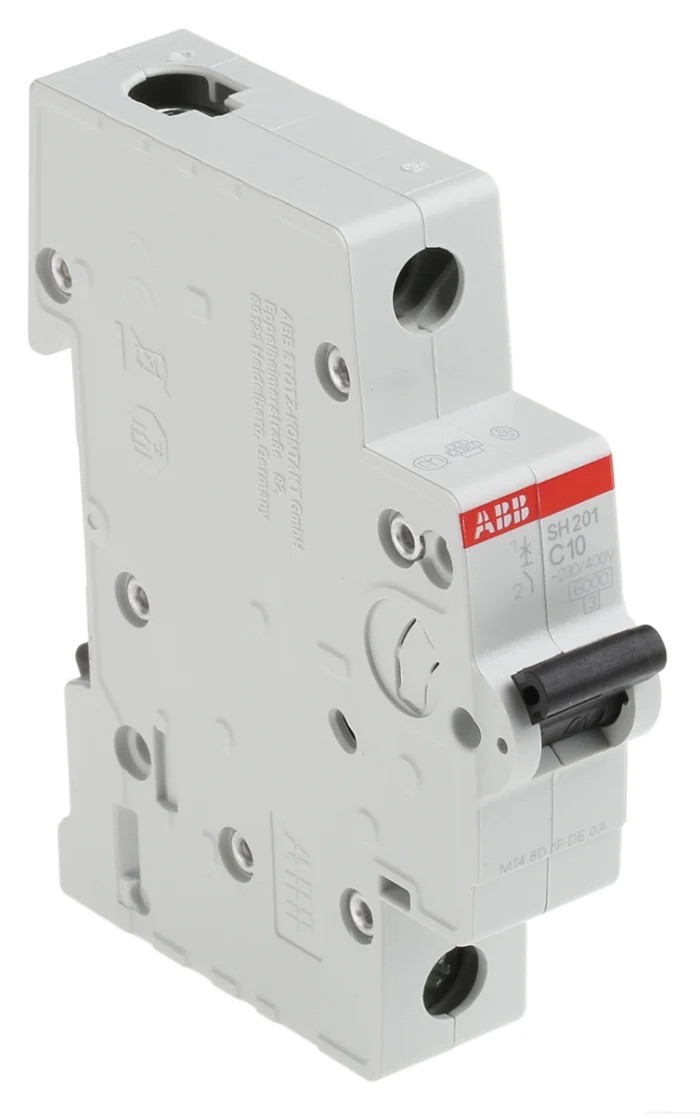

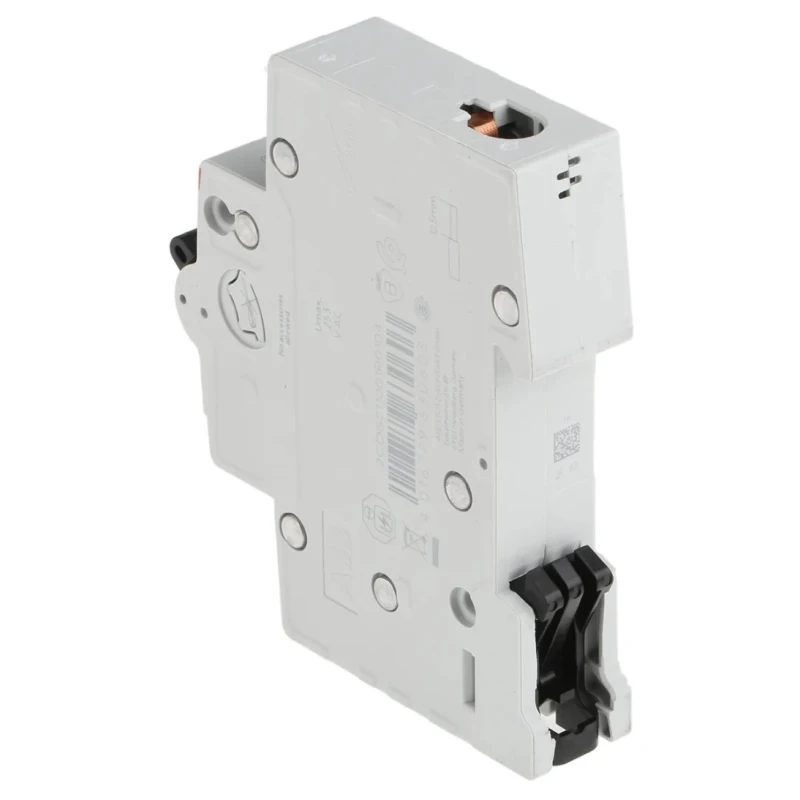

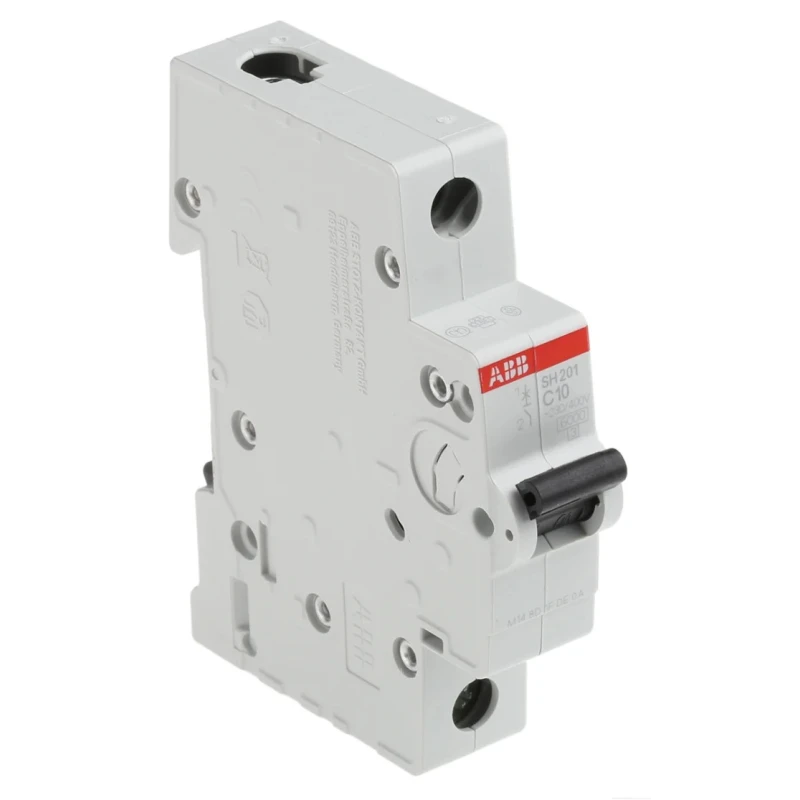

RS PRO ComPact Home SH200 Miniature Circuit Breaker, 1-Pole, 10A, Type C, 440V AC, 60V DC, 6kA 2CDS211001R0104 SH201-C10

ABB 2CDS211001R0104 SH201-C10 Miniature Circuit Breaker is a compact and reliable 1-pole protection device rated at 10 amperes with Type C tripping characteristics. It is designed for electrical circuit protection in domestic and industrial settings, effectively preventing damage from overcurrent or short-circuit events.

The breaker supports a maximum operating voltage of 440V AC and 60V DC and offers a breaking capacity of 6kA, making it suitable for various electrical installations including industrial lighting and motor control circuits. Its thermal tripping mechanism detects overcurrent by monitoring circuit temperature changes ensuring timely disconnection. The DIN rail mounting option makes it simple to install within standard distribution panels.

Designed with a thermoplastic housing, the device is impact resistant and durable for demanding environments. It features screw terminals enabling secure and straightforward wiring. The breaker’s IP20 rating provides finger-safe protection, preventing accidental contact with live parts and objects larger than 12 millimeters.

The device exhibits a wide operating temperature range from -25°C to +55°C, allowing it to function reliably in diverse climatic conditions. It is suitable for use in domestic wiring, industrial lighting systems, and medical facilities among other applications.

Compact 1-pole Miniature Circuit Breaker with 10A current rating. Type C tripping characteristic, triggers at 5 to 10 times rated current. Operating voltage: 440V AC and 60V DC. Breaking capacity of 6kA for robust short-circuit protection.

Thermal tripping mechanism ensures reliable overcurrent detection. DIN rail mounting for standardized electrical panel installation. Screw terminal connection type for easy wiring. IP20 protection rating for finger-safe operation.

Operating temperature range of -25°C to +55°C for versatile usage. Thermoplastic housing provides durability and impact resistance.

This ABB Miniature Circuit Breaker forms an essential safety component for industrial, commercial, and residential electrical distribution systems. It adheres to IEC/EN 60898-1 standards ensuring quality and performance. Protect your electrical networks with confidence using the ComPact Home SH200 series MCBs from ABB. Browse more circuit protection devices and electrical components on EnvMart for your various needs.
