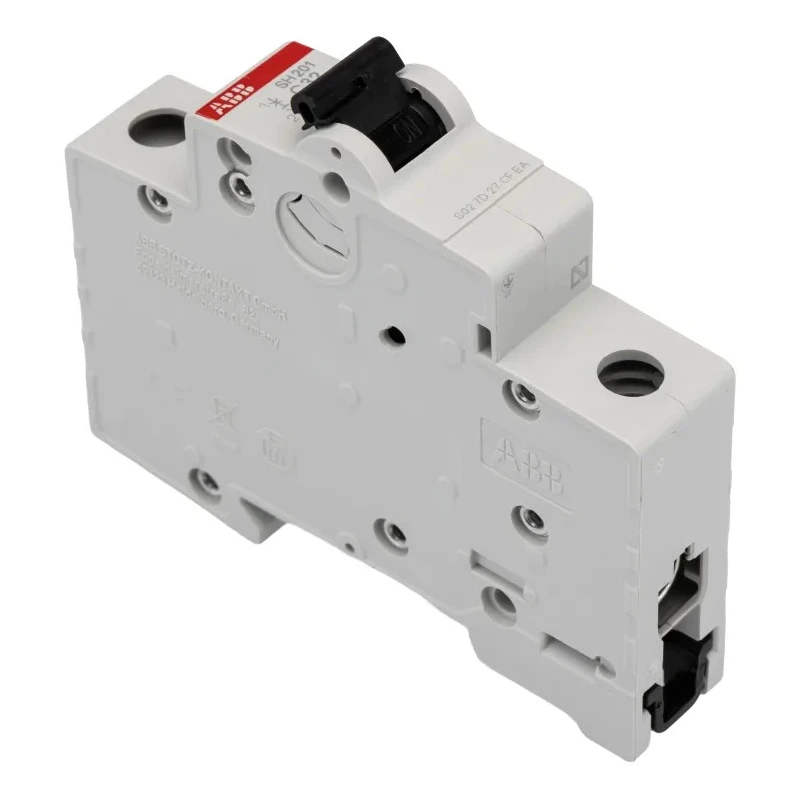

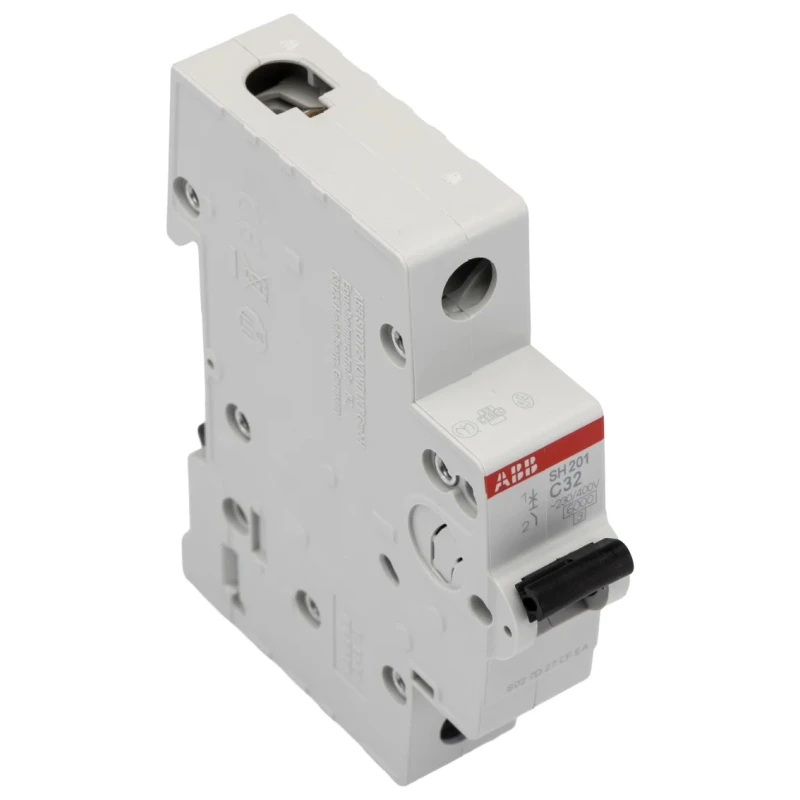

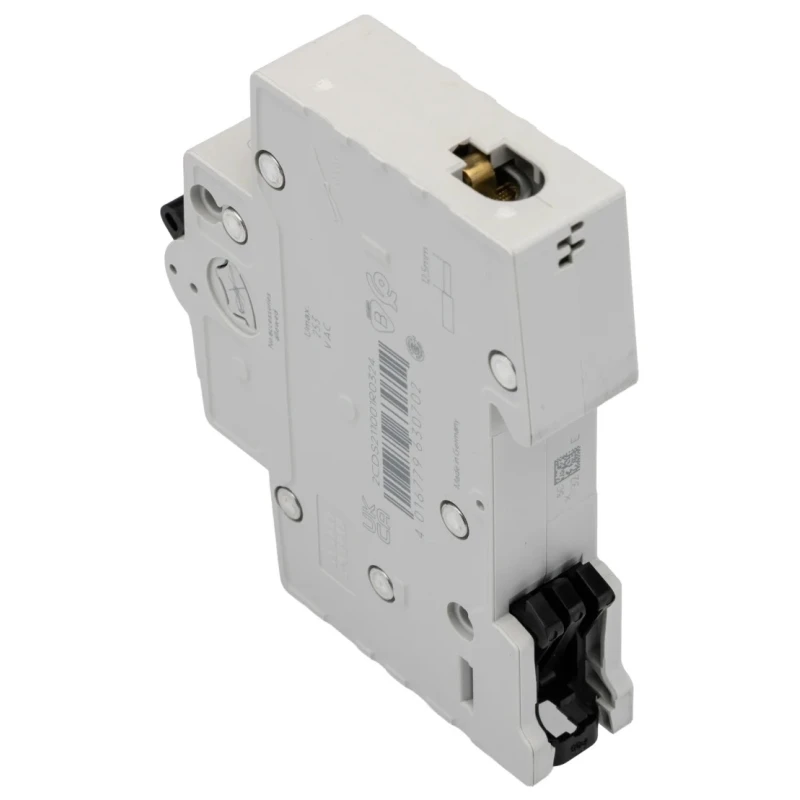

ABB ComPact Home Miniature Circuit Breaker 1-Pole 32A Type C 440V AC 60V DC 6kA Breaking Capacity SH200

ABB SH200 Miniature Circuit Breaker, model SH200, is a 1-pole device rated for 32A current and designed to provide robust electrical protection in residential and commercial installations. It offers Type C tripping characteristics, which allow precise and reliable detection of both overloads and short circuits, making it suitable for a variety of electrical systems.

This circuit breaker supports up to 440V AC and 60V DC, ensuring flexibility in diverse applications. The 6kA breaking capacity at 230/400V AC meets rigorous safety requirements for interrupting fault currents efficiently to protect wiring and connected equipment.

The breaker is engineered for easy DIN rail mounting and utilizes screw clamp terminals for solid and maintenance-friendly connections. With a compact width of 17.5 mm, height of 85 mm, and depth of 69 mm, it optimizes panel real estate usage in electrical distribution boards.

Conforming to IEC/EN 60898-1 standards, the SH200 series assures compliance with international safety norms, while its IP20 rating provides protection against solid objects and access to hazardous parts. The toggle switch actuator offers intuitive manual controls for resetting the device after tripping.

Its electromagnetic and thermomagnetic trip mechanism effectively guards electrical circuits against overload and short circuits, enhancing safety and operational reliability. Manufactured in Germany, the product reflects ABB's commitment to quality and durability.

Type C tripping characteristic for sensitive overload and short circuit protection. Rated current of 32 Amps suitable for various load requirements. Supports both AC and DC voltage applications at 440V and 60V respectively.

DIN rail mount with secure screw clamp terminal for easy installation. Compact size allows efficient use of panel space. Conforms to international IEC/EN 60898-1 standards. Toggle switch actuator for easy reset functionality.

IP20 rated for protection against solid ingress. Electromagnetic and thermomagnetic tripping mechanisms for dependable protection. Manufactured in Germany ensuring high reliability.

This Miniature Circuit Breaker is ideal for residential and commercial electrical distribution boards, protecting household appliances, machinery, lighting and power circuits, as well as automation systems. It combines advanced technology with reliable safety to meet modern electrical protection needs. Explore more from the ABB ComPact Home series for comprehensive circuit protection solutions on EnvMart.
