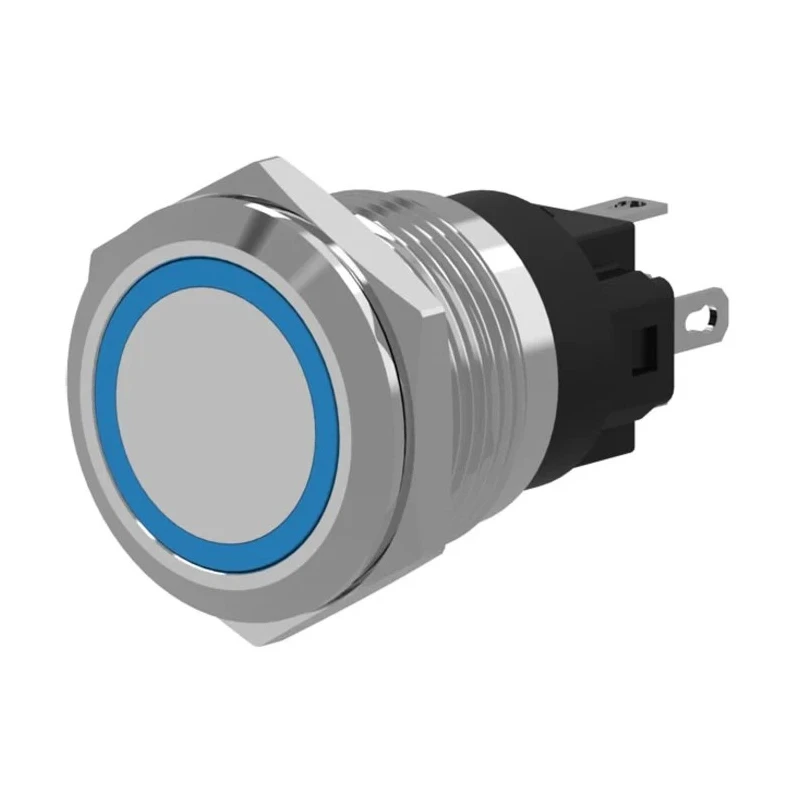

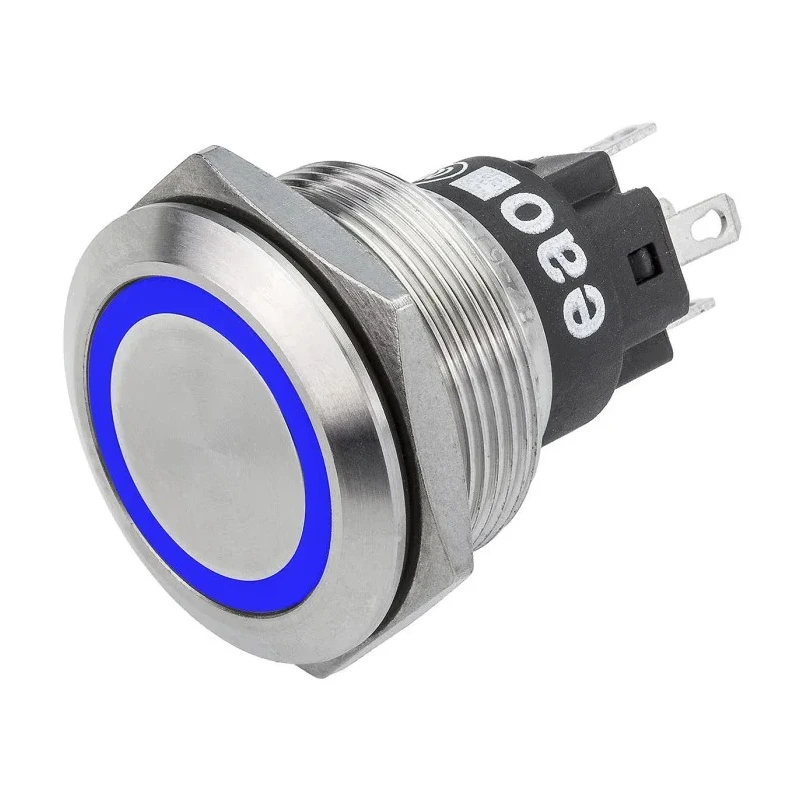

EAO Illuminated Momentary Push Button Switch Panel Mount 22.3 mm Cutout SPDT Blue LED IP65 IP67 240V AC/DC 82-6151.1124



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Snap Action
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac

Key Features

Features a momentary snap-action operation ideal for short-term manual control.
Illuminated with a blue LED indicator that lights up when pressed.
Compact 22.3 mm panel cutout size to maximize panel space.
Constructed with a stainless steel case for corrosion and impact resistance.
Rated IP65 and IP67 for protection against dust and water immersion.
Operates reliably within a wide temperature range of -30°C to 70°C.
Capable of switching AC/DC loads up to 240 V and a contact current of 3 A.
Robust mechanical lifespan of one million operating cycles for long-term durability.

Product Description

The EAO 82-6151.1124 is a high-quality illuminated momentary push button switch designed for panel mounting with a compact 22.3 mm cutout diameter. This switch features a silver actuator color and a round actuator style, delivering precise momentary snap-action operation. Its SPDT (Single Pole Double Throw) contact configuration allows versatile control of two circuits simultaneously, supporting a wide range of industrial applications.

Equipped with a blue LED, the button clearly indicates operational status when pressed, enhancing user feedback for safety and efficiency. The switch housing is made from stainless steel, ensuring excellent corrosion and impact resistance, making it ideal for demanding industrial environments.

With robust IP65 and IP67 ingress protection ratings, the switch is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes, suited for damp and dirty conditions. Operating temperature ranges from -30°C to 70°C, supporting reliable performance in extreme conditions.

The switch is designed to handle AC and DC voltages up to 240 V with a contact current rating of 3 A, suitable for typical control circuits in manufacturing, automation, roller door control, and lift operation.

The compact and flush-mount design maximizes panel space and reduces accidental activation. It carries internationally recognized standards and approvals including CB, CCC, cUL, and UL, affirming its compliance with safety and quality requirements.

Momentary snap-action switch operation for short-term manual control. Blue LED illumination provides clear operational feedback. Stainless steel case for enhanced durability and corrosion resistance. IP65 and IP67 rated for dust and water immersion protection.

Wide operating temperature range from -30°C to 70°C. Single pole double throw (SPDT) contact configuration. Handles 240 V AC/DC voltage and 3 A contact current. Compact 22.3 mm cutout size for panel mounting. Robust mechanical lifespan of 1,000,000 cycles.

This push button switch is ideal for industrial, automation, manufacturing, and control panel use cases where reliability, compactness, and clear operational signaling are essential. Explore EnvMart's extensive range of Push Button Switches and components for compatible industrial control solutions.
