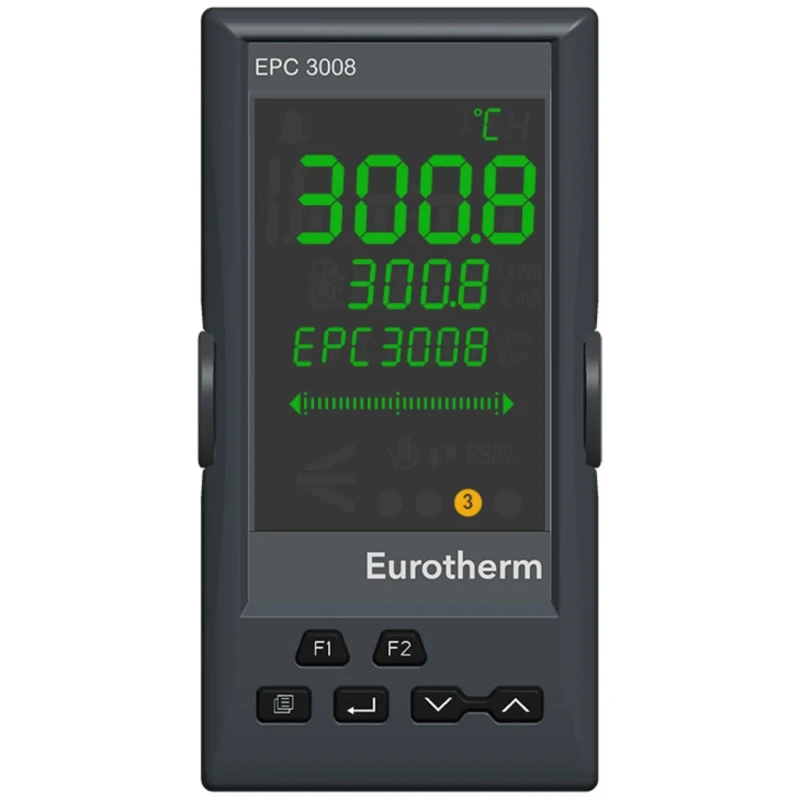

Eurotherm Panel PID Controller 1 Input 1 Relay Logic/SSR 24V LCD Display IP65 EPC3008

Eurotherm EPC3008 Panel PID Controller EPC3008 is a highly configurable single loop process controller designed for precise temperature control in industrial and laboratory settings. It accepts one input supporting current, thermocouple, and voltage signals and outputs control through one relay with Logic/SSR 24V functionality, ensuring flexible control options. The LCD display provides clear feedback and operational status.

This panel-mounted device is engineered with an IP65 rated enclosure to withstand challenging industrial environments including manufacturing, process control, automation, HVAC systems, and water treatment applications. Its operating temperature range of 0°C to 55°C allows for reliable functionality across a wide variety of installations.

The EPC3008 series integrates advanced Eurotherm PID control with a cutback function for rapid response and minimal overshoot, crucial for improving yields and protecting sensitive processes. It also incorporates wireable function blocks such as math, logic, and advanced control for tailored automation solutions.

Connectivity features include high-speed Ethernet with an RJ45 connector, supporting protocols such as Modbus, Ethernet/IP, and BACNet, making it ideal for digitized Industry 4.0 and Industrial Internet of Things (IIoT) ecosystems. The controller supports up to 20 ramp/soak program profiles, enabling complex process sequencing and optimization.

Designed and manufactured in Poland, this controller adheres to RoHS standards and is suited for aerospace, manufacturing, and other precision industries with stringent accuracy requirements. Its compact size - 101mm length, 48mm width, 90mm panel depth - makes it fit conveniently in panel mount applications.

Equipped with 1 input supporting current, thermocouple, and voltage signals. Output type includes 1 relay with Logic/SSR 24V suitable for varied industrial uses. Panel mount design with IP65 rating ensures durability in harsh environments.

Operates between 0°C and 55°C with a robust screw terminal interface. High-speed Ethernet connectivity with RJ45 connector supports IIoT and Industry 4.0 applications. Features Eurotherm’s PID control with cutback function for fast response and minimal overshoot.

Supports up to 20 ramp/soak program profiles enhancing process optimization. Conforms to RoHS standards and is designed for industrial resilience and precision. Compact dimensions: 101mm length, 48mm width, and 90mm panel depth for versatile installation.

Eurotherm PID controllers like the EPC3008 are invaluable in industries such as manufacturing, HVAC, process control, chemical processing, water treatment, and aerospace. They ensure process stability, improve production yields, and integrate seamlessly into modern industrial communication networks.

For detailed technical specifications and installation guidelines, users should refer to Eurotherm's official technical documentation. Explore our range of advanced panel PID controllers for enhanced process automation and control solutions tailored to industrial demands.
