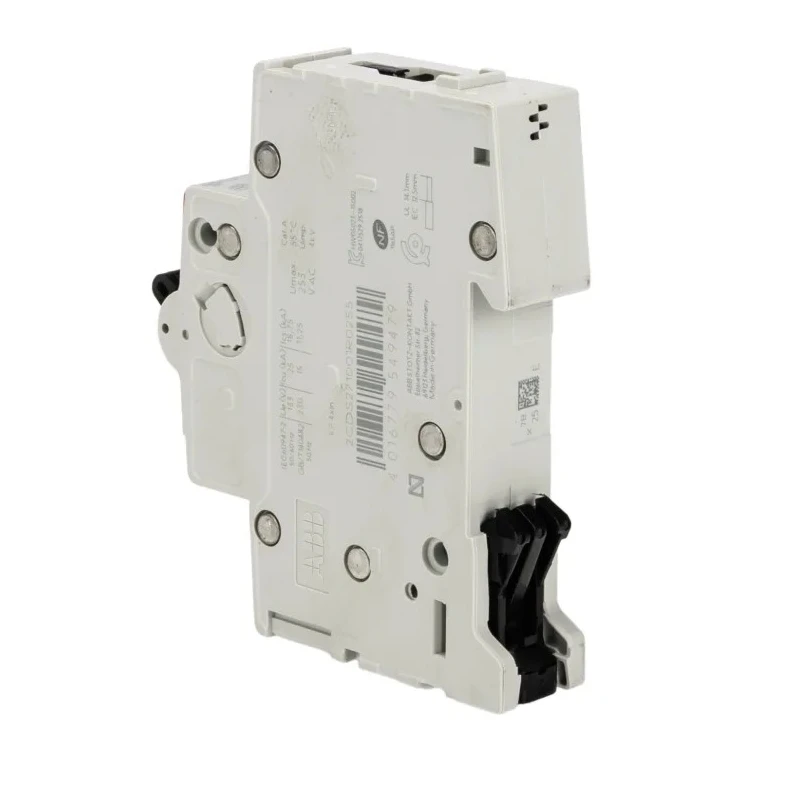

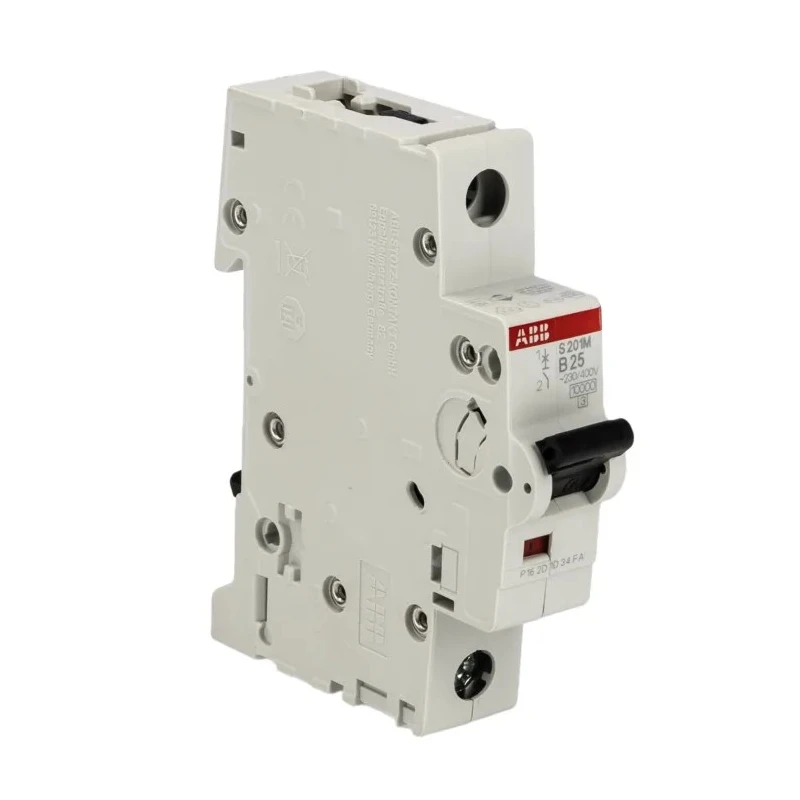

ABB System Pro M Compact Miniature Circuit Breaker 1-Pole 25A Type B 253V AC 72V DC 10kA Breaking 2CDS271001R0255 S201M-B25

ABB 2CDS271001R0255 S201M-B25 System Pro M Compact Miniature Circuit Breaker is a high-performance protection device designed for use in electrical power distribution and control panels. It features a single pole configuration with a 25 ampere current rating, suitable for a wide range of industrial and commercial electrical installations.

This circuit breaker utilizes a thermomagnetic tripping mechanism combining thermal and electromagnetic protections to detect both overloads and short circuits accurately, providing dependable safety to electrical circuits and connected equipment. The Type B tripping characteristic enables it to trip quickly under minor overloads that may affect sensitive devices.

The breaker supports a rated AC voltage of 253 volts and a DC voltage rating of 72 volts, making it versatile for various power systems. With a breaking capacity of 10 kiloamperes, it can handle significant fault currents, minimizing risks and equipment damage during electrical faults.

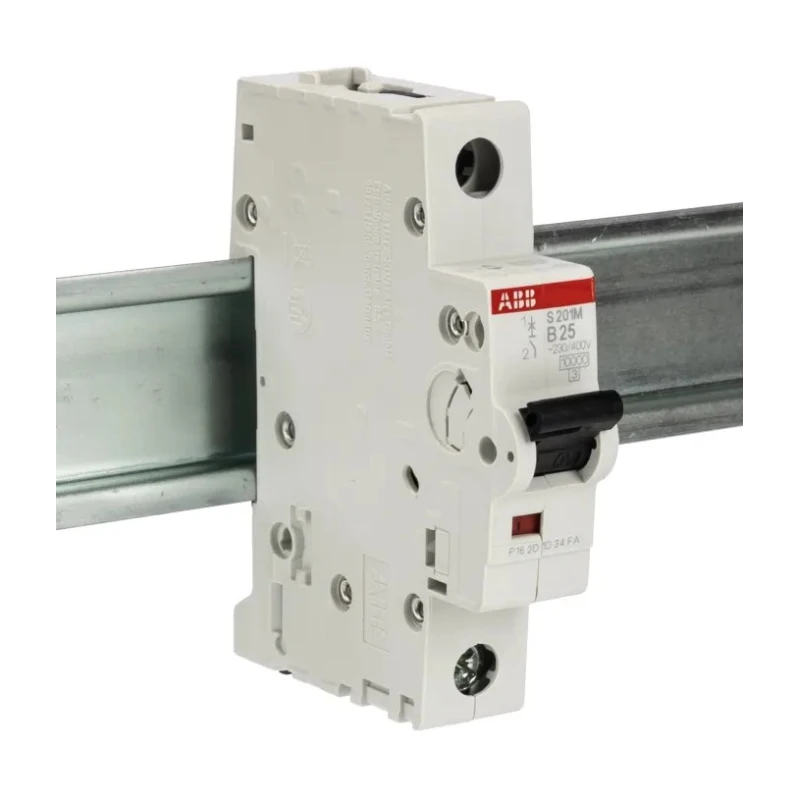

It mounts securely on standard DIN rails, simplifying installation and maintenance. The compact form factor with dimensions of 88 mm height, 17.5 mm width, and 76 mm depth, aids space-saving in electrical panels. Terminal connections are designed as cage terminals for robust and reliable wiring.

ABB System Pro M Compact MCB complies with major international standards such as IEC/EN 60947-2 and IEC/EN 60898-1 and offers IP20 and IP40 ingress protection levels, suitable for diverse industrial environments. Manufactured in Germany, this model reflects ABB's quality and engineering excellence.

Designed for secure DIN rail mounting. 25A current rating suitable for commercial and industrial circuits. Type B tripping characteristic for precise overload protection. 10kA breaking capacity ensures robust fault current interruption.

Supports 253V AC and 72V DC rated voltages. Thermomagnetic and electromagnetic tripping mechanisms. Compact dimensions facilitate space efficiency. Compliant with IEC/EN 60947-2 and IEC/EN 60898-1 standards. IP20, IP40 rated for dust and foreign object protection.

Manufactured in Germany to high quality standards.

This Miniature Circuit Breaker is widely used in electrical distribution systems to protect wiring and equipment from damage caused by overloads and short circuits. It is ideal for applications in commercial buildings, industrial machinery, automation systems, and residential electrical panels requiring reliable circuit protection.
