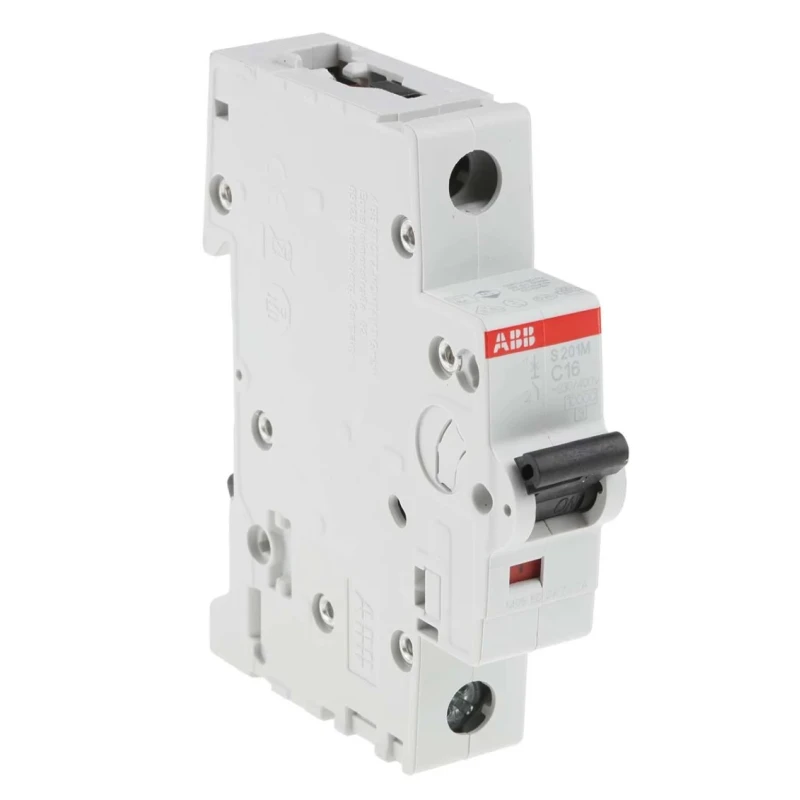

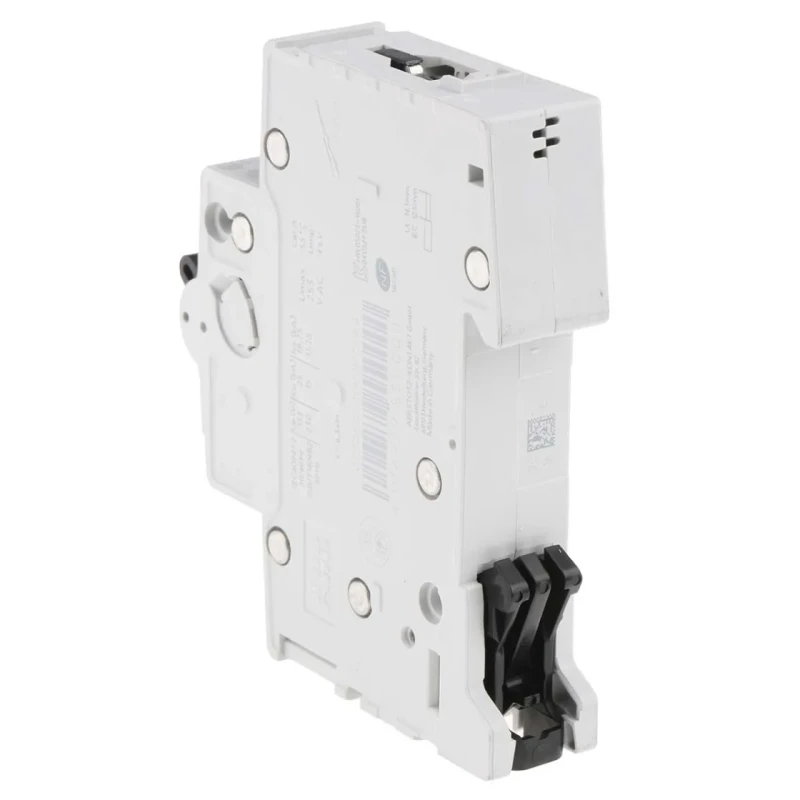

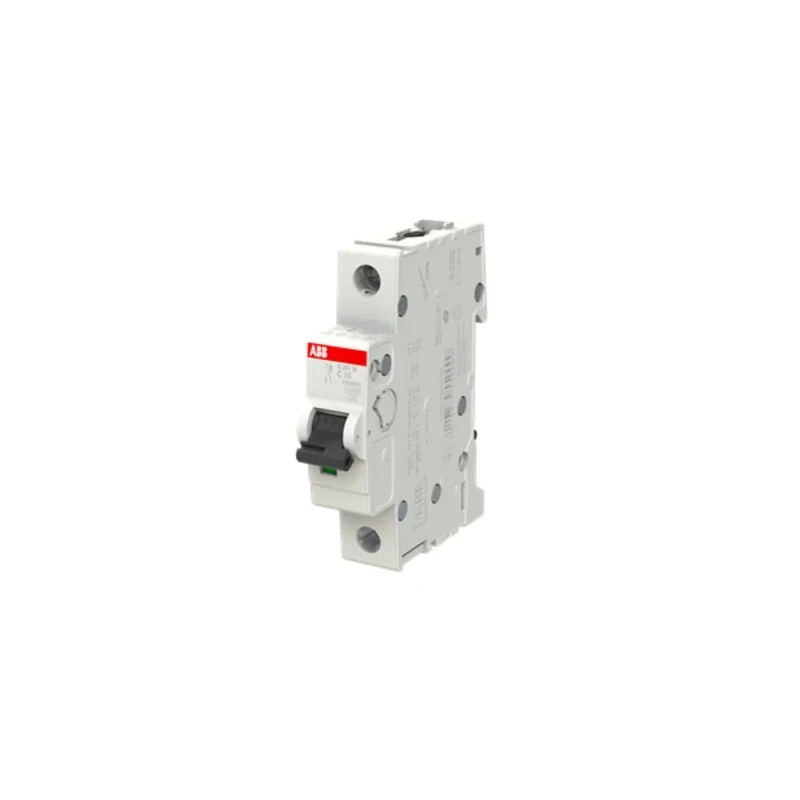

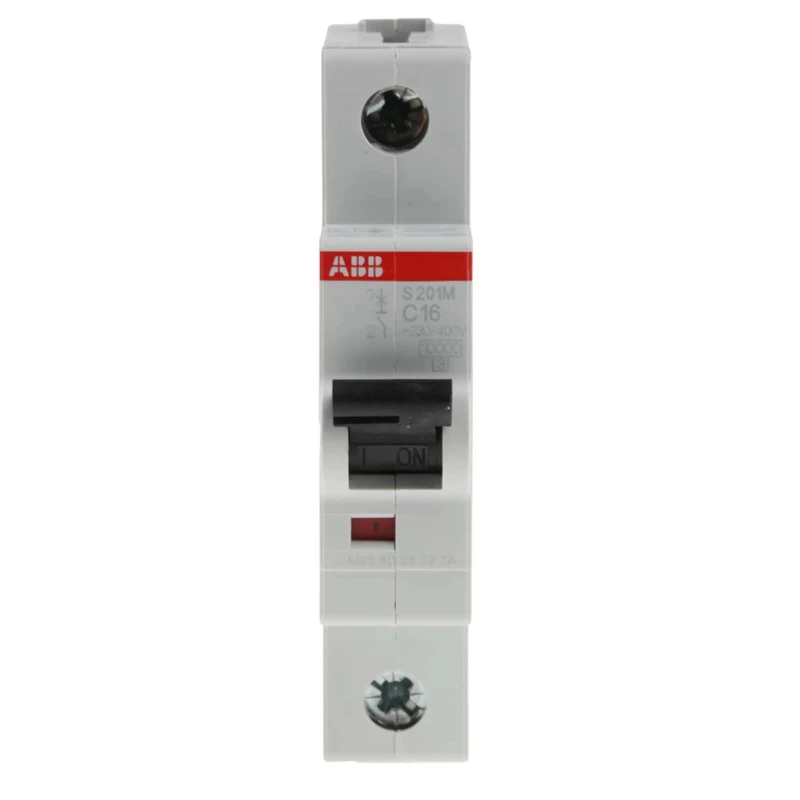

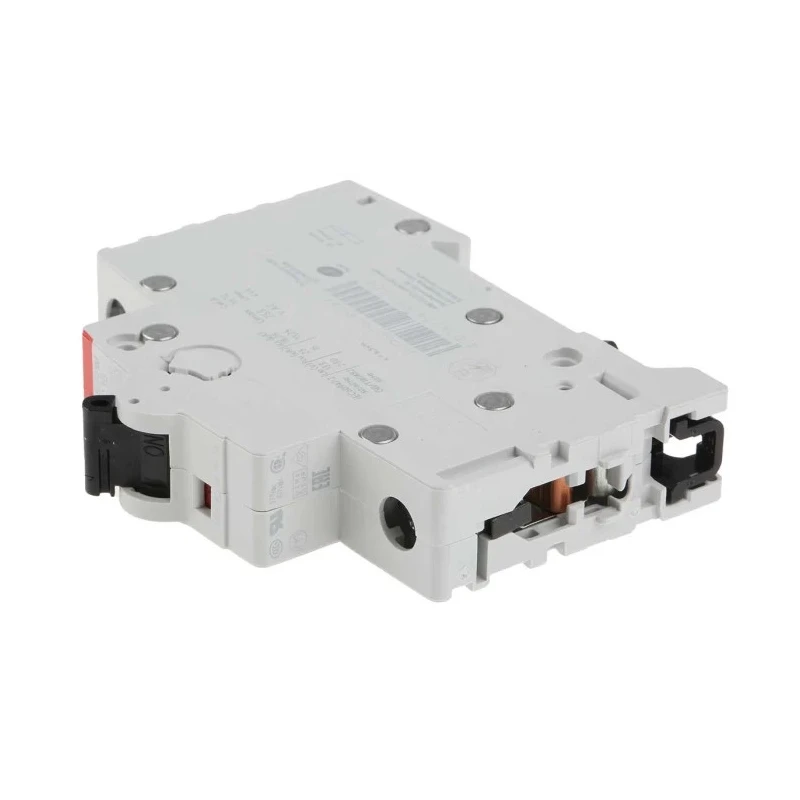

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 16A, Type C, 253V AC, 72V DC, 10kA 2CDS271001R0164 S201M-C16

ABB 2CDS271001R0164 S201M-C16 System Pro M Compact miniature circuit breaker provides dependable circuit protection with a 16A current rating and type C tripping characteristic, suitable for handling inductive loads. It operates effectively at 253V AC and 72V DC, making it suitable for both AC and DC applications in industrial, commercial, and residential electrical systems.

The device features a single pole design for use in single-phase circuits and is designed to mount on a standard DIN rail, simplifying installation. The screw terminal type ensures a secure and reliable connection to conductors. Its thermal tripping mechanism responds swiftly to short circuit and overload faults ensuring safety and preventing equipment damage.

Constructed with flame-resistant thermoplastic housing, this miniature circuit breaker stops burning quickly in the event of a fire, enhancing protection in hazardous and volatile environments. The product adheres to IEC/EN 60947-2 and IEC/EN 60898-1 standards ensuring compliance with international safety and quality benchmarks.

With a high breaking capacity of 10kA, it can handle significant fault currents protecting your electrical circuits effectively. The compact dimensions of 88mm height, 69mm depth, and 17.5mm width along with an IP rating of IP40 and IP20 safeguard it against dust ingress, providing durability and long service life.

Applications include protection of air conditioners, heating equipment, industrial pumps, and other high current consuming single-phase electrical loads. This reliable Miniature Circuit Breaker is engineered for efficient energy use with low power loss of only 2.5W and a rated impulse withstand voltage of 4kV to handle voltage surges.

1-pole design suitable for single-phase circuits. 16A current rating with thermal type C trip characteristic. Rated voltages of 253V AC and 72V DC. High breaking capacity of 10kA for superior protection. DIN rail mount with screw terminals for easy installation.

Flame-resistant thermoplastic enclosure for safety. Compact size with robust IP40 and IP20 protection.
