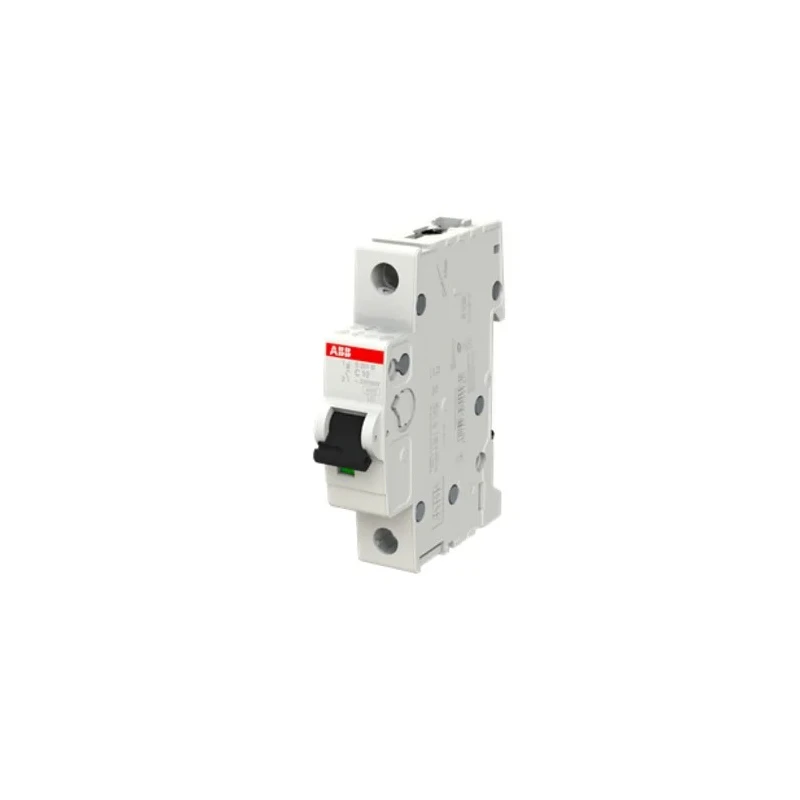

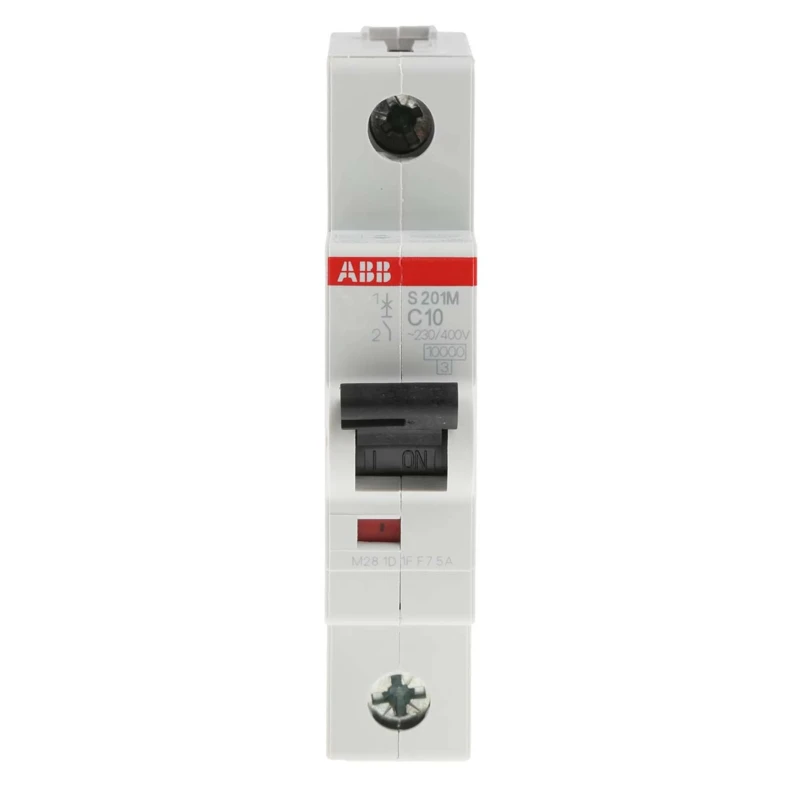

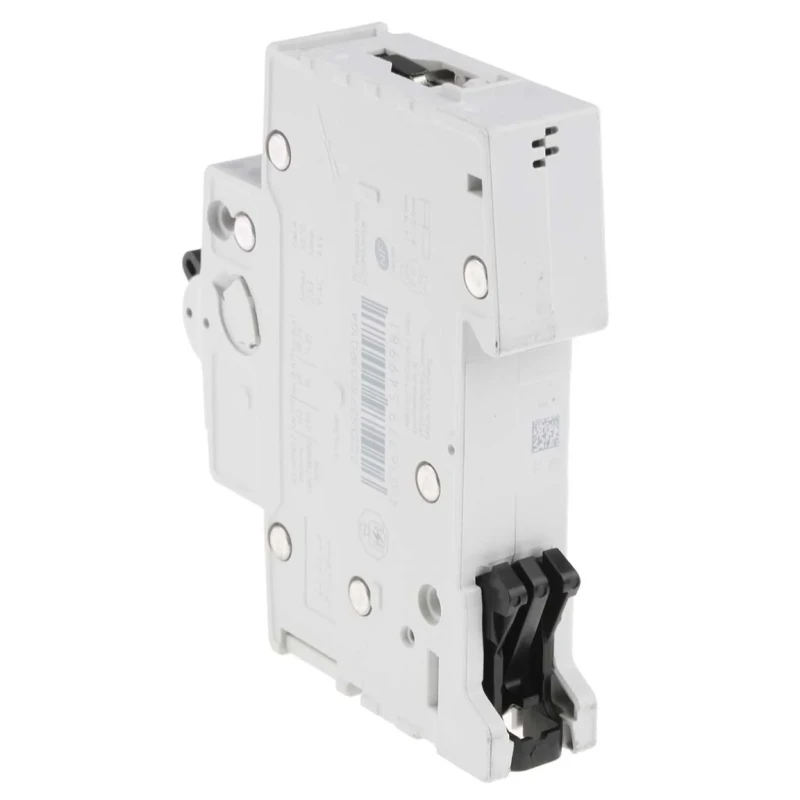

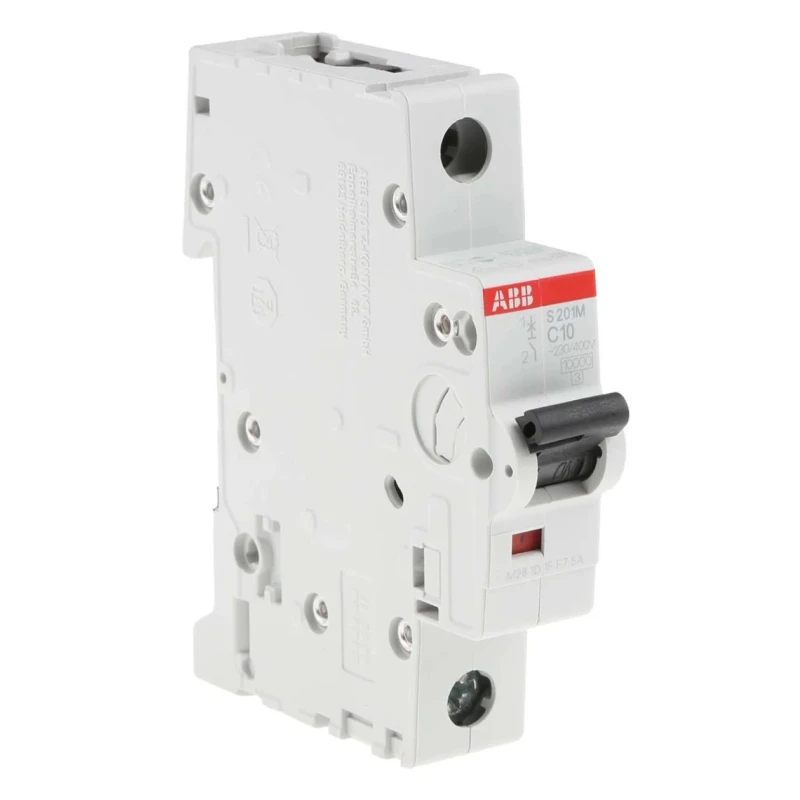

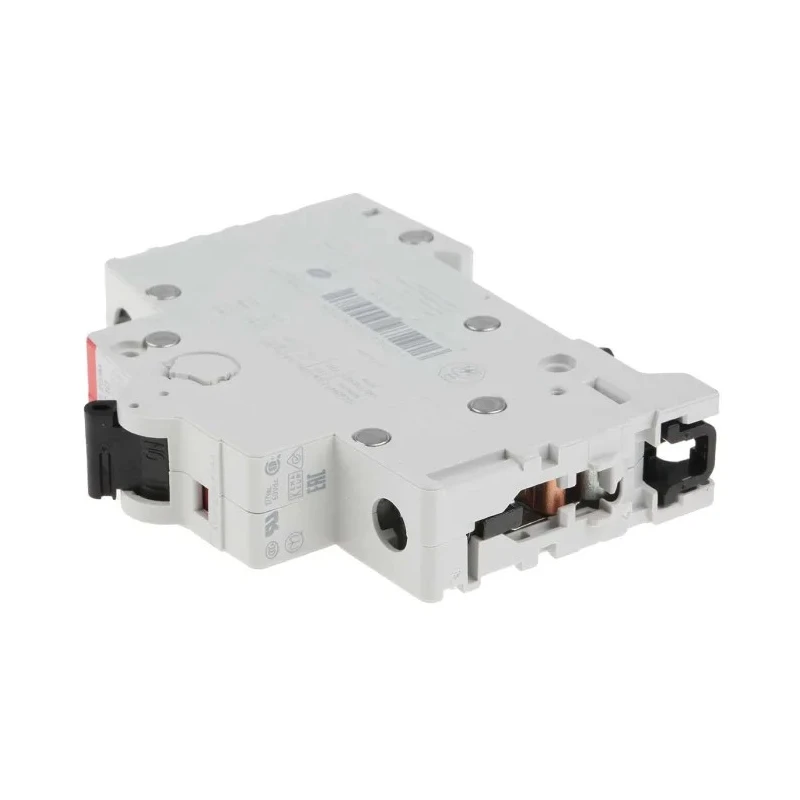

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 10A Current Rating, Type C Tripping 2CDS271001R0104 S201M-C10

ABB 2CDS271001R0104 S201M-C10 Miniature Circuit Breaker from the System Pro M Compact series is designed to provide high-performance protection against overcurrent and short circuits in both AC and DC electrical systems. With a current rating of 10A, this 1-pole MCB is ideal for safeguarding small electric motors, lighting circuits, and other sensitive electrical components.

The breaker features a Type C tripping characteristic ensuring tripping at 5 to 10 times rated current, making it suitable for devices with moderate inrush currents. Its narrow 17.5mm width facilitates space-saving mounting on DIN rails and integrates easily into compact industrial panels.

Constructed with durable thermoplastic, the MCB offers enhanced impact resistance while acting as an electrical insulator. The device includes red and green status indicators to clearly show the breaker’s contact position, improving maintenance efficiency. It holds an IP20 and IP40 rating, protecting against solid objects larger than 1mm, making it suitable for various industrial environments.

The thermal tripping mechanism ensures sensitive and reliable operation under overload conditions. This MCB supports a rated AC voltage of 253V and a rated DC voltage of 72V, offering versatile application in a wide range of power circuits. Its breaking capacity of 10kA provides effective interruption of fault currents, enhancing electrical system safety.

Narrow width of 17.5mm enables installation in tight electrical panels. Equipped with red and green indicators to easily identify contact position. IP20 and IP40 ratings protect against penetration of objects and provide industrial-level protection.

Thermal trip mechanism ensures reliable disconnection during overcurrent situations. Supports DIN rail mounting for quick and tool-free installation. Breaking capacity of 10kA safely interrupts short circuits and fault currents.

Robust thermoplastic construction offers impact resistance and electrical insulation. Operates reliably in temperatures ranging from -25°C to +55°C. Suitable for industrial conveyors and transportation industry electrical systems.

Certified to IEC/EN 60898-1 and IEC/EN 60947-2 electrical safety standards.

This miniature circuit breaker is well-suited for industrial automation, manufacturing, transportation, and commercial installations requiring compact and efficient overcurrent protection. Its reliable operation and compliance with international standards make it a trusted choice to maintain electrical safety.
