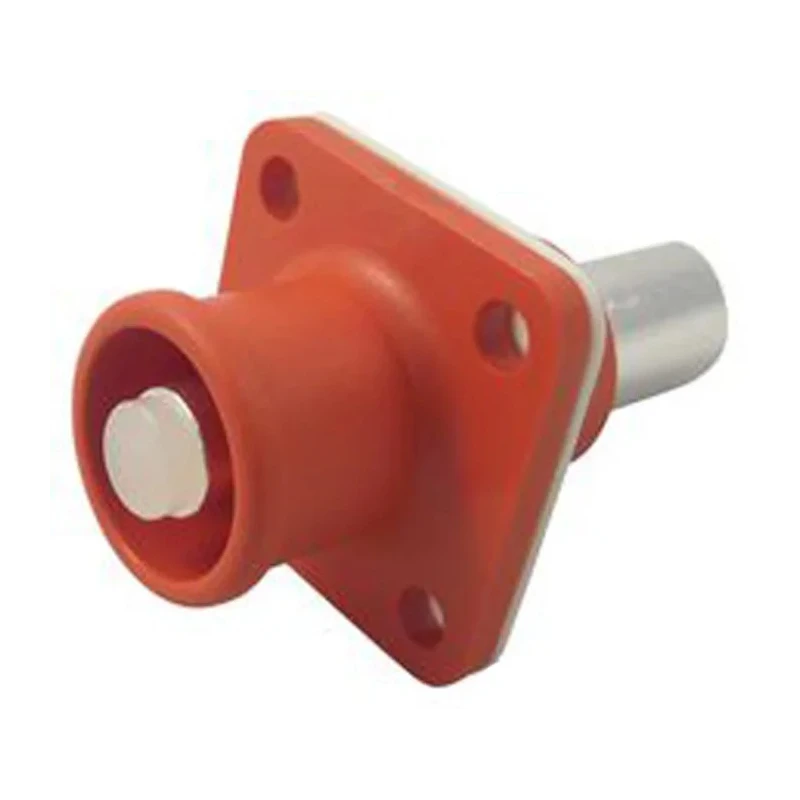

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 300A 1000V Panel Mount SLPIRC70CPSR1 / C10-730191-2701
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Straight |
| Current | 300A |
| Model | SLPIRC70CPSR1 / C10-730191-2701 |
| Depth | 69.2mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 69.2mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 70mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Latch Type | Spring Locking |
Key Features
- Designed with a durable thermoplastic housing for environmental protection.
- Supports a continuous current rating of 300 amperes for high power transmission.
- Features a 10.3mm pin diameter for secure and efficient contact.
- Rated for operating voltages up to 1000 volts and temperatures from -40°C to 125°C.
- Incorporates spring locking latch for secure and easy panel mount installation.
- Complies with UL 94-V0 flammability standard ensuring safety and quality.
- IP67 rated for dust tight and waterproof protection in harsh environments.
- Keyed design prevents mismating, ensuring reliable connections in EV and rail transit systems.
Product Description
Amphenol Industrial SLPIRC70CPSR1 / C10-730191-2701 SURLOK PLUS RADSOK EV Connector Female is an environmentally sealed panel mount receptacle designed for robust, high current applications like electric vehicles, rail mass transit, battery management, process control, and medical systems. It features R4 Radsock technology which provides a high tensile strength connection with a highly conductive surface area, ensuring reliable and secure electrical contact.
This connector supports a nominal current rating of 300 amperes and an operating voltage of up to 1000 volts. It is designed for direct termination to 70mm² wires using a crimp termination method. The spring locking latch mechanism enables quick mating and secure installation in panel mounts, with keyed 180-degree alignment to prevent mismating.
The housing is made of durable thermoplastic material with a red color coding. The contacts are constructed from copper alloy for excellent conductivity. The connector meets the UL 94-V0 flammability standard and offers an IP67 ingress protection rating, making it dustproof and waterproof for industrial use.
With a compact size featuring 69.2mm width and depth, along with a pin diameter of 10.3mm, this connector is well suited for space-constrained installations requiring high reliability. It is rated for continuous operation in temperatures ranging from -40°C to 125°C.
Durable thermoplastic housing provides environmental protection and color coding. 300A current capacity suitable for high power electric vehicle and mass transit applications. R4 Radsock technology ensures high tensile strength and conductivity.
Spring locking latch designed for secure panel mount installation. IP67 rated ingress protection for harsh industrial environments. Complies with UL 94-V0 for flammability safety standards. Keyed connector design prevents mismating for reliable connections.
Copper alloy contacts and crimp termination ensure strong electrical contact. Operating voltage up to 1000V with temperature range from -40°C to 125°C.
Amphenol Industrial’s SURLOK PLUS range is widely used in EV/HEV systems, rail mass transit, battery management systems, energy storage, medical equipment, and process control environments requiring robust and quick mating connectors with high electrical performance.
Explore more high-quality EV Connectors and industrial electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current rating of 300 amperes, making it suitable for high power applications.
The connector is rated for operating voltages up to 1000 volts.
It operates effectively within a temperature range of -40°C to 125°C.
It utilizes a crimp termination method for connecting to 70mm² wires.
It has an IP67 rating, indicating it is dust tight and waterproof, suitable for harsh environments.
The housing is made of durable thermoplastic, and the contacts are constructed from copper alloy for excellent conductivity.
The pin diameter is 10.3mm, ensuring secure and efficient contact.
It features a keyed design that prevents mismating, ensuring reliable connections.
This model is designed for panel mount installation, featuring a spring locking latch for secure attachment.
It is designed for robust, high current applications such as electric vehicles, rail mass transit, and battery management systems.
It complies with the UL 94-V0 flammability standard, ensuring safety and quality.
The connector is designed with a straight orientation for ease of installation.
