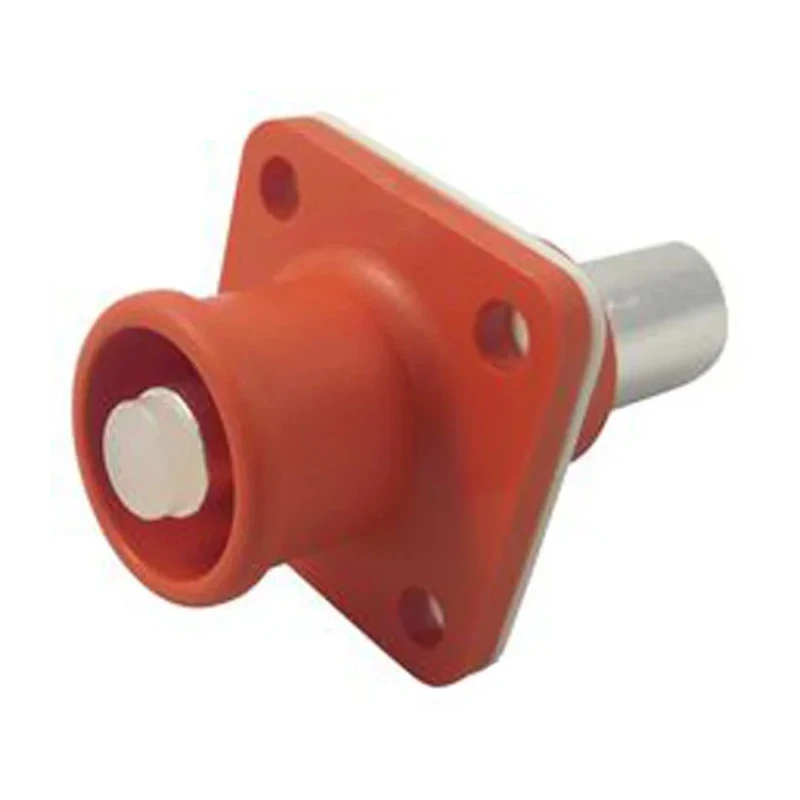

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 100A 1000V Panel Mount IP67 SLPRA16CPSO / C10-730187-030
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 100A |
| Height | 27mm |
| Model | SLPRA16CPSO / C10-730187-030 |
| Depth | 40.7mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 27mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 5.7mm |
| Number of Rows | 1 |
| Wire size | 16mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Robust panel mount design with IP67 rating ensures protection against dust and water ingress.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Features a 5.7mm pin diameter compatible with SurLok 1-Position Plug connectors.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
- Utilizes R4 Radsock technology for high tensile strength and excellent conductivity.
- Compliance with UL 94-V0 flammability standard for enhanced safety.
- Applications include electric vehicle systems, battery management, process control, and rail mass transit.
- Keyed design prevents mismating and includes spring locking mechanism for secure connection.
Product Description
Amphenol Industrial SLPRA16CPSO / C10-730187-030 is a SURLOK PLUS RADSOK EV Connector Female engineered to deliver reliable electrical connections with a current rating of 100A and an operating voltage of 1000V. This panel mount connector boasts a IP67 rating, ensuring robust protection against dust and water ingress, which makes it suitable for demanding industrial and automotive environments.
The connector uses high-quality copper alloy contacts combined with a thermoplastic housing that ensures long-lasting durability and performance. The 5.7mm pin diameter is designed to mate with SurLok 1-Position Plug connectors, providing a secure and efficient electrical path within electric vehicle, battery management, and process control systems.
Capable of operating within extreme temperature ranges from -40°C to 125°C, this connector is ideal for use in heavy equipment, rail mass transit, and medical applications. The integration of R4 Radsock technology delivers high tensile strength and superior surface conductivity, enhancing the connection’s reliability and efficiency.
The product meets UL 94-V0 flammability standards and incorporates a keyed design and spring locking mechanism to prevent mismatching and ensure a stable connection. Its bright orange color increases visibility for maintenance and installation tasks. This environmentally sealed connector is field installable and suited for renewable energy and electric vehicle sectors.
Robust, panel mount design rated IP67 for dust and water protection. Copper alloy contacts with thermoplastic housing for durability. 5.7mm pin diameter compatible with SurLok 1-Position plugs. Wide operating temperature range from -40°C to 125°C.
High tensile strength through R4 Radsock technology. UL 94-V0 flammability rated for enhanced safety. Keyed and spring locking to prevent mismating. Orange color for easy identification. Field installable and environmentally sealed.
Ideal for EV, battery management, process control, and rail mass transit.
Explore more in the Amphenol Industrial SURLOK PLUS EV Connector series and find compatible components within the EV Connectors category at EnvMart to support your industrial and commercial applications.
