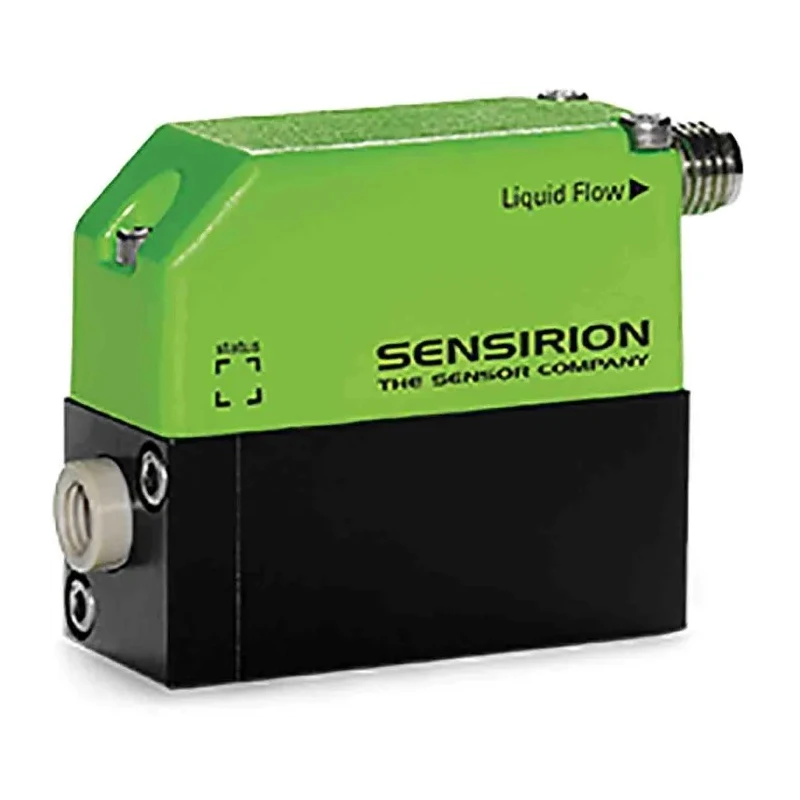

Sensirion SLI Series Media Isolated Microfluidic Liquid Flow Meter, Male 1/4-28 UNF, 6-40 UNF SLI-1000 Liquid Flow Meter

Sensirion SLI-1000 Liquid Flow Meter is a high-precision, media isolated microfluidic flow meter that offers fast, non-invasive measurement of very low liquid flow rates in the microliters to milliliters per minute range. Its flow path consists of a straight glass capillary ensuring excellent chemical resistance and durable operation.

This flow meter includes male connection threads sized 1/4-28 UNF and 6-40 UNF, allowing compatibility with various piping systems. It features a quick 40 ms response time, enabling timely and accurate flow detection essential for industrial automation, laboratory instrumentation, water treatment, and chemical processing applications.

The wetted materials - FEP, Quartz Glass (Fused Silica), Polyetheretherketone, and Borosilicate Glass 3.3 - provide chemical inertness and reliability under demanding conditions. The device is rated for a maximum operating temperature of 50°C, making it suitable for medium-temperature environments.

Standards compliance includes important regulatory and quality certifications such as REACH (EU Directive 1907/2006/EC), IEC 60947-5-2, RoHS (EU Directive 2002/65/EC), IEC 61076-2-101, EN 50082-2, and WEEE (EU Directive 2002/96/EC), ensuring safe and environmentally responsible use.

Industrial users in manufacturing, automation, and laboratory sectors will benefit from its precise flow measurement capabilities and robust build quality. Its quick response time and chemical resistance make it ideal for critical flow monitoring and control tasks.

The Flow Meter enables fast and non-invasive liquid flow measurement within the microliters to milliliters per minute range. It exhibits excellent chemical resistance due to its flow path made of a straight glass capillary.

The meter supports different interface options for versatile installation. It has a quick 40 ms flow detection response time for real-time monitoring. It operates reliably at maximum temperatures up to 50 degrees Celsius.

Constructed from wetted materials including FEP, Quartz Glass (Fused Silica), Polyetheretherketone, and Borosilicate Glass 3.3. Conforms to various standards such as REACH, IEC 60947-5-2, RoHS, IEC 61076-2-101, EN 50082-2, and WEEE directives.
