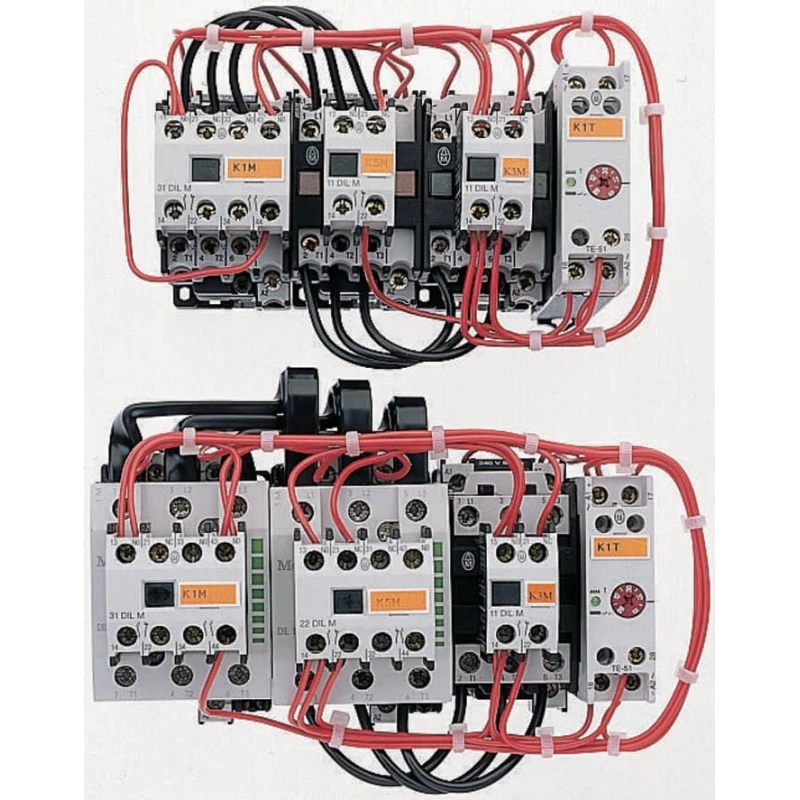

Eaton SDAINL Contactor Star Delta 7.5 kW 400V AC IP20 101381 SDAINLM16(400V50HZ)

Free Delivery in India | Lowest Global Shipping Charges

Eaton SDAINL Contactor Star Delta 7.5 kW 400V AC IP20 101381 SDAINLM16(400V50HZ)

Name: Eaton SDAINL Contactor Star Delta 7.5 kW 400V AC IP20 101381 SDAINLM16(400V50HZ)
Brand: Eaton
SKU: 195125
Price: 589.03 USD
Availability: InStock



Category Contactors Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Model	101381 SDAINLM16(400V50HZ)
IP Rating	IP20
Overall Length	68mm
Current Rating	16A
Series	SDAINL
Overall Width	158mm
Power Rating	7.5kW
Note	FLC figures quoted are maximum. The overload specified has been determined by applying the following formula: 0.58 x motor FLC. Allow additional clearance dimensions for the wiring bar above and below the starter
Sub Type	Star Delta
Maximum Voltage	400V ac
Number of Poles	3
Standards/Approvals	IE3 Approved
Overall Depth	117mm
Open Framed S/D 7.5kW 415Vac Z00 O/LoadBrand	Moeller

Key Features

Suitable for 7.5 kW motors with IE3 efficiency class.
Reduces starting current using star delta reduced voltage starting.
Open chassis design enables DIN rail mounting in custom enclosures.
Includes star, delta, and main contactors plus adjustable timer.
IP20 rated for protection against solid objects over 12 mm.
Operates reliably in ambient temperature range -25 to +40 degrees Celsius.
Complies with IEC 947 standards and IE3 efficiency approvals.
Overload relay not included and must be ordered separately.

Product Description

Eaton 101381 SDAINLM16(400V50HZ) Star Delta Contactor is engineered for efficient motor starting by reducing the inrush current during startup, suitable for 7.5 kW motors at 400V AC voltage with IP20 ingress protection.

This star delta starter features a robust open chassis configuration optimized for mounting on 35 mm DIN rails inside customized enclosures, facilitating ease of installation and maintenance.

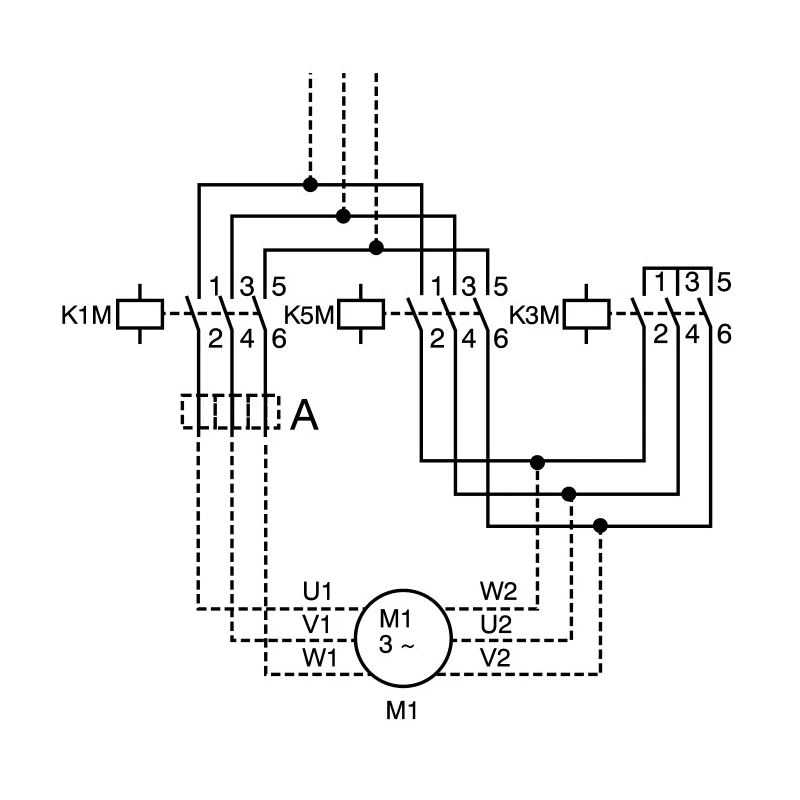

Manufactured in compliance with IEC 947 standards and approved for IE3 motor efficiency classes, this contactor set includes separate star, delta, and main contactors, along with an adjustable star-delta timer (0-30 seconds) to enable smooth switching between star and delta connections.

The device supports current ratings up to 16A with triple poles for star connection and employs Eaton Z00 or ZB thermal overload relays for enhanced protection; note that overload relays are sold separately.

Its IP20 rating ensures protection from solid objects of 12 mm and larger, although no liquid ingress protection is provided. The unit is designed to operate reliably in ambient temperatures ranging from minus 25 to plus 40 degrees Celsius.

Compact dimensions (68 mm length x 158 mm width x 117 mm depth) allow integration into motor control panels without excessive space requirements. Supports motors with IE3 efficiency class for energy saving, industrial automation, and motor control applications.

Star delta starting reduces starting current to approximately one-third of a direct-on-line starter. Compliance with IEC standards ensures safety and reliability in demanding electrical environments. Constructed from Eaton components to ensure quality and availability of replacement parts.

Overload protection recommended via appropriate Eaton thermal overload relays. This contactor set is ideal for industrial electrical motor control, manufacturing plants, HVAC systems, and other automation gear requiring star delta motor starting.
