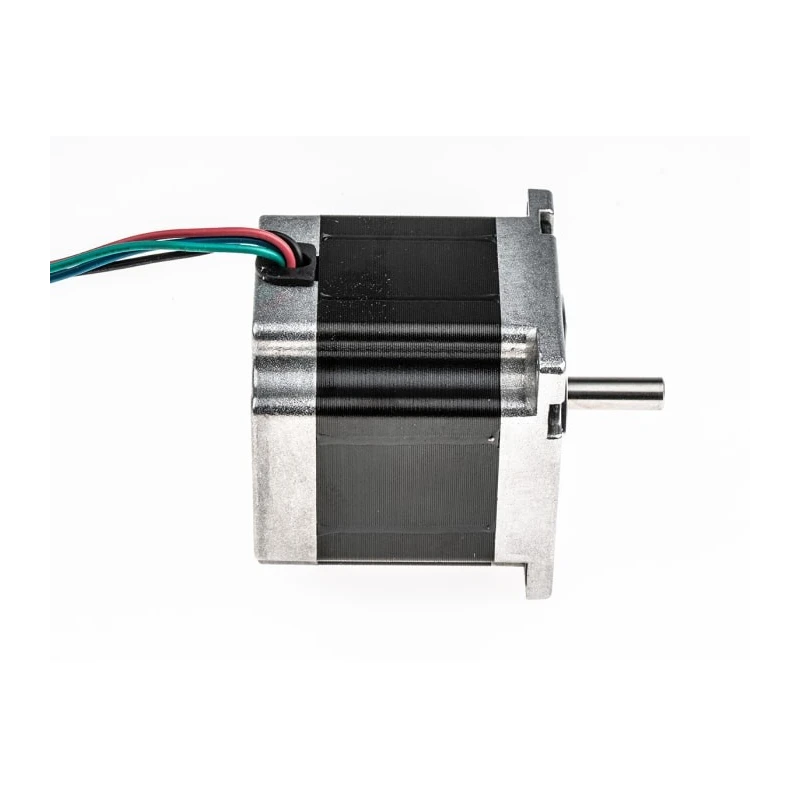

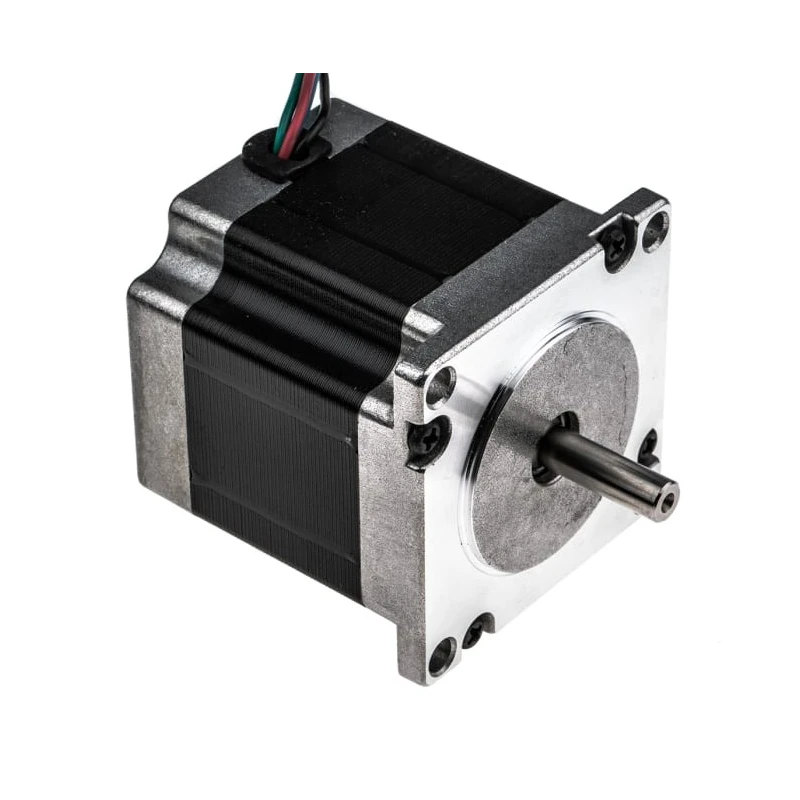

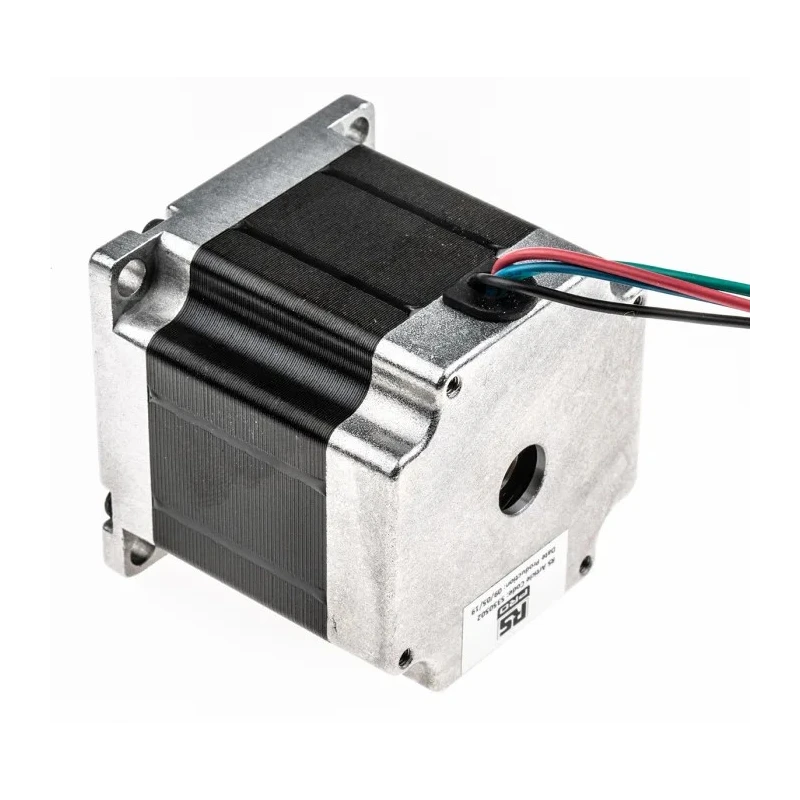

RS PRO Unipolar Hybrid Permanent Magnet Stepper Motor 2.5V 1.26Nm Torque 0.9° Step Angle 56.4 x 56.4 mm Frame 6.35 535-0502

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Unipolar Hybrid Permanent Magnet Stepper Motor 2.5V 1.26Nm Torque 0.9° Step Angle 56.4 x 56.4 mm Frame 6.35 535-0502

Name: RS PRO Unipolar Hybrid Permanent Magnet Stepper Motor 2.5V 1.26Nm Torque 0.9° Step Angle 56.4 x 56.4 mm Frame 6.35 535-0502
Brand: RS PRO
SKU: 195109
Price: 106.19 USD
Availability: InStock



Category Stepper Motors Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	2.5V
Brand	RS PRO
Model	535-0502
Depth	56mm
Current Rating	2.8A
Frame Size	56.4 x 56.4 mm
Shaft Diameter	6.35mm
Shaft Length	19mm
Standards/Approvals	RoHS Compliant
Step Angle	0.9°
Holding Torque	1.26Nm
Winding Arrangement	Unipolar
RS PRO Hybrid Servo Motor 0.9°, 55Ncm, 2 V, 2.8 A, 4 WiresBrand	RS PRO

Key Features

The motor features a 56.4 x 56.4 mm frame size supporting robust installation.
Shaft diameter is 6.35 mm with a length of 19 mm for versatile coupling.

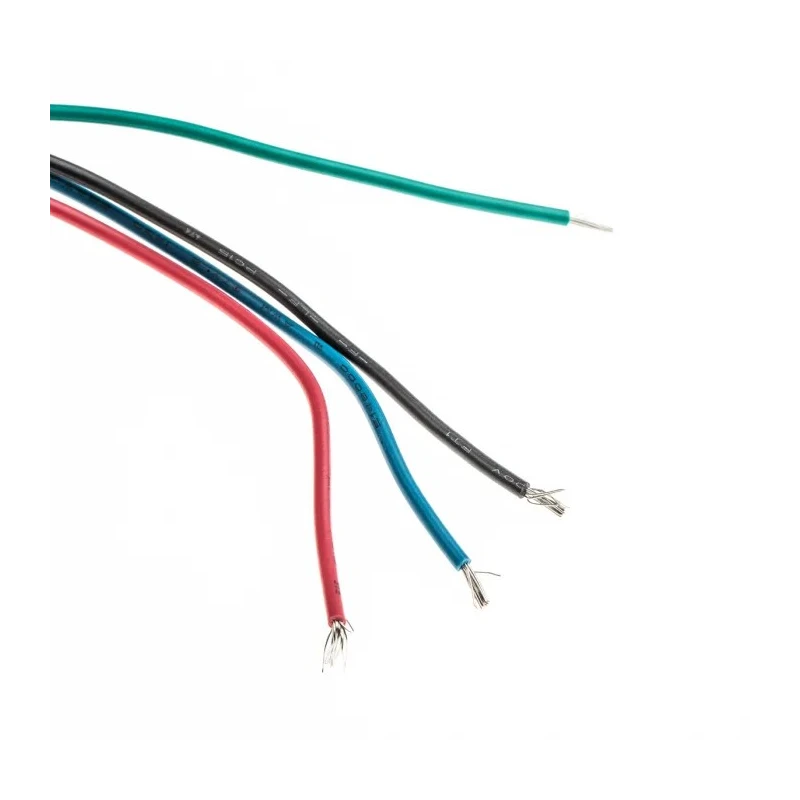

Rated current is 2.8 A, with a winding arrangement of unipolar four-wire configuration.
The stepper motor depth is 56 mm, ensuring compact form factor integration.
Resistance per phase is 0.9 Ω to optimize performance and heat dissipation.
This product is RoHS compliant, free from hazardous substances for environmentally safe use.
Ideal for precision control in laser equipment, optics, 3D printers and disc drives.
Manufactured in China to rigorous quality standards under the RS PRO brand.

Product Description

The RS PRO 535-0502 is a high-quality unipolar hybrid permanent magnet stepper motor designed for precision industrial and automation applications. Operating at 2.5V and providing a holding torque of 1.26 Nm, it achieves fine positional control with a step angle of 0.9°. The motor features a compact 56.4 x 56.4 mm frame and a 6.35 mm diameter shaft with a length of 19 mm, making it suitable for a wide range of mechanical assemblies.

It is engineered with a four-wire unipolar winding arrangement and operates at a current rating of 2.8 A. The stepper motor depth is 56 mm, maintaining a practical size for tight integration. Resistance per phase is measured at 0.9 Ω, ensuring efficient electrical performance and thermal management.

Compliant with RoHS standards, this RS PRO motor does not contain harmful substances such as lead, mercury, or cadmium, making it a safe and eco-friendly choice. Its hybrid design combines the benefits of variable-reluctance and permanent magnet Stepper Motors to provide a constant magnetic field and reliable torque output, especially at low speeds.

This stepper motor finds ideal applications in precision positioning tasks across various industrial sectors, including laser and optics equipment, electronics such as disc drives, and advanced 3D printing technologies. The RS PRO brand guarantees rigorous testing and quality assurance to provide engineers with dependable components.

The motor delivers precise 0.9° step angles for accurate movement control. Its 1.26 Nm holding torque supports substantial load holding capabilities. The 56.4 x 56.4 mm frame size eases installation in compact assemblies.

Unipolar four-wire winding ensures simplified control and wiring. RoHS compliance guarantees environmental safety and regulatory adherence. Choose the RS PRO 535-0502 stepper motor for dependable, precise motion control in demanding industrial automation environments.
