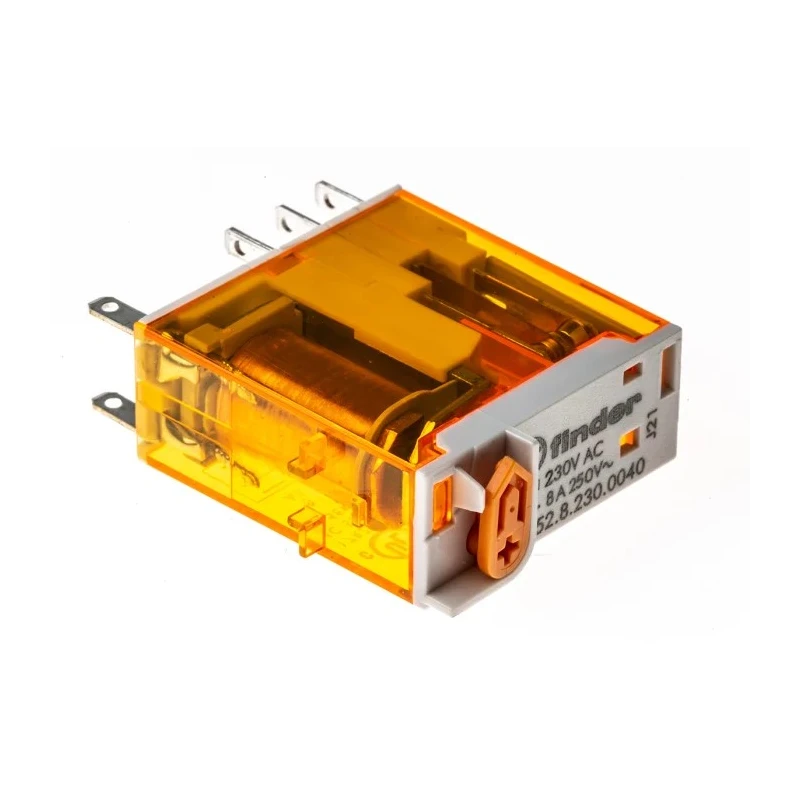

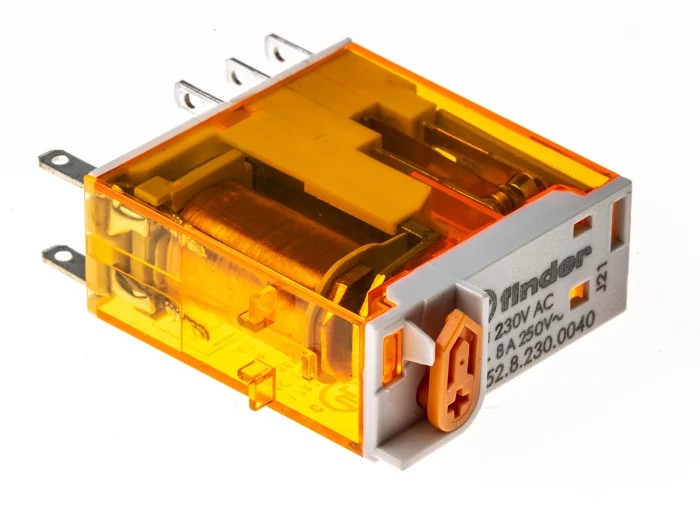

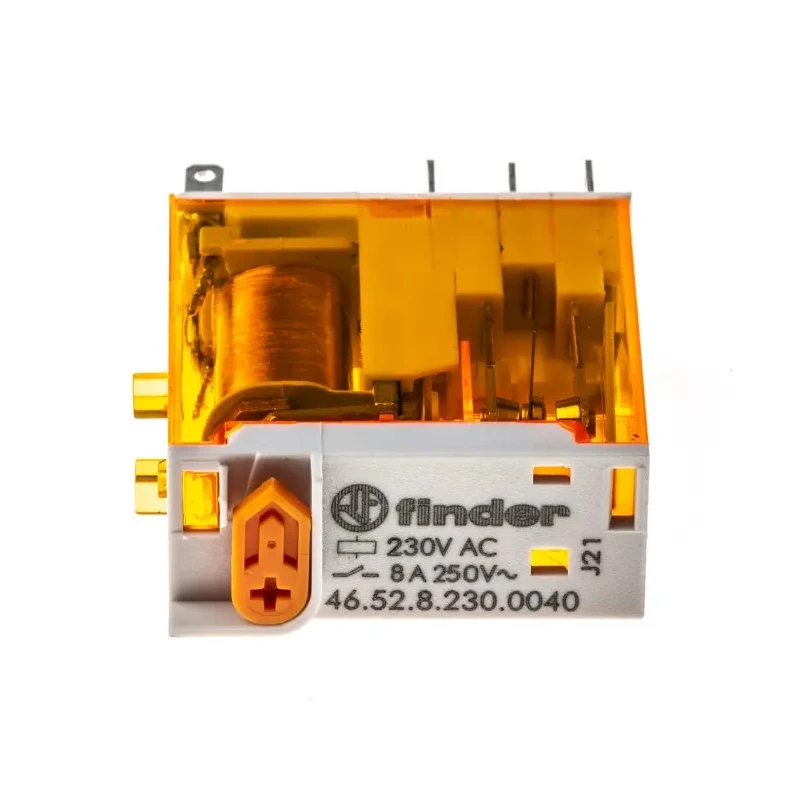

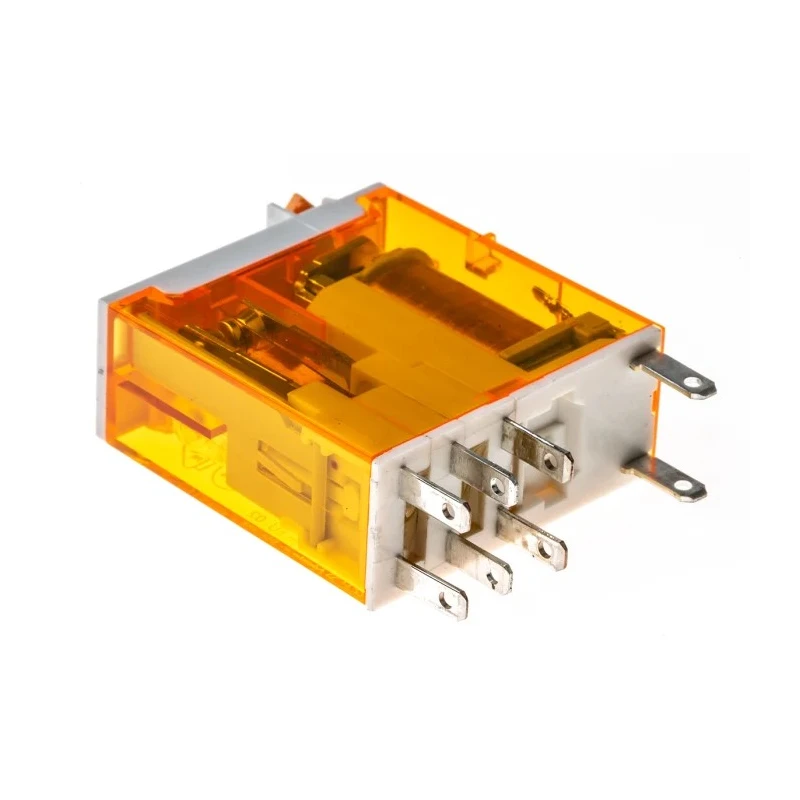

Finder Power Relay DPDT 230V AC Coil Voltage 8A Switching Current Silver Alloy Contacts 46.52.8.230.0040

Free Delivery in India | Lowest Global Shipping Charges

Finder Power Relay DPDT 230V AC Coil Voltage 8A Switching Current Silver Alloy Contacts 46.52.8.230.0040

Name: Finder Power Relay DPDT 230V AC Coil Voltage 8A Switching Current Silver Alloy Contacts 46.52.8.230.0040
Brand: FINDER
SKU: 195041
Price: 17.04 USD
Availability: InStock



Category Power Relays Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	32.8mm
Length	29mm
Width	12.4mm
Contact Material	Silver Alloy
Series	46
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	PCB Pin
Standards/Approvals	CE, EAC, RoHS
Coil Resistance	28kΩ
Coil Voltage	230V ac
Switching DC Voltage	15V dc
Switching AC Voltage	250V ac
Coil Power	1.2W
Finder Relay, 230V ac Coil, 16A Switching Current, SPDTBrand	Finder

Key Features

DPDT contact configuration offers versatile switching capabilities.
Coil voltage is 230V AC suitable for standard electrical circuits.
Silver alloy contacts provide high conductivity and durability.
Compact size optimizes space in control panels.
Operating temperature range from -40°C to +70°C suits diverse environments.
High switching power capacity of 2kVA supports various loads.
Compliance with CE, EAC, and RoHS standards ensures quality and safety.
Quick connect PCB pin terminals facilitate easy installation and maintenance.

Product Description

Finder 46.52.8.230.0040 Power Relay features a DPDT contact configuration with a 230V AC coil voltage and an 8A switching current, providing reliable performance for automation and control systems. It is built to meet the rigorous demands of electrical and mechanical industries, offering robust switching solutions within a compact form factor.

This relay is constructed with silver alloy contacts that enhance conductivity and extend the service life, while maintaining low contact resistance. The coil power consumption is 1.2W, with coil resistance of 28kΩ. It can switch DC voltages up to 15V and AC voltages to 250V, supporting a switching power of 2kVA.

Designed to operate in harsh environments, the relay endures temperatures from -40°C to +70°C and provides high voltage isolation of up to 6kV, protecting sensitive components. The dimensions of 32.8mm height, 29mm length, and 12.4mm width make it an ideal choice for space-constrained applications.

Its quick connect PCB pin terminals simplify installation and maintenance, supporting efficient wiring in control panels, electrical distribution units, and industrial machines.

Common applications include automation for blinds, grilles, shutters, lighting control in road and tunnel infrastructures, hoists, cranes, bottling plants, and elevator systems where reliable switching is paramount.

The product complies with CE, EAC, and RoHS directives, ensuring adherence to international safety and environmental regulations. DPDT contact configuration offers versatile switching capabilities. Coil voltage is 230V AC suitable for standard electrical circuits.

Silver alloy contacts provide high conductivity and durability. Compact size optimizes space in control panels. Operating temperature range from -40°C to +70°C suits diverse environments. High switching power capacity of 2kVA supports various loads.

Compliance with CE, EAC, and RoHS standards ensures quality and safety. Quick connect PCB pin terminals facilitate easy installation and maintenance. Explore the extensive range of Power Relays by Finder on EnvMart for dependable automation and electrical control solutions.
