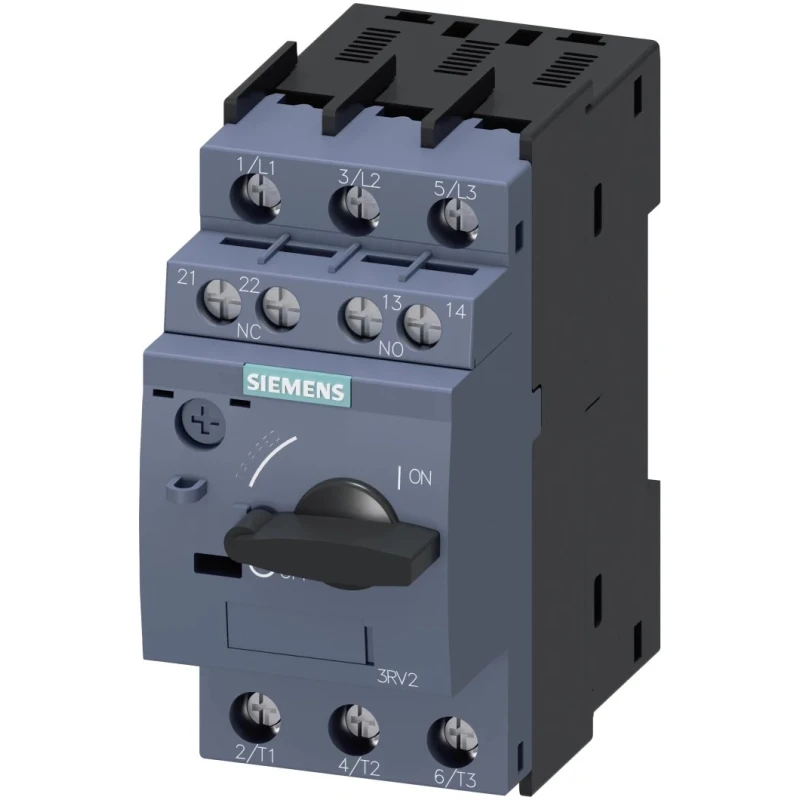

Siemens Motor Protection Circuit Breaker 280mA, 400mA, 690V, 3 Poles, Magnetic Sensing 3RV2011-0EA15
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV2011-0EA15 |
| IP Rating | IP20 |
| Approvals | CE / UL / CSA |
| Overall Length | 45mm |
| Current Rating | 280, 400mA |
| Series | 3RV2 |
| Overall Width | 96.9mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | ABS, ATEX, CCC, CE, CSA, EAC, LRS, RoHS, UKCA, UL, VDE |
| Overall Depth | 97mm |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- Equip with 3 poles for complete motor protection.
- Compact dimensions with overall length 45mm, width 96.9mm, and depth 97mm.
- Operating temperature range from -20°C to 60°C ensures reliable performance under various conditions.
- IP20 rating provides protection against solid objects bigger than 12mm and no water protection.
- Certified with multiple standards including CE, UL, CSA, and RoHS for safety and quality compliance.
- Implements Class 10 tripping characteristic suitable for motor protection applications.
- Impulse voltage resistance up to 6 kV ensures durability under transient voltage conditions.
- Screw or spring clamp connection types enable easy installation.
Product Description
Siemens 3RV2011-0EA15 Motor Protection Circuit Breaker provides reliable motor protection with a current rating of 280mA and 400mA and a supply voltage of 690V. It is engineered to operate within an ambient temperature range of -20°C to 60°C, ensuring stable performance in diverse industrial environments.
This motor circuit breaker incorporates a magnetic sensing type and 3-pole configuration, ideal for industrial, manufacturing, and automation control applications. Its compact dimensions - 45mm length, 96.9mm width, and 97mm depth - allow for convenient installation in motor control panels.
Its IP20 rating offers basic protection against solid objects, appropriate for indoor applications. The device includes features such as Class 10 trip characteristic and impulse voltage resistance up to 6 kV, enhancing its protective reliability against voltage spikes and thermal overloads.
The product is approved under several international standards including CE, UL, CSA, and RoHS, confirming its compliance with global safety and environmental guidelines.
Installation is simplified through screw or spring clamp connections, enabling secure wiring. The breaker supports sustainability with an extended product life and low carbon manufacturing process as part of Siemens' Better World initiative.
Three poles ensure comprehensive motor protection. Dimensions facilitate compact panel design integration. Wide operating temperature range suits varied industrial climates. Multiple certifications guarantee quality and safety.
High impulse voltage resistance ensures operational durability. Flexible connection options improve installation ease. Magnetic sensing enables sensitive motor fault detection. Low power loss of 6/7 Watts optimizes energy efficiency.
Particularly suited for electrical, automation, and control gear sectors.
This Motor Protection Circuit Breaker is an essential component for electrical safety in industrial motors, providing robust protection against overload, short circuits, and electrical faults. Discover more Siemens automation and motor protection solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has current ratings of 280mA and 400mA.
The maximum supply voltage for this unit is 690V.
It operates within a temperature range of -20°C to 60°C.
This model features a 3-pole configuration for motor protection.
It incorporates a magnetic sensing type for detecting motor faults.
The device has an IP20 rating, providing basic protection against solid objects larger than 12mm.
The overall dimensions are 45mm in length, 96.9mm in width, and 97mm in depth.
It is certified with multiple standards including CE, UL, CSA, and RoHS.
It supports screw or spring clamp connection types for easy installation.
It has an impulse voltage resistance of up to 6 kV, enhancing its durability under transient voltage conditions.
The device implements a Class 10 tripping characteristic, suitable for motor protection applications.
This product is manufactured in Germany.
