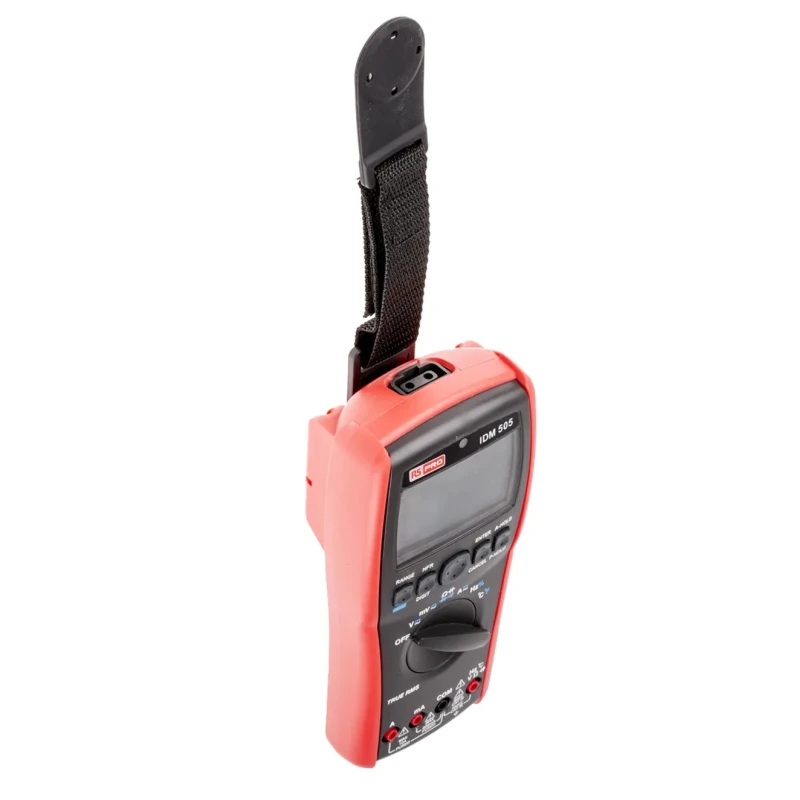

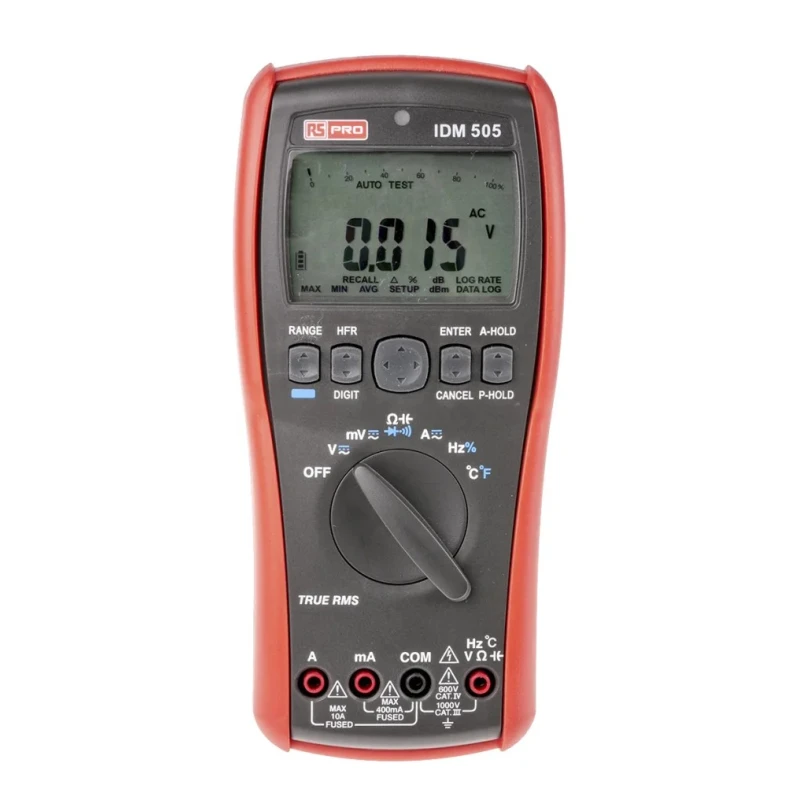

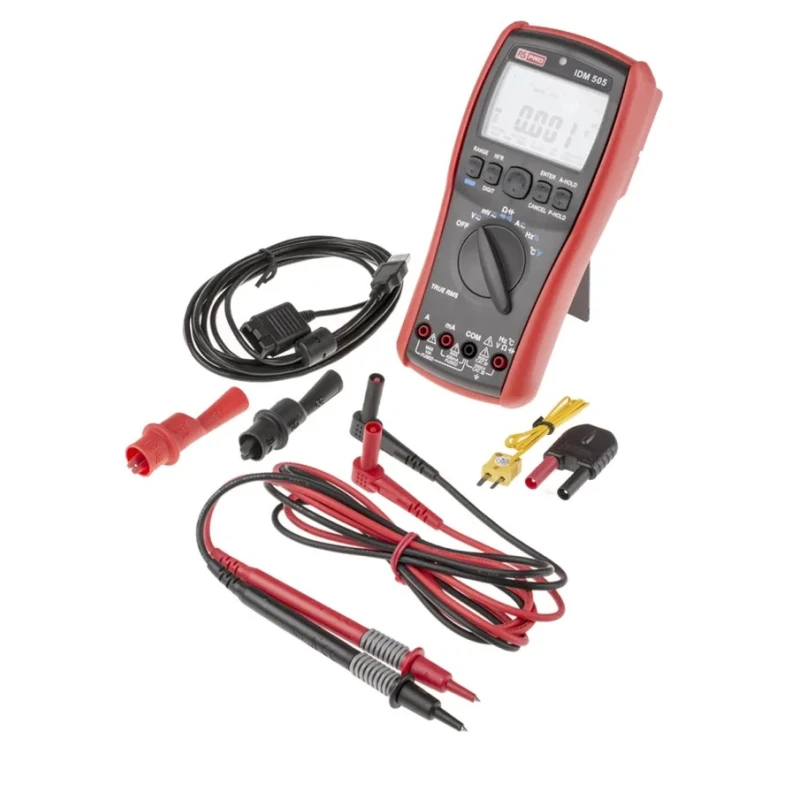

RS PRO Handheld Digital Multimeter True RMS, 10 A AC/DC, 1 kV Voltage IDM505
Specifications
| Country of Origin | Spain |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 100h |
| Battery type | 1.5 V AA Alkaline (NEDA 15A) |
| Height | 200mm |
| Length | 95mm |
| Model | IDM505 |
| Gross Weight | 620g |
| Width | 51.2mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.001mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±0.1 % rdg + 4 Digits |
| Interfaces | USB Interface |
| DC Voltage Resolution | 0.0001 mV dc |
| Resistance Measurement Accuracy | ±0.025 % rdg + 30 Digits |
| AC Current Accuracy | ±0.7 % rdg + 80 Digits |
| Resistance Resolution | 10mΩ |
| AC Current Resolution | 0.1μA ac |
| DC Current Resolution | 0.1μA dc |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Duty Cycle, Frequency, Resistance, Temperature |
| Maximum Resistance Measurement | 40mΩ |
| Maximum AC Current Measurement | 10A ac |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum DC Current Measurement | 10A dc |
| Maximum AC Voltage Measurement | 1kV ac |
| Maximum Frequency | 4MHz |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1kV |
Key Features
- Features a large 100000/10000 count LCD display with 43 segments analogue bar graph.
- Measures AC/DC voltage up to 1 kV and current up to 10 A with high accuracy.
- Includes capacitance, frequency, temperature, duty cycle, diode, and continuity testing functions.
- Ergonomically designed slim shape with protective holster and built-in tilt stand.
- Provides data logging of 20000 records with optical USB interface for easy data transfer.
- Operates in temperature range from 0°C to 50°C and powered by 1.5 V AA alkaline batteries.
- Incorporates watertight gaskets for dust, dirt, and splash resistance to ensure durability.
- Supports auto selection modes and advanced features like auto backlight and peak hold.
Product Description
RS PRO IDM505 handheld digital multimeter combines robust design with advanced functionality for industrial, laboratory, and field electrical testing applications. Featuring True RMS capability, it accurately measures AC and DC currents up to 10 A and voltages up to 1 kV, supporting high-precision diagnostics and maintenance tasks.
This multimeter excels in demanding environments with its protective casing and watertight gaskets, resisting dust, dirt, and moisture ingress. The large LCD display with an analogue bar graph allows clear visualization of measurements, while the auto backlight enhances usability under low light conditions.
Key measured parameters include voltage, current, resistance, capacitance, frequency, temperature, duty cycle, diode test, and continuity. It offers high measurement resolution and accuracy, such as 0.1 µA DC current resolution and ±0.015% DC voltage accuracy, making it suitable for precise electrical troubleshooting and calibrations.

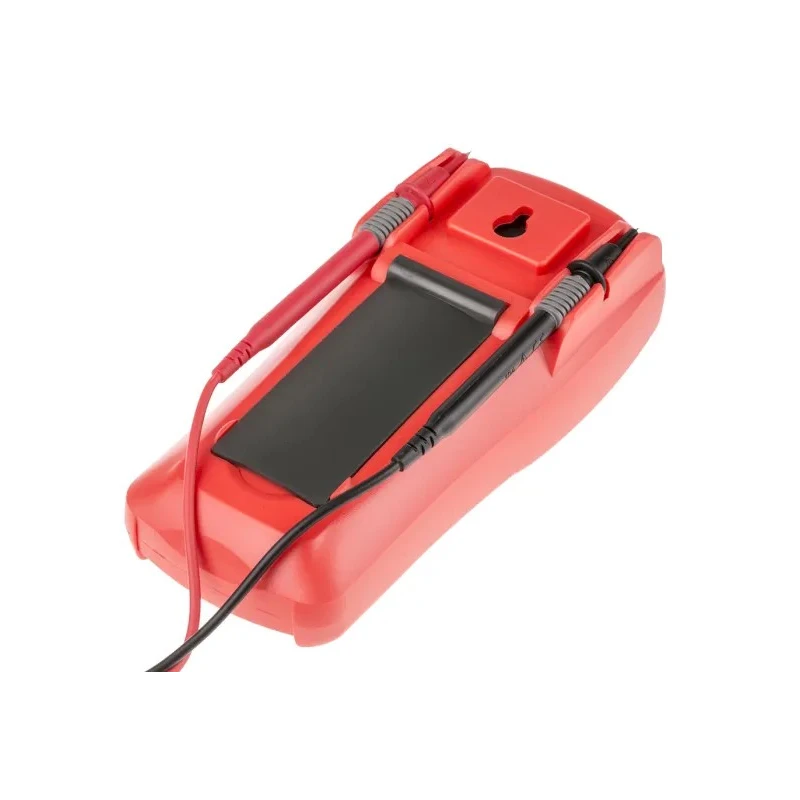

Designed ergonomically for comfortable handling, the device includes a protective holster with a built-in tilt stand and nail hook, facilitating ease of use and test lead storage. Additional features include data logging of 20000 records with optical USB interface connectivity for seamless data transfer to computers.
Its operation is powered by 1.5 V AA alkaline batteries providing up to 100 hours of battery life, complemented by a low battery indicator and auto power-off function to conserve energy. The instrument's safety ratings of CAT III and CAT IV at 1 kV ensure reliable and safe use in industrial environments.
Large 100000/10000 count LCD display with analogue bar graph. True RMS measurement for AC/DC voltage and current. Multi-function testing including capacitance, frequency, temperature, and diode checks. Water and dust resistant with watertight gasket protection.
Data logging with 20000 record capacity and USB interface. Ergonomic design with protective holster and tilt stand. Battery-powered with long-lasting AA alkaline cells and auto power off. Certified safety with CAT III and CAT IV 1 kV ratings.
This RS PRO IDM505 Multimeter is ideal for electrical testing across industrial machines, manufacturing plants, laboratories, HVAC systems, and maintenance operations. For more precision instruments and test equipment, explore the EnvMart catalog and discover top-tier measurement solutions from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can measure AC and DC voltages up to 1 kV.
The maximum current measurement for both AC and DC is 10 A.
It measures AC current, AC voltage, capacitance, continuity, DC current, DC voltage, diode test, duty cycle, frequency, resistance, and temperature.
The DC voltage resolution is 0.0001 mV.
It incorporates watertight gaskets for dust, dirt, and splash resistance, enhancing its durability.
It features a large LCD display with a count of 100000/10000 and includes an analogue bar graph for clear visualization of measurements.
The battery life is approximately 100 hours when powered by 1.5 V AA alkaline batteries.
It is rated for safety categories CAT III and CAT IV at 1 kV, ensuring safe use in industrial environments.
It operates within a temperature range of 0°C to 50°C.
Yes, it supports data logging with a capacity of 20000 records and features an optical USB interface for data transfer.
The maximum frequency measurement capability is 4 MHz.
The multimeter has dimensions of 200 mm in height, 95 mm in length, and 51.2 mm in width, with a gross weight of 620 g.
