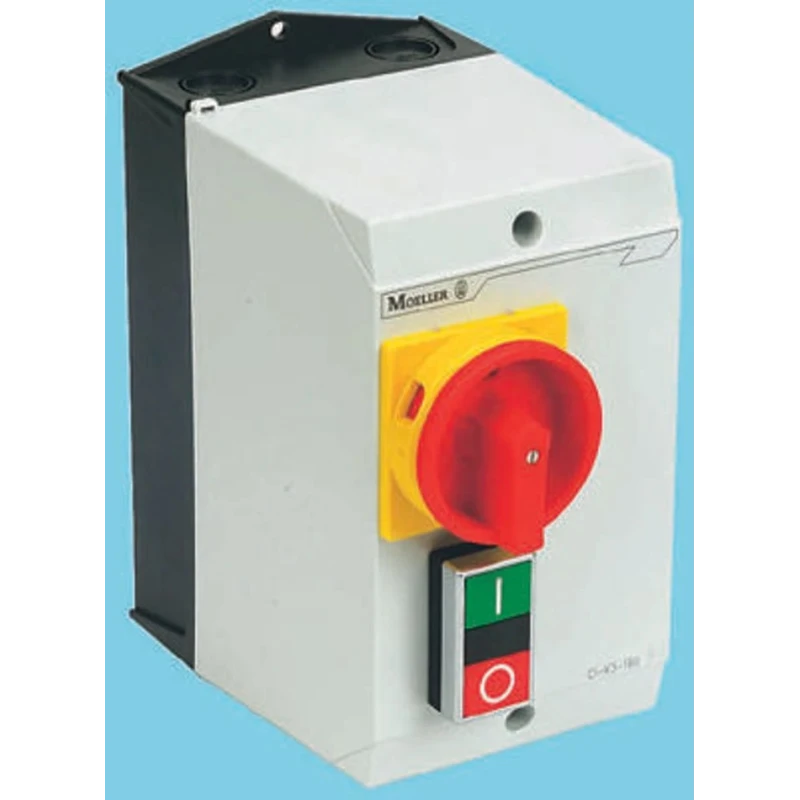

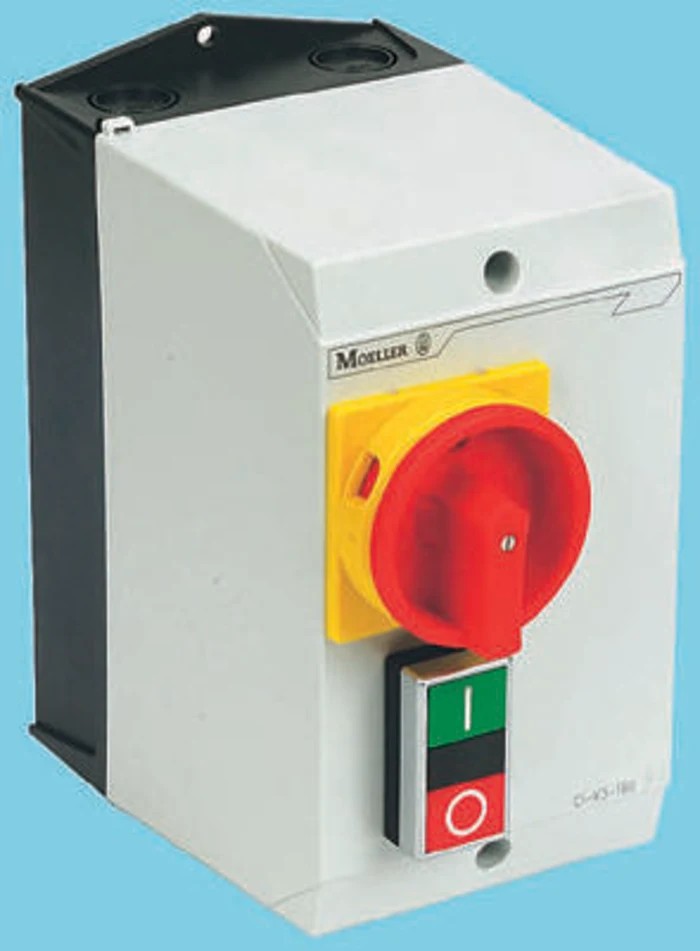

Eaton DOL Starter, Direct On Line, 230V AC, 4 kW, 3 Phase, Surface Mount, IP65, Series XDP 118522 XDP4/I(230V50HZ,240V60HZ)
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Model | 118522 XDP4/I(230V50HZ,240V60HZ) |
| IP Rating | IP65 |
| Mount Type | Surface |
| Overall Length | 200mm |
| Series | XDP |
| Overall Width | 120mm |
| Power Rating | 4kW |
| Sub Type | DOL |
| Number of Phases | 3 |
| Maximum Voltage | 230V ac |
| Number of Poles | 3 |
| Overall Depth | 160mm |
| DOL Starter 4kW 240Vac - Z00 overloadBrand | Moeller |
Key Features
- Constructed with glass fibre reinforced polycarbonate casing for durability.
- Equipped with AC-3 rated triple pole contactor and switch disconnector.
- Includes on/off pushbuttons and provision for 3 padlocks for safety.
- Complies with IEC/EN 60529, DIN 43660, and EN 50262 standards.
- Designed for starting 3-phase induction motors in industrial applications.
- Suitable for conveyor belts, compressors, and small water pumps.
- Fitted with metric knockouts for easy installation.
- Allows use of Eaton overload relays (purchased separately) for overload protection.
Product Description
Eaton 118522 XDP4/I(230V50HZ,240V60HZ) DOL Starter is a direct on line starter with a power rating of 4 kW and designed for 3-phase motors operating at 230V AC. This surface mount motor starter features an IP65 rated glass fibre reinforced polycarbonate casing that provides robust protection against dust and water ingress, making it suitable for industrial environments requiring ingress protection.
The starter includes an AC-3 rated triple pole contactor and a triple pole switch disconnector, together with on and off pushbuttons. It is designed to allow the use of three padlocks for enhanced safety and locking mechanisms during maintenance or isolation. All starters in the Eaton XDP series are wired to accept Eaton overload relays, which offer effective overload protection and are available separately.
These devices are compliant with IEC/EN 60529, DIN 43660, and EN 50262 standards, ensuring reliability and safety in electrical installations. The unit measures 200 mm in length, 120 mm in width, and 160 mm in depth.
The Eaton DOL Starter is ideal for applications involving starting 3-phase induction motors directly on line. Typical industrial uses include conveyor belts, compressors, and small water pumps, where simplicity and reliability of motor starting are essential.
Its construction from standard components allows for straightforward maintenance and a long operating life. The IP65 rating guarantees protection from dust and water jets, enhancing operational durability in harsh environments.
Constructed with glass fibre reinforced polycarbonate casing for durability. Equipped with AC-3 rated triple pole contactor and switch disconnector. Includes on/off pushbuttons and provision for 3 padlocks for safety. Complies with IEC/EN 60529, DIN 43660, and EN 50262 standards.
Designed for starting 3-phase induction motors in industrial applications. Suitable for conveyor belts, compressors, and small water pumps. Fitted with metric knockouts for easy installation. Allows use of Eaton overload relays (purchased separately) for overload protection.
Explore the Eaton brand and Motor Starters category on EnvMart for more high-quality industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DOL Starter has a power rating of 4 kW, designed for 3-phase motors operating at 230V AC.
This model has an IP65 rating, providing protection against dust and water ingress, suitable for industrial environments.
The overall dimensions of the starter are 200 mm in length, 120 mm in width, and 160 mm in depth.
It is designed for starting 3-phase induction motors directly on line, suitable for applications like conveyor belts, compressors, and small water pumps.
The starter includes on/off pushbuttons and provision for three padlocks, enhancing safety during maintenance or isolation.
It complies with IEC/EN 60529, DIN 43660, and EN 50262 standards, ensuring reliability and safety in electrical installations.
The starter is constructed with a glass fibre reinforced polycarbonate casing, providing durability and robust protection.
This model is designed for surface mounting, making installation straightforward in various settings.
The maximum voltage rating for this DOL starter is 230V AC.
Yes, it is designed to allow the use of Eaton overload relays, which are available separately for effective overload protection.
It is equipped with an AC-3 rated triple pole contactor, ensuring reliable operation for motor starting applications.
The country of origin for this model is the United Kingdom.
