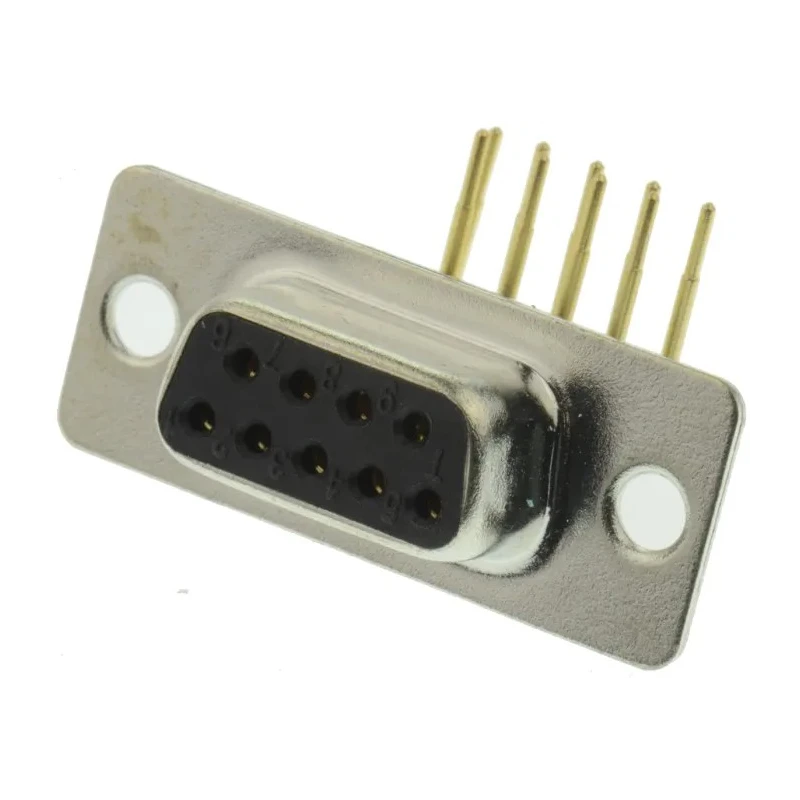

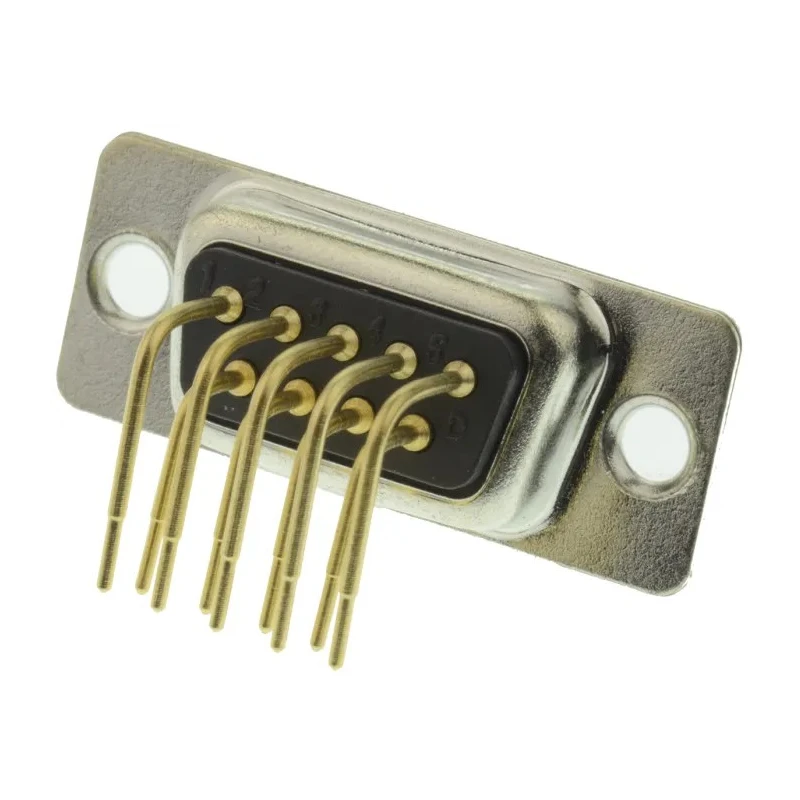

RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Female 528-3705

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Female 528-3705

Name: RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Female 528-3705
Brand: RS PRO
SKU: 194487
Price: 4.05 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	5A
Model	528-3705
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Series	RS PRO
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold over Nickel
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
RS PRO 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector FemaleBrand	RS PRO
9 Way Right Angle PCB D-sub Connector SocketBrand	NEUTRAL

Key Features

Right angle body orientation with 9 contacts for efficient space utilization.
Rated for a current of 5 A and voltage of 250 V for robust performance.
Constructed with copper alloy contacts and steel shell to ensure durability.
Gold over nickel plating on contacts provides reliable and precise connections.
Suitable for through-hole mounting with solder termination type.
Operates reliably within a temperature range of -55°C to 125°C.
Connector has a pitch of 2.77 mm for standard compatibility.
Female connector gender designed for secure connection.

Product Description

RS PRO 528-3705 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector Female is a high-quality connector designed for precise and reliable input/output connections in demanding industrial, electronic, and communication applications.

This connector features nine gold over nickel plated copper alloy contacts arranged with a 2.77 mm pitch and a right angle body orientation. The steel housing with dimples provides effective grounding, contributing to signal integrity and durability.

Its solder termination and through-hole mounting make it suitable for PCB installation where robust mechanical and electrical connections are needed. Rated for 5 A current and 250 V voltage, this connector suits a wide range of industrial, military, computer, and communication environments.

The operating temperature range from -55°C to 125°C ensures reliable function in extreme conditions. The female connector gender and standard pitch facilitate easy interfacing with compatible male connectors for power, communication, and network port applications.

Key Features:. Right angle body orientation with 9 contacts for efficient space utilization. Current rating of 5 A and voltage rating of 250 V for robust performance. Copper alloy contacts with gold over nickel plating for reliable connections.

Steel housing with grounding dimples enhances durability and signal integrity. Through-hole mounting and solder termination ensure lasting PCB attachment. Wide operating temperature range from -55°C to 125°C for versatile usage.

2.77 mm pitch aligns with industry standards for connector spacing. Tested for electrostatic discharge compliance to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

This RS PRO D-Sub Connector is ideal for industrial plants, communication equipment, military-grade devices, and computer manufacturing for dependable and precise I/O connectivity in compact spaces.

Explore the range of RS PRO connectors at EnvMart to find components suited for your professional electronic assembly and power connection needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This D-Sub connector is rated for a current of 5 A and a voltage of 250 V, ensuring robust performance in various applications.

The connector features a right angle body orientation with a pitch of 2.77 mm, facilitating efficient space utilization and compatibility with standard connectors.

It is constructed with copper alloy contacts and a steel housing, providing durability and effective grounding for signal integrity.

This model uses solder termination, making it suitable for through-hole mounting on PCBs for secure attachment.

The connector operates reliably within a temperature range of -55°C to 125°C, making it suitable for extreme conditions.

This D-Sub connector has 9 contacts, which allows for multiple connections in a compact design.

Yes, it is designed for use in industrial plants, communication equipment, military-grade devices, and computer manufacturing.

This model features a female connector gender, designed for secure connections with compatible male connectors.

It has been tested for electrostatic discharge compliance to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

The connector is manufactured in Taiwan, ensuring adherence to quality standards.

The gold over nickel plating on the contacts provides reliable and precise connections, enhancing the performance of the connector.

This connector is designed for through-hole mounting, which requires a PCB with appropriate hole dimensions for installation.
