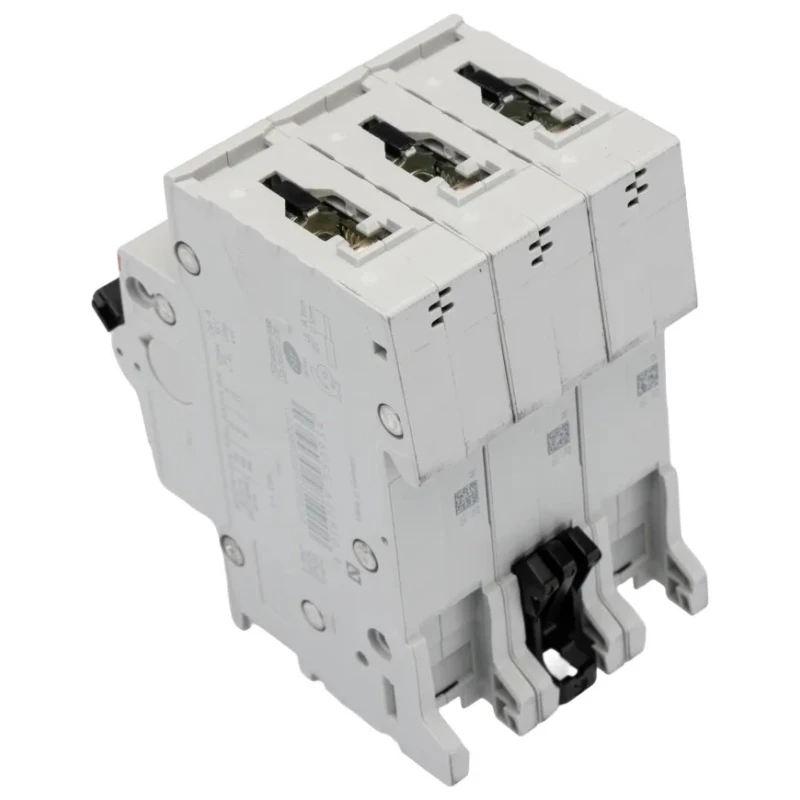

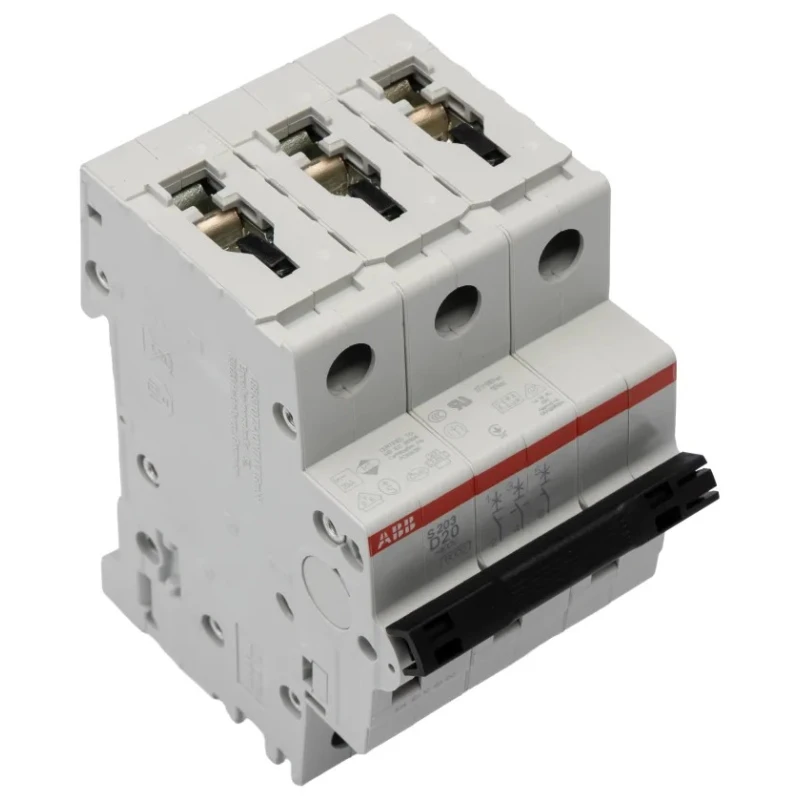

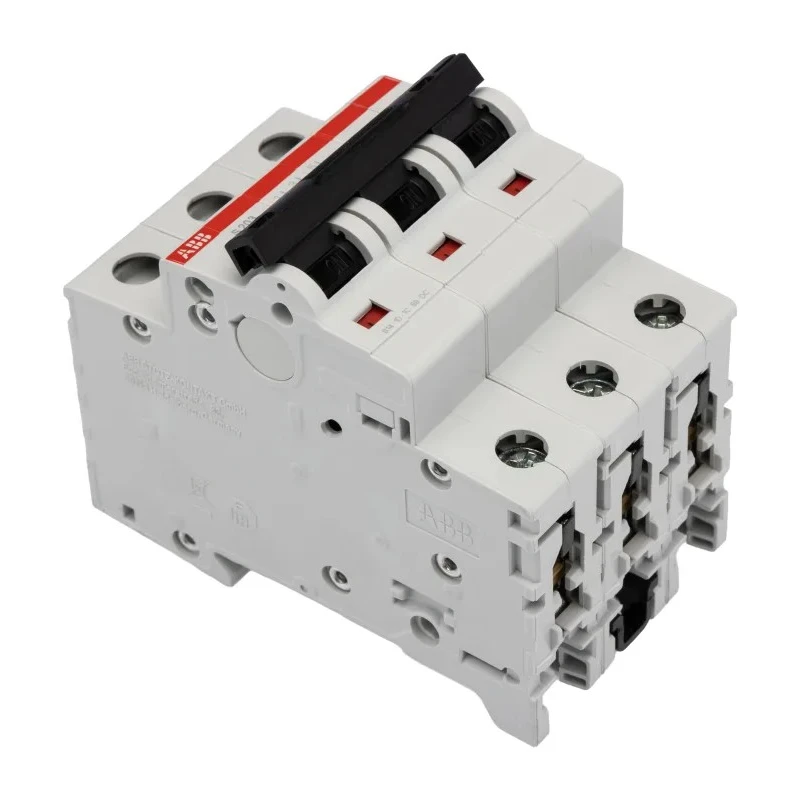

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 20A Current Rating, Type D 2CDS253001R0201 S203-D20

ABB 2CDS253001R0201 S203-D20 Miniature Circuit Breaker is part of the System Pro M Compact S200 range, designed to deliver dependable electrical protection in industrial, commercial, and HVAC applications. This 3-pole device reliably interrupts electrical faults with a current rating of 20A and type D tripping characteristics, ideal for systems experiencing high inrush currents such as motors or transformers.

The breaker is rated for both AC and DC voltages, supporting up to 440V AC and 12V DC, providing versatility across various electrical systems. Its breaking capacity of 6 kA ensures safe interruption of potentially damaging fault currents, protecting downstream equipment and minimizing downtime.

Installation is simplified with DIN rail mounting, allowing tool-free attachment and maintenance in electrical panels. The front-facing toggle switch with clear position markings facilitates rapid resetting, while the integrated contact indicator offers convenient status monitoring. Its rugged and vibration-resistant design supports reliable operation in harsh environmental conditions ranging from -25°C to +55°C.

Meeting international standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, this circuit breaker ensures compliance with electrical safety protocols worldwide. The compact form factor - with dimensions 88 mm height, 52.5 mm width, and 69 mm depth - saves panel space without compromising performance. The IP20 ingress protection rating provides defense against solid objects, enhancing equipment longevity.

Typical applications include medical equipment power protection, HVAC systems, chemical plant installations, and manufacturing industry electrical safety. ABB's System Pro M Compact S200 series represents a sustainable choice, designed for disassembly and environmental responsibility.

Type D tripping characteristic ensures protection against surges at 10 to 20 times rated load. Supports both 440V AC and 12V DC rated voltages for versatile use. Breaking capacity of 6 kA enables safe interruption of medium to high fault currents.

DIN rail mount design facilitates quick and tool-free installation. Equipped with a front toggle switch and integrated contact indicator for easy operation and monitoring. Robust and vibration-resistant construction suitable for harsh environments.

Meets IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards for safety and performance. Compact dimensions: height 88 mm, width 52.5 mm, depth 69 mm occupy minimal panel space. IP20 rated enclosure protects against solid objects ensuring durability.

Operating temperature range from -25°C to +55°C supports diverse industrial conditions. Browse EnvMart for more high-quality ABB Miniature Circuit Breakers and electrical protection devices suitable for your industrial and commercial needs.
