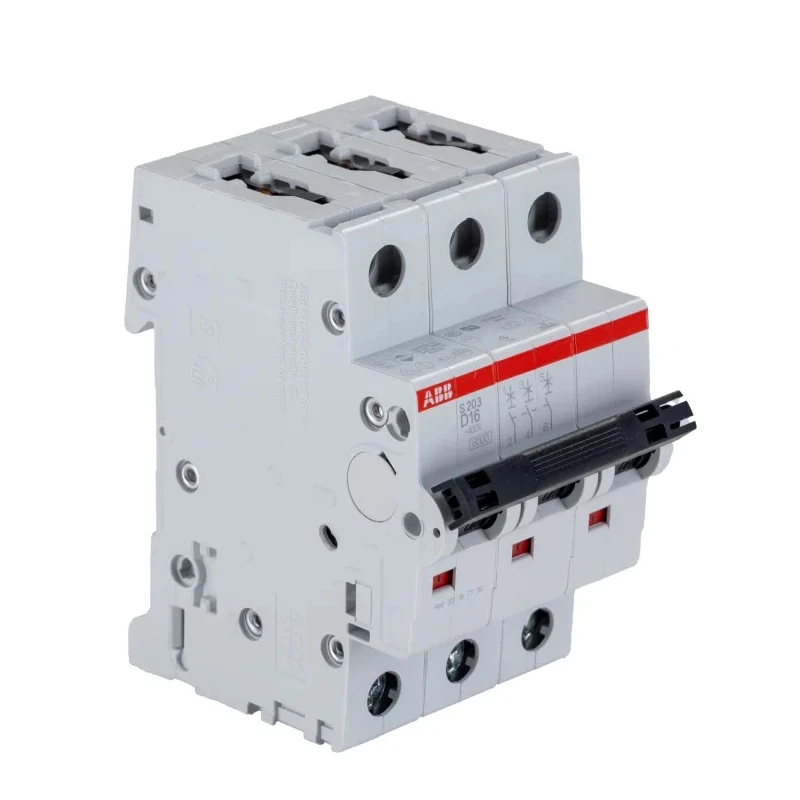

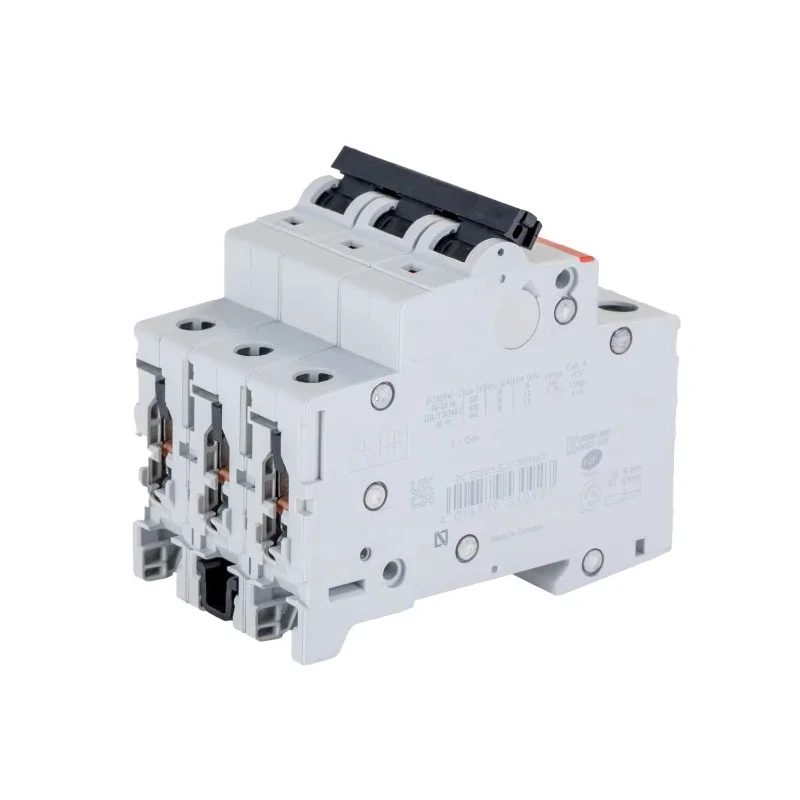

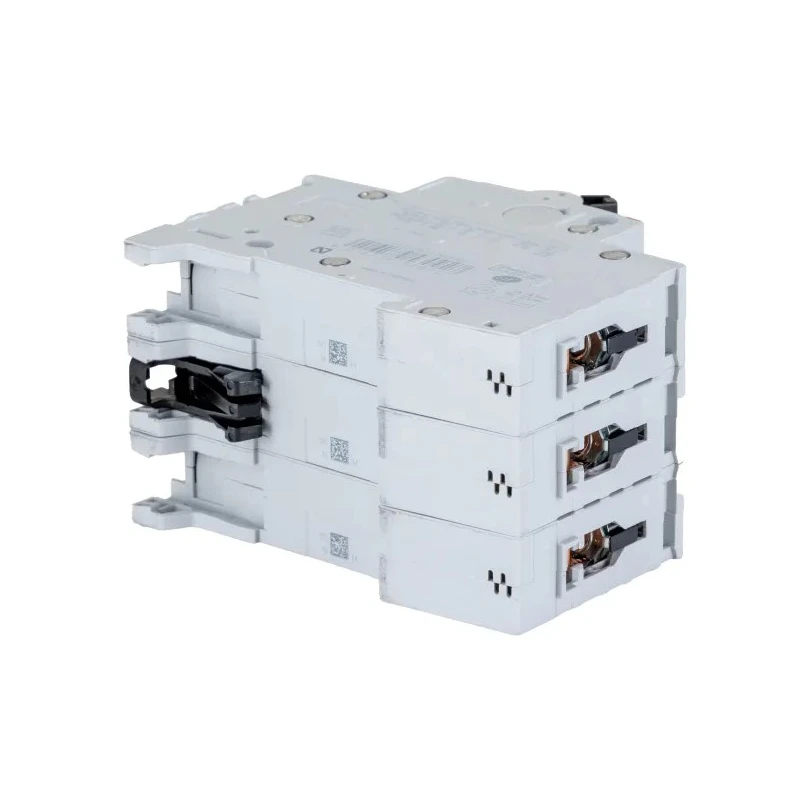

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 16A, Type D, 440V AC, 12V DC, 6 kA 2CDS253001R0161 S203-D16

ABB 2CDS253001R0161 S203-D16 System Pro M Compact S200 Miniature Circuit Breaker is engineered to provide robust overcurrent protection for industrial, residential, and commercial electrical systems. This 3-pole breaker is rated at 16A and utilizes a Type D tripping characteristic which enables it to handle devices that produce frequent inrush currents, such as motors and transformers.

Designed to operate under rated voltages of 440V AC and 12V DC, it offers a high breaking capacity of 6 kA, ensuring effective interruption of fault currents and minimizing potential damage to installed equipment. The MCB features a DIN rail mount type which simplifies installation and replacement within electrical panels.

Its mechanical construction supports shock resistance and a mechanical endurance of 20,000 cycles, contributing to long service life even in demanding environments. The toggle switch actuator allows quick and simple manual resets after tripping events. This breaker operates reliably in temperature ranges from -25°C up to +55°C, making it suitable for various industrial and commercial applications.

Compliance with IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 standards ensures adherence to global safety and performance requirements. Typical applications include protection in residential buildings, telecommunications networks, construction sites, and assembly line equipment.

This MCB features a 3-pole design suitable for multi-phase systems. It has a current rating of 16 amperes for high power applications. The Type D tripping characteristic handles high inrush currents efficiently. The device supports rated voltages of 440V AC and 12V DC.

Breaking capacity of 6 kiloamperes ensures rapid fault clearance. Mounts effortlessly on DIN rails for flexible installation. Shock-resistant with a mechanical endurance of 20,000 cycles for reliable performance. Equipped with a toggle switch for easy manual reset operations.

Operates effectively in ambient temperatures from -25°C to +55°C. Complies with international standards including IEC/EN 60898-1 and UL 1077. This product is part of ABB's System Pro M Compact series, providing advanced circuit protection designed for a broad range of industrial and commercial electrical installations.
