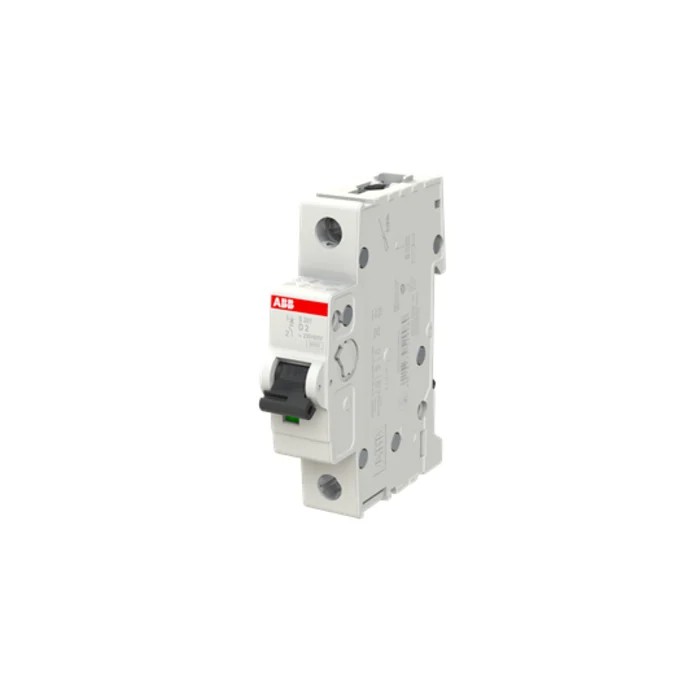

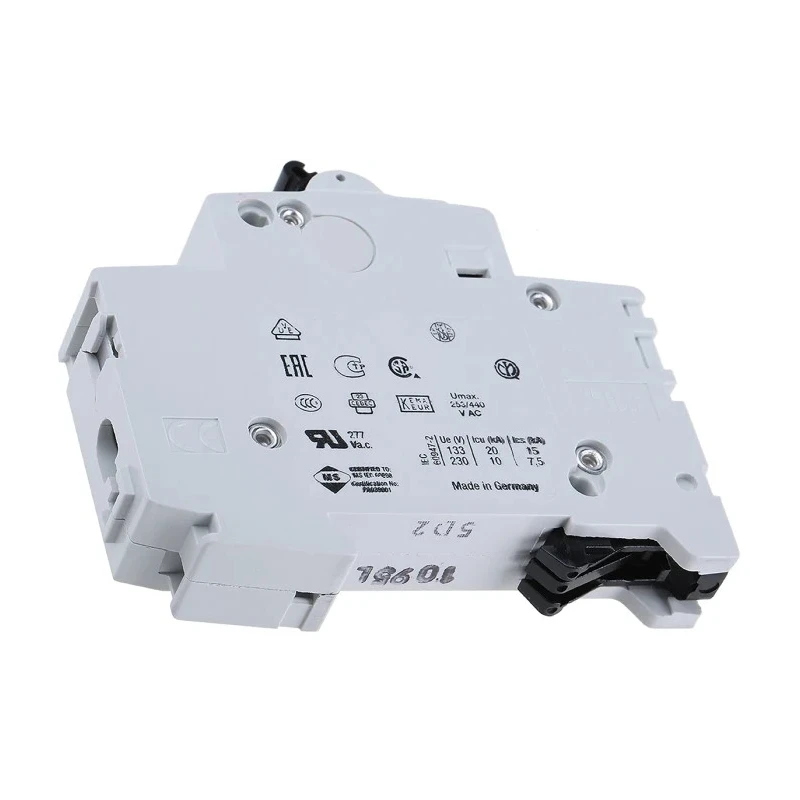

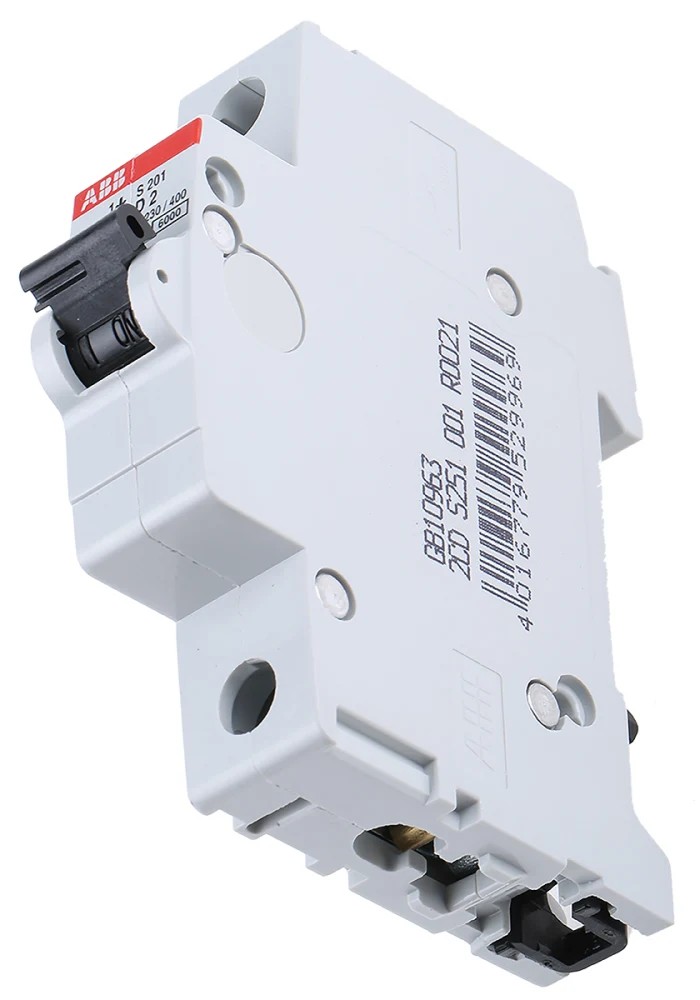

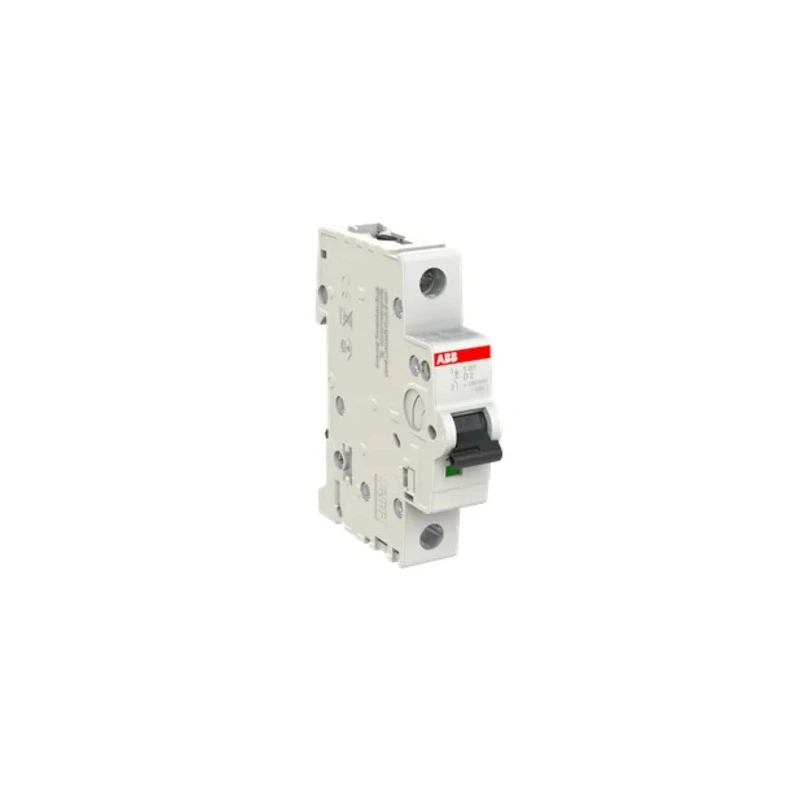

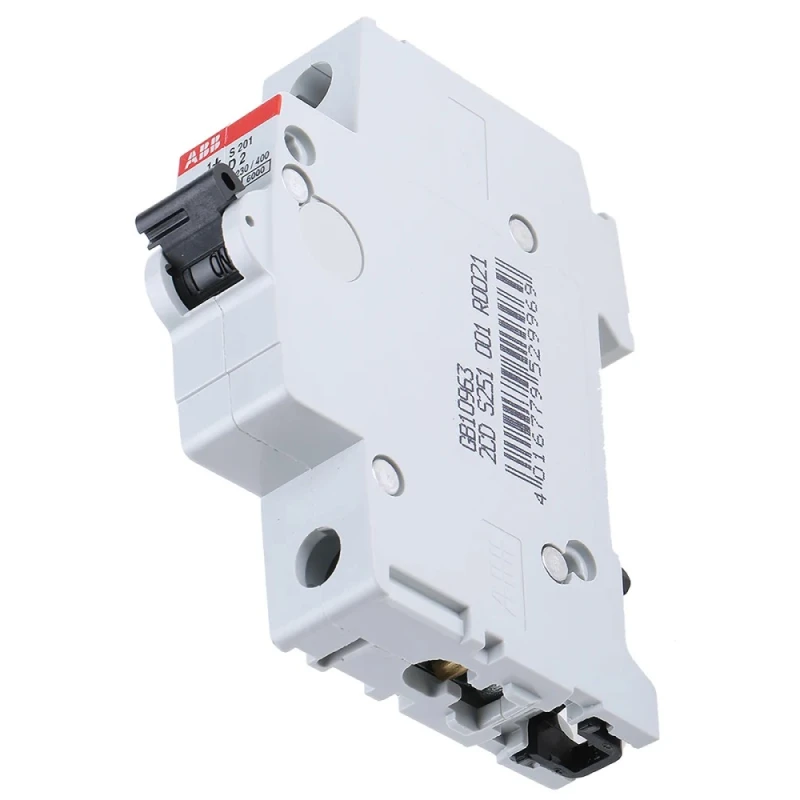

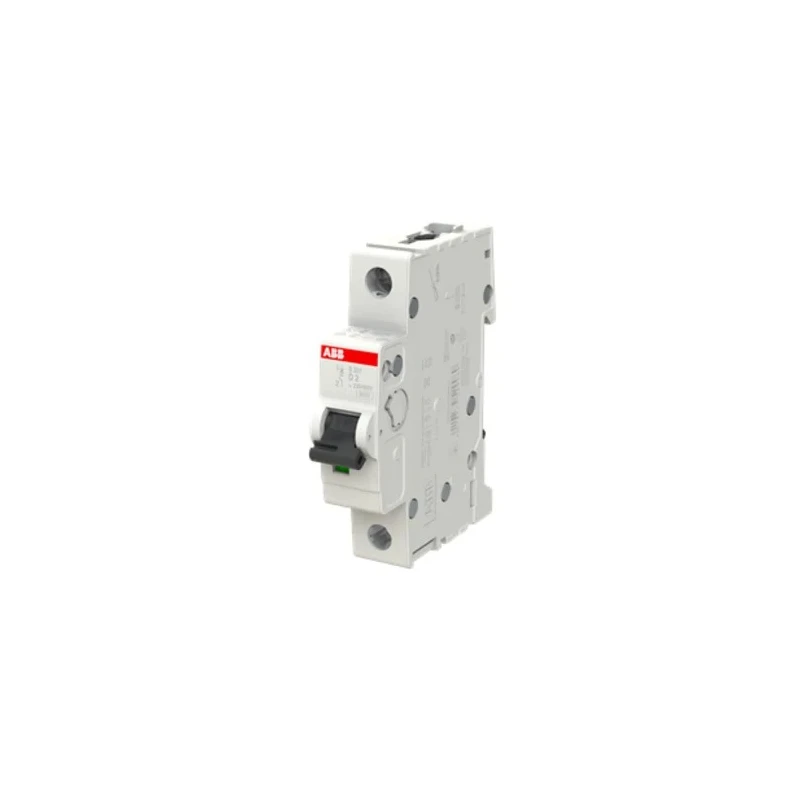

ABB Miniature Circuit Breaker 1-Pole 2A Type D 253V AC 72V DC 6kA Breaking Capacity 2CDS251001R0021 S201-D2
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS251001R0021 S201-D2 |
| Depth | 76mm |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 253V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Type D 1 pole MCB,2A 6kA break capacityBrand | ABB |
Key Features
- Compact size measuring 69mm length, 17.5mm width, and 88mm height.
- Supports rated voltages of 253V AC and 72V DC.
- Breaking capacity of 6kA ensures effective fault interruption.
- Type D tripping characteristic ideal for high inrush currents from motors and transformers.
- Mounts easily on DIN rails for quick installation.
- Toggle switch actuator allows simple reset after fault clearance.
- Thermal tripping mechanism provides precise overload protection.
- Broad operating temperature range from -25°C to +55°C for versatile environments.
Product Description
ABB 2CDS251001R0021 S201-D2 Miniature Circuit Breaker is a compact, reliable single-pole device designed for electrical protection in industrial and commercial applications. Rated for 2A current and equipped with a Type D tripping characteristic, it effectively handles high inrush currents typical in equipment such as motors and transformers, reducing nuisance tripping without compromising safety.
The breaker supports a rated AC voltage of 253V and rated DC voltage of 72V, with a robust breaking capacity of 6kA for safe fault interruption. Its compact dimensions of 69mm length, 17.5mm width, and 88mm height allow space-efficient installation inside control panels.
Designed for easy DIN rail mounting and screw terminal connections, it ensures quick and secure installation. The thermal tripping mechanism offers precise overload protection while the toggle switch actuator provides clear visual indication and easy manual reset after fault clearance.
Operating across a wide temperature range from -25°C to +55°C and with IP20 and IP40 protection ratings, this MCB is suited for challenging environments including medical imaging systems, UPS systems, and winding motors.
Compact design with precise overload and short circuit protection. High breaking capacity of 6kA supports safety in industrial electrical networks. Suitable for applications with significant start-up currents due to Type D tripping curve.
Easy installation on DIN rails with secure screw terminals. Durable construction with IP20 and IP40 protection ratings. Designed for disassembly supporting environmental sustainability claims. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards.
This Miniature Circuit Breaker is ideal for use in industrial, manufacturing, medical, and automation sectors requiring dependable circuit protection. Explore more ABB electrical components and circuit breakers on EnvMart for your project and business needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this miniature circuit breaker is 6kA, ensuring effective fault interruption.
It supports a rated AC voltage of 253V and a rated DC voltage of 72V.
This model features a Type D tripping characteristic, which is ideal for handling high inrush currents from motors and transformers.
The dimensions of this circuit breaker are 69mm in length, 17.5mm in width, and 88mm in height.
It is designed for easy mounting on DIN rails, ensuring quick and secure installation.
This miniature circuit breaker uses screw terminals for secure connections.
The operating temperature range is from -25°C to +55°C, making it suitable for various environments.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards.
The reset actuator type is a toggle switch, allowing for easy manual reset after fault clearance.
This circuit breaker has IP20 and IP40 protection ratings, suitable for various applications.
The current rating of this model is 2A, designed for effective circuit protection.
It is suitable for industrial, manufacturing, medical, and automation sectors requiring dependable circuit protection.
