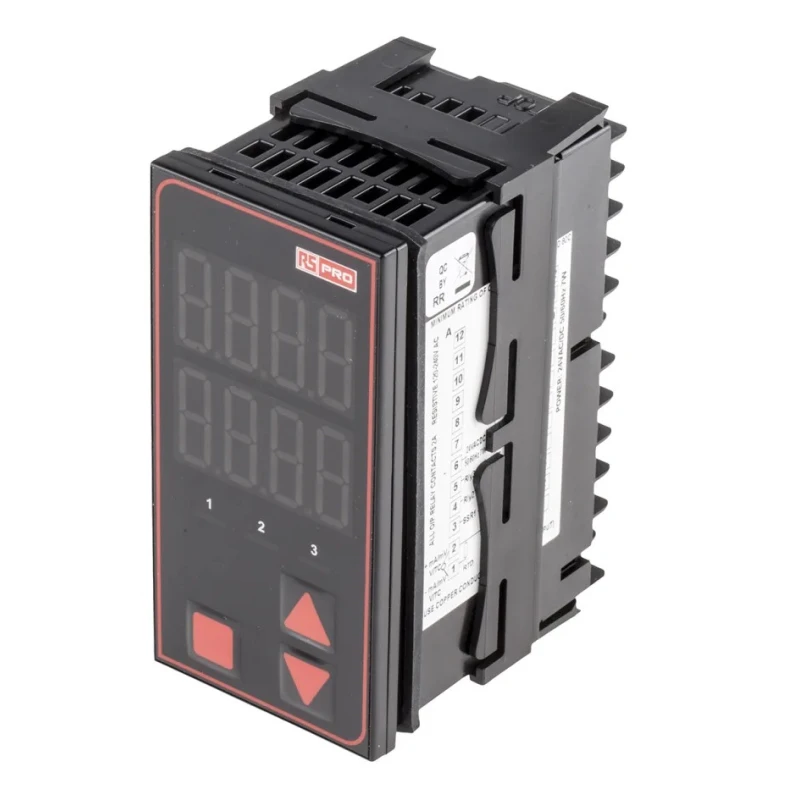

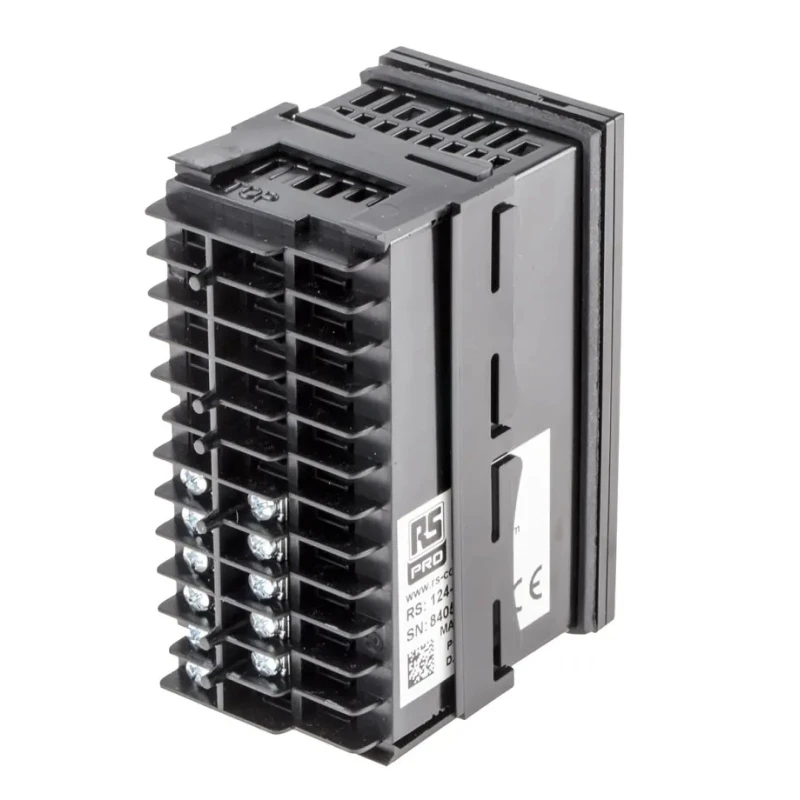

RS PRO Panel Mount PID Temperature Controller, 3 Output Relay, SSR, 24V ac/dc, Dual 4 Digit LED Display 124-1061

RS PRO 124-1061 Panel Mount PID Temperature Controller is an industrial-grade device designed for precise temperature control in automation and process systems. It supports multiple input sensors including J Type Thermocouple and PT100, making it suitable for varied industrial applications such as packaging, sealing, and laboratory temperature management.

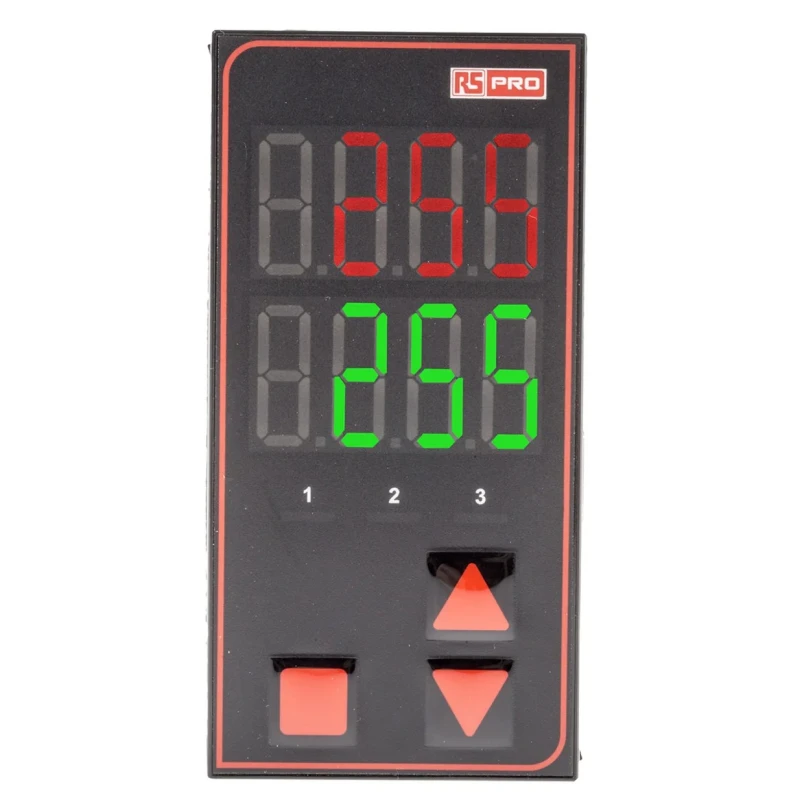

The controller features a large dual 4 digit LED display for clear and accurate temperature readouts. Its 1/8 DIN form factor measures 96mm by 48mm, allowing easy integration into standard control panels.

It offers up to three output options: relay, SSR, or a combination of both, with a maximum output current of 2A, enabling control of various heating or cooling elements. The device reliably operates in a temperature range from 0°C to 55°C and can withstand supply voltages up to 24V ac/dc with maximum voltage capability of 250V.

Designed with user convenience in mind, the controller provides a quick setup menu for top configuration parameters and supports front panel programming with three-button operation for intuitive control. It incorporates two process alarms that can be configured for high/low temperature alarms, deviation, or band alarms, enhancing safety and process reliability.

With an IP rating of IP65 on the front panel and IP20 for the terminal enclosure, it ensures protection against dust and water ingress, suitable for rugged industrial environments. The product is CE certified and complies with EN61010-1 and EN61326 standards, confirming its quality and safety for industrial use.

This temperature controller is ideal for industrial, laboratory, HVAC, manufacturing, and process control applications. It provides reliable temperature control solutions for precision-driven environments where maintaining exact temperature parameters is critical.

RS PRO products offer trusted performance backed by UK origin manufacturing, ensuring high standards and adherence to quality benchmarks. Explore the RS PRO range of industrial Temperature Controllers and related automation products at EnvMart to find the ideal solution for your application needs.

Features a large dual 4 digit LED display for clear temperature readings. Supports multiple input types including J Type Thermocouple and PT100. Offers up to 3 outputs with a maximum current of 2A for versatile control. Operates within 0°C to 55°C temperature range ensuring reliability.

Designed for panel mounting with a compact 96mm by 48mm front size. Includes IP65 and IP20 ratings for enhanced environmental protection. Equipped with 2 process alarms for high, low, deviation, or band alarms. Easy front panel configuration with a quick setup menu for key parameters.

CE certified conforming to EN61010-1 and EN61326 standards.
