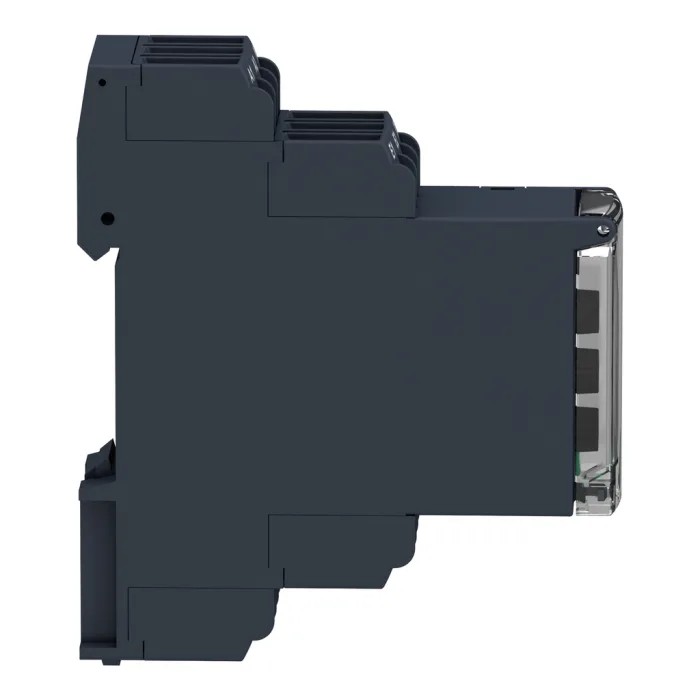

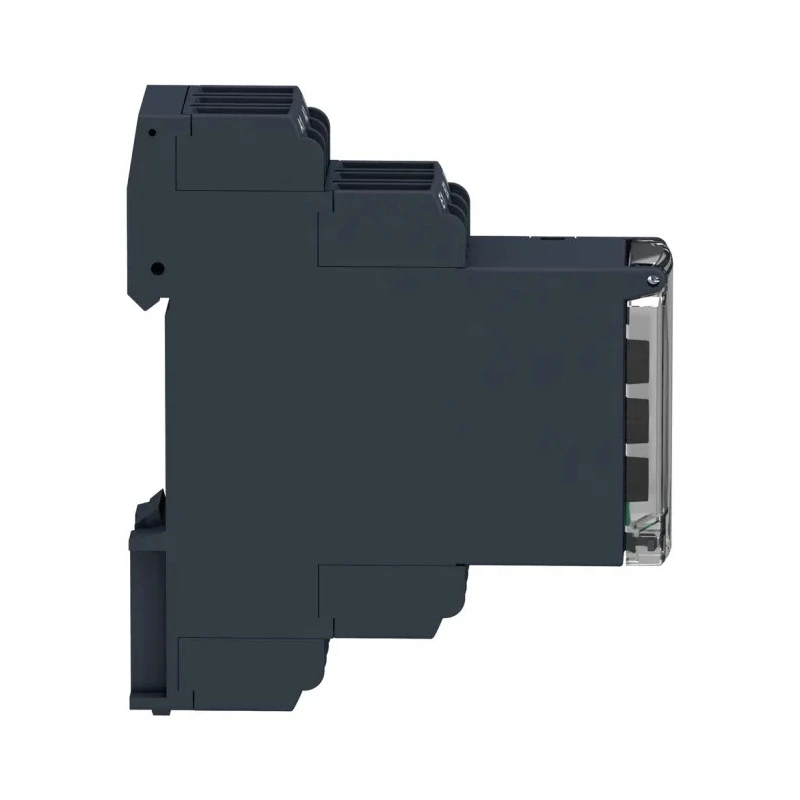

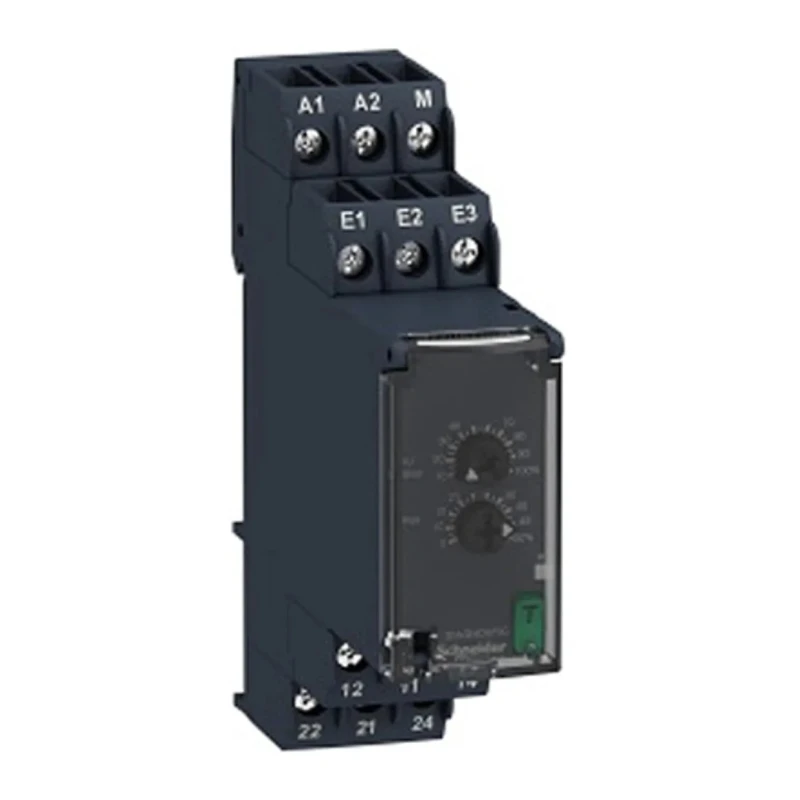

Schneider Electric Monitoring Relay 1 Phase DPDT DIN Rail 24V ac 240V ac RM22UA32MR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 90mm |
| Length | 22.9mm |
| Model | RM22UA32MR |
| IP Rating | IP50, IP40, IP20 |
| Width | 79.5mm |
| Mount Type | DIN Rail |
| Series | Harmony Control |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply AC Voltage | 24, 240V ac |
Key Features
- The relay supports a dual supply AC voltage of 24V and 240V AC.
- It features a DPDT contact configuration with an 8A contact current rating.
- The compact modular design has a width of 22.9mm, height of 90mm, and width of 79.5mm for DIN rail mounting.
- Includes screw terminal connections and supports IP50, IP40, and IP20 ratings for versatile installation environments.
- Operating temperature range is from -60°C to +60°C ensuring wide environmental tolerance.
- Complies with IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-27, RoHS, REACH, and IEC 60255-27 standards.
- Equipped with a diagnostic button and sealable cover for easy fault identification and troubleshooting.
- Automatic shutdown management enhances protection and reliability in critical automation systems.
Product Description
Schneider Electric RM22UA32MR Monitoring Relay is a multi-function voltage control relay engineered for single-phase electrical networks. Operating on dual AC voltages of 24V and 240V, this DPDT configuration relay is designed for industrial and building automation, providing precise control and reliable monitoring in demanding environments.
The modular relay has a slim profile with a width of 22.9mm, height of 90mm, and width of 79.5mm, allowing easy installation on standard DIN rails. It features screw terminal connections and is rated for IP50, IP40, and IP20 ingress protection, suitable for varied industrial conditions.
This relay supports an 8A contact current and includes a diagnostic button alongside a sealable cover for sealed operation and convenient fault diagnostics. It offers automatic shutdown management and fault reporting for quick troubleshooting, critical for minimizing downtime in industrial processes.
Certified to IEC 60068-2 series environmental tests and compliant with RoHS and REACH directives, the RM22UA32MR meets international safety and performance standards. Its applications span diverse industrial automation sectors including hoisting equipment, packaging machinery, lift controls, textile systems, and water treatment plants.
The relay supports a dual supply AC voltage of 24V and 240V AC. DPDT contact configuration rated for 8A current. Compact DIN rail mount with a slim 22.9mm width. Screw terminal type connections for secure wiring. Environmental protections rated IP50, IP40, and IP20.
Operating temperature range from -60°C to 60°C. Includes diagnostic button and sealable cover for fault management. Automatic shutdown management capabilities. Meets IEC 60068 and IEC 60255 standards, RoHS, and REACH.
This Schneider Electric monitoring relay is suited for installation in control panels, offering robust monitoring and control options for industrial automation systems. Its flexible configuration enables refurbishment of older installations without requiring additional PLCs, making it a cost-effective and dependable solution.
Explore additional Schneider Electric products and accessories on EnvMart to enhance your automation solutions.
Explore more products in our Monitoring Relays category.
