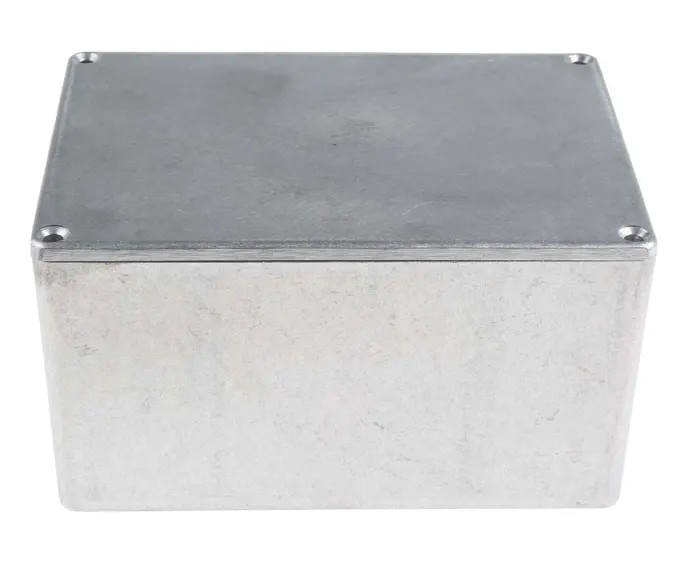

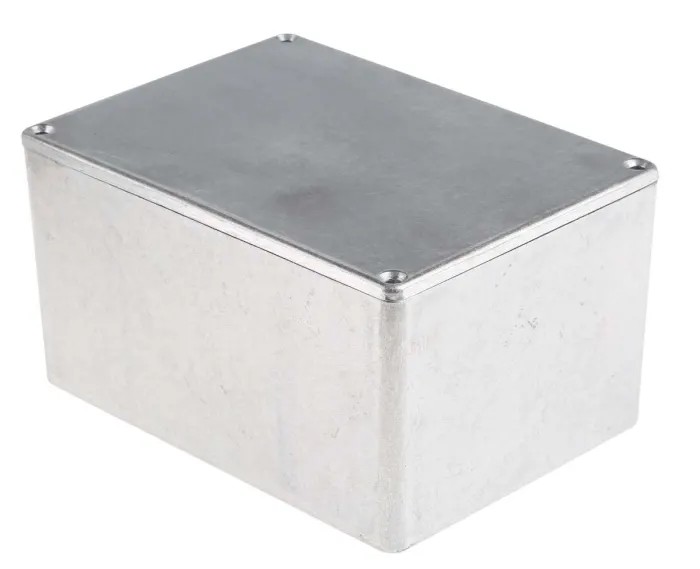

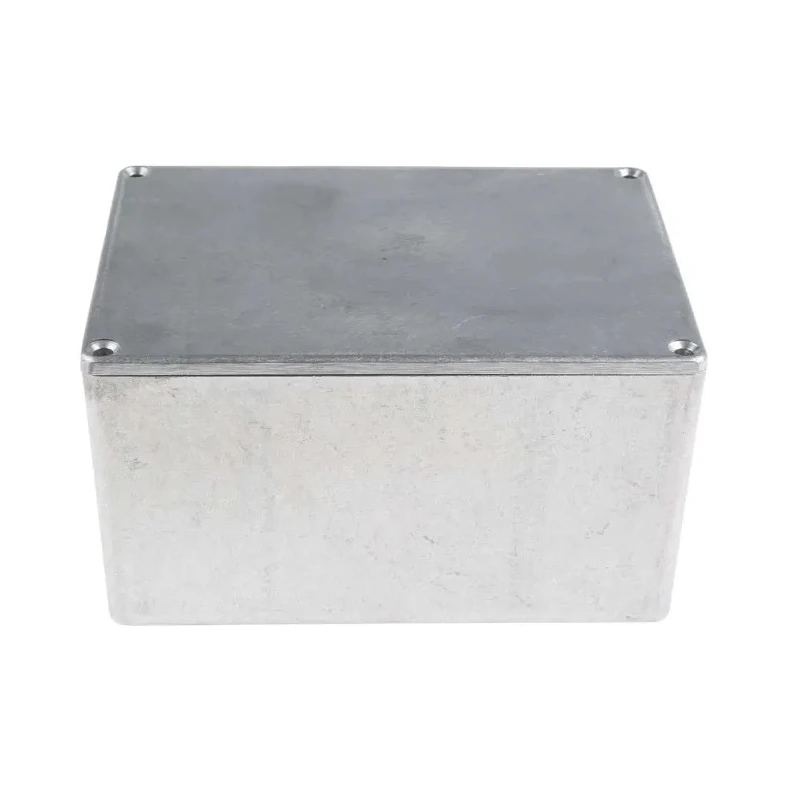

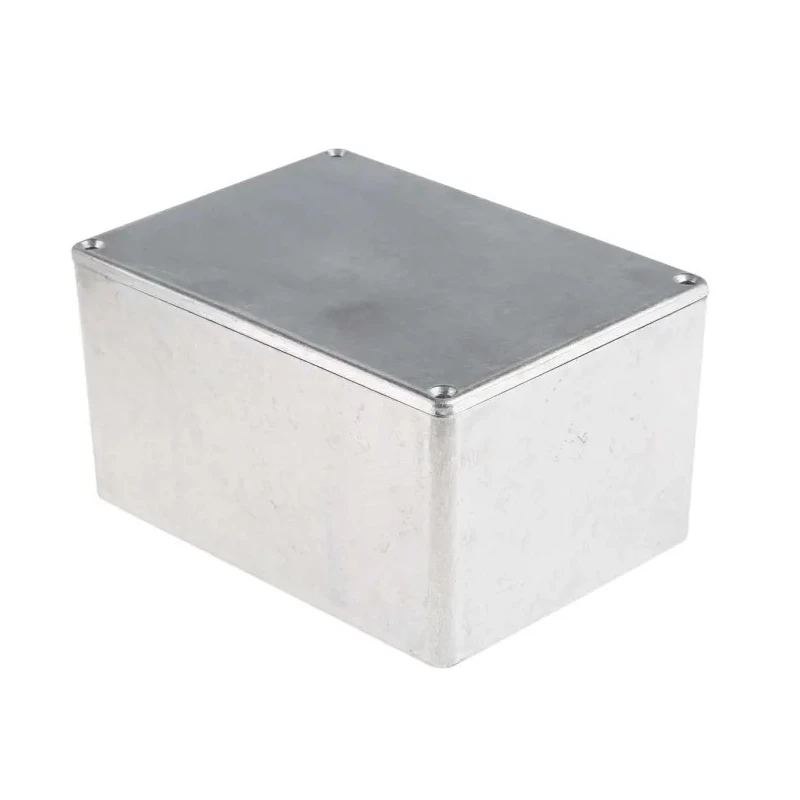

RS PRO Silver Lid Die Cast Aluminium Shielded General Purpose Enclosure IP67, 76.7 mm x 139.1 mm x 101.5 mm IP67

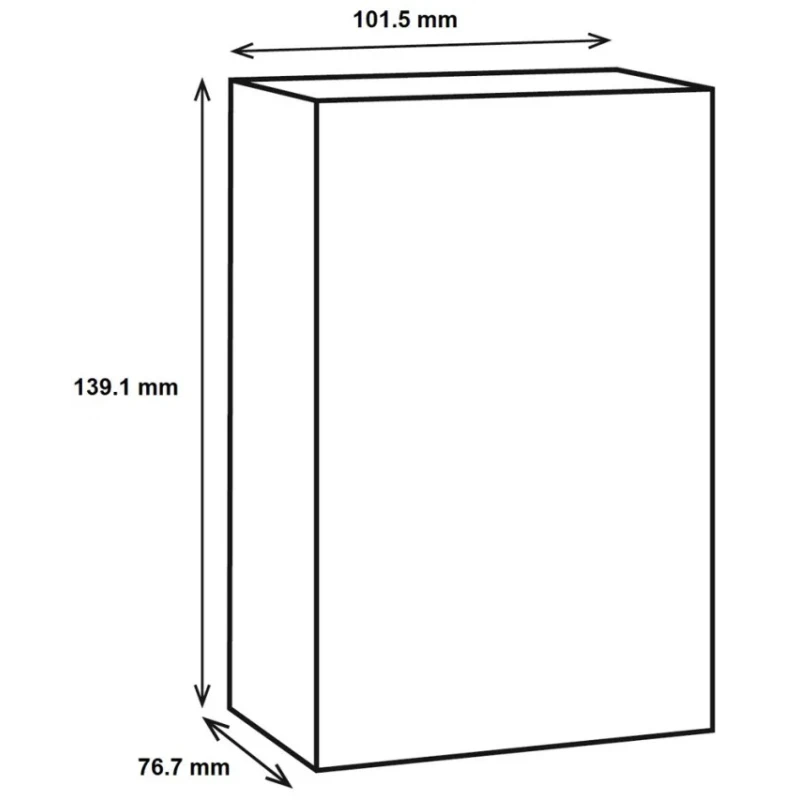

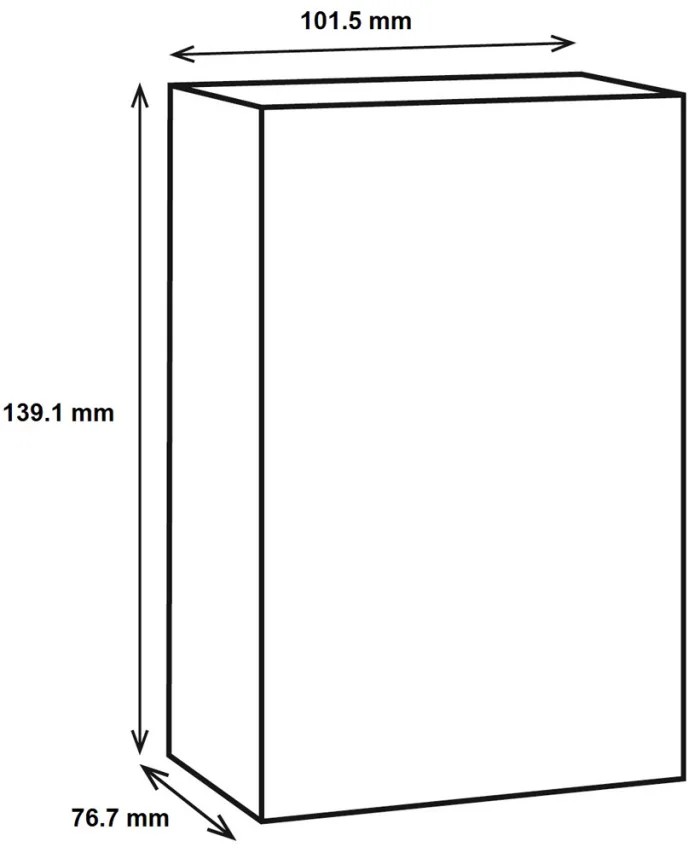

RS PRO IP67 die cast aluminium enclosure model IP67 is a shielded, silver lid general purpose enclosure designed to provide robust protection for sensitive electronic and industrial components. It measures 76.7 mm in height, 139.1 mm in length, and 101.5 mm in width, making it suitable for housing small to medium-sized equipment. The enclosure is made from ADC 12 die cast aluminium alloy, known for excellent mechanical strength and resistance to harsh operating conditions.

This enclosure offers EMI/RFI shielding with a lid lipped to provide effective screening better than 40 dB at 10 MHz and 76 dB at 100 kHz. It is rated IP67, providing dust-tight sealing and protection against immersion in water, ideal for outdoor and industrial environments. The enclosure can withstand temperature exposure up to 250°C without losing structural integrity, making it suitable for applications in demanding thermal conditions.

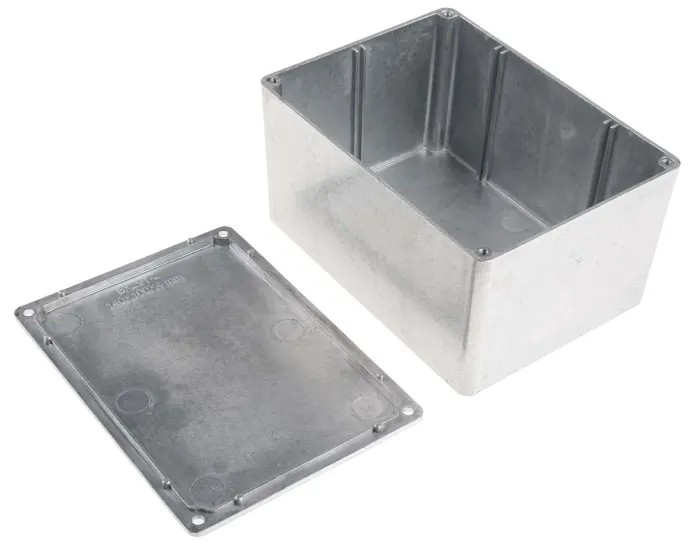

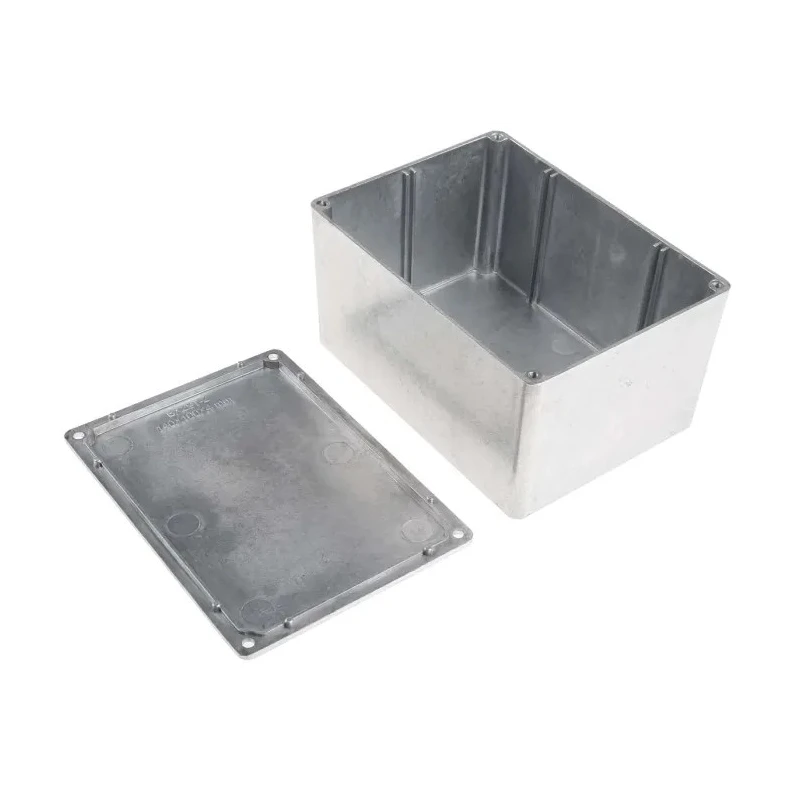

The lid is attached securely to the base using M3.5 x 9 mm Supadrive countersunk stainless steel screws located outside of the enclosure's inner space, ensuring tight fastening while maximizing internal usable volume. The lid tapers at 1.5° per side for an optimal fit, though this model does not include an adhesive seal for additional sealing or a mounting plate.

The external surface features a natural, plain finish with no coating, allowing users to customize the enclosure surface with powder painting if needed. This die cast aluminium enclosure complies with RoHS standards and is manufactured in Taiwan, Province Of China. It is well suited for electrical, automation, and industrial applications requiring effective shielding, corrosion resistance, and ingress protection.

Constructed from high-quality die cast aluminium alloy ADC 12 for durability and strength. Provides EMI/RFI shielding with lid lipped design ensuring screening better than 40 dB at 10 MHz. Rated IP67 for ingress protection, suitable for harsh and industrial environments.

Lid fitted with M3.5 x 9 mm Supadrive countersunk stainless steel screws for secure closure. Can tolerate temperatures up to 250°C without structural damage. Natural plain finish with no external coating, suitable for powder painting if desired.

Designed with tapered lid to base fit at 1.5° per side for tight sealing. No adhesive seal or mounting plate included, allowing for flexible installation.

This enclosure is ideal for industrial, electrical, automation, and manufacturing use cases requiring strong EMI/RFI shielding combined with high ingress protection and thermal resistance. Browse the range of RS PRO enclosures on EnvMart for comprehensive protective solutions.
