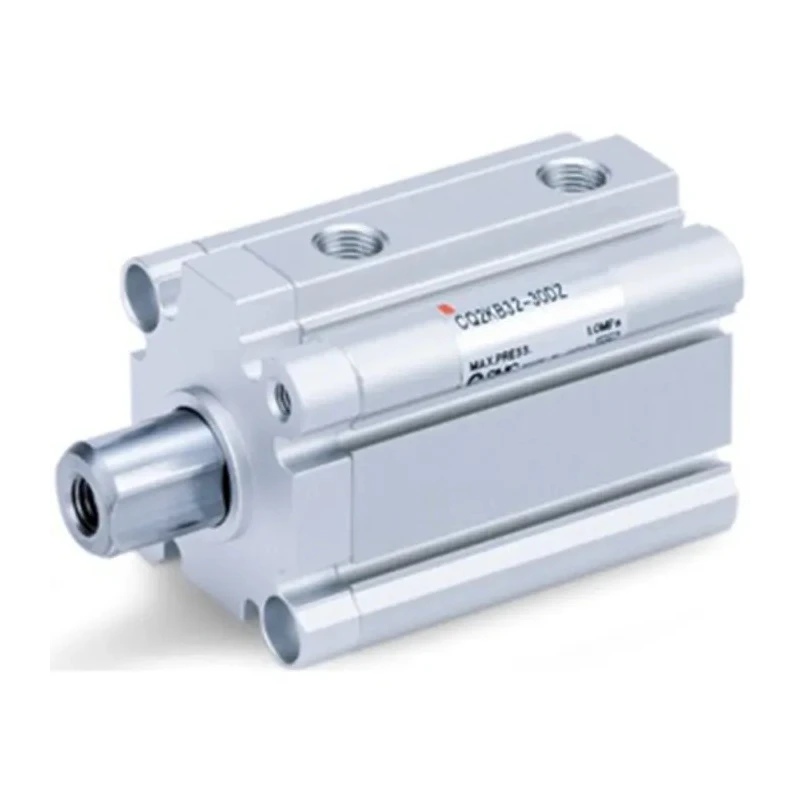

SMC 15 mm Double Acting Pneumatic Cylinder, Aluminium Alloy Body, Through Hole Mount CQ2KB32TF-15DZ

Free Delivery in India | Lowest Global Shipping Charges

SMC 15 mm Double Acting Pneumatic Cylinder, Aluminium Alloy Body, Through Hole Mount CQ2KB32TF-15DZ



Category Pneumatic Cylinders & Actuators Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Model	CQ2KB32TF-15DZ
Mount Type	Through Hole
Series	CQ2
Maximum Operating Temperature	70°C
Stroke Length	15mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric

Key Features

Compact CQ2 series design reduces cylinder weight by 5 to 13 percent depending on model.
Double acting action type with single rod provides efficient pneumatic actuation.
Through hole mount type enables versatile installation options.
Stroke length of 15 mm suitable for precise small motion applications.
Aluminium alloy body offers corrosion resistance and lightweight durability.
Maximum piston speed rated at 500 mm/s ensures fast operation.
Male piston rod with female thread conforms to metric standards.
Maximum operating temperature of 70 degrees Celsius supports diverse industrial environments.

Product Description

SMC CQ2KB32TF-15DZ is a high-performance 15 mm bore double acting pneumatic cylinder from the CQ2 series, manufactured with a lightweight aluminium alloy body. It features a single piston rod with a female gender thread and metric rod thread standard, designed for versatile industrial pneumatic automation applications.

The cylinder offers a through hole mount type which allows flexible and secure installation in compact machine designs. Its stroke length of 15 mm combined with a maximum piston speed of 500 mm per second ensures precise and rapid pneumatic actuation. The double acting mechanism provides reliable push and pull working cycle by utilizing compressed air on both sides of the piston.

The operating temperature limit of 70 degrees Celsius enables the cylinder to function effectively in industrial environments with moderate heat exposure. With its robust aluminium alloy construction, the cylinder balances strength with weight savings, reducing overall machine weight by 5 to 13 percent compared to older models.

This SMC CQ2 pneumatic piston rod cylinder is ideal for applications in manufacturing automation, fluid power control, packaging machinery, and assembly lines where precise, repetitive linear motion is critical. It supports improved auto-switch mounting possibilities for sensor integration enhancing system control.

Compact and lightweight aluminium alloy body design. Double acting piston rod cylinder for bidirectional force application. Through hole mounting provides strong and adaptable attachment. Compatible with metric standard rod threading for easy integration.

Stroke length of 15 mm accommodates small travel requirements. Max piston speed up to 500 mm/s for fast cycling. Maximum operating temperature up to 70°C. Engineered for industrial pneumatic actuation duties. Manufactured in China with assured new condition.
