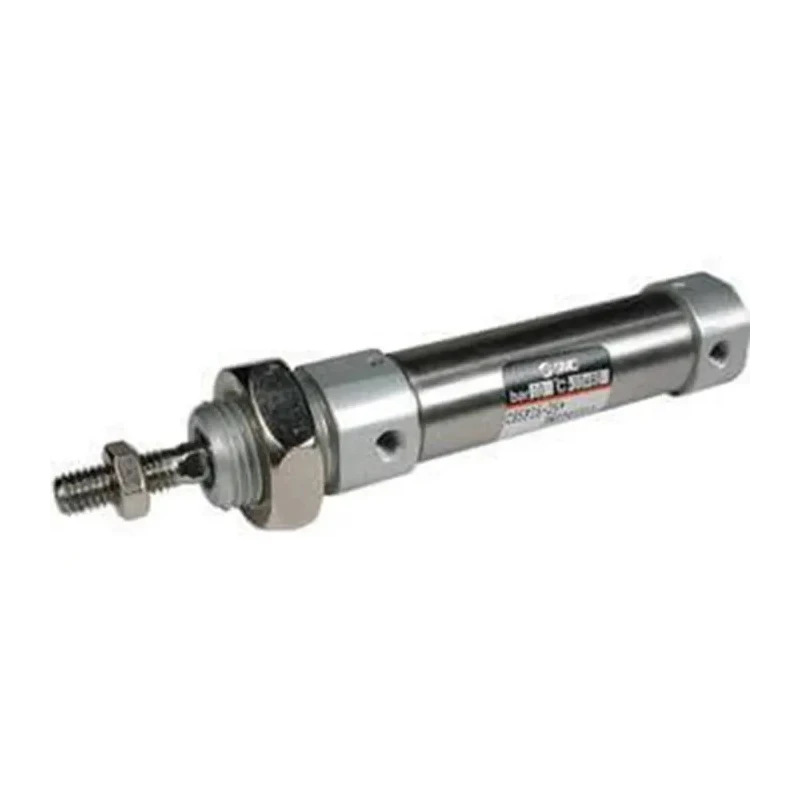

SMC 20 mm Double Acting Cylinder Aluminium Alloy Body Clevis Mount CD85
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M4 |
Key Features
- Double acting operation enables active extension and retraction for precise control.
- Aluminium alloy body ensures lightweight and durable construction.
- Clevis mounting permits easy pivot installation for mechanical linkages.
- Rubber bumper cushioning reduces shock at end of stroke to protect components.
- Single piston rod with male metric M4 thread for integration with standard fittings.
- Maximum piston speed of 1500 mm/s supports high-speed actuation.
- Maximum operating temperature up to 80°C for elevated thermal environments.
- Designed to ISO 6432 standards for dimensional compatibility and interchangeability.
Product Description
SMC CD85N10-20-B is a double acting pneumatic cylinder featuring a 20 mm stroke and robust aluminium alloy body designed for industrial automation systems requiring precise linear actuation.
This cylinder operates by active extension and retraction, facilitating faster cycle times and better control in pneumatic systems. The clevis mounting style allows straightforward pivot attachments, simplifying integration with mechanical linkages.
Rubber bumper cushioning at the ends absorbs kinetic energy, minimizing shock and safeguarding the assembly and mounting fixtures. The single piston rod is male-threaded with an M4 metric standard, enabling secure mechanical coupling and compatibility with standard hardware.
The product is rated for a maximum piston velocity of 1500 mm/s and can operate safely in environments up to 80°C. Manufactured following ISO 6432 dimensional standards, it ensures interchangeability with other compact pneumatic components.
Applications span pick-and-place mechanisms within compact automation cells, electronic assembly jigs, test rig positioning, and mechanical handling systems involving feeding or gating duties.
Double acting operation enables active extension and retraction for precise control. Aluminium alloy body ensures lightweight durability for efficient industrial use. Clevis mounting allows for easy pivot installation on linkages.
Rubber bumper cushioning reduces impact shock to extend component life. Single male M4 threaded piston rod supports integration with metric fasteners. Maximum piston speed of 1500 mm/s allows for rapid actuation cycles. Operating temperature up to 80°C suitable for varied thermal environments.
Conforms to ISO 6432 standards for size and interchangeability. Ideal for small pneumatic actuators in industrial automation and inspection tasks. Explore a wide range of pneumatic piston rod cylinders and actuators available in EnvMart to find suitable components for your pneumatic automation requirements.
Explore more products in our Pneumatic Cylinders & Actuators category.
