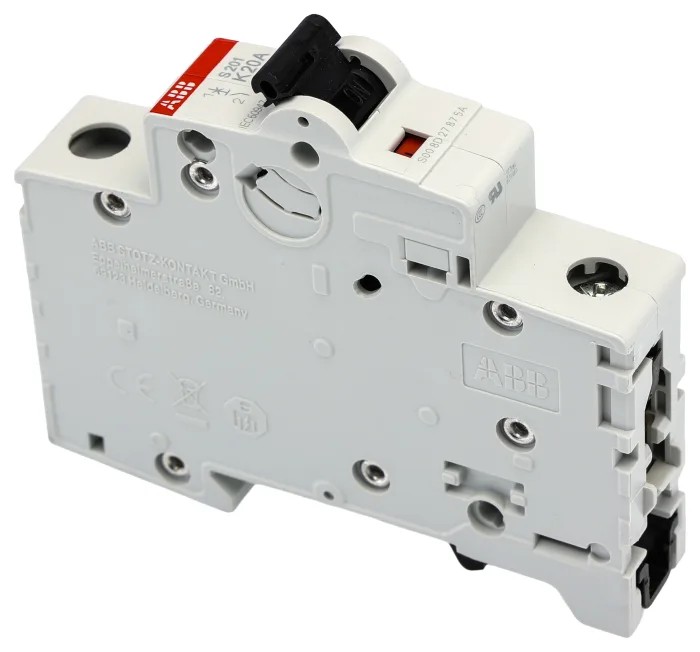

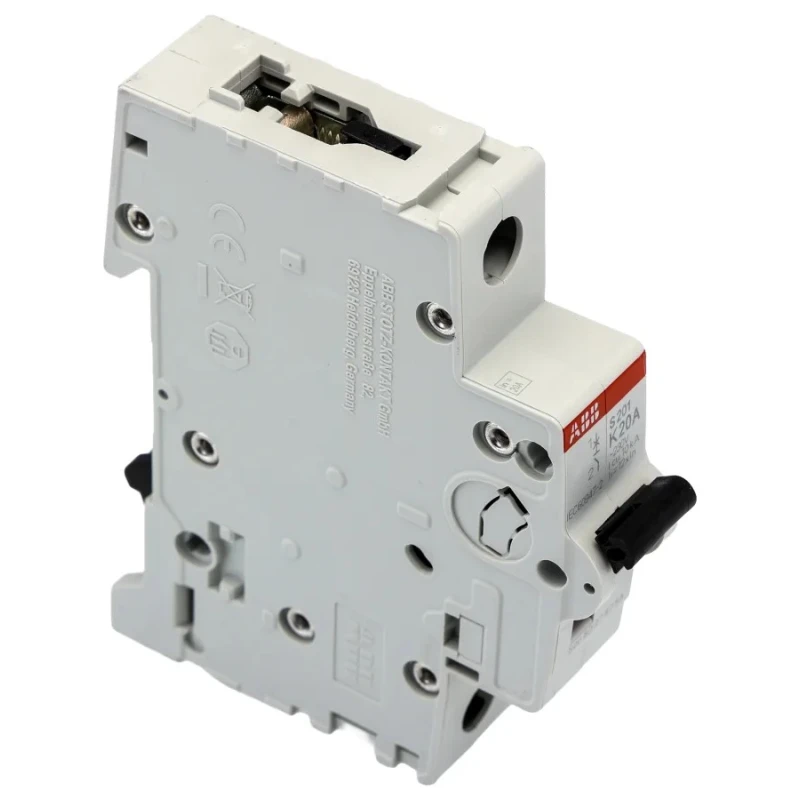

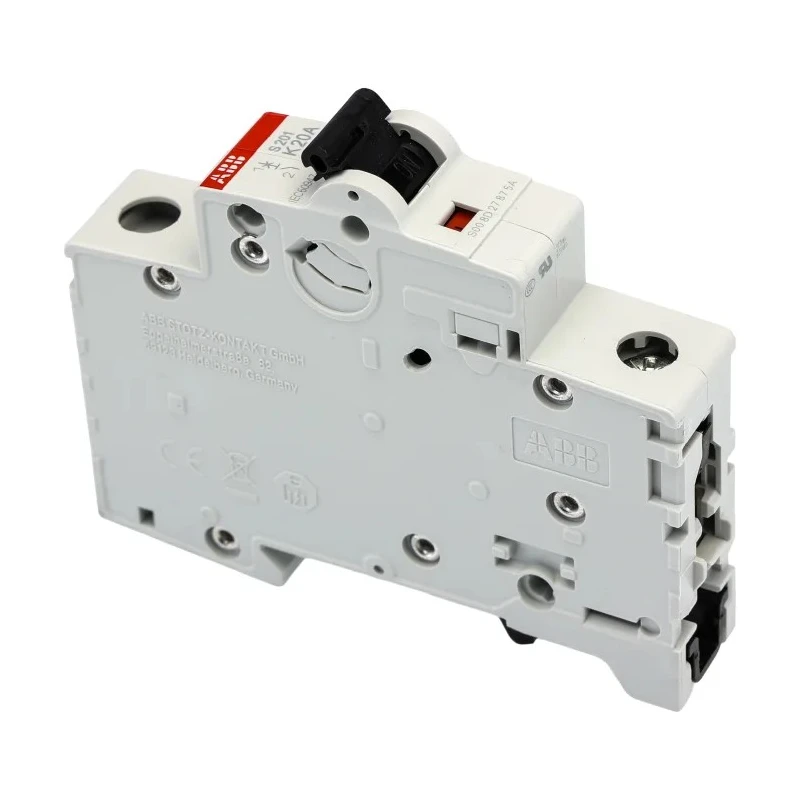

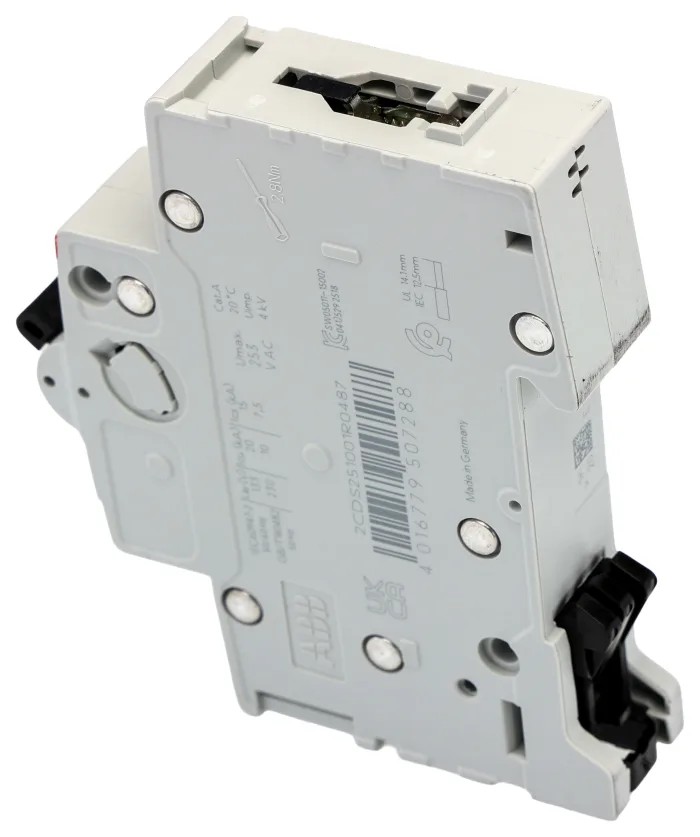

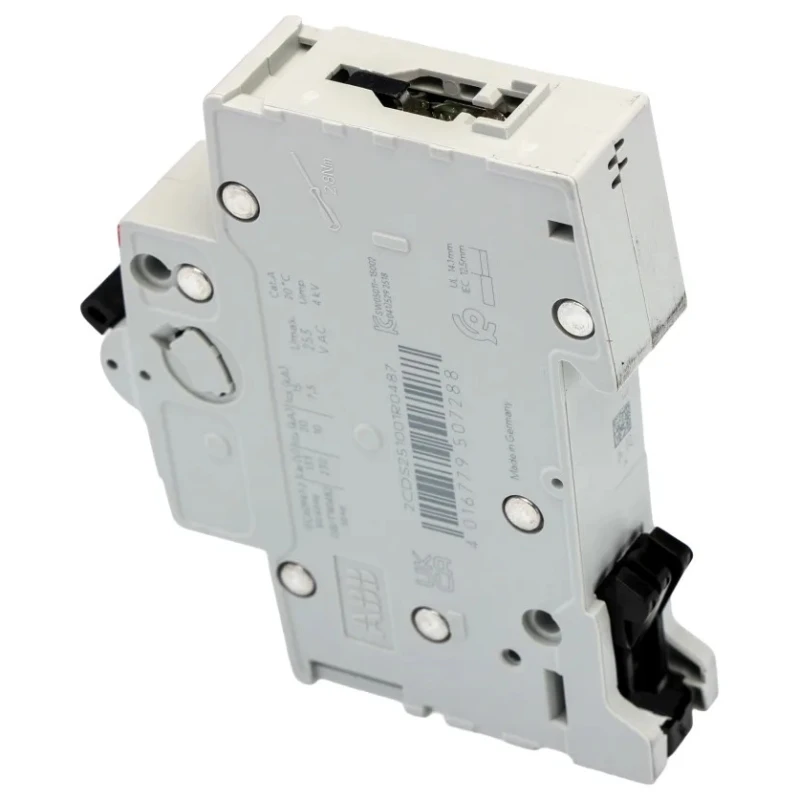

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 20A, Type K, 253V AC, 72V DC, 6kA 2CDS251001R0487 S201-K20
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS251001R0487 S201-K20 |
| Depth | 76mm |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 253V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type K |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
Key Features
- Offers a breaking capacity of 6 kA at 230 V AC, ensuring robust overload and short circuit protection.
- Designed for DIN rail mounting for easy installation in commercial and industrial electrical systems.
- Screw terminal type provides secure and reliable connections.
- Compact design with a width of 17.5 mm maximizes space utilization.
- Operates under a rated AC voltage of 253 V and rated DC voltage of 72 V.
- Features a thermal tripping mechanism with delayed response for overload conditions.
- IP20 and IP40 ratings provide protection suitable for various environments.
- Compatible with auxiliary contacts for enhanced functionality in system applications.
Product Description
ABB 2CDS251001R0487 S201-K20 System Pro M Compact Miniature Circuit Breaker is a high-quality 1-pole circuit breaker designed for industrial, commercial, and advanced residential electrical installations. It features a 20-ampere current rating along with Type K tripping characteristics, delivering reliable overload and short circuit protection.
Constructed for DIN rail mounting, this device ensures straightforward installation and maintenance. Its compact form factor, measuring 17.5 mm wide, 88 mm high, and 76 mm deep, allows efficient use of electrical panel space.
The breaker supports rated AC voltage up to 253 V and DC voltage up to 72 V, with a breaking capacity of 6 kA at 230 V AC, suitable for demanding electrical applications. The thermal-electromagnetic tripping mechanism offers delayed overload tripping and immediate short circuit response.
It is equipped with screw terminals to guarantee secure, long-lasting electrical connections and supports auxiliary contact compatibility to expand system functionalities. The device also features an IP20 and IP40 rating for degree of protection, operating efficiently within a temperature range from -25°C to +55°C, suitable for diverse environments.
Certified to IEC/EN 60947-2 and IEC/EN 60898-1 standards, the System Pro M Compact MCB meets stringent safety and performance regulations. This better world product is designed for disassembly, supporting environmentally responsible practices.
Breaking capacity of 6 kA at 230 V AC for robust protection. DIN rail mounting facilitates easy installation. Screw terminal type ensures secure electrical connections. Compact width of 17.5 mm saves panel space. Thermal and electromechanical tripping mechanism guarantees safety.
IP20 and IP40 protection ratings for versatile use. Operating temperature range from -25°C to +55°C. Meets IEC/EN 60947-2 and IEC/EN 60898-1 standards. Compatible with auxiliary contacts for additional functionality. Designed for disassembly promoting sustainability.
This ABB MCB is ideal for protecting electrical circuits in industrial plants, commercial buildings, and residential installations, ensuring safe and reliable operation. Explore more in the Electronics & Electricals category for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6 kA at 230 V AC, providing robust overload and short circuit protection.
This model measures 17.5 mm in width, 88 mm in height, and 76 mm in depth, allowing efficient use of electrical panel space.
The rated AC voltage is 253 V, while the rated DC voltage is 72 V.
It is designed for DIN rail mounting, which facilitates straightforward installation in various electrical systems.
It features Type K tripping characteristics, which provide reliable overload and short circuit protection.
It uses screw terminals, ensuring secure and reliable electrical connections.
The operating temperature range is from -25°C to +55°C, making it suitable for diverse environments.
It has IP20 and IP40 ratings, providing protection suitable for various environments.
Yes, it is compatible with auxiliary contacts for enhanced functionality in system applications.
It is certified to IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring compliance with safety and performance regulations.
The current rating of this miniature circuit breaker is 20A.
It is designed for disassembly, promoting environmentally responsible practices.
