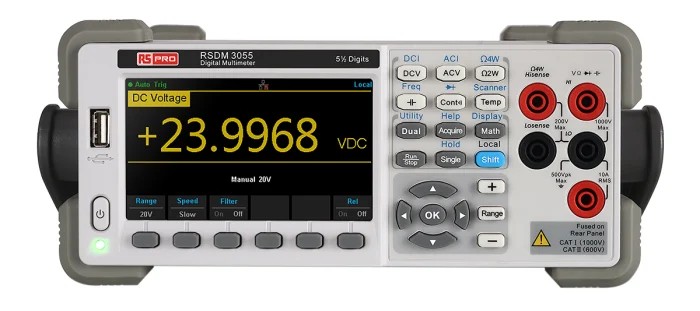

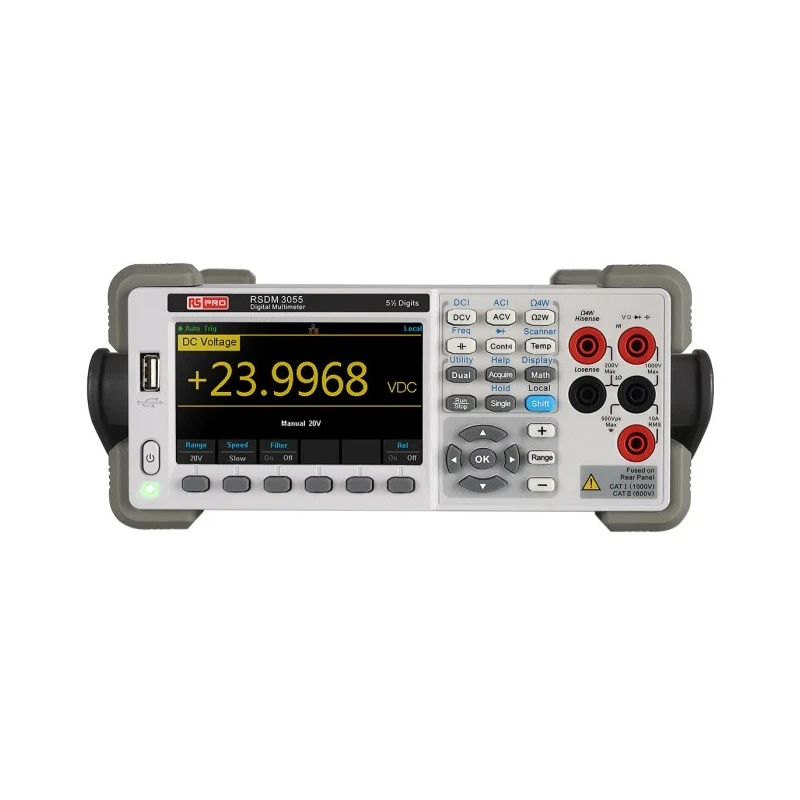

RS PRO Bench Multimeter True RMS 10 A AC, 10 A DC, 750 V AC RSDM3055A

RS PRO RSDM3055A Bench Multimeter True RMS model is a professional-grade bench multimeter providing precise measurements with advanced functionality, suitable for industrial, laboratory, construction, HVAC, and manufacturing sectors.

This device can measure AC and DC current up to 10 A, AC voltage up to 750 V, DC voltage up to 1 kV, resistance starting from 100 mΩ, and frequency up to 1 MHz. It features True RMS capability to ensure accurate readings in complex AC waveforms and provides excellent accuracy levels, such as 0.055% reading accuracy on DC current.

The multimeter incorporates a 4.3-inch TFT LCD display with a resolution of 280 x 272 pixels, facilitating easy data visualization and dual readout features. It supports multiple functions including diode test, continuity check, temperature measurement with cold terminal compensation, and capacitance measurement, making it versatile for various testing scenarios.

The unit includes connectivity options such as USB device and host ports, LAN, and uniquely, a USB to GPIB adapter for the RSDM3055A model allowing seamless remote operation. Its 1 GB onboard NAND memory efficiently stores test data and configuration files, compatible with LabVIEW and SCPI command protocols for automated measurements and programming.

Designed to comply with CAT I and CAT II safety categories rated at 1 kV, this bench multimeter also features a mass storage capability for easy file management and supports Chinese and English menu displays. Its robust construction weighs approximately 3.3 kg and measures 282 mm length x 260 mm width x 105 mm height.

Measures AC/DC voltage and current with True RMS accuracy. Advanced functionality including frequency, temperature, continuity, and diode tests. High-speed measurement rate up to 150 readings per second. Extensive connectivity with USB, LAN, and GPIB interface.

Large TFT LCD with dual display in multiple languages. Supports remote control and automation via SCPI commands. Robust design with comprehensive safety certifications. Ideal for industrial, laboratory, and commercial electrical measurements.
