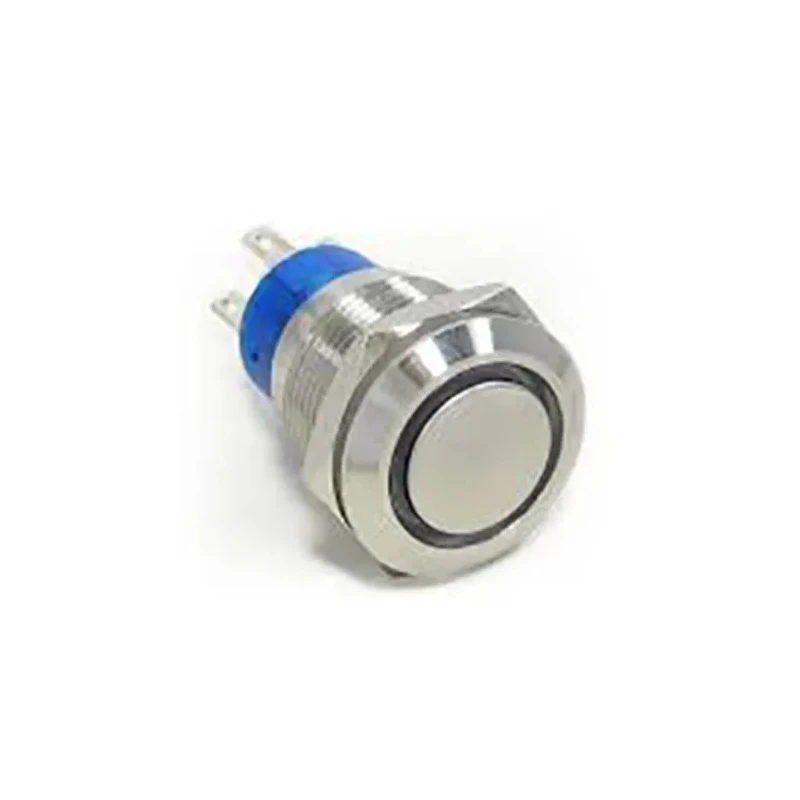

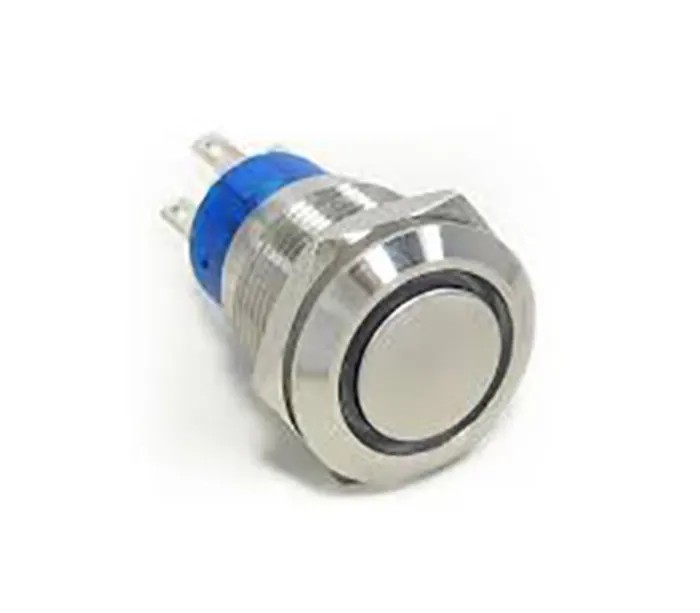

TE Connectivity Series Illuminated Push Button Switch DPDT Momentary Panel Mount 22.2 mm Cutout Green LED IP67 3A 250V AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV Compliant, REACH Compliant, UL (E46765) |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator has a silver push button style designed for panel mounting.
- Illuminated with a green LED for clear status indication.
- Designed to be vandal-proof with a rear mounting jam nut for secure installation.
- Operates reliably between -20°C and 55°C ambient temperatures.
- Features wire lug terminals for easy wiring connections.
- Contact configuration is Double Pole Double Throw (DPDT) ensuring versatile switching.
- The switch supports both 250V AC and 250V DC contact voltages.
- IP67 rating guarantees protection against dust ingress and water immersion.
Product Description
TE Connectivity AV2220E612Q04 is a premium AV22 Series illuminated push button switch designed for industrial and panel mounting applications. It features a robust vandal-proof silver actuator push button with a 22.2 mm panel cutout size. The momentary switch provides DPDT contact configuration and uses wire lug terminals for secure wiring.
This switch is illuminated with a green LED, offering clear visual indication suitable for various control and communication equipment. Rated IP67, it offers complete protection against dust and ingress of water, ensuring durability in harsh environments. It is rated for 3 amps contact current at 250 volts AC and DC, supporting a wide range of electrical applications.
The AV22 Series switch reliably operates within ambient temperatures from -20°C up to 55°C. Its vandal-proof design includes a rear mounting jam nut to secure the switch firmly on panels, making it ideal for elevators, escalators, instrumentation, and other demanding industrial control panels.
The switch complies with multiple international standards including EU ELV, REACH, and UL (E46765), underscoring its quality and regulatory compliance. It is manufactured in China under TE Connectivity's trusted brand heritage.
The actuator has a silver push button style designed for panel mounting. Illuminated with a green LED for clear status indication. Designed to be vandal-proof with a rear mounting jam nut for secure installation. Operates reliably between -20°C and 55°C ambient temperatures.
Features wire lug terminals for easy wiring connections. Contact configuration is Double Pole Double Throw (DPDT) ensuring versatile switching. The switch supports both 250V AC and 250V DC contact voltages. IP67 rating guarantees protection against dust ingress and water immersion.
Complies with EU ELV, REACH, and UL standards for environmental and safety requirements. Applications include control equipment, elevators, escalators, and instrumentation panels.
This illuminated push button switch is ideal for industrial, laboratory, manufacturing, HVAC controls, and commercial electrical systems requiring reliable and secure panel-mounted switches. Browse more in our Push Button Switches & Components category for complementary industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching capabilities.
It operates reliably within an ambient temperature range of -20°C to 55°C.
The required panel cutout size for this switch is 22.2 mm.
It utilizes wire lug terminals for secure and easy wiring connections.
The switch has an IP67 rating, providing complete protection against dust and water immersion.
It supports both 250V AC and 250V DC contact voltages.
The switch is rated for a contact current of 3 amps.
Yes, its IP67 rating makes it suitable for outdoor applications, as it is protected against dust and water.
It complies with EU ELV, REACH, and UL (E46765) standards, ensuring quality and regulatory compliance.
The actuator style is a silver push button designed for panel mounting.
It is suitable for various control and communication equipment, including elevators, escalators, and instrumentation panels.
This model features momentary switch operation, meaning it only remains active while pressed.
