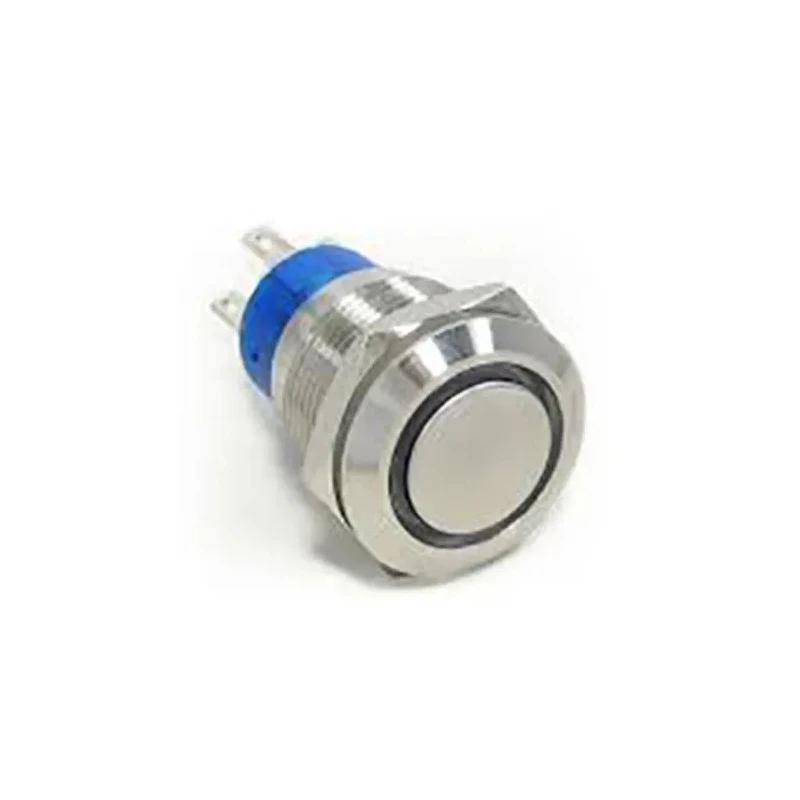

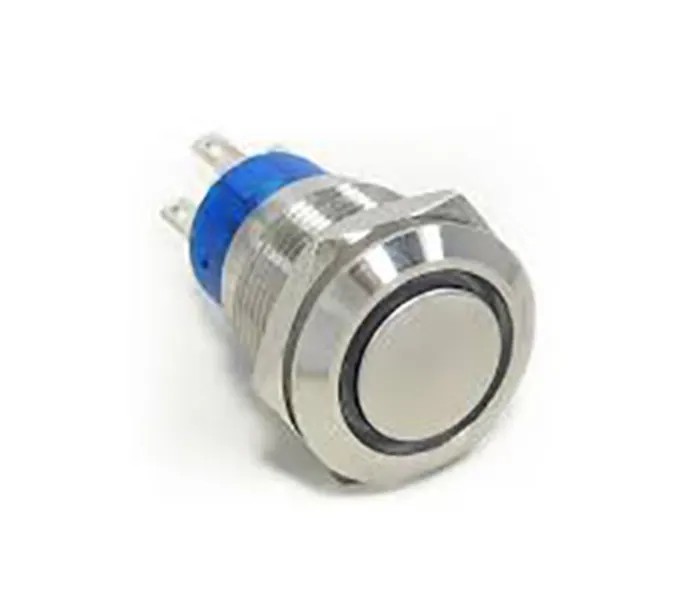

TE Connectivity Series Illuminated Push Button Switch, Latching, Panel Mount, 22.2 mm Cutout, DPDT, Red LED, IP67, 250 V AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | UL (E46765), REACH Compliant, EU ELV Compliant |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver push button actuator with red LED illumination.
- It has a latching operation with DPDT contact configuration.
- IP67 rating ensures dust and water protection.
- Rated for 250 V contact voltage and 3A contact current.
- Operates between -20°C and 55°C ambient temperature.
- Vandal-proof rear mounting jam nut provides secure installation.
- Complies with UL (E46765), REACH, and EU ELV standards.
Product Description
TE Connectivity AV22 Series Illuminated Push Button Switch (Model AV22) is a reliable and vandal-proof panel-mount push button switch, featuring a latching operation type with a 22.2 mm panel cutout.
This switch sports a silver push button actuator with integrated red LED illumination, providing clear visual indication during operation. Its dual pole double throw (DPDT) contact configuration supports 250 V AC/DC contact voltage and a 3A contact current, making it suitable for a range of electrical control applications.
Rated IP67, the switch is sealed against dust and water ingress, ensuring high durability and long-term performance even in harsh environments. It operates efficiently in ambient temperatures from -20°C up to 55°C. The rear mounting jam nut design offers enhanced vandal resistance and secure installation.
The AV22 series meets rigorous UL (E46765), REACH, and EU ELV compliance standards, embodying industrial-grade quality and safety. Applicable for use in industrial control and communications equipment, elevators, escalators, and instrumentation devices, this switch delivers premium usability and robustness.
The switch features a silver push button actuator with red LED illumination. Latching operation with DPDT contact configuration. IP67 rating for dust and water protection. 250 V rated contact voltage and 3A contact current.
Operating temperature range of -20°C to 55°C ensures suitability for diverse environments. Vandal-proof rear mounting jam nut provides secure installation. Compliant with UL (E46765), REACH, and EU ELV standards.
This product is manufactured in China and sold in new condition, making it a reliable choice for demanding industrial and commercial applications. Explore more Push Button Switches in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual pole double throw (DPDT) contact configuration, allowing for versatile electrical control applications.
It operates efficiently in ambient temperatures ranging from -20°C to 55°C, making it suitable for various environments.
The switch has an IP67 rating, which ensures protection against dust and water ingress.
It is rated for a contact voltage of 250 V AC/DC and a contact current of 3A, suitable for a range of applications.
This model is designed for panel mounting, ensuring secure installation in various applications.
The required panel cutout size for this switch is 22.2 mm.
It complies with UL (E46765), REACH, and EU ELV standards, ensuring safety and quality.
It has a silver push button actuator with integrated red LED illumination for clear visual indication during operation.
Yes, it features a vandal-proof rear mounting jam nut that provides secure installation and enhances durability.
This product is manufactured in China.
The switch uses wire lug terminals for electrical connections.
It is applicable for use in industrial control and communications equipment, elevators, escalators, and instrumentation devices.
