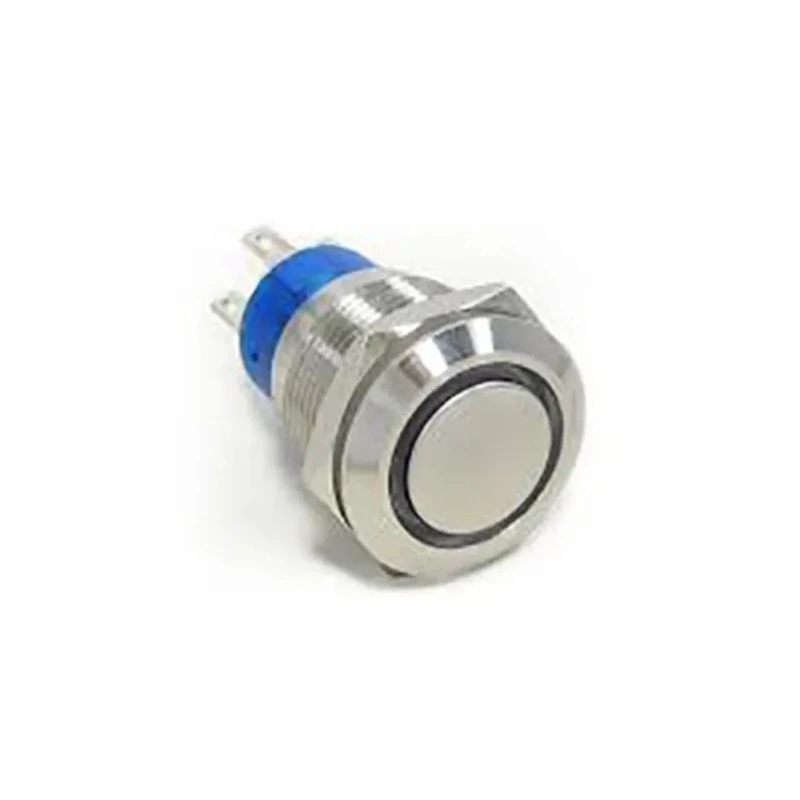

TE Connectivity Series Illuminated Momentary Push Button Switch, Panel Mount, 22.2 mm Cutout, SPST, Green LED, IP67 AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV Compliant, UL (E46765), REACH Compliant |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a silver actuator for reliable operation.
- Mount type is panel with a vandal-proof design.
- Single Pole Single Throw (SPST) contact configuration.
- Rated for 250V AC/DC contact voltage and 3A contact current.
- IP67 rated for protection against dust and water ingress.
- Green LED illumination ensures clear status indication.
- Wide operating temperature range from -20°C to 55°C.
- Wire lug terminal type for secure connections.
Product Description
TE Connectivity AV22 Series illuminated push button switch, model AV22, is a high-quality panel-mounted momentary switch designed for industrial and commercial applications. With a precise 22.2 mm panel cutout, this switch features a durable silver push button actuator and green LED illumination for visual feedback.
This SPST switch supports both AC and DC voltages up to 250V with a contact current rating of 3 Amperes. Its IP67 rating guarantees resistance to dust and water, making it suitable for harsh environments and outdoor installations. The wire lug terminals ensure easy and reliable electrical connections.
The AV22 series is designed for use in control and communications equipment, elevators, escalators, and instrumentation equipment, offering a vandal-proof solution with rear mounting jam nut for panel security.
Silver actuator colour enhances durability and aesthetics. Momentary switch operation for controlled activation. Green LED illuminated for clear status signaling. Robust panel mounting with 22.2 mm cutout size. IP67 rated enclosure for protection against dust and moisture.
Compliant with industry standards: EU ELV, UL, and REACH. Operating temperatures from -20°C to 55°C accommodate diverse environments. Wire lug terminals for secure electrical connectivity. 3 Ampere contact current suitable for moderate load applications.
This product is manufactured in China and is supplied in new condition, meeting demanding industrial standards for quality and reliability. It is ideal for integration in control panels requiring a vandal-resistant illuminated push button switch.
Explore more high-performance switches and related components in the Electronics & Electricals category on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration.
The maximum operating temperature for this switch is 55°C.
It requires a panel cutout size of 22.2 mm for proper installation.
The switch has an IP67 rating, providing protection against dust and water ingress.
It uses wire lug terminals for secure electrical connections.
The switch features a green LED for illumination, providing clear status indication.
It is rated for contact voltages of 250V AC/DC and a contact current of 3 Amperes.
This model supports panel mounting with a vandal-proof design.
The minimum operating temperature is -20°C.
It is compliant with EU ELV, UL, and REACH standards.
It is suitable for use in control and communications equipment, elevators, escalators, and instrumentation equipment.
The actuator color of this switch is silver, enhancing both durability and aesthetics.
