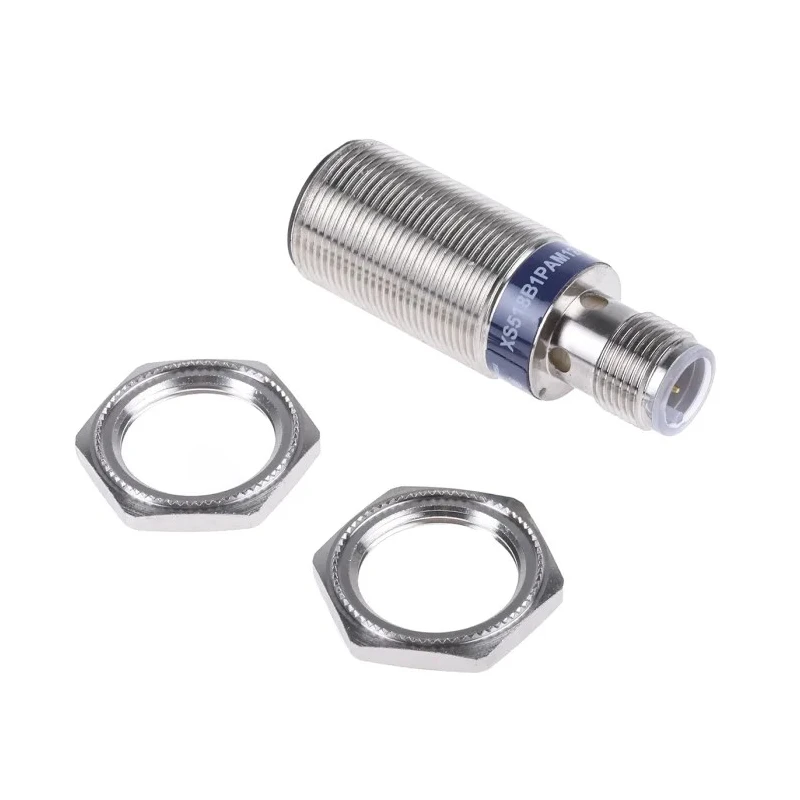

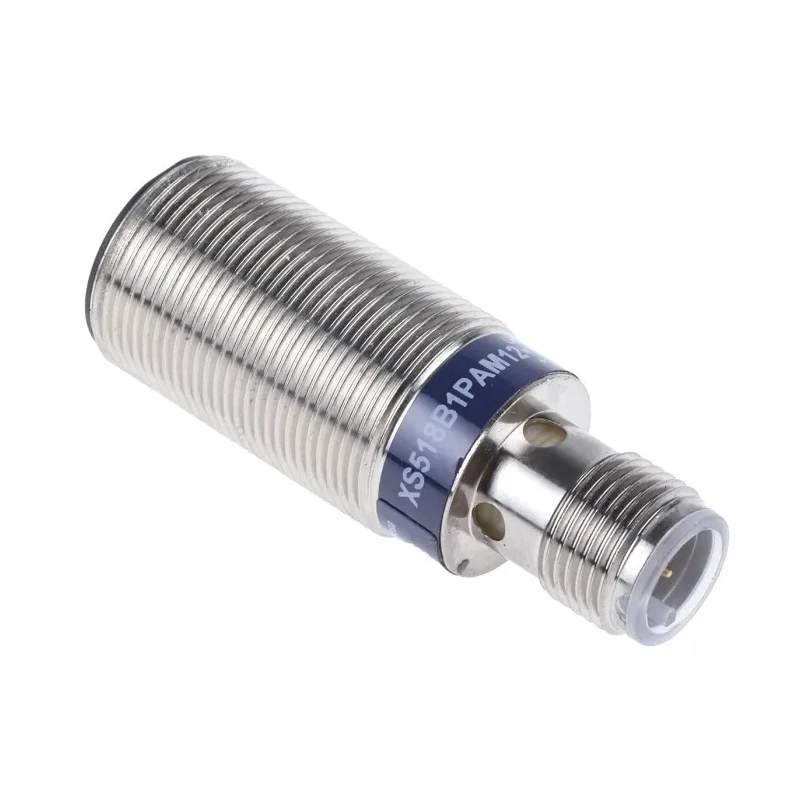

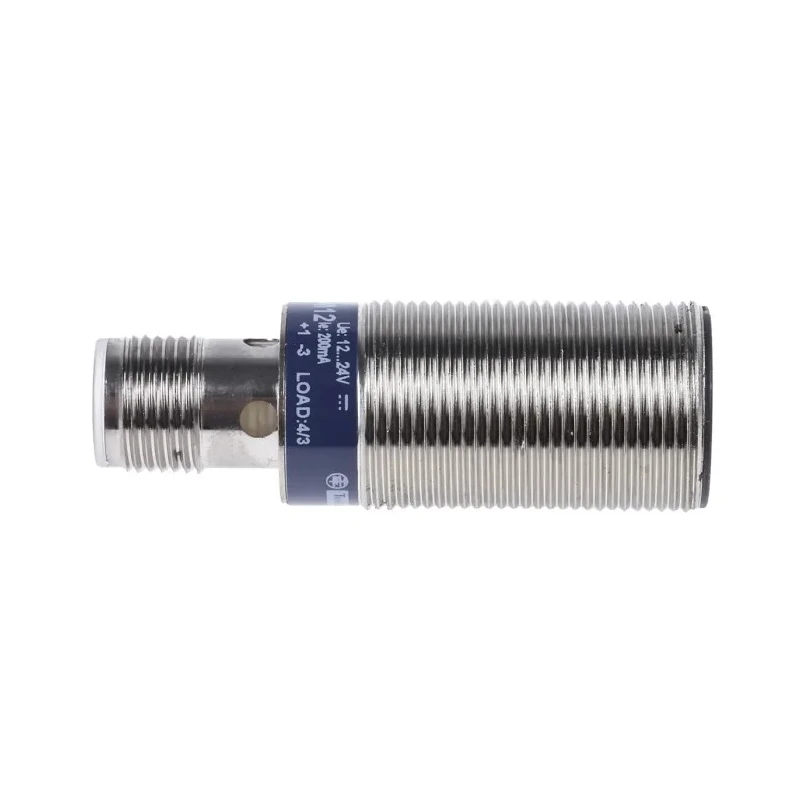

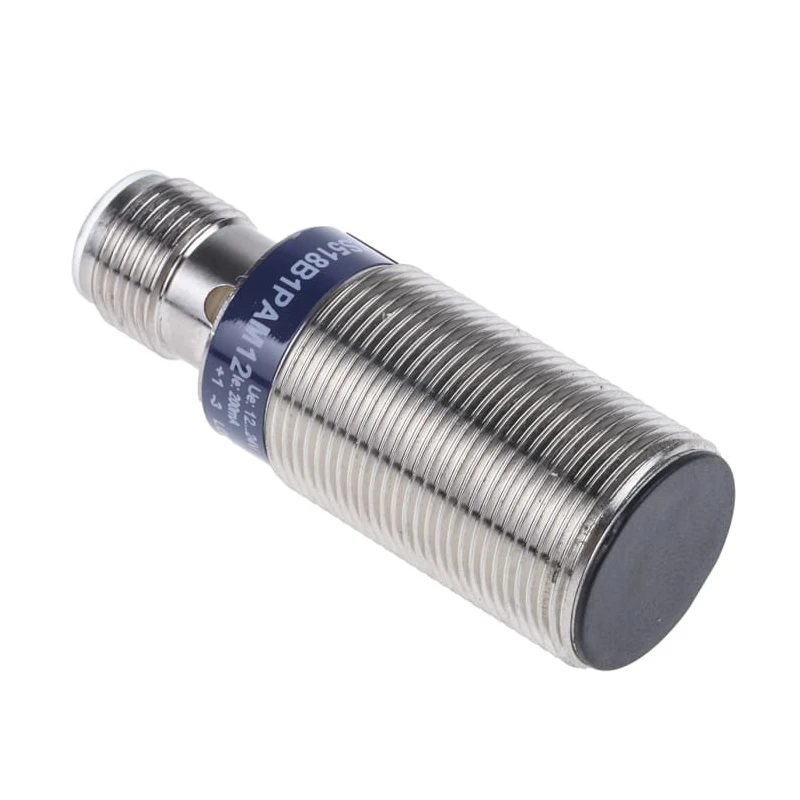

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP 36V DC 240V AC 5mm Detection XS518B1PAM12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 50mm |
| Model | XS518B1PAM12 |
| IP Rating | IP67, IP69K |
| Mount Type | Flush |
| Housing Material | Brass Nickel Plated |
| Output type | PNP |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M18 |
| Body Style | Threaded Barrel |
| Shielding | Shielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | UL, REACH, IEC, CSA, CE |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 36V dc |
| Materials Detected | Fresh Water, Sea Water, Refrigerant Fluid, Hydraulic Oil |
| Maximum Detection | 5mm |
Key Features
- This sensor uses an M18 x 1 threaded barrel mount with a flush mounting style for secure installation.
- It features a PNP output type suitable for control systems requiring stable signal switching.
- The sensor operates with a maximum supply voltage of 36V DC and supports up to 240V AC maximum voltage.
- Rated with an IP67 and IP69K ingress protection class, the sensor resists harsh environments and washdown procedures.
- It supports a switching current of 200mA and a switching frequency of up to 2kHz for rapid detection of fast-moving metallic parts.
- The operating temperature range spans from -25°C to 70°C, suitable for diverse industrial settings.
- Shielded sensing head ensures precise detection in tight assemblies and complex environments.
- The sensor is compliant with UL, REACH, IEC, CSA, and CE standards, ensuring industrial-grade reliability and safety.
Product Description
Telemecanique Sensors XS518B1PAM12 threaded barrel Inductive Proximity Sensor is engineered for industrial automation environments requiring reliable metallic target detection without physical contact. It features a compact M18 x 1 threaded barrel design with a flush mount type, ensuring easy and stable installation.
The sensor’s nickel-plated brass housing offers excellent resistance against industrial fluids such as fresh and sea water, refrigerant fluids, and hydraulic oils. With a sensing distance of 5mm, it provides accurate and repeatable detection suitable for position and presence sensing applications.
Operating at a maximum supply voltage of 36V DC and maximum AC voltage of 240V, along with a 200mA switching current and a 2kHz switching frequency, the XS518B1PAM12 delivers efficient and fast response performance for control systems. Its IP67 and IP69K ingress protection ratings allow use in harsh conditions, including washdown and high-pressure cleaning environments.
Typical industrial applications include position sensing on hydraulic oil actuators, detection in refrigerant system level monitoring, presence checking on automated assembly lines, and proximity feedback in conveyor speed measurement systems.
The sensor complies with multiple international standards such as UL, REACH, IEC, CSA, and CE, guaranteeing reliability and safety for industrial use. Its operating temperature range from -25°C to 70°C covers typical manufacturing plant environments.
Uses M18 x 1 threaded barrel with flush mount style. Shielded sensing technology provides stable detection in confined spaces. Nickel-plated brass housing ensures corrosion resistance. Supports 5mm maximum detection of metallic targets.
Rated IP67 and IP69K for robust ingress protection. Complies with UL, REACH, IEC, CSA, and CE standards. Suitable for hydraulic, refrigerant, and assembly line sensing applications. Operates at 36V DC max supply and 240V AC max voltage.
200mA switching current and 2kHz frequency enable fast switching. Operating temperatures from -25°C to 70°C ensure durability in harsh conditions. Explore our wide range of industrial sensors at EnvMart for advanced automation and control gear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 5mm for metallic targets.
It can detect fresh water, sea water, refrigerant fluid, and hydraulic oil.
The maximum supply voltage for this sensor is 36V DC.
The switching current rating is 200mA.
The operating temperature range spans from -25°C to 70°C.
This sensor has an ingress protection rating of IP67 and IP69K, making it suitable for harsh environments.
The maximum AC voltage that this model can handle is 240V AC.
It features a PNP output type suitable for control systems requiring stable signal switching.
The maximum switching frequency is up to 2kHz.
The housing material is nickel-plated brass, which offers resistance against industrial fluids.
It uses a flush mounting style with an M18 x 1 threaded barrel design.
It complies with UL, REACH, IEC, CSA, and CE standards, ensuring reliability and safety for industrial use.
