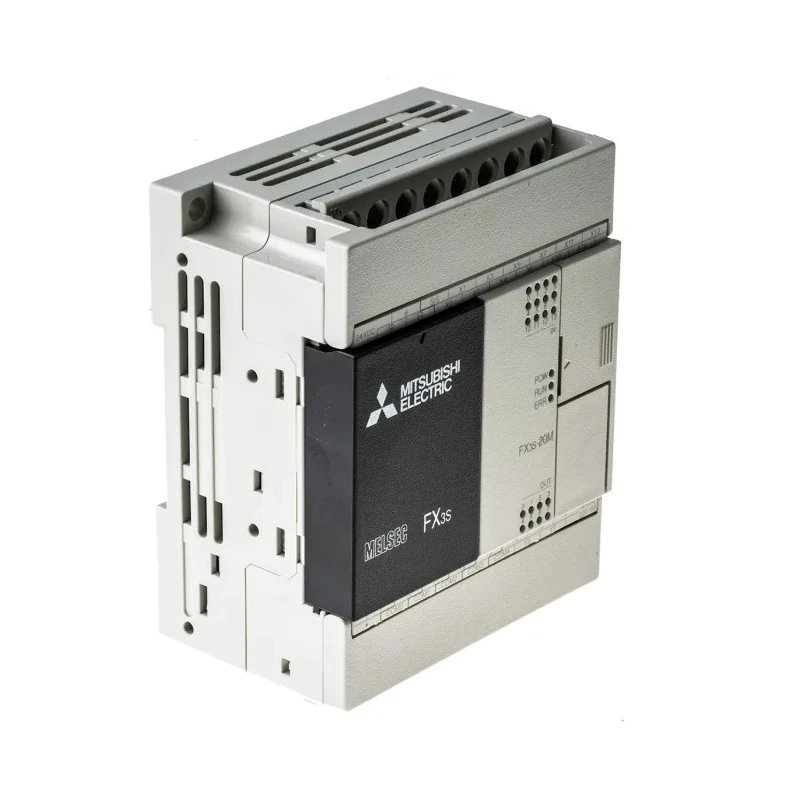

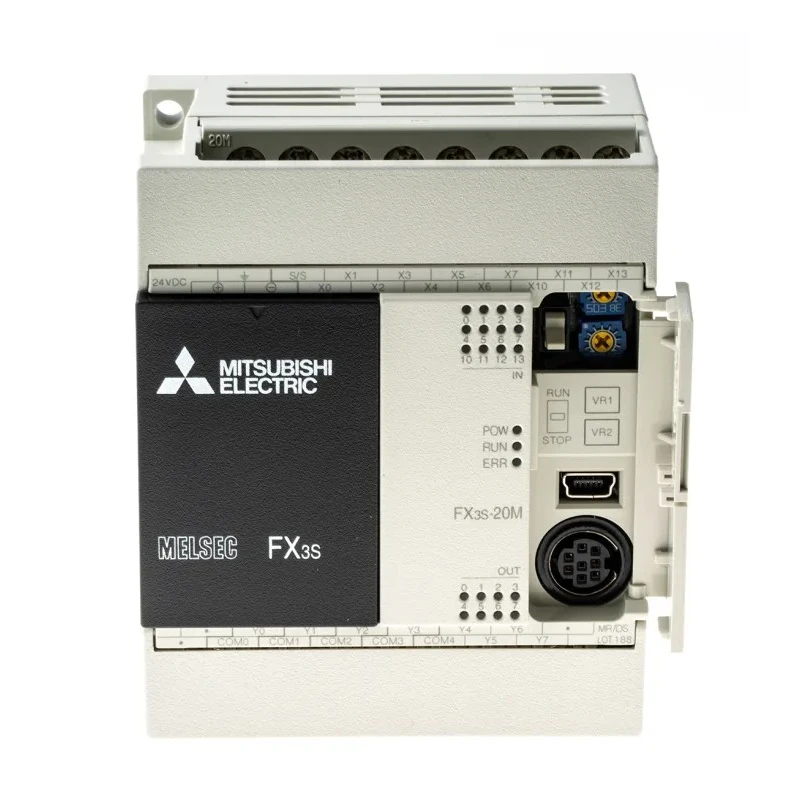

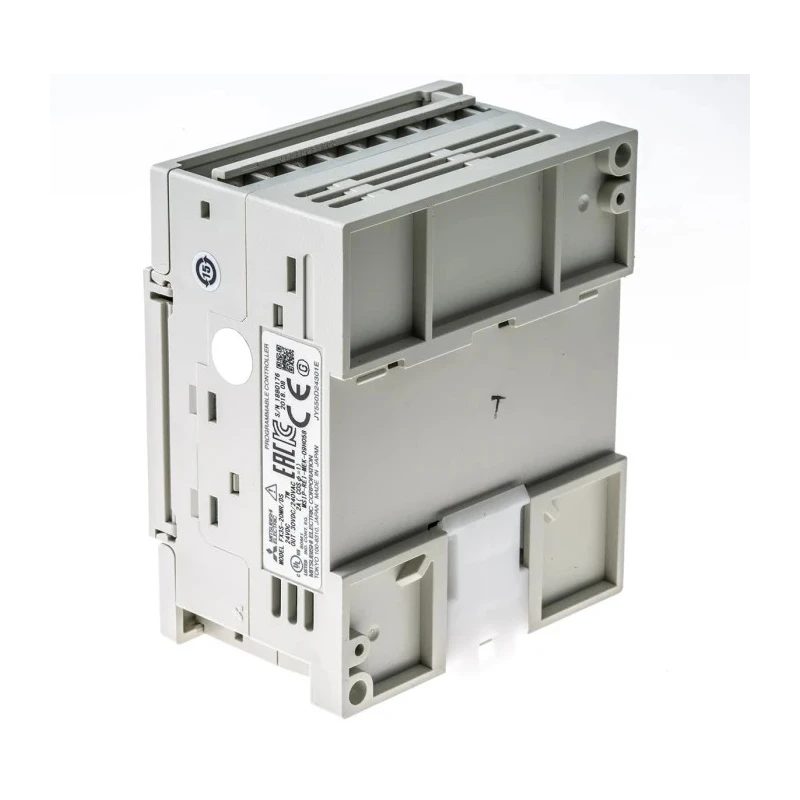

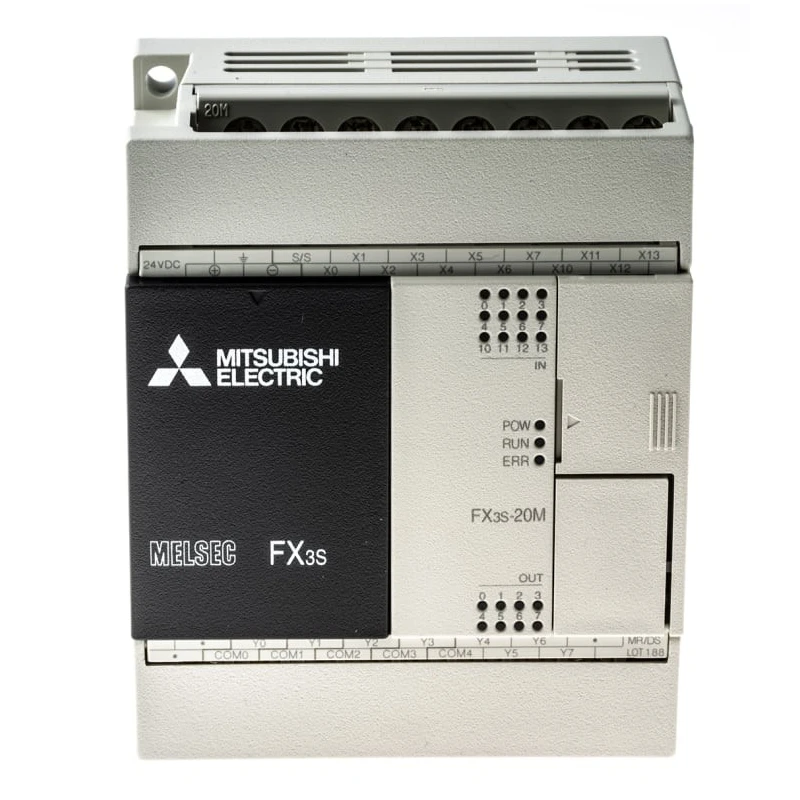

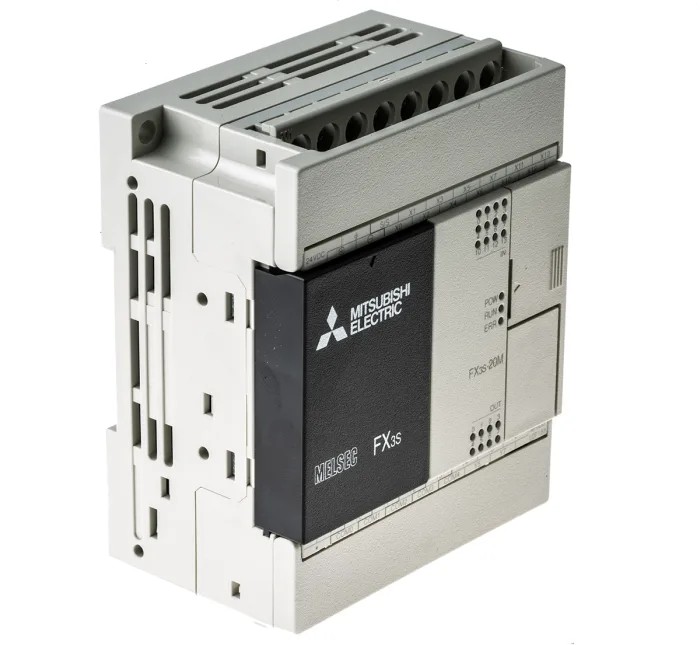

Mitsubishi Electric FX3S Series PLC CPU, 12-Input Sink Type, 8 Relay Outputs, 2A Output Current, DIN Rail Mount

The Mitsubishi Electric FX3S-20MR/DS is a robust PLC CPU featuring 12 digital sink inputs and 8 relay outputs tailored for industrial automation and control systems. This compact and maintenance-free PLC supports a program capacity of 4000 steps, enabling complex process handling in a small footprint.

Designed for use in varied industrial environments, it offers reliable operation within 0°C to 55°C temperature range. The unit mounts conveniently on DIN rails, simplifying installation amidst control cabinets. Communication interfaces include high-speed USB and RS422 ports, allowing efficient programming and integration with industrial networks.

The PLC provides a stable 2A output current across the relay outputs, ideal for driving control relays and indicators. Battery backup ensures program memory retention during power interruptions, enhancing system reliability and minimizing downtime. The integrated real-time clock and variable analogue potentiometers extend its functionality for diverse automation tasks.

Programmers and engineers can utilize the GX Works2 or GX Works2 FX software suites for development, leveraging ladder programming language support. This model is manufactured in Japan, adhering to cUL, EC Directive, EMC Directive, and UL standards, underlining its quality and compliance for industrial deployment.

Typical applications include industrial automation systems, robotic process controls, and automotive manufacturing lines. Its compact design and expandability options make it suitable for space-constrained and cost-conscious projects requiring up to 30 input/output points.

Supports 4000 step program capacity for versatile application control. Features integrated USB and RS422 communication ports for high-speed programming. Mount Type is DIN Rail ensuring secure installation within control panels.

Operates reliably within temperature range from 0°C to 55°C. Includes battery backup ensuring memory retention during power loss. Output current rating of 2A suitable for various relay loads. Compact dimensions of 75mm length, 90mm width, and 49mm depth optimize space usage.

Compatible with GX Works2 programming software for user-friendly development.

This Mitsubishi Electric FX3S Series PLC CPU provides an effective solution for industrial automation challenges and is part of EnvMart's comprehensive selection of PLC CPU units and automation control devices.
