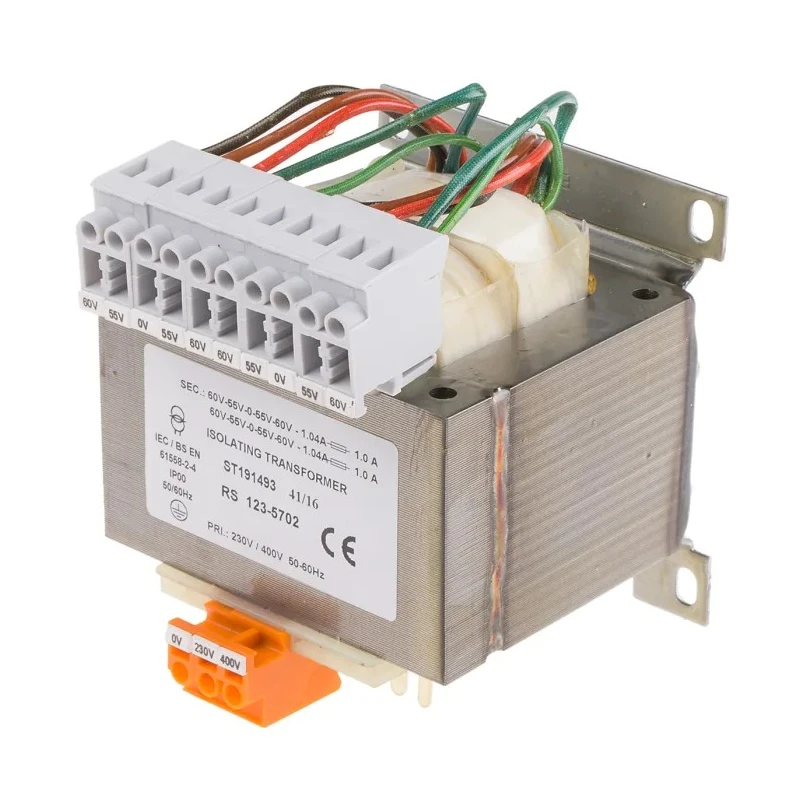

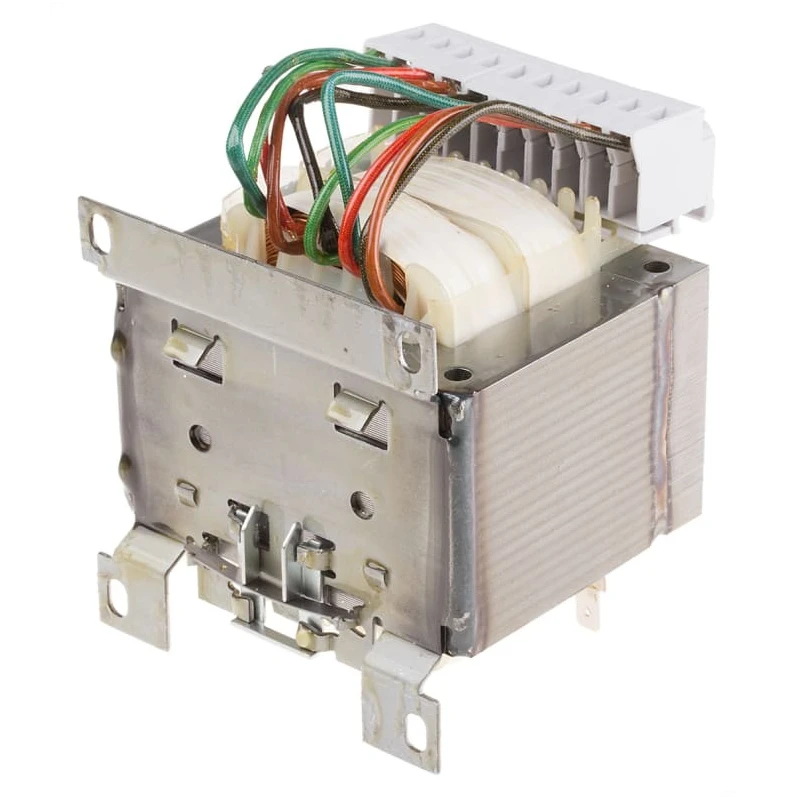

RS PRO 250 VA DIN Rail Transformer, 230 to 400 V ac Primary, 4 x 0-55-60 V ac Secondary, AS/NZS 61558.1 Certified 123-5702

RS PRO 123-5702 DIN Rail Transformer is a high-quality single phase isolation transformer designed for general electrical power applications where voltage conversion and isolation are required. It is rated at 250 VA with a primary input voltage range of 230 to 400 V ac and four separate secondary outputs each delivering 0-55-60 V ac for versatile multi-output supply needs.

This transformer supports mounting via DIN rail, providing stable and secure attachment in electrical panels and enclosures. It operates efficiently across a frequency range of 50 to 60 Hz and is built using low noise lamination techniques to minimize disturbances in electrical circuits. The device includes a dedicated earth terminal to enhance safety during operation.

Certified to meet stringent AS/NZS 61558.1 and 61558.2.4 standards, along with RoHS and CE compliances, this product offers reliable performance and environmental safety. It is varnish impregnated and electrically flash tested to guarantee durability and electrical integrity.

Engineered for industrial, manufacturing, laboratory, and water treatment applications, this transformer ensures dependable isolation and power quality. The transformer has a maximum operating temperature rating of 130°C and employs temperature class B insulation for long-term reliability.

Manufactured in Poland, it is constructed with precision engineering to weigh approximately 12.99 kg. The compact dimensions of 96 mm (length) x 102 mm (width) x 110 mm (depth) allow integration into various electrical installations without occupying excessive space.

This transformer is designed for DIN rail mounting, ensuring secure and efficient installation. It includes four separate outputs for versatile electrical applications. Built to meet AS/NZS 61558.1 standards along with RoHS and CE compliances.

The unit supports operating frequencies from 50 Hz minimum up to 60 Hz maximum. Constructed with low noise laminations and provided with an earth terminal for safety. Temperature class B capable with a maximum operating temperature of 130°C.

Precision manufactured in Poland with a sturdy build weighing approximately 12.99 kg. The transformer features screw connectors and low regulation for high efficiency isolation use. Explore our range of RS PRO DIN Rail Transformers and other related electrical components at EnvMart for reliable industrial solutions.
