MEAN WELL Reliable Universal AC/DC Adapter 264V AC Input, 2.5A Maximum Output Current, 5V DC Output GP25B13A-R1B

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Reliable Universal AC/DC Adapter 264V AC Input, 2.5A Maximum Output Current, 5V DC Output GP25B13A-R1B

Name: MEAN WELL Reliable Universal AC/DC Adapter 264V AC Input, 2.5A Maximum Output Current, 5V DC Output GP25B13A-R1B
Brand: MEAN WELL
SKU: 192575



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	Taiwan
Brand	MEAN WELL
Model	GP25B13A-R1B
Cable Length	1530mm
Overall Length	107.5mm
Series	GP25B-T
Overall Width	67mm
Maximum Operating Temperature	70°C
Maximum Input Voltage	264V ac
Maximum Output Current	2.5A
Standards/Approvals	UL 60950-1, IEC 60950-1, CE
Minimum Input Voltage	80V ac
Overall Depth	36mm
Minimum Output Voltage	5V dc
Input Connector Type	IEC 320-C14

Key Features

Supports universal AC input from 80V to 264V for flexible power sources.
Maximum output current of 2.5A with stable 5V DC output voltage.
Equipped with IEC 320-C14 input connector for easy integration.
Compact dimensions of 107.5mm length, 67mm width, and 36mm depth.
Operates safely up to 70°C maximum temperature.
Compliance with UL 60950-1, IEC 60950-1, and CE standards for reliable safety and quality.
Features industry standard protections such as short circuit, overload, over voltage, and over temperature.
Constructed in a fully enclosed plastic case with LED power indication for operation status.

Product Description

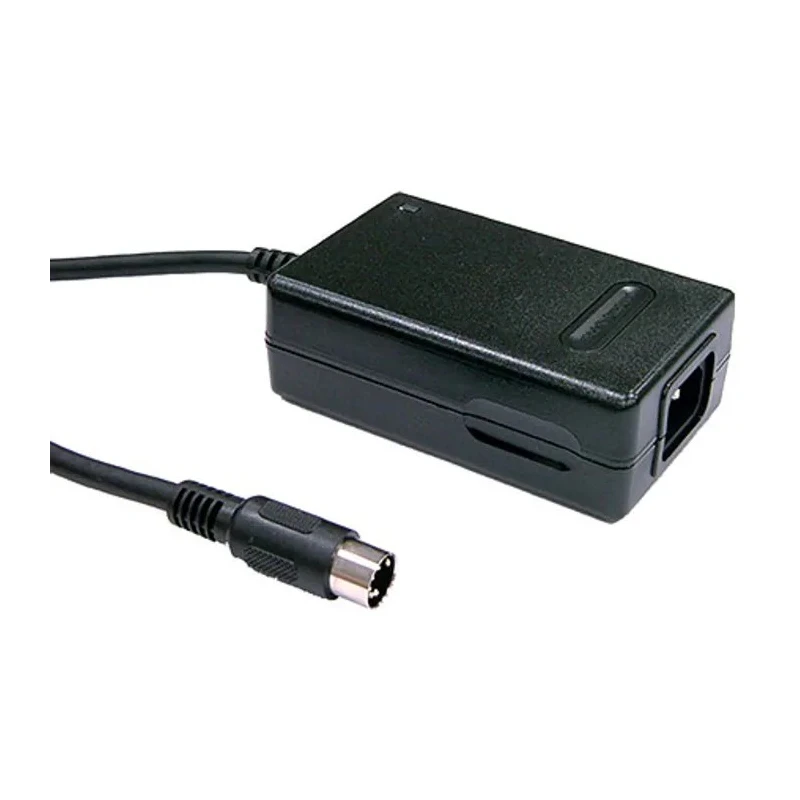

MEAN WELL GP25B13A-R1B AC/DC Adapter is a desk top power supply designed for robust and reliable universal AC input operation, covering a wide range of input voltages from 80V to 264V AC. It delivers a regulated DC output of 5V at a maximum current of 2.5A, suitable for a variety of electronic applications including industrial, commercial, and laboratory power systems.

This adapter features an IEC 320-C14 input connector for easy connection and integration with standard AC input sources. The compact enclosure measures 107.5mm in length, 67mm in width, and 36mm in depth, making it suitable for desk top or embedded use. It operates efficiently with Level VI energy efficiency certification and integrates protection mechanisms including short circuit, overload, over voltage, and over temperature safeguards to maximize reliability and safety during operation.

Constructed with a fully enclosed plastic case, the power supply unit includes an LED indicator to provide visual feedback about operational status. The product is designed to operate safely in environments with temperatures up to 70°C, enhancing its applicability in demanding conditions.

Industrial, laboratory, HVAC, manufacturing, and other technical application scenarios benefit from this reliable power supply. The GP25 series desk top power supply from MEAN WELL is renowned for its durability and compliance with international safety standards such as UL 60950-1, IEC 60950-1, and CE, ensuring it meets global regulatory demands.

Supports universal AC input from 80V to 264V. Maximum output current of 2.5A at 5V DC. IEC 320-C14 input connector included. Compact dimensions: 107.5mm x 67mm x 36mm (LxWxD). Operating temperature maximum 70°C. Fully enclosed plastic case with LED power indicator.

Integrates industry standard protection features for safety. Meets UL 60950-1, IEC 60950-1, and CE safety approvals. Level VI energy efficiency certified. Explore the range of compatible AC/DC Adapters on EnvMart for reliable power supply solutions across industrial and electronic applications.
