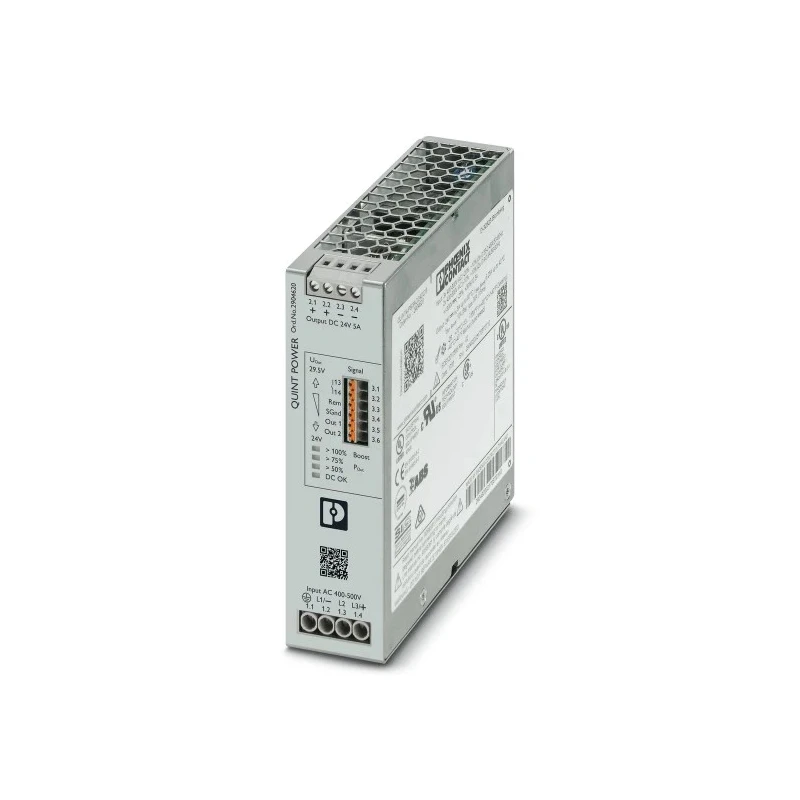

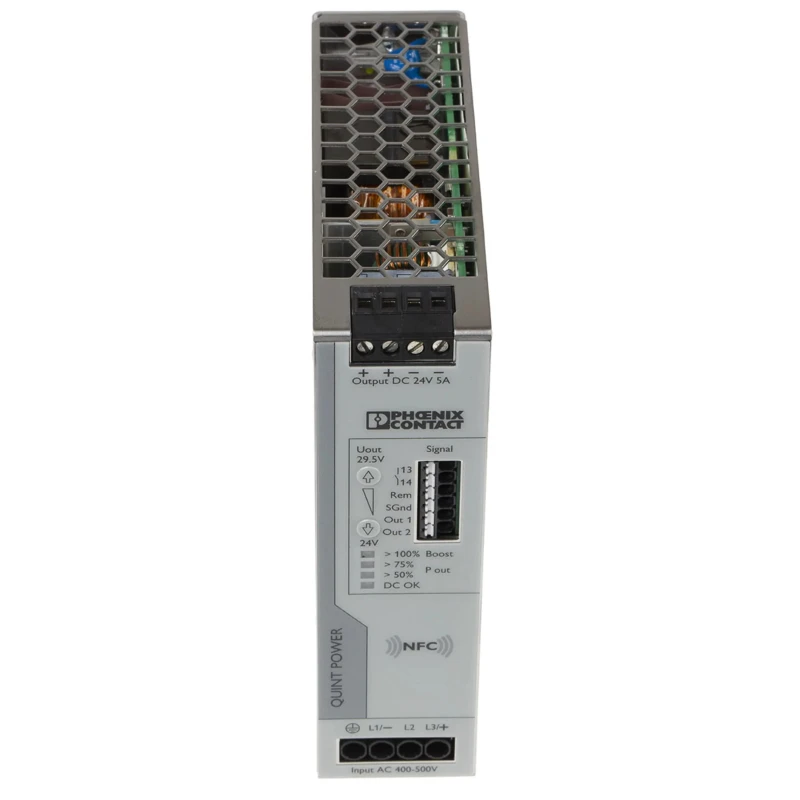

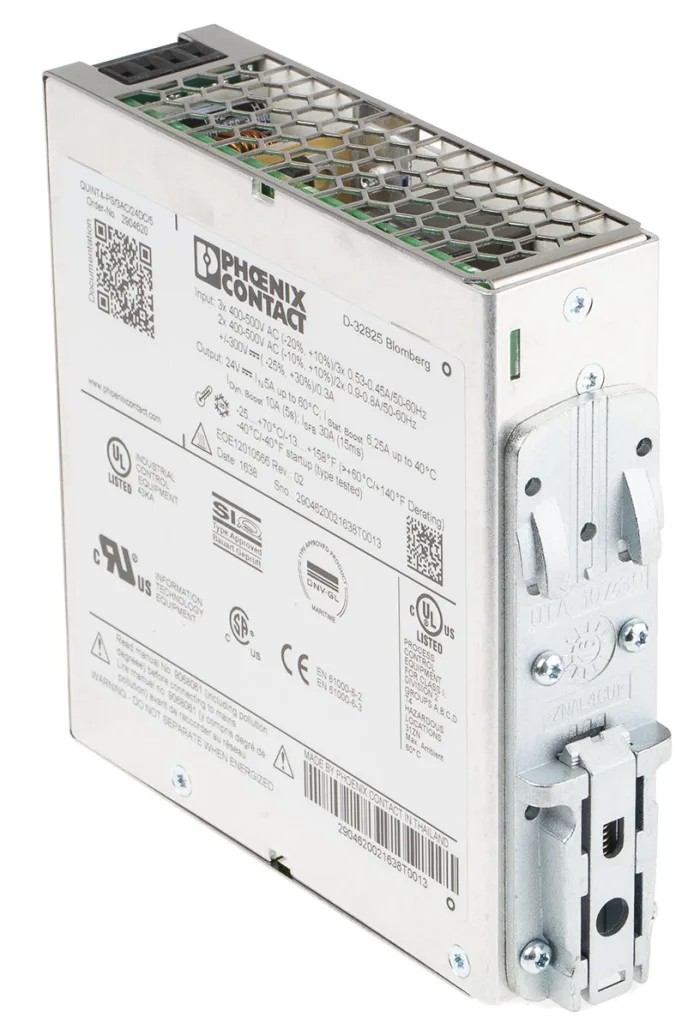

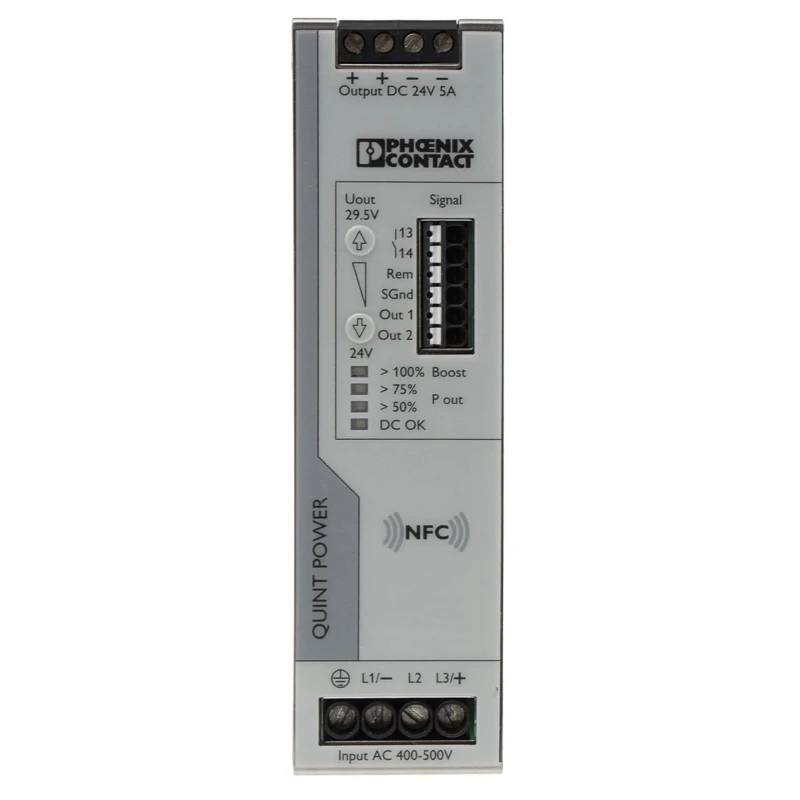

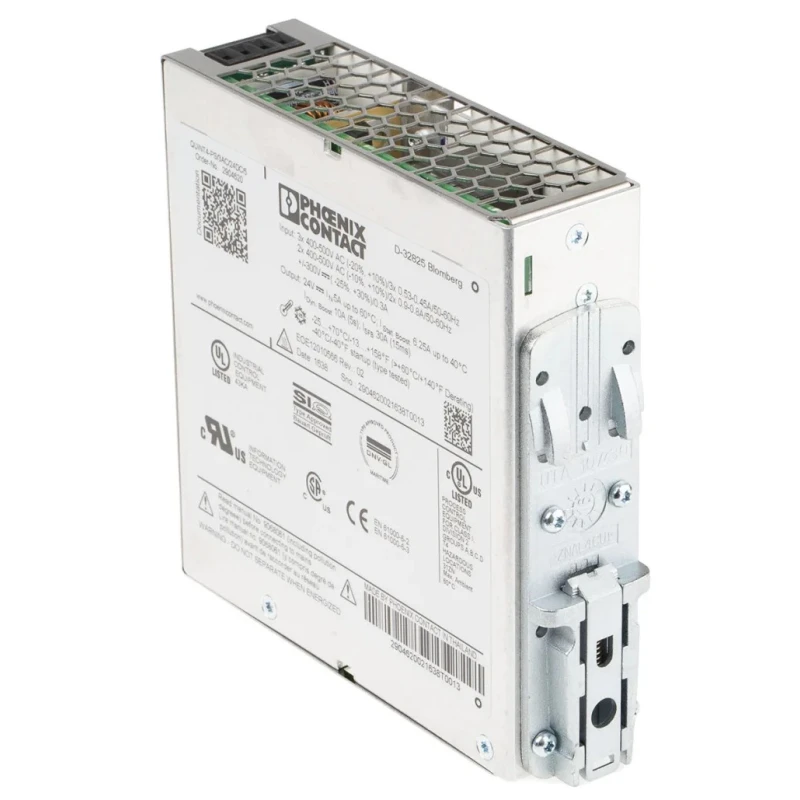

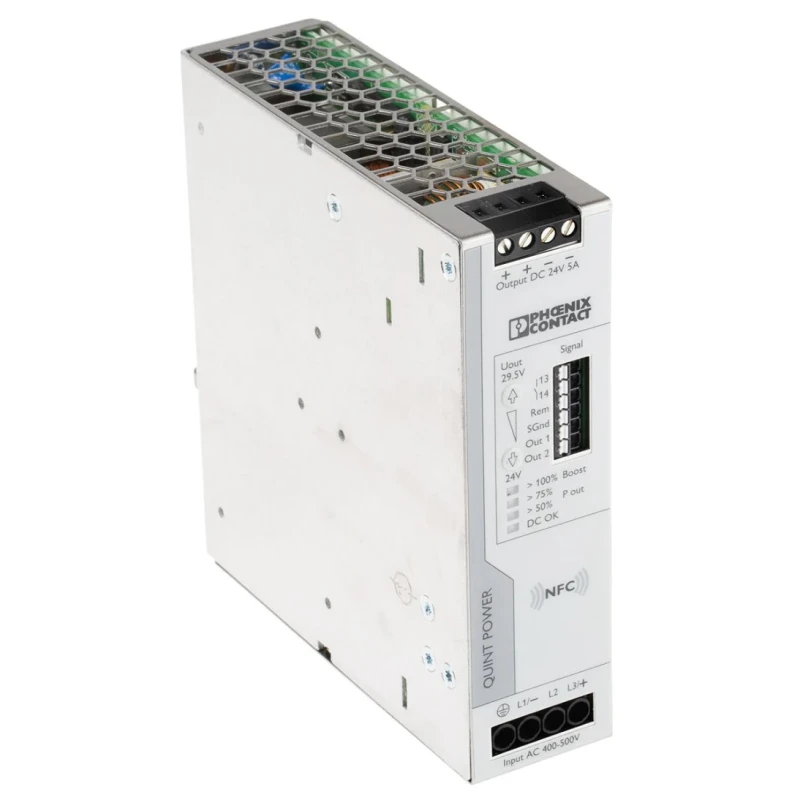

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply 500V AC Input 29.5V DC 5A Output 120W 2904620
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 120W |
| Efficiency | 87.5% |
| Height | 130mm |
| Model | 2904620 |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 36mm |
| Series | QUINT POWER |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 500V ac |
| Electrical Phase | 3 |
| Hazardous Area Certification | Ex |
| Standards/Approvals | cUL, cULus, EAC, EN 61000-4-11, UL, UL1741 |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 320V ac |
Key Features
- High efficiency of 87.5% ensures energy saving and reduced heat generation.
- Supports single output with a 29.5V DC nominal output voltage.
- Operates reliably in harsh environments with -25°C to 70°C temperature range.
- Features IP20 ingress protection for dust resistance and touch safety.
- Equipped with active function monitoring via DC-OK LED indicator.
- Tool-free push-in connection enables quick and secure DIN rail mounting.
- Floating signal contact enhances safety for connected loads.
- Conformal coating allows use in humid and corrosive dust atmospheres.
Product Description
Phoenix Contact 2904620 QUINT POWER Switched Mode DIN Rail Power Supply delivers a dependable 120W power output with a 29.5V DC and 5A rated current, optimized for machine building and industrial automation applications. This power supply supports a maximum AC input voltage of 500V, ensuring versatile compatibility with power systems.
Its robust design meets high reliability standards with a mean time between failures (MTBF) exceeding one million hours. The device features a temperature operation range of -25°C to 70°C, making it suitable for demanding industrial environments.
The unit's IP20 rating provides protection against solid objects and safe touch-proof operation. The conformal coating of the internal components enables use in humid or corrosive atmospheres, ensuring long-term durability. The power supply also includes an active DC-OK LED for clear operational status monitoring.
Installation is facilitated by tool-free push-in terminals and DIN rail mounting compatibility. The power supply includes a floating signal contact for safe remote indication and control of the power status. Additionally, the dynamic power boost function allows delivering 150% of nominal current for 5 seconds to start challenging loads with ease.
High efficiency 87.5% helps reduce energy consumption and thermal stress. Robust electrical and mechanical design for industrial use. Operating temperature from -25°C to 70°C supports harsh ambient conditions. Conformal coating for protection against moisture and corrosive dust.
IP20 ingress protection for dust and touch safety. Push-in connection enables tool-free installation on DIN rails. Dynamic power boost for starting difficult machinery and loads. Floating signal contact enhances safety for connected 24V DC circuits.
Active DC-OK LED for immediate monitoring of power supply status.
Typical applications include industrial automation, manufacturing control panels, HVAC systems, and machine building where reliable switched mode power supplies are critical. This unit supports three electrical phases and a single DC output, making it a versatile power source for complex systems.
Discover additional industrial power supplies and DIN rail power solutions at EnvMart to complete your electrical setup.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 120W with a nominal output voltage of 29.5V DC and a rated current of 5A.
It can handle a maximum input voltage of 500V AC, ensuring compatibility with various power systems.
This power supply has an efficiency rating of 87.5%, which helps reduce energy consumption and thermal stress.
The operating temperature range is from -25°C to 70°C, making it suitable for demanding industrial environments.
It features an IP20 ingress protection rating, providing safety against solid objects and touch-proof operation.
Installation is made easy with tool-free push-in terminals and compatibility with DIN rail mounting.
It includes an active DC-OK LED indicator for clear monitoring of the power supply status.
The dimensions of this power supply are 125mm in depth and 130mm in height.
This model meets several standards including cUL, cULus, EAC, and EN 61000-4-11, ensuring compliance with safety regulations.
The floating signal contact enhances safety for connected loads by providing safe remote indication and control of the power status.
It is suitable for applications in industrial automation, manufacturing control panels, HVAC systems, and machine building.
The maximum output voltage of this power supply is 29.5V DC.
