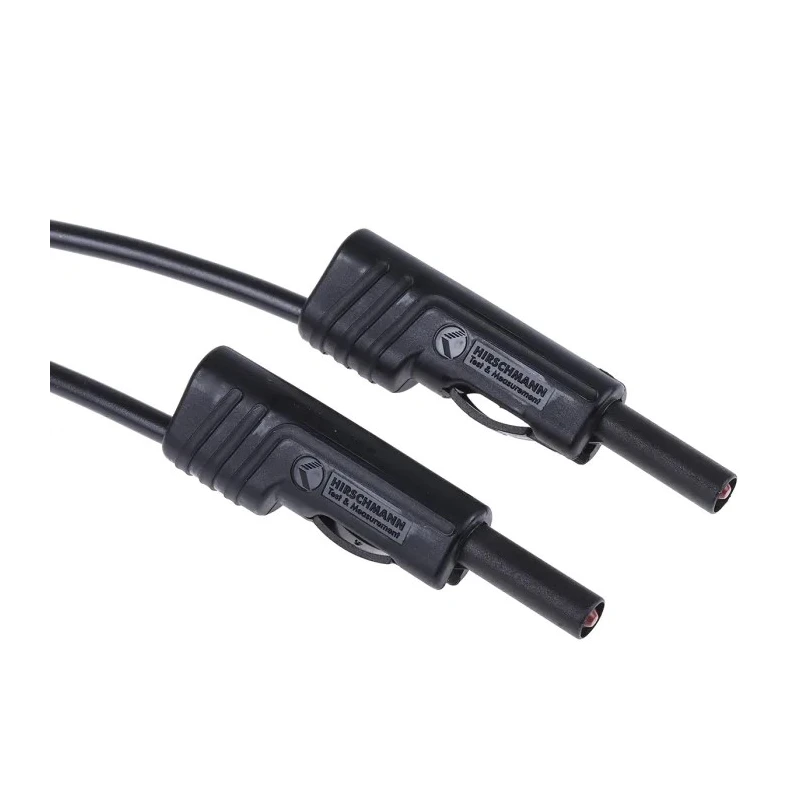

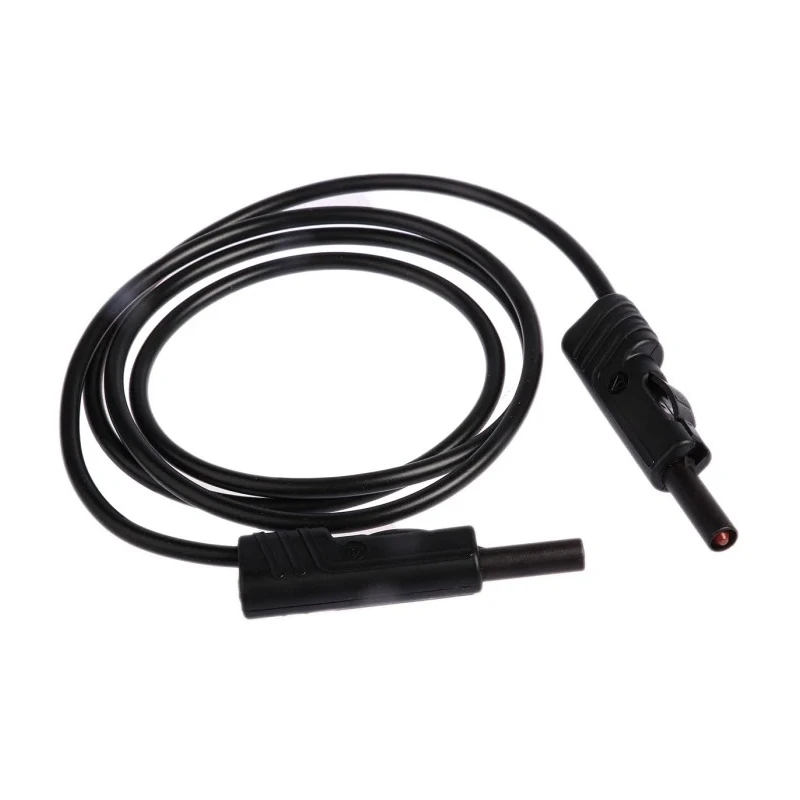

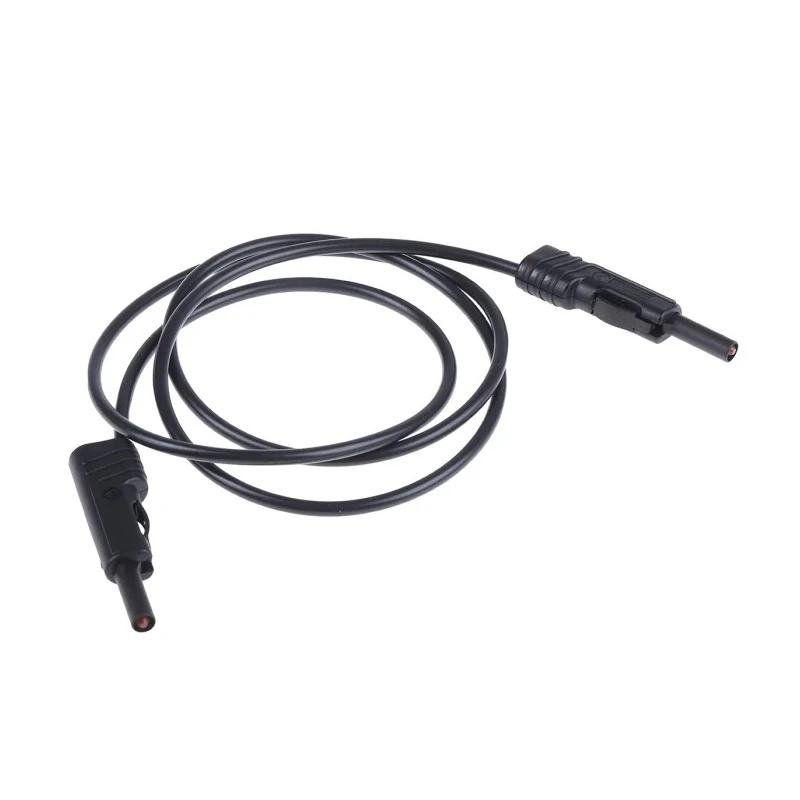

Hirschmann Test & Measurement Connector Test Lead 16A, 30 V AC, 60 V DC, Black, 1 m Lead Length 973646100
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 30, 60V ac |
| Brand | Hirschmann Test & Measurement |
| Colour | Black |
| Current | 16A |
| Contact Material | Beryllium Copper, Brass |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -15°C |
| Lead Length | 1m |
| Standards/Approvals | IEC 61010 |
| Safety Category Level | CAT I |
| Connector Gender A | Male |
| Connector Orientation A | Straight |
| Test Lead Type | 4 mm Connector Test Lead |
| Operating current (max.) | 16 A |
| Connecting plug | Ø 4 mm |
| Contact resistance (max) | 22 / 40 mΩ |
| PVC flexible cord | 1 mm² |
| Hirschmann Test & Measurement Test Lead 16A, 1kV, Black, 1 m Lead LengthBrand | Hirschmann Test & Measurement |
Key Features
- This connector test lead supports a maximum operating current of 16 A.
- The cable features a 1 m flexible PVC cord with 1 mm² cross-section.
- Both connectors are male and straight with shrouded 4 mm plugs for safety.
- Suitable for use in electrical test and measurement environments requiring CAT I safety rating.
- Constructed with beryllium copper and brass contact materials for reliable conductivity.
- Operates effectively between -15°C and 70°C temperature range.
- Compliance with IEC 61010 standards ensures reliable and safe testing.
- The test lead includes a sliding insulating sleeve and captive spring pin design for touch-proof safety.
Product Description
Hirschmann Test & Measurement 973646100 Connector Test Lead is a highly versatile 4 mm connector test lead designed for electrical test and measurement applications. Rated for a maximum current of 16A and voltage ratings of 30 V AC and 60 V DC, this 1 m lead length test cable is constructed with durable and highly conductive beryllium copper and brass contacts. The black PVC flexible cord has a cross-sectional area of 1 mm², providing flexibility and safety during measurements.
The test lead is equipped with male, straight connectors on both ends, each featuring shrouded 4 mm plugs to provide touch-proof protection as per CAT I safety category. The lead operates reliably in temperatures ranging from -15°C up to 70°C and adheres to IEC 61010 standards, ensuring compliance with international safety requirements.
Designed for applications in laboratories, electronics testing, industrial maintenance, and quality control, this connector test lead provides low contact resistance of 22 to 40 mΩ to guarantee accurate measurements. The lead features a sliding insulating sleeve and a captive spring pin for safe and stackable tower connections, enhancing versatility in measurement setups.
This connector test lead originates from Germany, reflecting precision engineering and high manufacturing standards. This connector test lead supports a maximum operating current of 16 A. The cable features a 1 m flexible PVC cord with 1 mm² cross-section.
Both connectors are male and straight with shrouded 4 mm plugs for safety. Suitable for use in electrical test and measurement environments requiring CAT I safety rating. Constructed with beryllium copper and brass contact materials for reliable conductivity.
Operates effectively between -15°C and 70°C temperature range. Compliance with IEC 61010 standards ensures reliable and safe testing. The test lead includes a sliding insulating sleeve and captive spring pin design for touch-proof safety.
Ideal for industrial, laboratory, HVAC, manufacturing, and electrical maintenance uses, this Hirschmann Test Lead is a dependable tool for precise and safe electrical measurement tasks. Explore more products in the Electrical Test & Measurement category at EnvMart for comprehensive testing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector test lead supports a maximum operating current of 16 A.
It is rated for 30 V AC and 60 V DC.
The lead length is 1 meter.
The contacts are constructed from beryllium copper and brass, ensuring reliable conductivity.
It operates effectively between -15°C and 70°C.
It is suitable for use in environments requiring a CAT I safety rating.
The test lead complies with IEC 61010 standards, ensuring safety and reliability in testing environments.
Both connectors are male and straight with shrouded 4 mm plugs for safety.
The contact resistance is between 22 to 40 mΩ, which helps guarantee accurate measurements.
It features a flexible PVC cord with a cross-sectional area of 1 mm².
This model is designed for applications in laboratories, electronics testing, industrial maintenance, and quality control.
It originates from Germany, reflecting precision engineering and high manufacturing standards.
