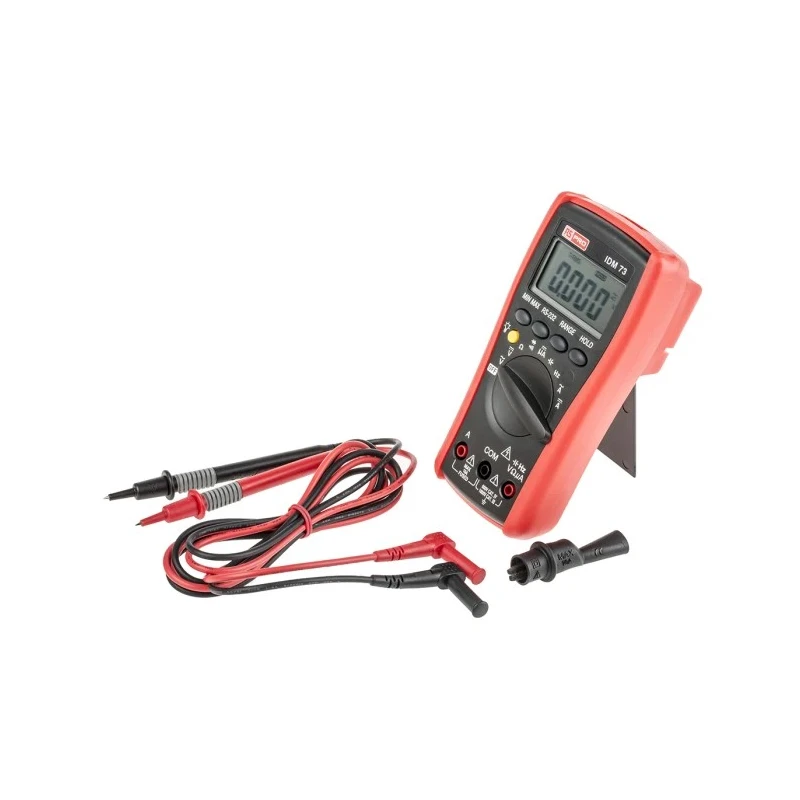

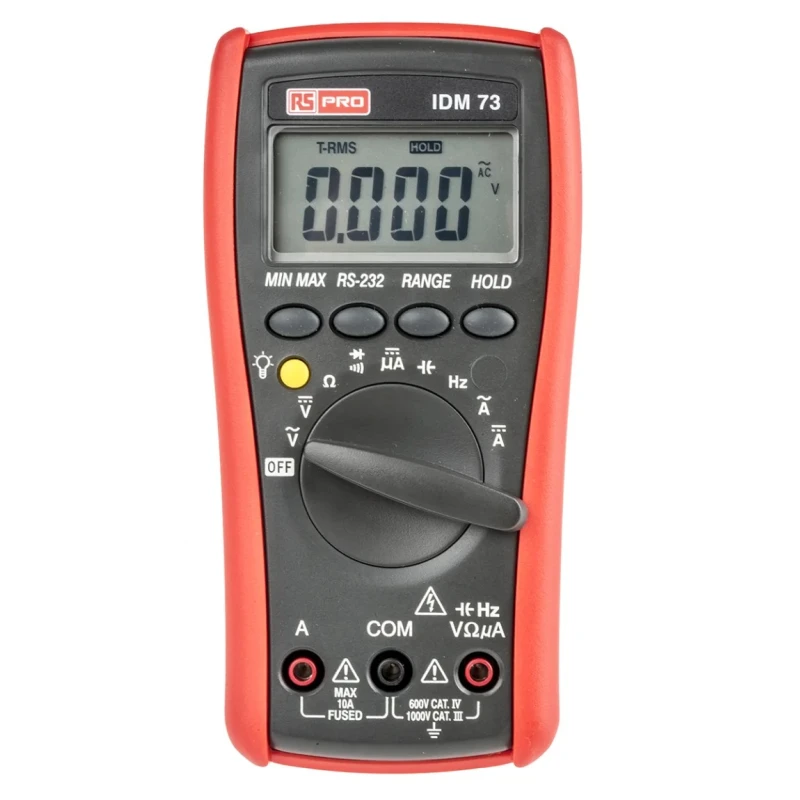

RS PRO Handheld Digital Multimeter True RMS 1kV DC Voltage Measurement IDM73
Specifications
| Country of Origin | Spain |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 300h |
| Battery type | NEDA 1604, IEC 6F22 |
| Height | 164mm |
| Length | 82mm |
| Model | IDM73 |
| Gross Weight | 400g |
| Width | 44mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±1% + 2 Digits |
| DC Voltage Resolution | 0.1 mV dc |
| Resistance Resolution | 100mΩ |
| AC Current Resolution | 0.1μA ac |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum Frequency | 60MHz |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1kV |
| RS PRO IDM66RT Handheld Multimeter True RMSBrand | RS PRO |
| Megger Handheld Multimeter True RMS, 750 V acBrand | Megger |
| RS PRO S2 Handheld Multimeter True RMS, 400 mA ac, 400 mA dc, 1 kV acBrand | RS PRO |
Key Features
- Compact and rugged handheld design with an LCD display.
- Measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, diode testing, and frequency.
- True RMS reading ensures accurate AC measurements.
- Includes protective holster with built-in stand and lead storage.
- Equipped with RS-232 optical interface for PC data acquisition.
- Operates in temperatures ranging from 0°C to 50°C with shock resistance from 1 m drops.
- Battery life of approximately 300 hours with easy battery replacement.
- Safety rated for CAT III and CAT IV environments up to 1kV.
Product Description
The RS PRO IDM73 handheld digital multimeter is a high-precision instrument designed for professional electrical and industrial applications. Featuring true RMS measurement, it can accurately measure AC and DC voltages up to 1kV and currents up to 10 Amps, making it suitable for low voltage installations and electrical troubleshooting.
This device offers multi-functional testing capabilities including resistance, capacitance, continuity tests, diode checks, and frequency measurement up to 60 MHz. Its LCD screen with 6000 display counts provides clear, easy-to-read results while the compact, ergonomic design enables one-handed operation in tight spaces.

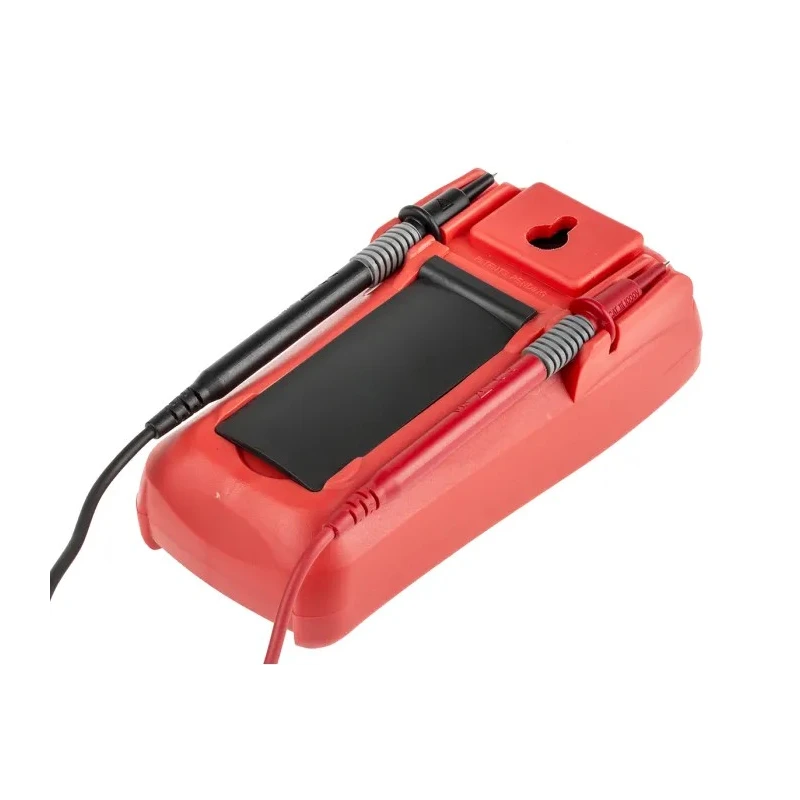

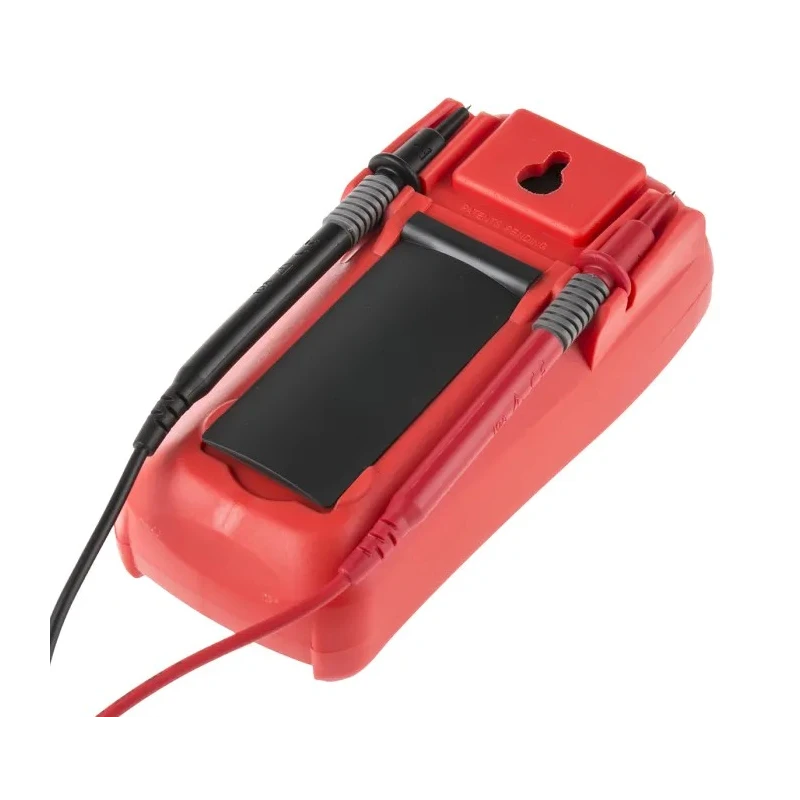

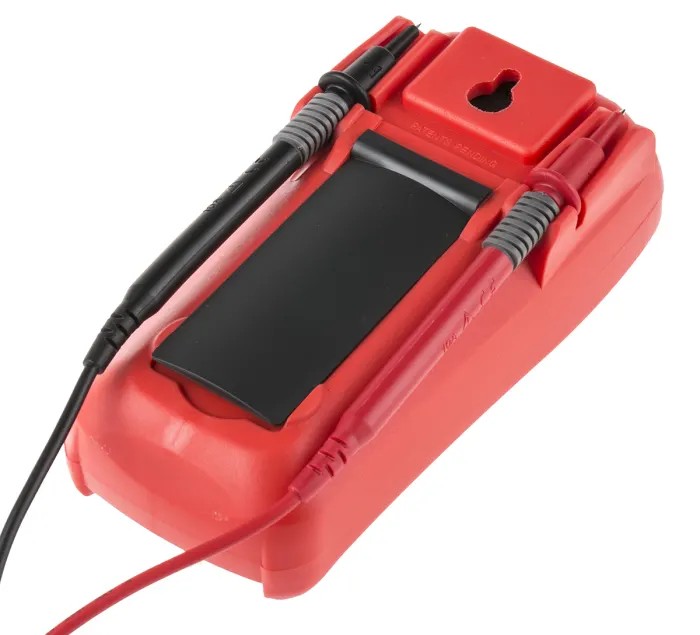

The multimeter comes with a protective holster that provides shock protection from drops up to 1 meter, a built-in tilt stand for hands-free operation, and convenient test lead storage. An RS-232 optical interface allows data transfer to PCs for analysis, enhancing its applicability in laboratory, manufacturing, HVAC, and electrical maintenance environments.
Safety certifications include CAT III and CAT IV ratings, ensuring compliance with stringent safety standards for electrical testing up to 1kV. The device operates reliably between 0°C and 50°C and includes a battery life of up to 300 hours, with easy access for battery replacement.
Compact and rugged handheld design with an LCD display. True RMS AC and DC voltage and current measurements. Multi-function measurement including resistance, capacitance, continuity, diode, and frequency. Protective holster with built-in stand and test lead storage.
RS-232 optical interface for PC connection and data acquisition. Safety rated CAT III and CAT IV up to 1kV. Operational temperature range from 0°C to 50°C with shock resistance. 300 hours battery life with easy replacement.
Suitable for industrial, electrical maintenance, HVAC, and laboratory applications. Explore more quality measuring and testing instruments in EnvMart's comprehensive digital Multimeter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure DC voltages up to 1kV.
It can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode testing, and frequency.
It operates reliably in temperatures ranging from 0°C to 50°C.
The AC voltage resolution is 0.1mV.
The battery life is approximately 300 hours, and it features easy battery replacement.
It is safety rated for CAT III and CAT IV environments up to 1kV.
The maximum frequency it can measure is 60 MHz.
It features an LCD display for clear readings.
The dimensions are 164mm in height, 82mm in length, and 44mm in width.
Yes, it includes a protective holster that provides shock protection from drops up to 1 meter.
The resistance resolution is 100mΩ.
Yes, it is equipped with an RS-232 optical interface for PC data acquisition.
