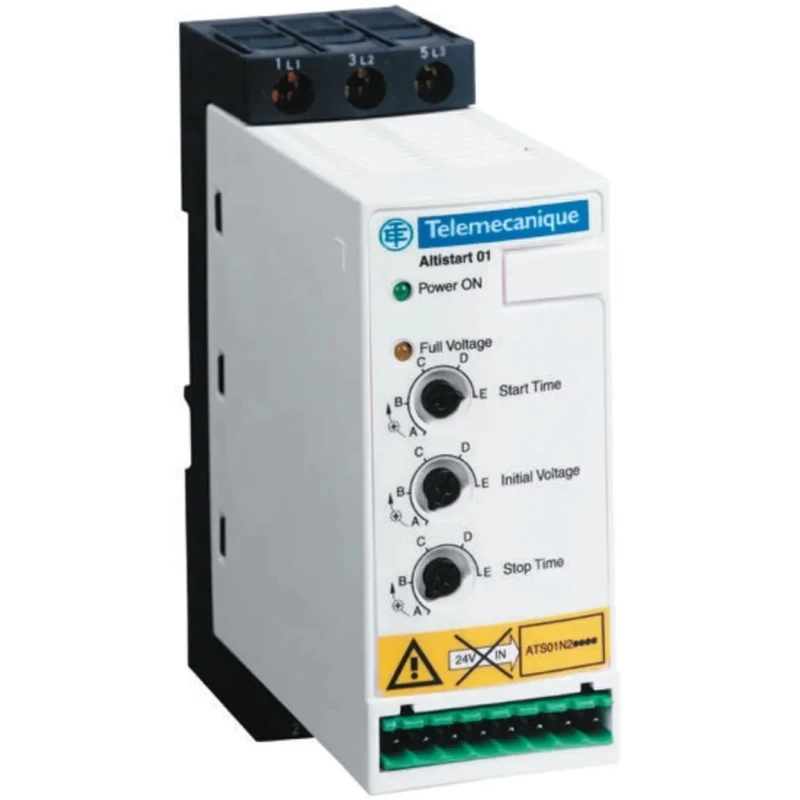

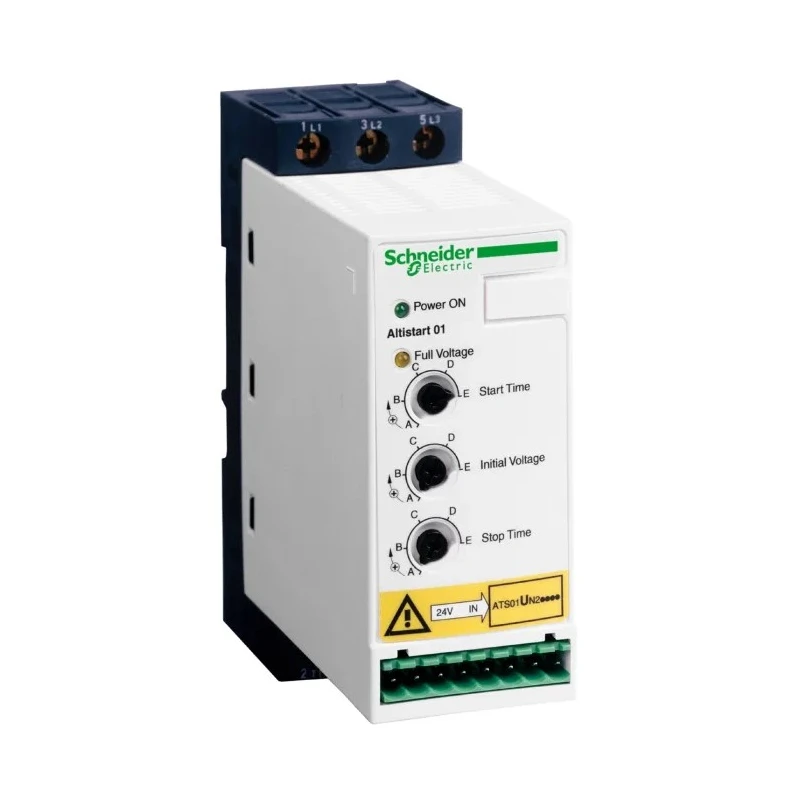

Schneider Electric Soft Starter 3 kW, 3 Phase, DIN Rail Mount, IP20, 480V AC ATSU01N206LT

Schneider Electric ATSU01N206LT is a high-quality soft starter designed for 3-phase asynchronous motors with a power rating of 3 kW and a maximum supply voltage of 480 V AC. This IP20 rated unit provides soft start and soft stop capabilities, allowing motors to start gradually and stop smoothly in controlled phases, thereby enhancing operational efficiency and reducing mechanical stress.

The soft starter controls two phases of the motor's power supply, effectively limiting the starting current and deceleration forces. Its compact DIN rail mounting design (113mm length, 45mm width, 154mm depth) facilitates easy integration into industrial control panels without occupying excessive space.

Equipped with an internal bypass relay, the ATSU01N206LT ensures efficient operation by bypassing the soft start function once the motor is running at full speed. It is designed to be used in combination with TeSys model U controller-starters, creating a versatile and modular motor control solution. This combination allows for quick assembly, wiring, and adaptation of control parameters after installation.

The Soft Starter supports motor power ranges from 0.75 kW to 15 kW and supply voltages ranging between 200 and 480 V AC at 50/60 Hz, catering to a broad spectrum of industrial motor control needs. Its housing offers IP20 protection, suitable for standard indoor industrial environments.

The product adheres to multiple international standards including C-Tick, UL, CCC, EN/IEC 60947-4-2, CSA, and CE, ensuring reliable performance and safety compliance. An external 24V power supply is required to control the starter, enhancing its integration flexibility within existing automation setups.

Ideal use cases for the ATSU01N206LT include industrial automation, manufacturing process control, HVAC systems, water treatment plants, and other applications requiring smooth motor starts and stops to prolong equipment lifespan and improve process control.

This device is part of the renowned Schneider Electric Altistart series, known for robust performance and ease of use in industrial motor control applications. It enables faster system design using fewer components and supports plug-in modular upgrades for system expansion and diagnostics.

Provides soft start and soft stop functionality for asynchronous motors. Controls two phases of motor power supply to limit starting current and deceleration. DIN rail mountable with compact dimensions (113mm length × 45mm width × 154mm depth).

IP20 rated enclosure suitable for indoor industrial environments. Includes an internal bypass relay for efficient operation. Compatible with TeSys model U controller-starters for flexible motor control solutions. Supports motor power ratings from 0.75 kW up to 15 kW and supply voltage from 200 V to 480 V AC.

Optimizes motor starting performance for smooth, controlled ramp-up and ramp-down. Standard compliance with C-Tick, UL, CCC, EN/IEC 60947-4-2, CSA, and CE certifications. Requires external 24V power supply for starter control.
