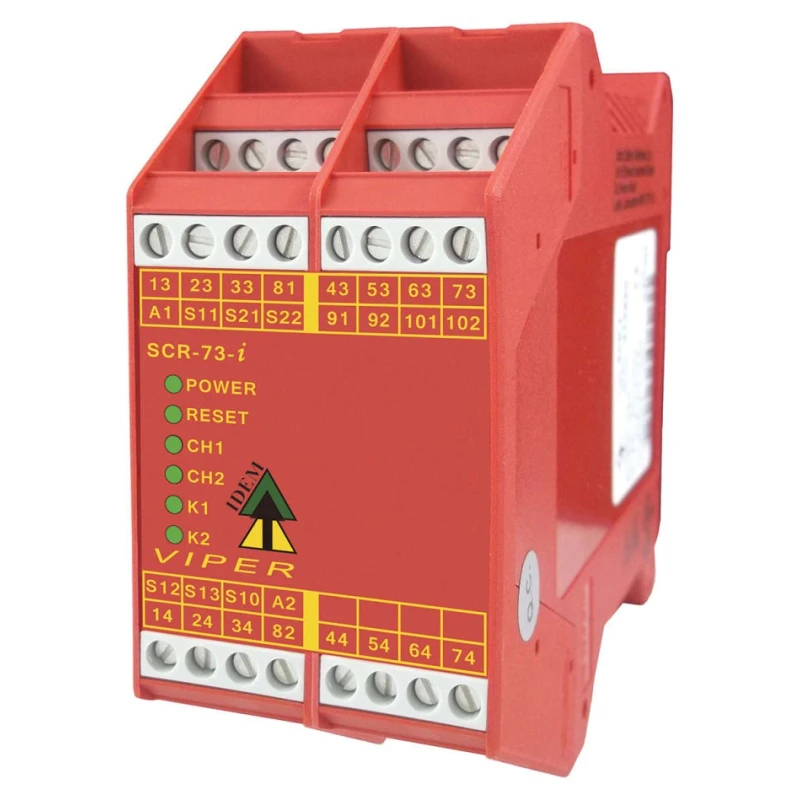

IDEM SCR-73-i Screw Terminals 24V AC/DC Safety Relay 7 Safety Contacts 3 Auxiliary Contacts 4W Power 6A Contact 280005

Free Delivery in India | Lowest Global Shipping Charges

IDEM SCR-73-i Screw Terminals 24V AC/DC Safety Relay 7 Safety Contacts 3 Auxiliary Contacts 4W Power 6A Contact 280005

Name: IDEM SCR-73-i Screw Terminals 24V AC/DC Safety Relay 7 Safety Contacts 3 Auxiliary Contacts 4W Power 6A Contact 280005
Brand: IDEM
SKU: 191942



Category Safety Relay Brand IDEM Condition New

Specifications

Country of Origin	United Kingdom
Power Consumption	4W
Brand	IDEM
Height	99mm
Length	45mm
Model	280005
Width	111mm
Mount Type	DIN Rail
Series	SCR-73-i Screw Terminals
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-20°C
Safety Category	4
Terminal type	Screw
Standards/Approvals	EN62061, UL508, EN/SO13849-2, EN60204-1, EN/ISO13849-1, EN/ISO12100
Reset Method	Automatic & Manual
Coil Voltage	24V ac/dc
Switching DC Voltage	24V dc
Switching AC Voltage	250V ac
Contact Current	6A
Safety Contacts	7
Number of Auxiliary Contacts	3
Omron G9SA, 24V ac/dc Safety Relay, 5 Safety Contacts, 1Brand	Omron

Key Features

Equipped with screw terminals for reliable connection.
Automatic and manual reset methods supported.
DIN rail mountable with compact dimensions of 99mm height, 45mm length, and 111mm width.
Power consumption of 4 watts with a contact current rating of 6 amps.
Operating temperature range from -20°C to 55°C ensures durability in industrial environments.
Suitable for safety applications requiring Safety Category 4 compliance.
Meets multiple standards including EN62061, UL508, EN/SO13849-2, and EN/ISO12100.
LED diagnostics and dual channel operation enhance safety monitoring.

Product Description

IDEM 280005 SCR-73-i Screw Terminals Safety Relay is a high-performance device operating at 24V AC/DC suitable for industrial safety control applications. It features 7 safety contacts and 3 auxiliary contacts with screw terminal connections for secure wiring.

The relay supports both automatic and manual reset methods, providing flexibility in safety circuit design. It mounts easily on 22.5 or 45 mm DIN rails, allowing quick integration into control panels.

Compact dimensions (Height 99mm, Length 45mm, Width 111mm) facilitate installation in constrained spaces. Power consumption is efficient at 4W, while the contact current rating is rated at 6A, supporting standard industrial loads.

Designed to operate reliably in harsh environments from -20°C up to +55°C, this safety relay complies with rigorous standards including EN62061, UL508, EN/SO13849-2, EN60204-1, and EN/ISO12100. Safety Category 4 classification ensures it meets high safety integrity requirements.

The SCR-73-i series integrates enhanced LED diagnostics for status indication and supports single or dual channel operation. Typical industrial use cases include safety interlock switches, emergency stop devices, and door guard monitoring in manufacturing, automation, and process control industries.

Equipped with screw terminals for secure and reliable wiring connections. Automatic and manual reset options provide operational flexibility. Compact and DIN rail mountable for efficient panel integration. Wide operating temperature range ensures robust performance.

Complies with multiple international safety standards. LED status indication improves diagnostics and maintenance. Supports safety category 4 applications for high integrity safety circuits. Suitable for industrial automation and safety control systems.

This product is manufactured in the United Kingdom and offered new for immediate industrial deployment. Browse our Electronics & Electricals Safety Relay category to find advanced control and safety solutions from trusted brands including IDEM.
