RS PRO Handheld Digital Multimeter 600 V ac, 10 A ac/DC, LCD Display RS14

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Handheld Digital Multimeter 600 V ac, 10 A ac/DC, LCD Display RS14

Name: RS PRO Handheld Digital Multimeter 600 V ac, 10 A ac/DC, LCD Display RS14
Brand: RS PRO
SKU: 141141
Price: 46.57 USD
Availability: InStock



Category Digital Multimeter Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	RS PRO
Battery type	NEDA 1604, IEC 6F22
Height	150mm
Length	70mm
Model	RS14
Gross Weight	255g
Width	48mm
Maximum Operating Temperature	50°C
AC Voltage Resolution	0.1mV ac
Minimum Operating Temperature	0°C
DC Current Accuracy	±1 % rdg ± 3 Digits
DC Voltage Resolution	0.1 mV dc
Resistance Measurement Accuracy	±1 % rdg + 2 Digits
AC Current Accuracy	±1.5 % rdg ± 5 Digits
Resistance Resolution	100mΩ
AC Current Resolution	0.1μA ac
DC Current Resolution	0.1μA dc
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Maximum Resistance Measurement	20mΩ
Maximum AC Current Measurement	10A ac
Maximum DC Voltage Measurement	600V dc
Maximum DC Current Measurement	10A dc
Maximum AC Voltage Measurement	600V ac
Maximum Frequency	60Hz
Safety Category Level	CAT III
Safety Category Voltage	1kV
RS PRO RS-960 Handheld Multimeter True RMSBrand	RS PRO
RS PRO LCD Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac MaxBrand	RS PRO

Key Features

Measures AC and DC current up to 10 A with high accuracy.
Maximum voltage measurement of 600 V for both AC and DC.
Equipped with a 2000 count digital LCD display for clear readings.
Includes diode and continuity test functions with audible indication.
Powered by a 9V battery with low battery indication and auto power off.
Compact, rugged design suitable for industrial environments.
Operating temperature from 0°C to 50°C.
Safety rated as CAT III 600 V and 1kV voltage category.

Product Description

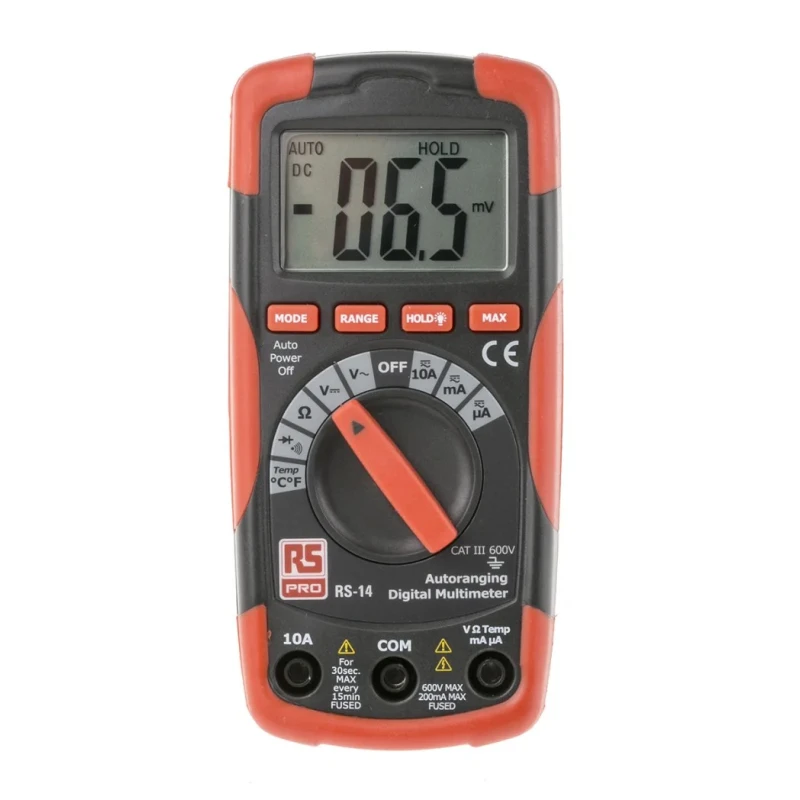

RS PRO RS14 Handheld Digital Multimeter is a versatile handheld instrument designed for precise measurement of electrical parameters such as AC and DC voltage, current, resistance, and temperature. Featuring a clear 2000 count LCD display, the device enables technicians to perform reliable diagnostics in both industrial and laboratory environments.

The multimeter supports maximum DC and AC voltage measurements of 600 V and current measurements up to 10 A, suitable for a wide range of electrical and electronic testing tasks. It includes diode and continuity testing functions with an audible indicator, increasing ease of use and safety during operations.

Powered by a standard 9V battery, the RS14 model includes important features like auto power off to conserve energy and low battery indication to ensure reliable performance. Its compact size (150mm x 70mm x 48mm) and robust double-moulded plastic housing provide durability and ease of handling, even in harsh working environments.

The RS PRO RS14 offers operating temperature tolerance from 0°C to 50°C and is safety rated to CAT III with 1kV safety category voltage, making it suitable for professional electrical testing, maintenance, and safety inspections.

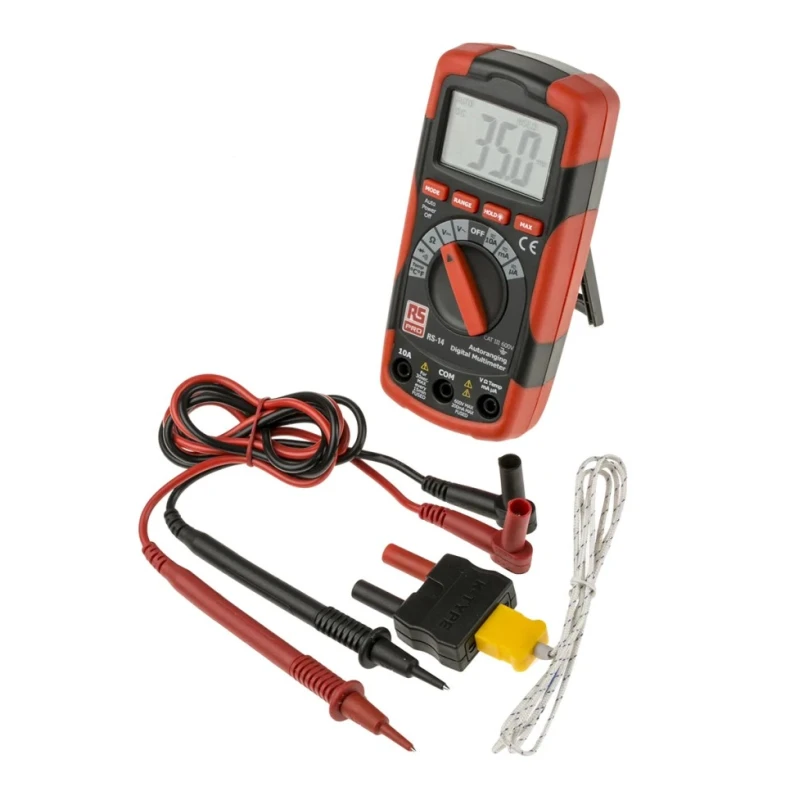

Typical applications include use in electrical and electronic industries, safety testing, construction, HVAC troubleshooting, and manufacturing process quality control. The package includes integral test leads, a type K temperature probe for thermal measurements, and a user manual to ensure proper operation and safety compliance.

Measures AC and DC current up to 10 A with high accuracy. Maximum voltage measurement of 600 V for both AC and DC. Equipped with a 2000 count digital LCD display for clear readings. Includes diode and continuity test functions with audible indication.

Powered by a 9V battery with low battery indication and auto power off. Compact, rugged design suitable for industrial environments. Operating temperature from 0°C to 50°C. Safety rated as CAT III 600 V and 1kV voltage category.

Includes integral test leads and type K temperature probe. Ideal for electrical, safety, HVAC, and manufacturing applications. Explore more high-quality Digital Multimeters and test instruments in the Industrial Measuring & Testing category at EnvMart.
