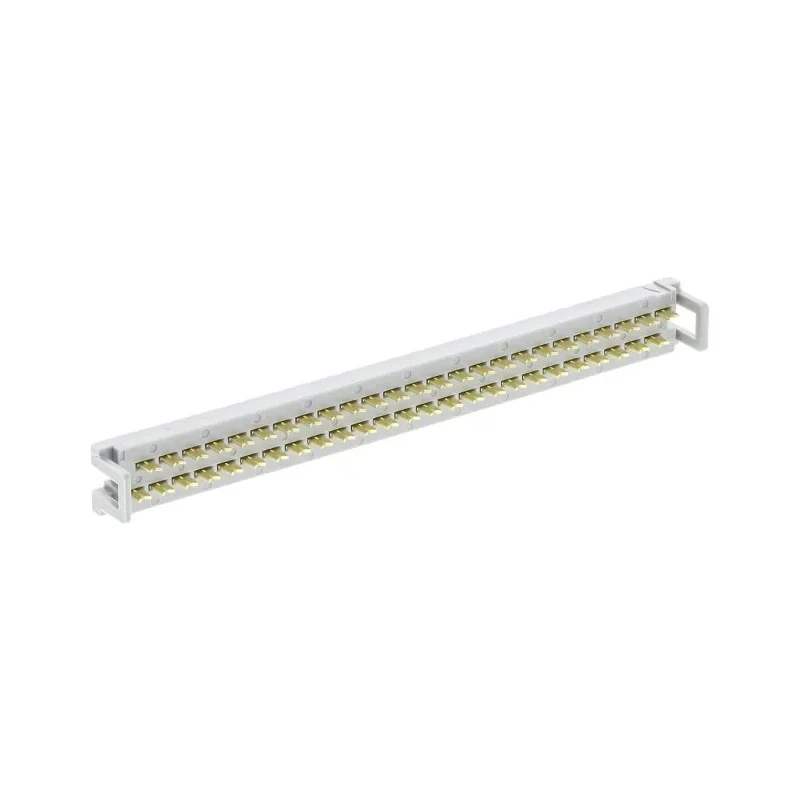

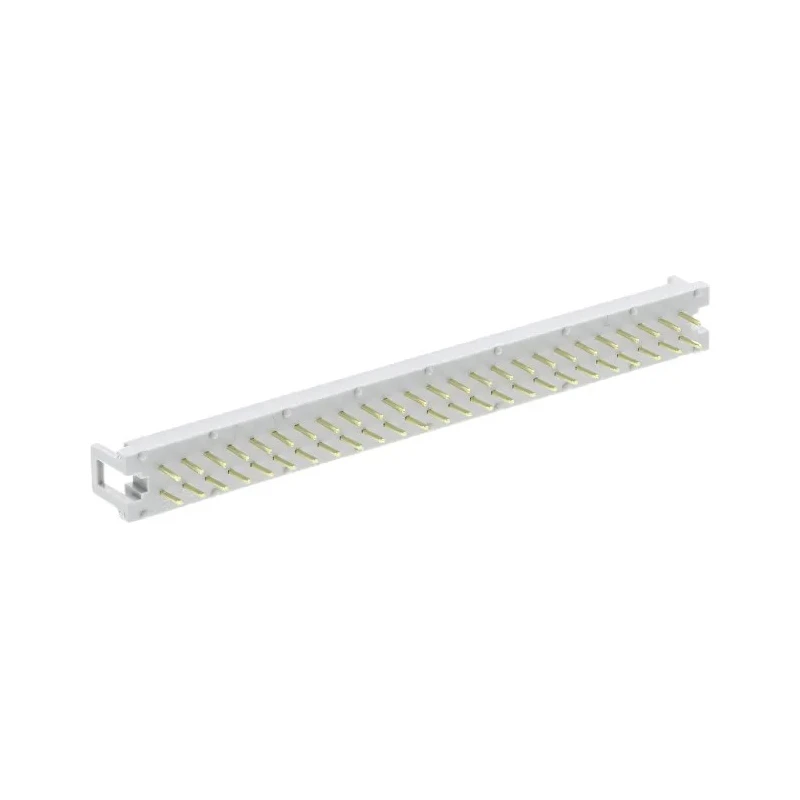

3M 50-Way IDC Connector Male for Cable, 2 Row, 1kV Voltage, Gold over Nickel Contact Plating 7850-0000PR

3M 7850-0000PR IDC Connector Male for Cable, 2 Row is a high-quality industrial-grade electrical connector designed to provide efficient and reliable connections in demanding electrical and electronic applications. This IDC (Insulation Displacement Connector) connector features 50 contacts arranged in two rows with a 2.54 mm pitch, facilitating high-density connection in compact spaces.

The contacts are made of copper with gold over nickel plating, ensuring excellent electrical conductivity and robust resistance against corrosion. The housing is crafted from polyethylene terephthalate (PET), delivering mechanical protection and durability without excessive weight.

This connector’s right-angle cable mount orientation allows for neat assembly layouts and is especially suited for PCB to cable connections. It supports currents up to 1 Ampere and voltages up to 1 kV, making it suitable for low-voltage power and signal applications.

The device withstands harsh environmental conditions with a wide operating temperature range from -55 °C to 105 °C and complies with the UL 94 V-0 flammability standard, safeguarding assemblies against fire hazards. The termination type is IDC, which permits quick and solderless wire termination, enhancing assembly efficiency.

Applications of the 3M 7850-0000PR IDC Connector include telecommunications industry equipment, electrical service installations, and IT systems cabling where reliable and compact multi-contact connectors are essential.

Features a 2.54mm pitch accommodating various wire diameters for ease of installation. Constructed with copper contacts for optimal conductivity and gold over nickel plating for corrosion resistance. Right-angle cable mount design enables compact, organized assemblies.

Polyethylene terephthalate housing provides durability and mechanical stress protection. Operates reliably across a temperature range from -55°C to 105°C. Rated for 1kV voltage and 1A current applications. Meets UL 94 V-0 flammability standard, ensuring fire safety compliance.

Ideal for telecommunications, electrical systems, and IT hardware use cases.

Choose the 3M 7850-0000PR IDC Connector for dependable electrical connections in industrial, telecommunications, HVAC, manufacturing, and electrical system installations. Explore EnvMart’s full range of IDC Connectors to find compatible accessories and connector types to best suit your application requirements.
