ifm electronic Ultrasonic Proximity Sensor Block M18 x 1 1.2 m 35mA PNP 3V 30 V dc UGT585

Free Delivery in India | Lowest Global Shipping Charges

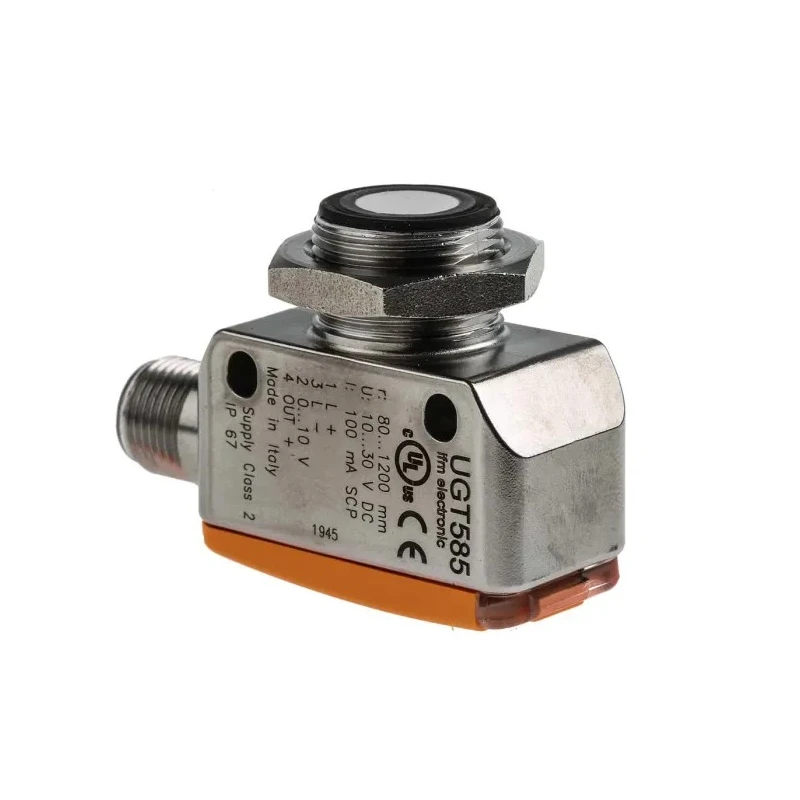

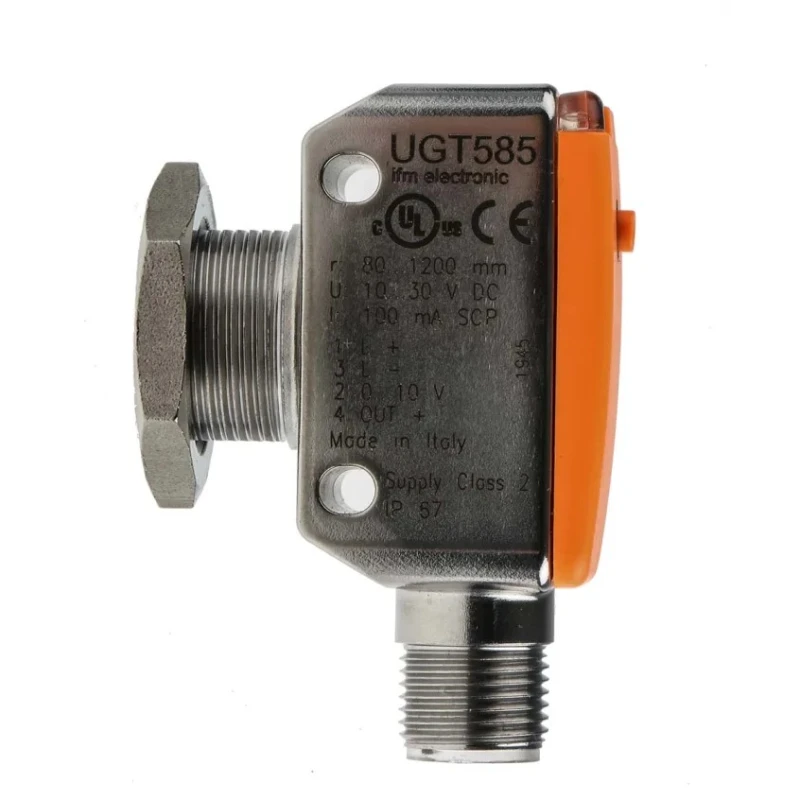

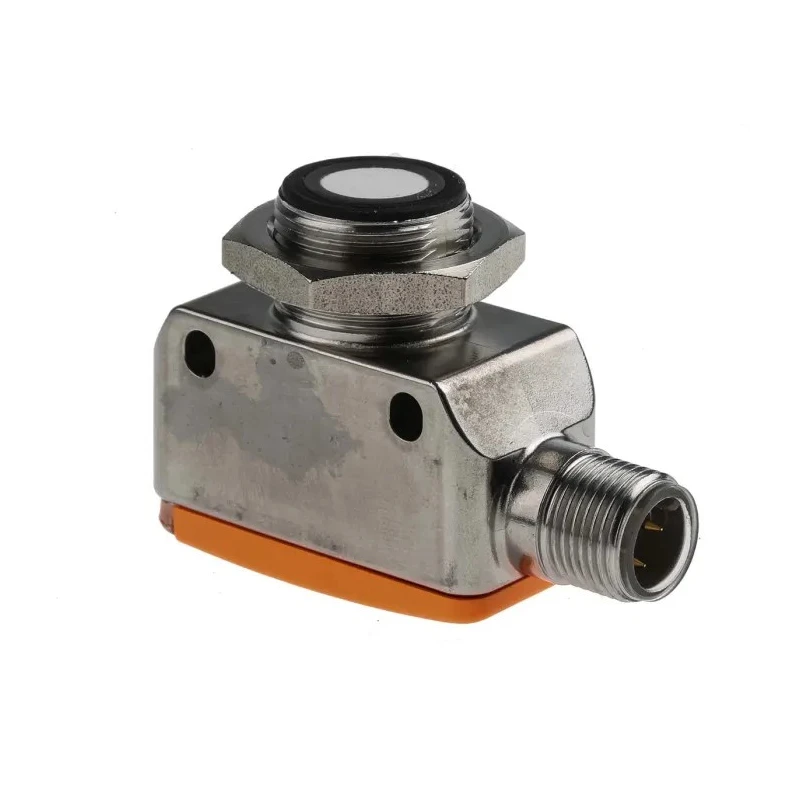

ifm electronic Ultrasonic Proximity Sensor Block M18 x 1 1.2 m 35mA PNP 3V 30 V dc UGT585

Name: ifm electronic Ultrasonic Proximity Sensor Block M18 x 1 1.2 m 35mA PNP 3V 30 V dc UGT585
Brand: ifm electronic
SKU: 191848
Price: 405.5 USD
Availability: InStock



Category Ultrasonic Proximity Sensor Brand ifm electronic Condition New

Specifications

Country of Origin	Italy
Brand	ifm electronic
Length	53mm
Model	UGT585
Depth	37.7mm
IP Rating	IP67
Width	20mm
Housing Material	Stainless Steel, Epoxy Glass Ceramic, Polyamide, Polybutylene Terephthalate
Output type	PNP
Series	UGT585
Maximum Operating Temperature	70°C
Thread Size	M18 x 1
Minimum Operating Temperature	-20°C
Switching Current	35mA
Terminal type	Screw
Body Style	Block
Maximum dc Voltage	30V dc
Maximum Switching Frequency	5Hz
Maximum Supply Voltage	3V
Maximum Detection	1.2m

Key Features

Features a robust stainless steel housing with epoxy glass ceramic and polyamide materials.
Provides reliable detection up to 1.2 meters, suitable for difficult surfaces and heavy soiling.
IP67 rated for dust and water protection, ideal for industrial environments.
Equipped with screw terminal connections for secure wiring.
Operating temperature range from -20°C to 70°C for diverse conditions.
Maximum switching frequency of 5 Hz for effective sensing applications.
Complies with CE, cULus, EN, and UL standards and approvals.
Designed to detect various object types including transparent and shiny surfaces.

Product Description

ifm electronic UGT585 is a block style ultrasonic proximity sensor with an M18 x 1 thread size, operating voltage range of 3V to 30 V dc, and a robust design suitable for harsh industrial applications.

This sensor offers a maximum detection range of 1.2m and operates with a switching current of 35mA and PNP output type, making it ideal for accurate object detection in automation and control gear environments.

The UGT585 sensor features a high-grade stainless steel housing combined with epoxy glass ceramic, polyamide, and polybutylene terephthalate materials, enhancing durability and resistance to environmental influence.

It is IP67 rated, allowing protection against dust ingress and water exposure, suitable for challenging industrial, manufacturing, and laboratory settings. The sensor is equipped with screw-type terminals for secure and easy electrical connections and supports operation in temperature ranges from -20°C to 70°C.

Robust stainless steel and high-performance polymer housing ensures long-lasting operation. Maximum detection distance of 1.2 meters for versatility in sensing applications. PNP output and switching current of 35mA provide reliable electrical performance.

Protective rating IP67 meets stringent industrial dust and water resistance standards. Suitable for detecting a variety of materials including transparent and reflective surfaces. Compact size of 53 mm length, 20 mm width, and 37.7 mm depth allows flexible installation.

Operating temperature range enables all-weather and varied environment usage. Certified by CE, cULus, UL, and multiple EN standards for international compliance. Manufactured in Italy with strict quality controls for industrial reliability.

This Ultrasonic Proximity Sensor caters to numerous industrial sectors such as automation, manufacturing, HVAC, water treatment, and laboratory instrumentation where precise and reliable object detection is vital.
