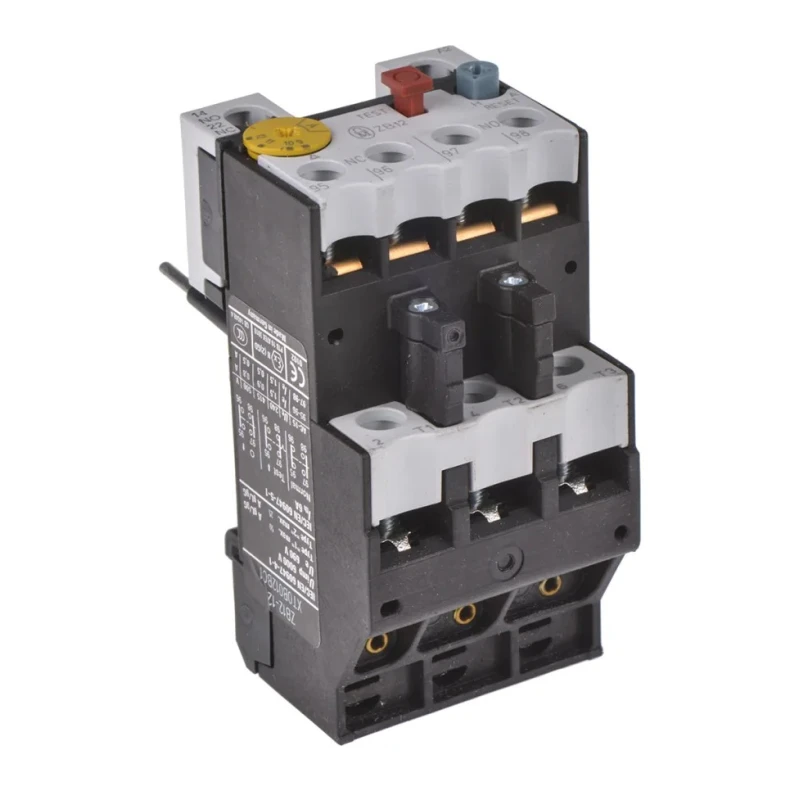

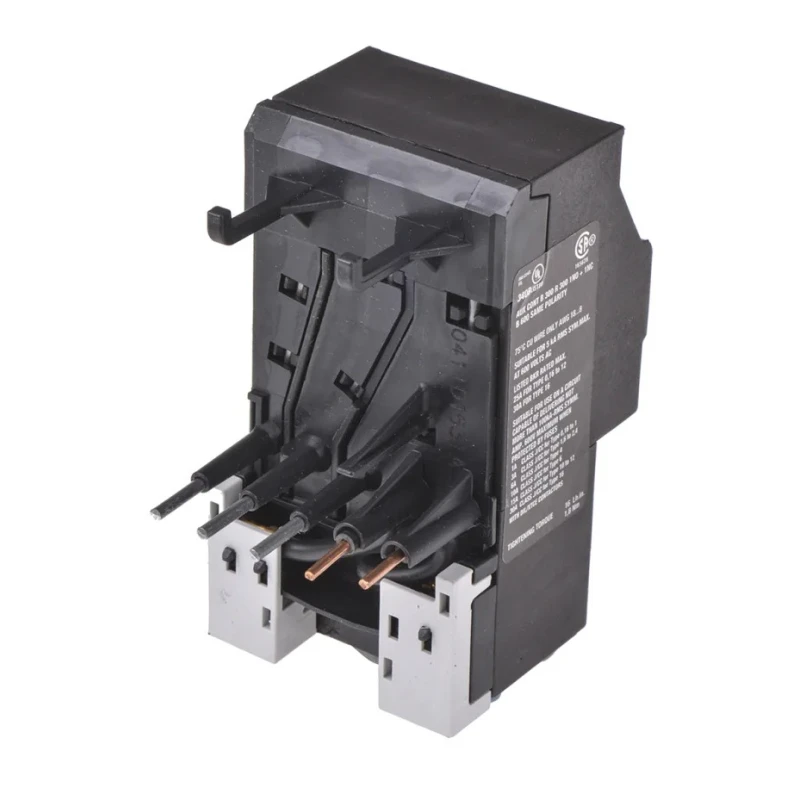

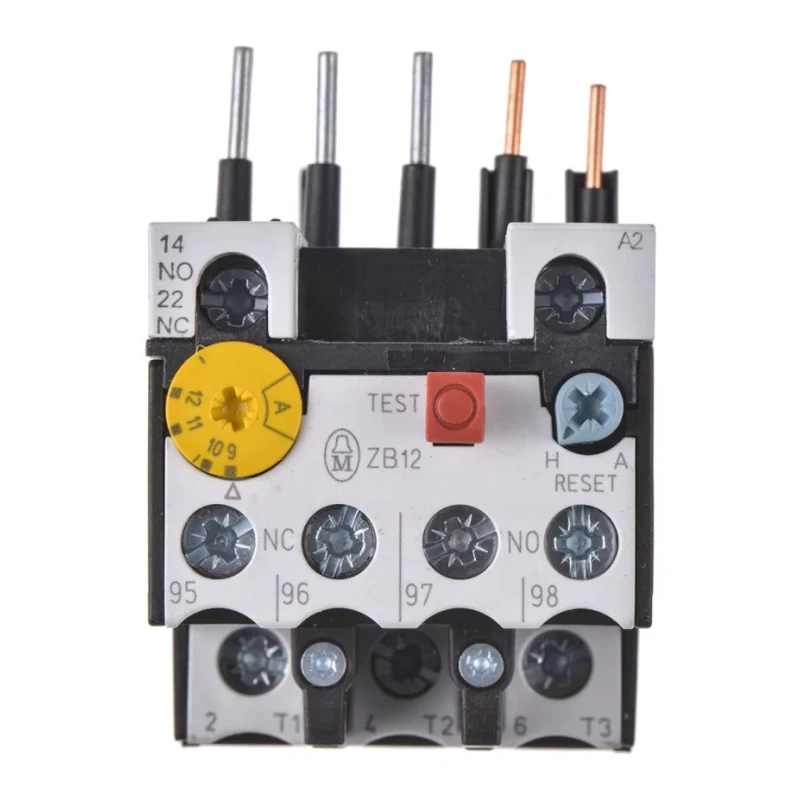

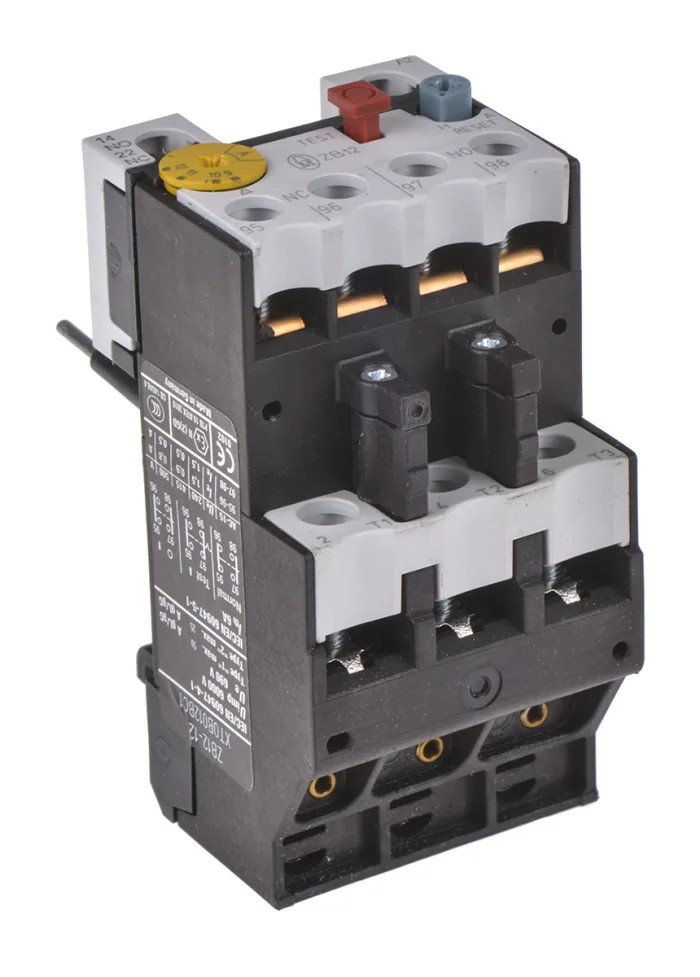

Eaton ZB Series Thermal Overload Relay, 1 NO/1 NC, 9-12A FLC Motor Rating, 12A Contact Rating, 6W Power, 500V 278441 ZB12-12

Name: Eaton ZB Series Thermal Overload Relay, 1 NO/1 NC, 9-12A FLC Motor Rating, 12A Contact Rating, 6W Power, 500V 278441 ZB12-12
Brand: Eaton
SKU: 190789
Price: 80.38 USD
Availability: InStock



Category Thermal Overload Relay Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Length	120mm
Model	278441 ZB12-12
Depth	88mm
IP Rating	IP20
Width	45mm
Mount Type	Direct
Series	ZB
Power Rating	6W
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-5°C
Terminal type	Screw
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	12A
Number of Auxiliary Contacts	2
Control Voltage	500V ac
FLC Motor Rating	12, 9A
Adjustable Current Range	9 → 12 A
