Eaton DILM Contactor 3-Pole 17 A 7.5 kW Coil Voltage 400V AC Model 277006 DILM17-10(400V50HZ,440V60HZ)

Free Delivery in India | Lowest Global Shipping Charges

Eaton DILM Contactor 3-Pole 17 A 7.5 kW Coil Voltage 400V AC Model 277006 DILM17-10(400V50HZ,440V60HZ)

Name: Eaton DILM Contactor 3-Pole 17 A 7.5 kW Coil Voltage 400V AC Model 277006 DILM17-10(400V50HZ,440V60HZ)
Brand: Eaton
SKU: 190782
Price: 127.99 USD
Availability: InStock



Category Contactors Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Function	Motor Control, Resistive Load
Length	85mm
Model	277006 DILM17-10(400V50HZ,440V60HZ)
Depth	97mm
Width	45mm
Mount Type	Screw
Series	DILM
Power Rating	7.5kW
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CSA, IEC/EN 60947, UL, VDE 0660
Contact Voltage	400V ac
Coil Voltage	400V ac
Normal State Configuration	3 NO
Contact Current	17A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	18A
Control Circuit Voltage Uc	400V ac
Contactor Application	Motor Control, Resistive Load
Pole and Throw Configuration	3P
Min contactor,7.5kW 15.5A 415Vac coilBrand	Moeller

Key Features

Provides reliable motor control and is suitable for resistive load applications.
The contactor has screw terminal mounting for secure installation.
Operates effectively in temperatures from -25°C to 40°C.
Compact dimensions of 85 mm length, 45 mm width, and 97 mm depth save space.
Supports a maximum operational current of 18 A for enhanced performance.
Features a 3 normally open (3 NO) contact configuration.
Designed for a maximum operating frequency of 5000 operations per hour.
Mechanical lifespan of up to 10 million operations ensures long service life.

Product Description

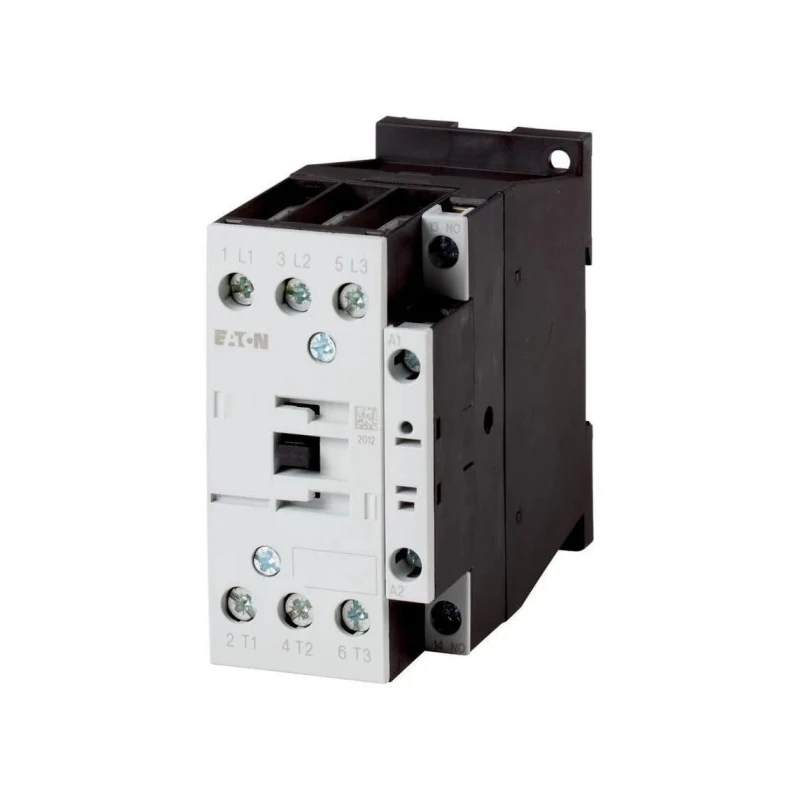

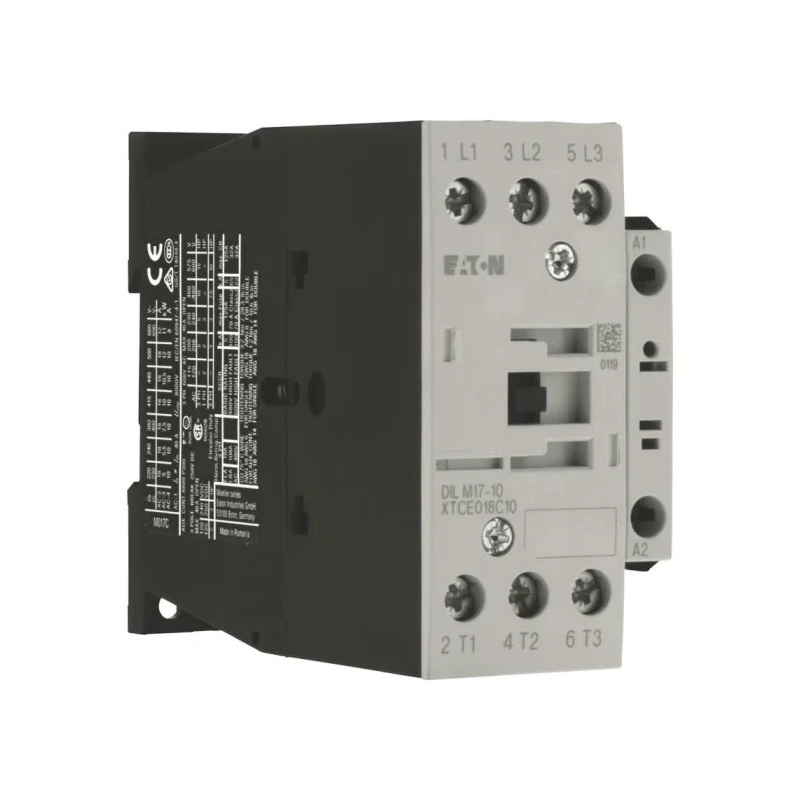

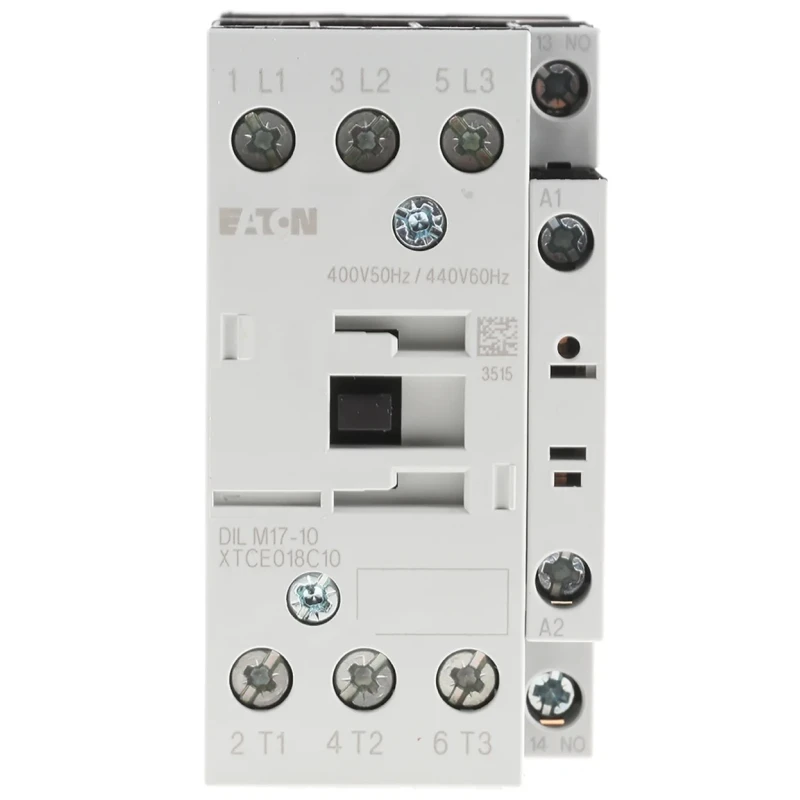

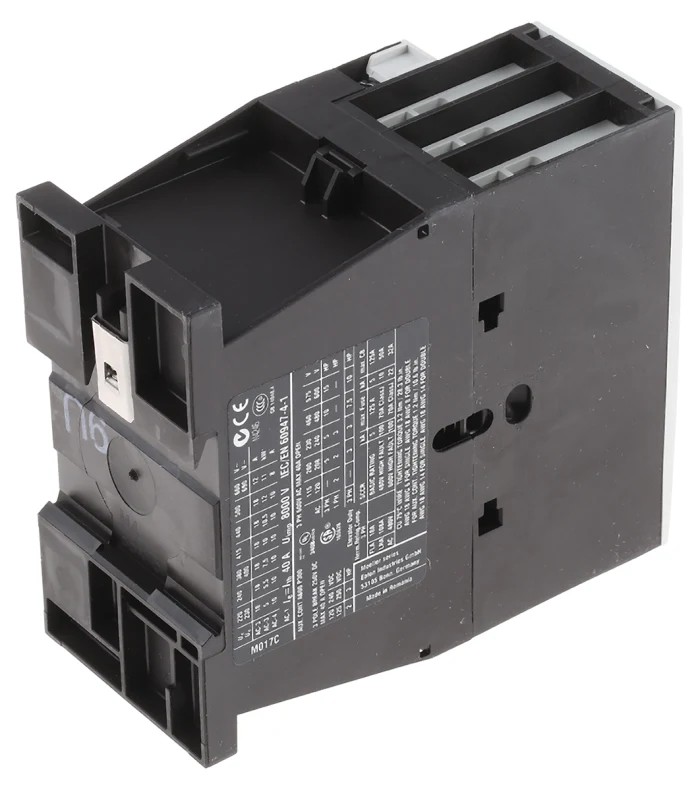

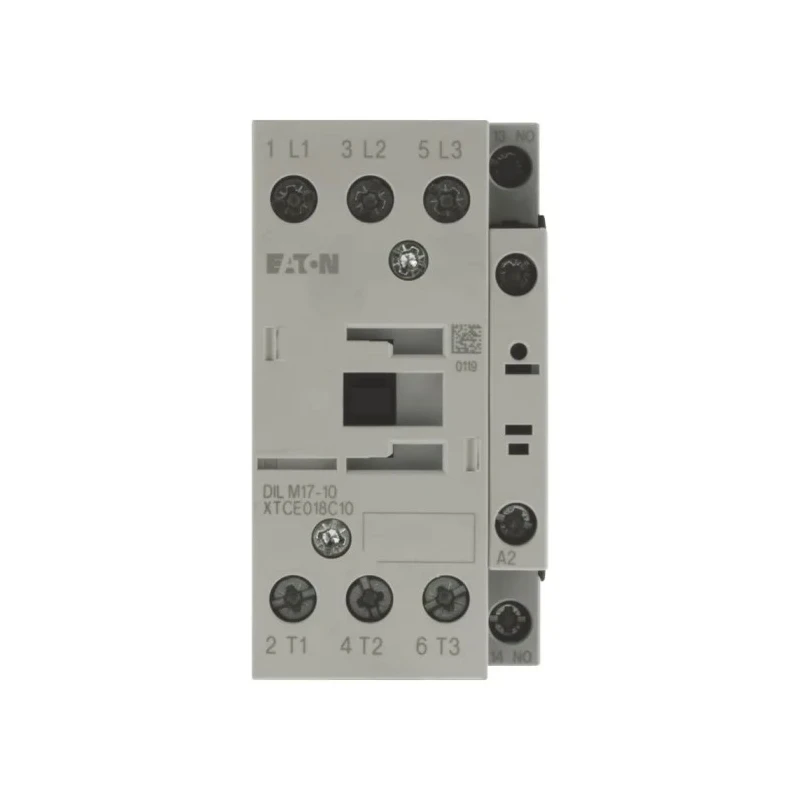

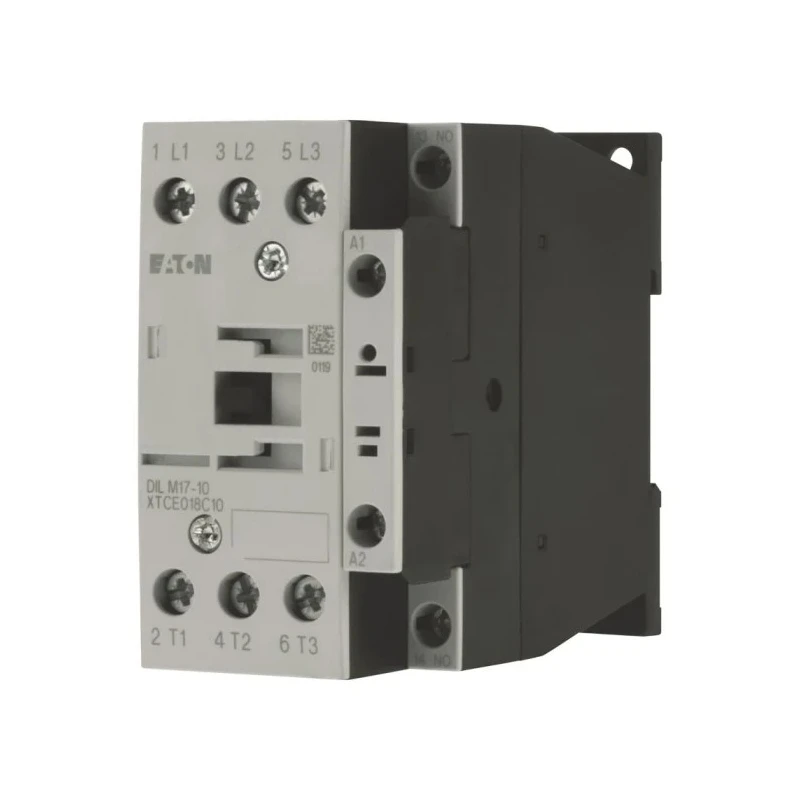

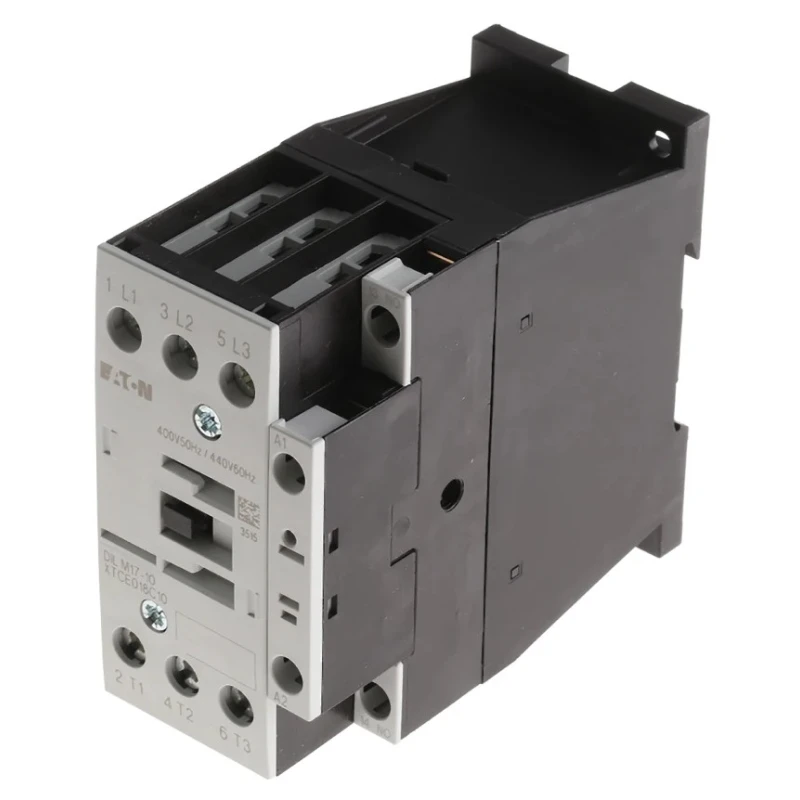

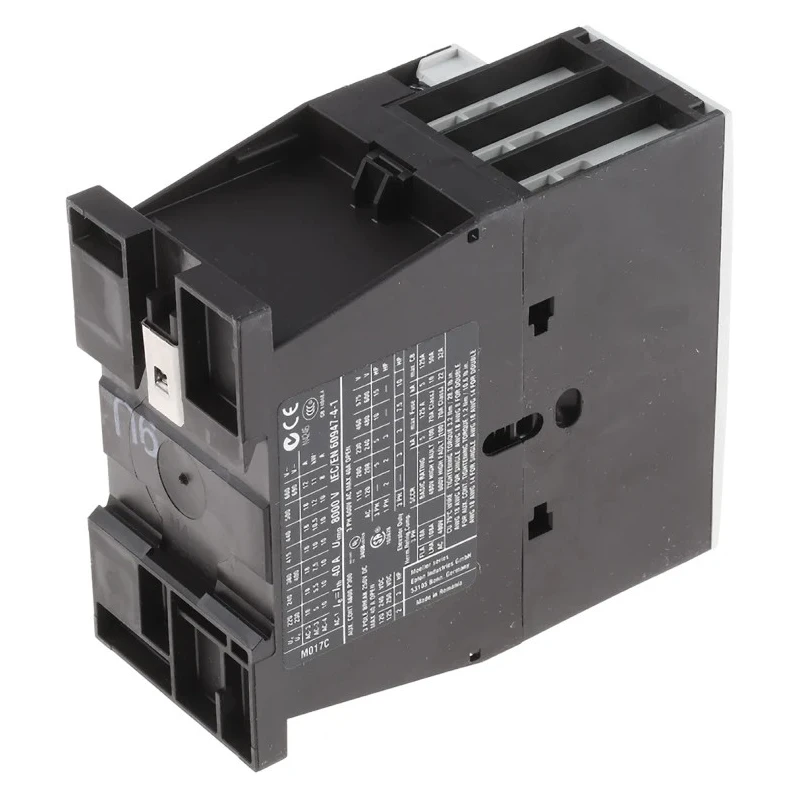

Eaton 277006 DILM17-10(400V50HZ,440V60HZ) Contactor is a high-quality 3-pole electrical device designed for effective motor control and resistive load applications. It features a coil voltage of 400V AC and delivers a rated current of 17 A with a power rating of 7.5 kW, making it suitable for demanding industrial environments.

This contactor is mounted using screw terminals, ensuring a secure and reliable connection. Its robust design supports operational current up to 18 A and performs efficiently across a temperature range of -25°C to 40°C. The compact size with dimensions of 85 mm (L) x 45 mm (W) x 97 mm (D) allows installation in confined spaces without sacrificing performance.

The unit has a normal state configuration of 3 normally open (3 NO) contacts, making it ideal for switching multiple circuits in motor control applications. It supports a high operating frequency of up to 5000 operations per hour and boasts a mechanical lifespan of approximately 10 million operations, providing durability and reliability for industrial use.

This contactor meets stringent international standards including CSA, IEC/EN 60947, UL, and VDE 0660, ensuring compliance for various industrial and electrical applications.

Eaton, formerly known as Moeller, offers quality assurance and trusted performance with this model. It is widely used in industrial automation, manufacturing, and motor control systems where precision and durability are essential.

Provides reliable motor control for resistive loads. Screw terminal mounting for easy installation. Wide operating temperature range supports diverse environments. Compact size maximizes space efficiency. Supports high operational current and frequency.

Long mechanical lifespan for industrial reliability. Meets multiple international safety and performance standards. Explore EnvMart's range of Contactors and automation equipment to enhance your industrial and electrical setups with reliable and certified products.
