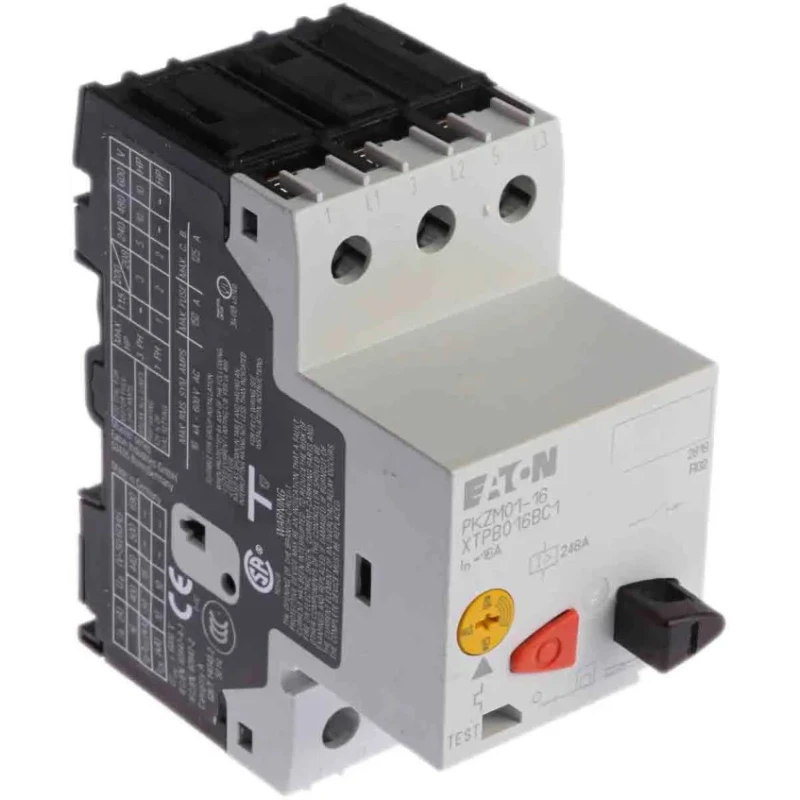

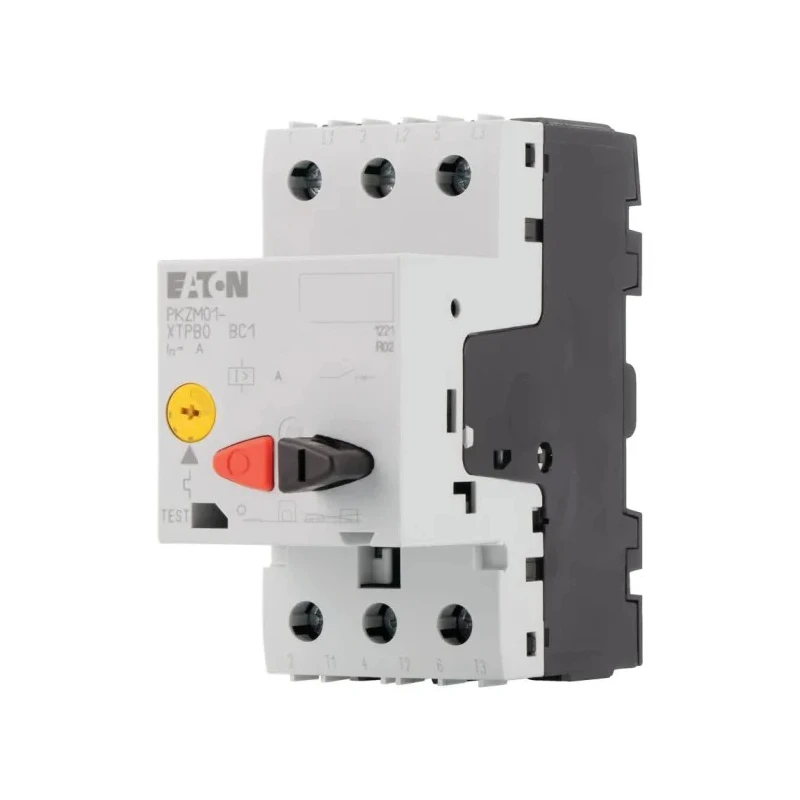

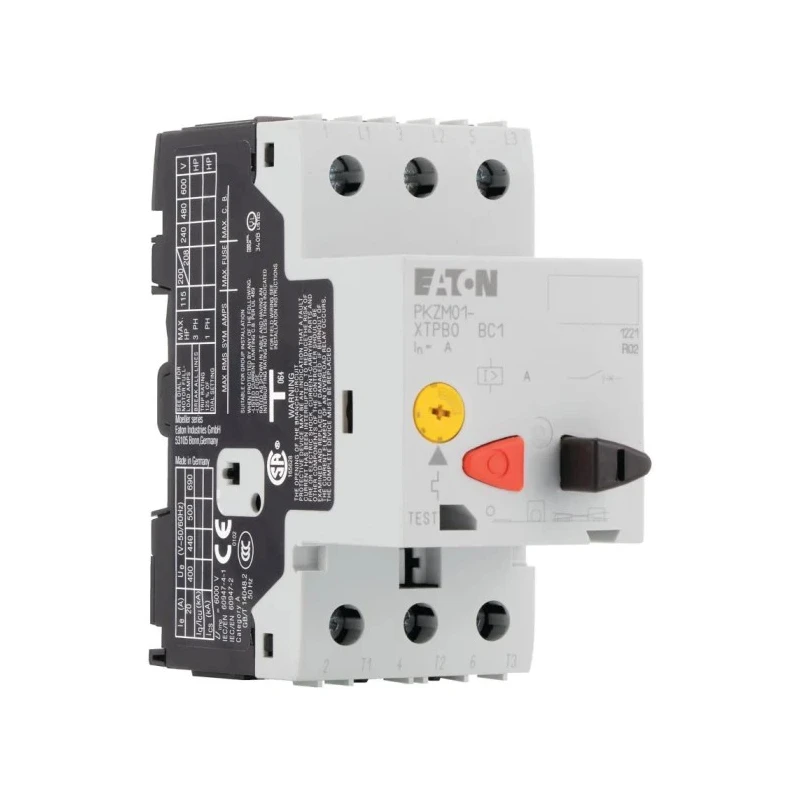

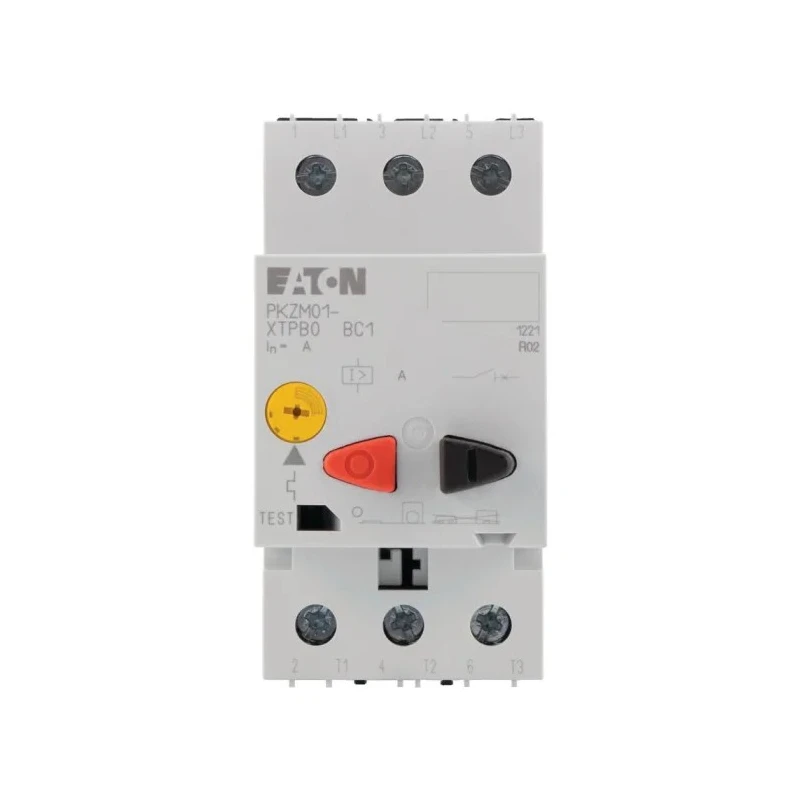

Eaton Motor Protection Circuit Breaker PKZM 01 Series 10A to 16A 690V AC 3 Pole 93x45x90.5mm IP20 Rated 283390 PKZM01-16
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 283390 PKZM01-16 |
| IP Rating | IP20, IP00 |
| Overall Length | 93mm |
| Current Rating | 10, 16A |
| Series | PKZM 01 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current Transformer |
| Supply Voltage | 690V ac |
| Number of Poles | 3 |
| Overall Depth | 90.5mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
Key Features
- Offers phase-failure sensitivity for enhanced motor protection.
- High breaking capacity of 50kA to effectively manage fault conditions.
- Durably designed for up to 50,000 operational cycles.
- Compact dimensions of 93mm length, 45mm width, and 90.5mm depth.
- Rated IP20 for terminal protection against contact and environmental effects.
- Works efficiently in operating temperatures from -25°C to 55°C.
- Equipped with screw terminal connections for easy and secure installation.
- Compatible with various motor types, including efficiency class IE3 motors.
Product Description
Eaton 283390 PKZM01-16 Motor Protection Circuit Breaker is a high-quality device designed to safeguard three-phase motors operating with supply voltages up to 690V AC. This circuit breaker belongs to the PKZM 01 series, known for providing superior motor protection in industrial and commercial settings.
It offers phase-failure sensitivity, ensuring dependable protection against motor faults caused by overloads, short circuits, and phase loss. The breaker supports operational currents in the range of 10A to 16A and features a high breaking capacity of 50kA, enabling it to safely interrupt fault currents and protect connected electrical equipment.
Manufactured for durability, the device supports up to 50,000 operations, promoting long service life. Its compact form factor with dimensions 93mm (L) x 45mm (W) x 90.5mm (D) allows convenient installation even in space-constrained control panels.
The breaker is rated IP20, providing protection against accidental contact with hazardous parts through the terminals, enhancing operational safety. It operates reliably in ambient temperatures from -25°C up to 55°C, supporting diverse environmental installation conditions.

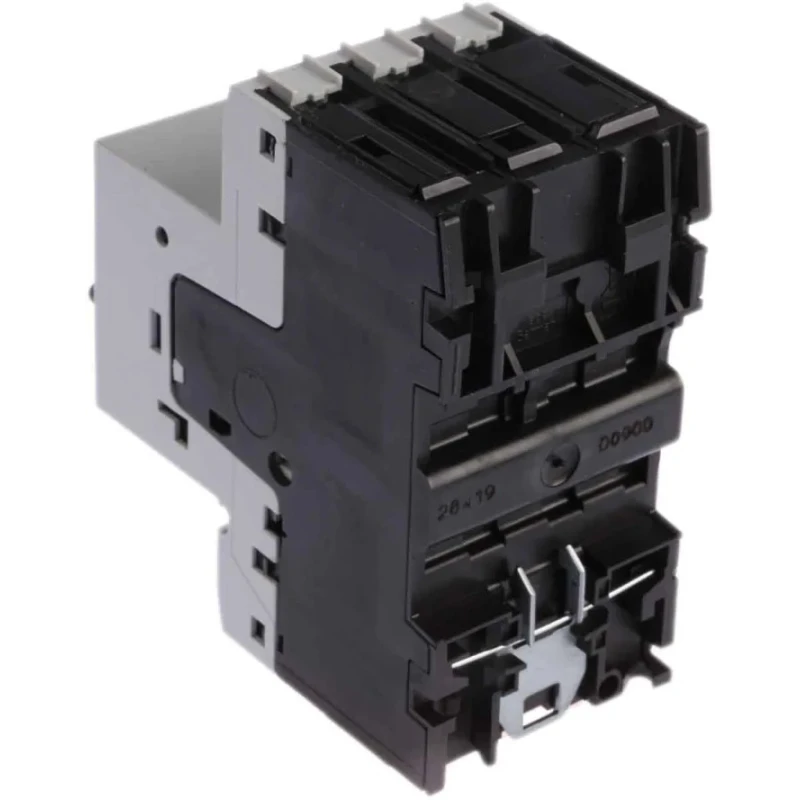

Installation is simplified with screw terminal connections, and the device is designed for mounting on IEC/EN 60715 top-hat rails, ensuring compatibility with common industrial panel configurations. Eaton's PKZM01-16 model is suitable for use with motors of various types, including those conforming to IE3 efficiency standards.
Phase-failure sensitivity for reliable motor protection. Overload release current setting from 10A to 16A. High breaking capacity at 50kA for fault management. Compact dimensions enhance panel compatibility. IP20 rating for terminal safety and environmental protection.
Wide operating temperature range from -25°C to 55°C. Screw terminal connections for straightforward wiring. Mountable on standard IEC/EN 60715 top-hat rails. Compatible with various motor types including IE3 efficiency class.
This motor protection circuit breaker is ideal for industrial automation systems, control panels, and manual circuit protection applications across manufacturing, HVAC, and electrical distribution sectors. Its German origin underscores its high engineering quality.
Browse more Motor Protection Circuit Breakers and Eaton brand products at EnvMart for reliable performance and safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PKZM01-16 circuit breaker supports operational currents in the range of 10A to 16A.
It is designed to operate with supply voltages up to 690V AC.
The dimensions of this model are 93mm in length, 45mm in width, and 90.5mm in depth.
The PKZM01-16 has an IP20 rating, providing protection against accidental contact with hazardous parts through the terminals.
It operates reliably in ambient temperatures from -25°C to 55°C.
This motor protection circuit breaker features 3 poles.
It is equipped with screw terminal connections for easy and secure installation.
The device is designed for up to 50,000 operational cycles, promoting a long service life.
It has a high breaking capacity of 50kA, enabling it to safely interrupt fault currents.
Yes, it is compatible with various motor types, including those conforming to IE3 efficiency standards.
The PKZM01-16 is manufactured in Germany.
It provides motor protection through a circuit breaker system, ensuring protection against overloads, short circuits, and phase loss.
