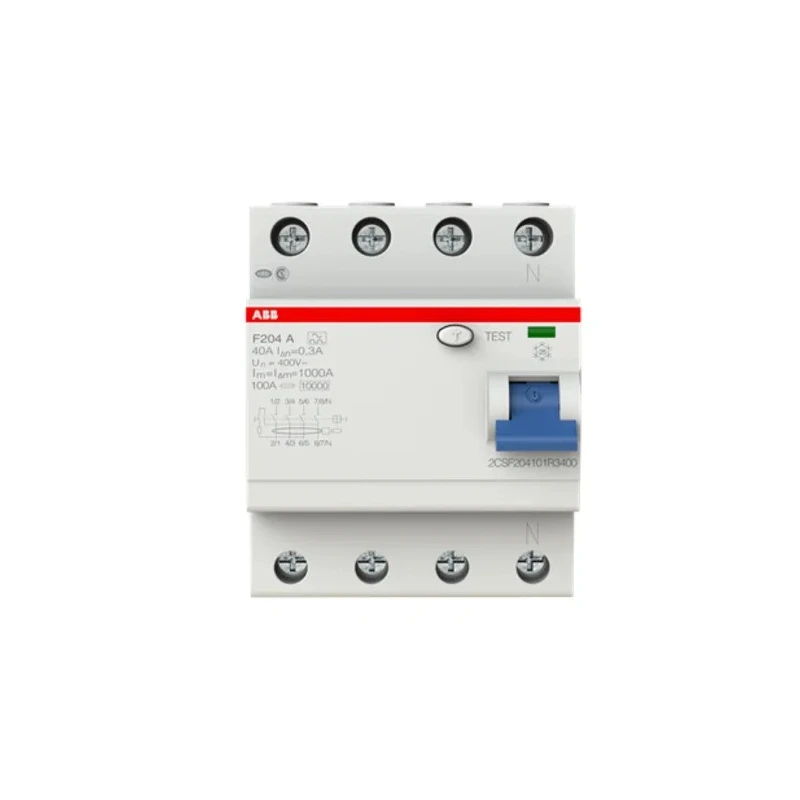

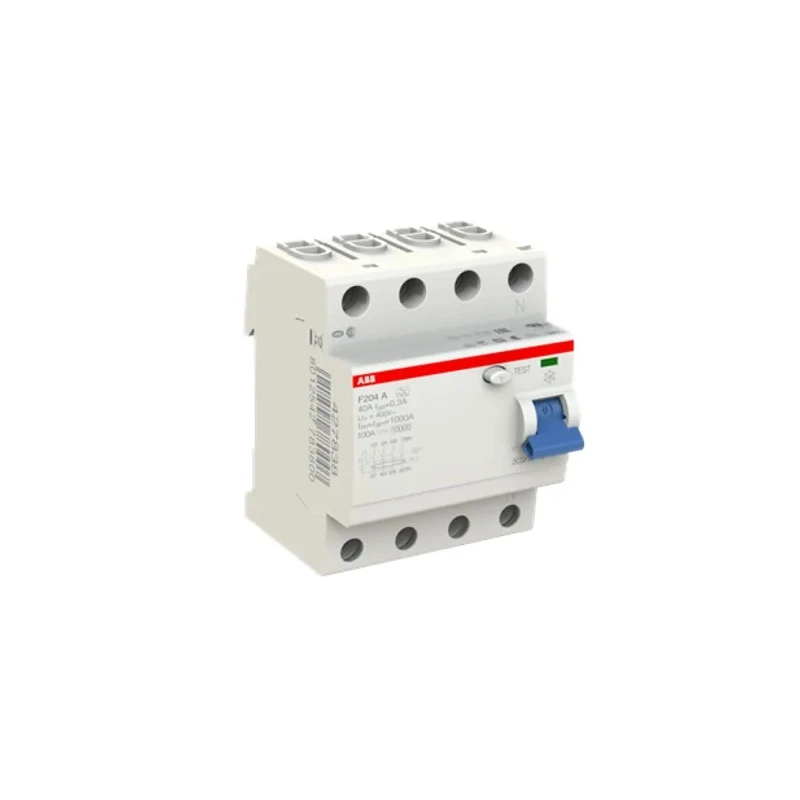

ABB F200 Series Residual Current Circuit Breaker 40A 4-Pole 300 mA Type A 480V AC 2CSF204101R3400 - F204A-40/0.3

Free Delivery in India | Lowest Global Shipping Charges

ABB F200 Series Residual Current Circuit Breaker 40A 4-Pole 300 mA Type A 480V AC 2CSF204101R3400 - F204A-40/0.3



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	2CSF204101R3400 - F204A-40/0.3
Depth	69mm
Width	70mm
Mount Type	DIN Rail
Current Rating	40A
Series	F200
Terminal type	Screw
Breaking Capacity	0.3A
Number of Poles	4
Standards/Approvals	IEC/EN 61008
Rated AC Voltage	480V ac
Tripping Characteristics	Type A
Reset Actuator Type	Toggle Switch
Trip Sensitivity	300mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Provides reliable earth leakage protection with 300 mA sensitivity.
Compact 4-pole design suits many electrical installations.
Type A tripping for AC and pulsating DC fault detection.
Toggle switch actuator offers clear contact position indication.
Screw terminal type ensures secure electrical connections.
Mounts easily on DIN rail for convenient installation.
Durable plastic housing insulates live parts enhancing safety.
Electrical lifespan rated at 10,000 cycles for durability.

Product Description

ABB 2CSF204101R3400 - F204A-40/0.3 Residual Current Circuit Breaker (RCCB) from the F200 Series is specifically engineered for enhanced earth leakage protection in electrical systems.

This 4-pole RCCB offers a current rating of 40A and a trip sensitivity of 300 mA making it suitable for residential, commercial, and industrial applications. It is designed to detect AC and pulsating DC fault currents with Type A tripping characteristics, providing reliable safety against electric shocks and fire hazards.

The unit features a toggle switch actuator for clear status indication and is equipped with screw terminals for secure wiring connections. Its compact form factor with dimensions of 85 mm height, 70 mm width and 69 mm depth allows easy integration into distribution boards, even in densely packed panels. The breaker mounts easily on standard DIN rails, simplifying installation.

Constructed from durable plastic, the housing electrically insulates the live components and contributes to overall user safety. This model offers a long electrical life cycle of 10,000 operations and performs reliably within an ambient temperature range of -25°C to +55°C, accommodating a wide range of environmental conditions.

Application areas include distribution boards, telecommunications networks, medical imaging systems, construction sites, and packaging lines where protection against earth leakage faults is critical.

Provides reliable earth leakage protection with 300 mA sensitivity. Compact 4-pole design suits many electrical installations. Type A tripping for AC and pulsating DC fault detection. Toggle switch actuator offers clear contact position indication.

Screw terminal type ensures secure electrical connections. Mounts easily on DIN rail for convenient installation. Durable plastic housing insulates live parts enhancing safety. Electrical lifespan rated at 10,000 cycles for durability.

Operates effectively from -25°C to +55°C ambient temperature. Compact dimensions enable fitting in space-limited distribution boards. Complies with IEC/EN 61008 safety standards.

This RCCB from ABB’s F200 series is built to perform under demanding industrial and commercial environments, providing critical earth fault protection. Browse our wide range of ABB electrical components and circuit breakers for various industrial automation and electrical distribution needs on EnvMart.
