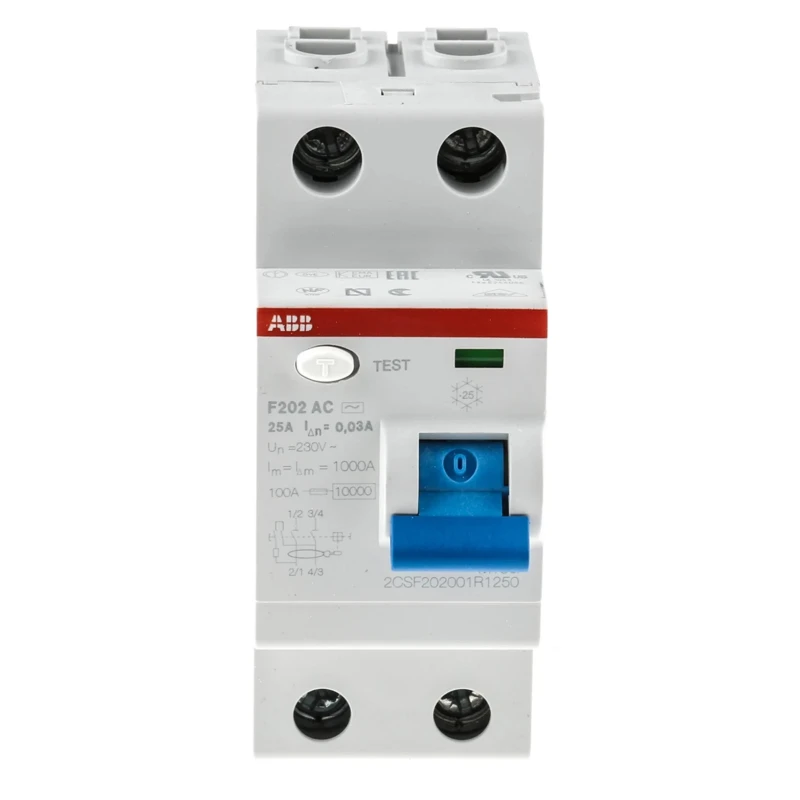

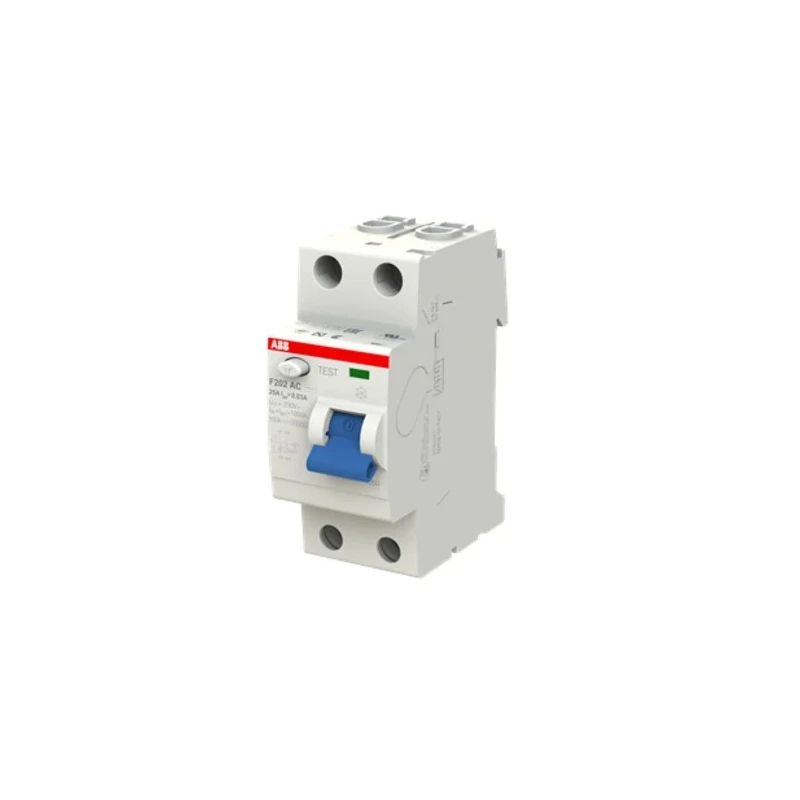

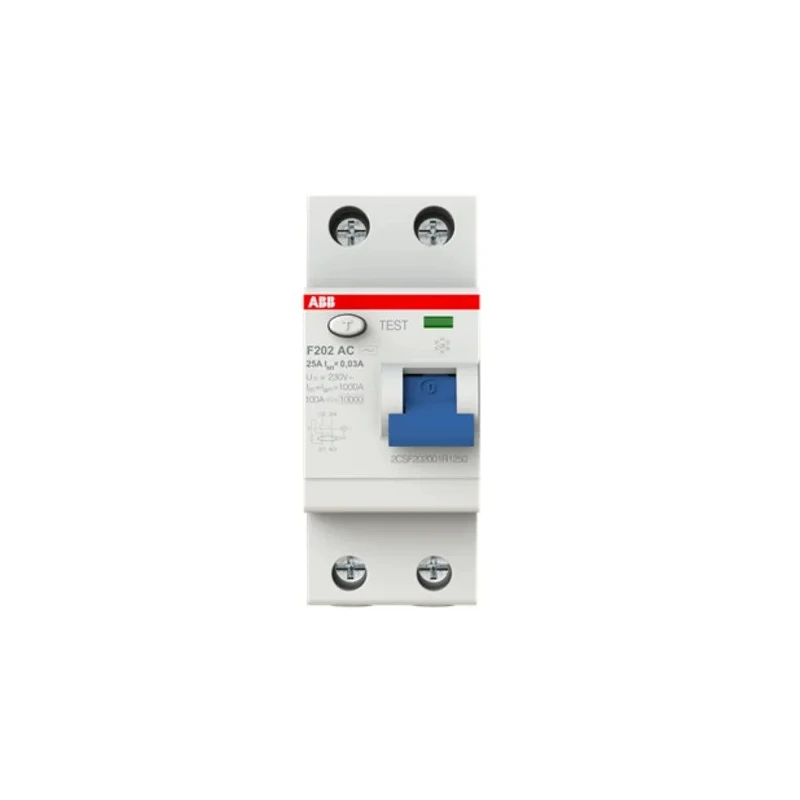

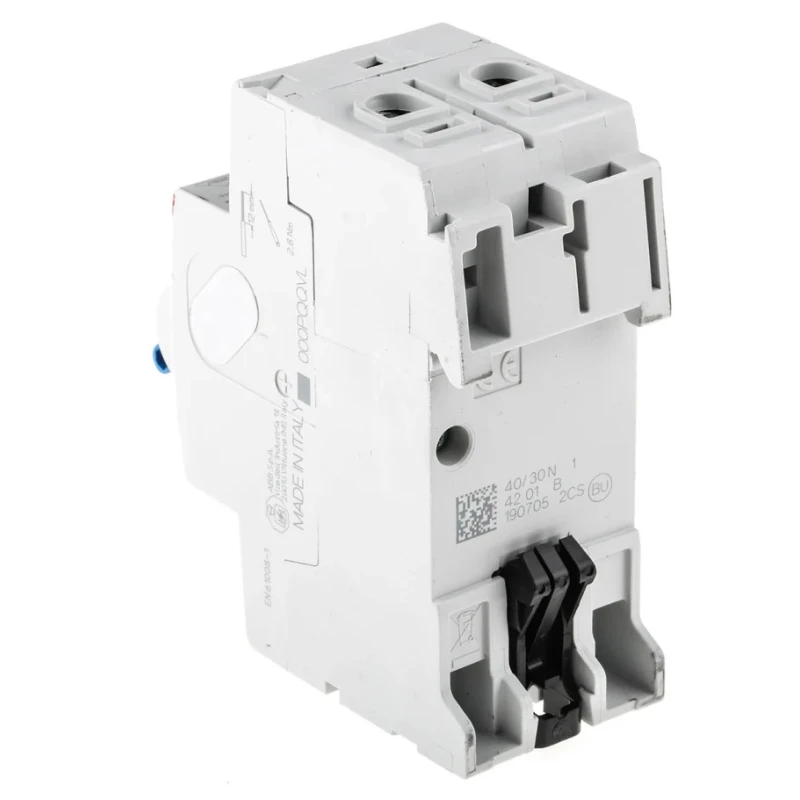

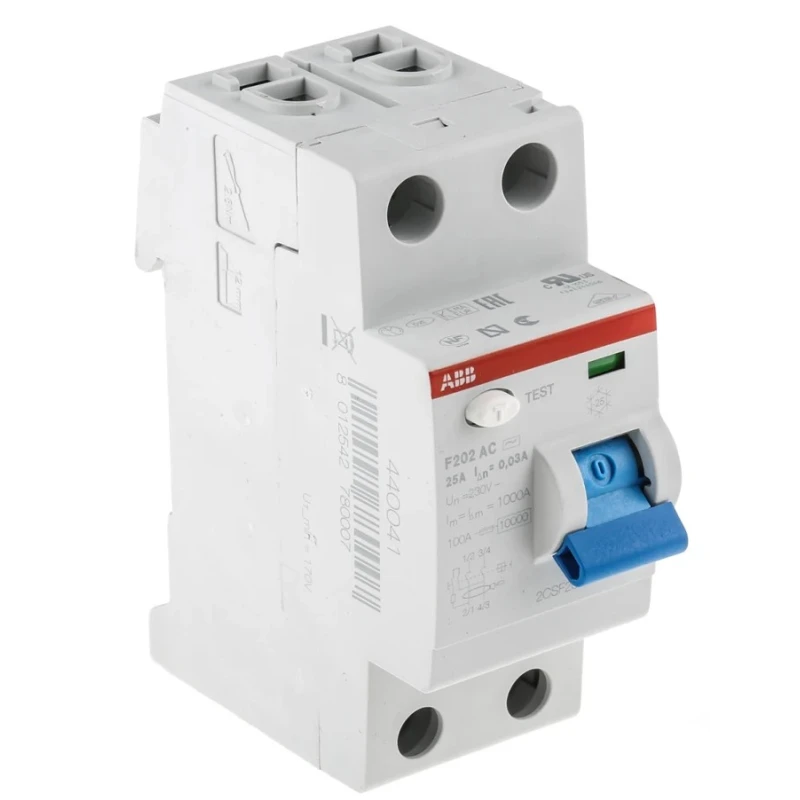

ABB F200 Series Residual Current Circuit Breaker 25A 2-Pole 30mA Type AC 230V AC 2CSF202001R1250 F202 AC-25/0,03

Free Delivery in India | Lowest Global Shipping Charges

ABB F200 Series Residual Current Circuit Breaker 25A 2-Pole 30mA Type AC 230V AC 2CSF202001R1250 F202 AC-25/0,03



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	2CSF202001R1250 F202 AC-25/0,03
Depth	85mm
Width	35mm
Mount Type	DIN Rail
Current Rating	25A
Series	F200
Terminal type	Screw
Breaking Capacity	0.03A
Number of Poles	2
Standards/Approvals	CE
Rated AC Voltage	230V ac
Tripping Characteristics	Type AC
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC

Key Features

Designed for 2-pole DIN rail mounting with screw terminals for secure installation.
Instantaneous break time ensures rapid disconnection to prevent electric shock.
Compact dimensions of 85mm height, 85mm depth, and 35mm width aid in space saving.
IP2X rated for protection against ingress of small solid objects preventing contact with live parts.
Capable of withstanding voltage surges up to 4kV, ensuring device safety under transient conditions.
Equipped with a toggle switch reset actuator for easy manual reset after tripping.
Suitable for applications including frequency converters, UPS systems, and medical equipment.

Product Description

ABB 2CSF202001R1250 F202 AC-25/0,03 Residual Current Circuit Breaker is a high-quality protective device designed to ensure electrical safety by detecting earth leakage currents of 30mA in AC systems. It features a rated current of 25A and operates at 230V AC in a 2-pole configuration.

With a compact form factor measuring 85mm in height and depth and 35mm in width, the device is suitable for installations where space optimization is critical. The DIN rail mount and screw terminal design enable quick and reliable mounting and wiring.

Thanks to its instantaneous break time, this circuit breaker promptly disconnects the circuit upon detection of earth leakage, thereby preventing electrocution and electrical fires. The unit is IP2X rated, providing protection against accidental contact with live internal components and ingress of solid foreign objects greater than 12mm in diameter.

The breaker is capable of withstanding impulse voltages up to 4kV, offering robust surge protection in challenging electrical environments. The toggle switch actuator provides convenient manual reset functionality after a trip event.

This ABB F200 series RCCB finds applications in frequency converters, uninterruptible power supply (UPS) systems, medical equipment, and other sensitive electrical installations requiring precise earth leakage current monitoring.

Designed for 2-pole DIN rail mounting with screw terminals for secure installation. Instantaneous break time ensures rapid disconnection to prevent electric shock. Compact dimensions of 85mm height, 85mm depth, and 35mm width aid in space saving.

IP2X rated for protection against ingress of small solid objects preventing contact with live parts. Capable of withstanding voltage surges up to 4kV, ensuring device safety under transient conditions. Equipped with a toggle switch reset actuator for easy manual reset after tripping.

Suitable for frequency converters, UPS systems, and medical equipment applications. EnvMart offers this ABB Residual Current Circuit Breaker as a dependable safety solution within electrical distribution and control setups.
