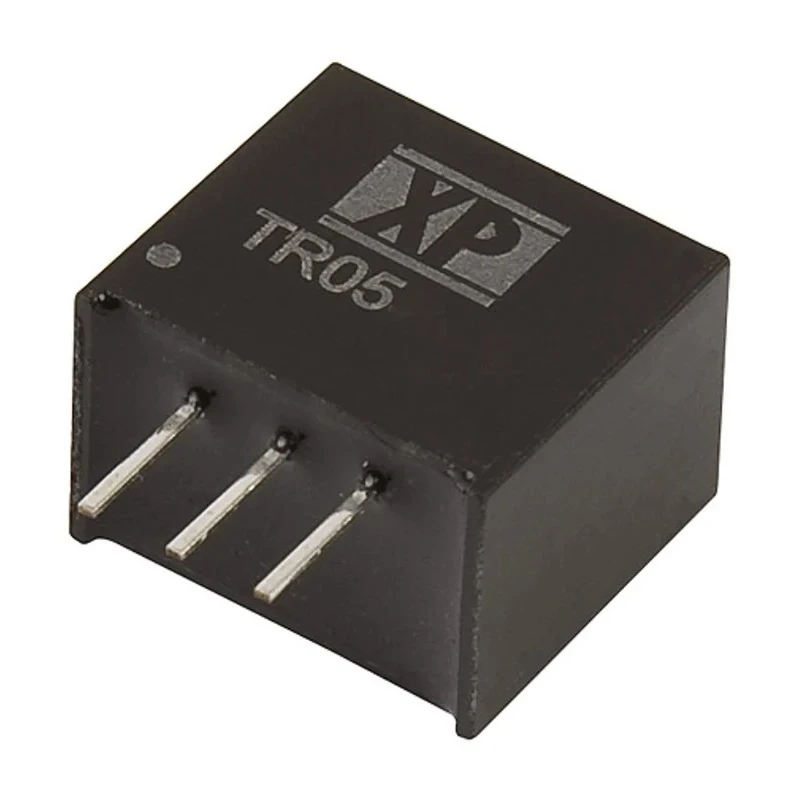

XP Power DC/DC Switching Regulator Through Hole 3.3V 1.65W 500mA Output TR05S3V3

Free Delivery in India | Lowest Global Shipping Charges

XP Power DC/DC Switching Regulator Through Hole 3.3V 1.65W 500mA Output TR05S3V3

Name: XP Power DC/DC Switching Regulator Through Hole 3.3V 1.65W 500mA Output TR05S3V3
Brand: XP Power
SKU: 189773
Price: 6.86 USD
Availability: InStock



Category Switching Regulator Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Brand	XP Power
Power	1.65W
Efficiency	89%
Length	11.68mm
Model	TR05S3V3
Depth	10.15mm
Gross Weight	1.8g
Width	7.5mm
Mount Type	Through Hole
Series	TR
Output Current	500mA
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.8 %
Minimum Operating Temperature	-40°C
MTBF	4mH
Number of outputs	1
Ripple and Noise	60mV Pk-Pk
Maximum Input Voltage	28V dc
Line Regulation	±0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	4.5V
Output Voltage 1	3.3V dc

Key Features

Operates with a wide input voltage range from 4.5 V to 28 V dc.
Delivers a continuous output power of 1.65 W suitable for compact power designs.
Features an industry standard SIP package for easy PCB through-hole mounting.
Offers high efficiency up to 94% to reduce power dissipation.
Includes continuous short-circuit protection ensuring reliable performance.
Has a low ripple and noise of 60 mV peak-to-peak for stable output voltage.
Operating temperature range from -40 °C to +85 °C supports harsh environments.
Pin compatible with LM78MXX series for design flexibility.

Product Description

XP Power TR05S3V3 DC/DC Switching Regulator is a reliable through-hole switching regulator designed for compact power supply applications requiring 3.3 V dc output at 500 mA current.

This regulator operates efficiently over a wide input range of 4.5 V to 28 V dc enabling flexible usage in various voltage environments. It is housed in an industry standard SIP package that facilitates easy through-hole PCB mounting, ideal for industrial, electronic, and embedded system uses.

Featuring continuous short-circuit protection, the device ensures safety and durability in demanding conditions. The low ripple and noise of 60 mV peak-to-peak provide stable voltage output for sensitive circuits.

The unit operates between -40 °C and +85 °C, making it suitable for industrial and commercial electronic equipment exposed to temperature variations. Wide input voltage range from 4.5 V to 28 V dc. Output voltage of 3.3 V dc with 500 mA output current supply.

1.65 watts output power with high efficiency up to 94%. Industry standard Through Hole SIP package supporting easy installation. Continuous short-circuit protection enhances device reliability. Low ripple and noise at 60 mV peak-to-peak for clean output.

Operating temperature from -40°C to +85°C for extended environmental tolerance. Pin compatible with LM78MXX series voltage regulators. Compact dimensions: Length 11.68 mm, Width 7.5 mm, Depth 10.15 mm. Product complies with RoHS and is manufactured in Taiwan, Province of China.

This product is widely used in electronic components, power supplies, voltage converters, industrial controls, telecommunications, and laboratory equipment, providing precise voltage regulation and efficient power management.
